Description

•


  Technical Specifications – PRIMAX Galaxy DUAL PV6500+ (5.6KW)
  Model	Galaxy DUAL PV6500+ PRO
  Rated Output Power	5600W / 6500VA
  Inverter Type	Hybrid (On-Grid / Off-Grid)
  Output Waveform	Pure Sine Wave
  Battery Voltage	48V DC
  Battery Compatibility	Lithium-ion, Lead-Acid (AGM, GEL)
  Dual MPPT PV Input	Yes – Up to 6500W (e.g. 3250W + 3250W)
  MPPT Charging Current	120A
  MPPT Voltage Range	90V – 450VDC
  Startup Voltage	90VDC
  AC Input Voltage Range	90V – 280V AC
  Batteryless Operation	Supported
  Monitoring Options	WiFi & GPRS (Optional)
  Mobile App Support	Android & iOS
  User Interface	Touch Buttons + RGB Light Display
  Communication Ports	USB, RS232, Dry Contact
  Cooling System	Smart Fan Cooling
  Protection Features	Overload, Short Circuit, Overcharge, Deep Discharge, Overheat
  Dust Protection	Anti-Dust Kit Installed
  Reset Option	One-Key Factory Reset
  Application	Homes, Shops, Offices, Mid-Sized Solar Systems
  Warranty	2 Years Standard

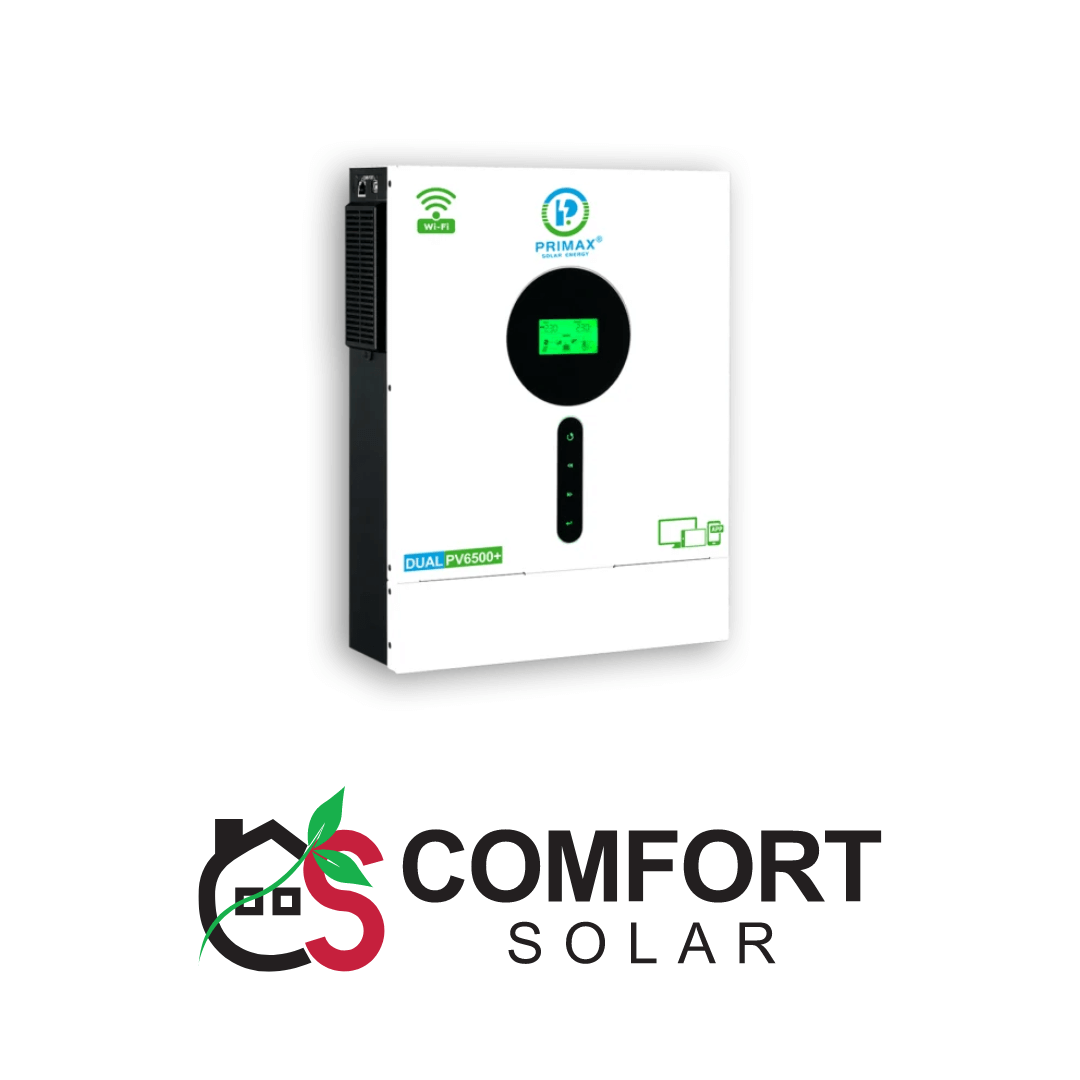

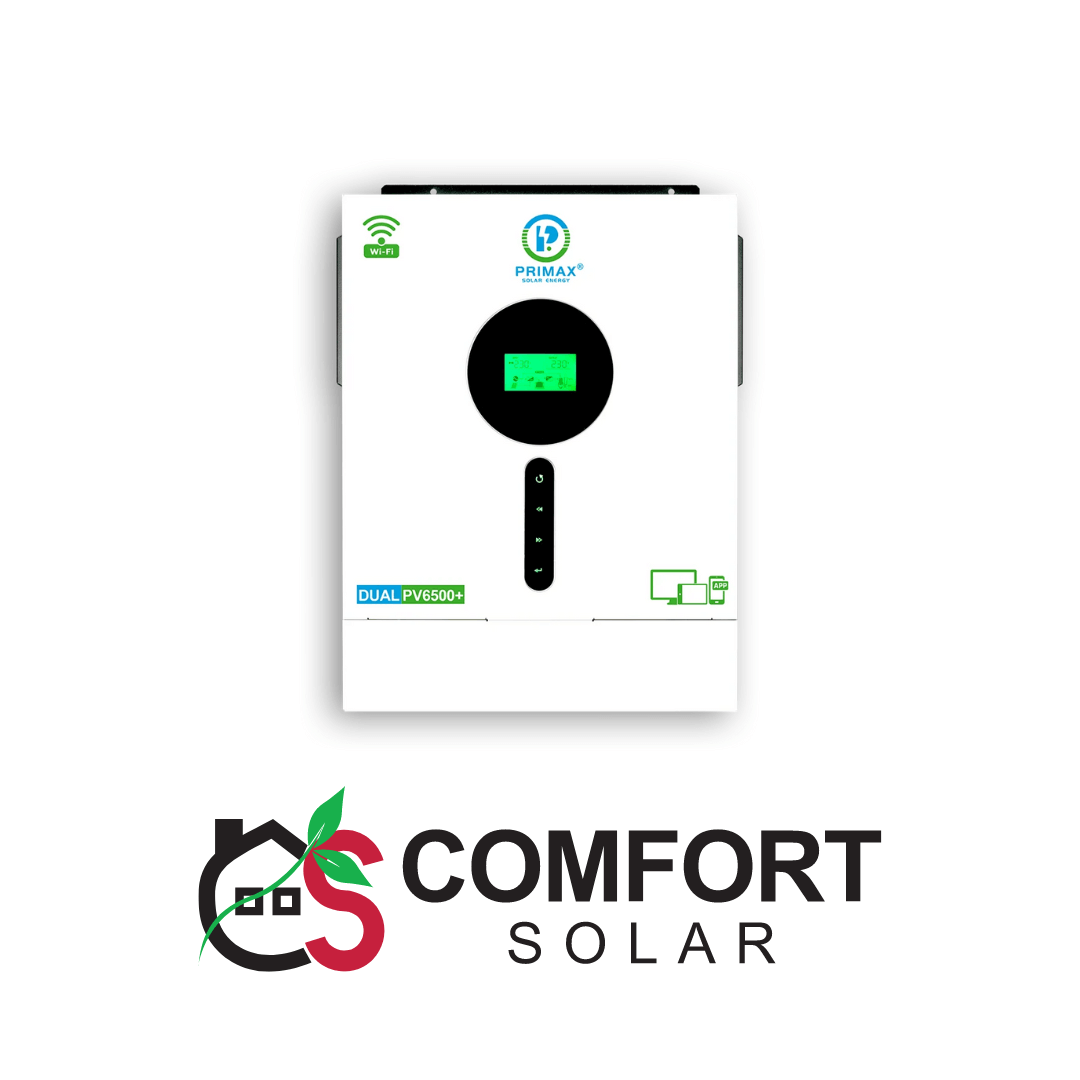

  HYBRID SOLAR INVERTER – GALAXY DUAL PV6500+ 5.6KW

  Explore the advanced features of the HYBRID SOLAR INVERTER – GALAXY DUAL PV6500+ 5.6KW available at Comfort Solar. This inverter is designed to deliver efficient, reliable, and intelligent energy management solutions for both residential and commercial applications.Key Features:

  • Rated Power: 5600VA/5600W ensures robust energy supply.
  • Dual Outputs: Smart load management for optimized energy distribution.
  • Maximum PV Input Current: 27A, supporting up to 5000W of solar input.
  • Wide PV Input Voltage Range: Operates from 60VDC to 450VDC, maximizing solar harvesting efficiency.
  • Built-in WiFi: Enables mobile monitoring via Android/iOS apps for remote management convenience.
  • Reserved Communication Port: Supports RS485, CAN-BUS, or RS232 for seamless integration with Battery Management Systems (BMS).
  • Maximum Charging Current: Handles up to 120A for rapid battery charging.
  • Battery Independent Design: Offers flexibility in battery choice and configuration.
  • Feed-in to the Grid with Storage Backup: Ensures continuous power supply with grid connectivity and storage capabilities.
  • Battery Equalization Function: Optimizes battery performance and extends battery life cycle.
  • Built-in Anti-dust Kit: Maintains optimal performance in varied environmental conditions.
  • Maximum AC Output: 3600W for stable and reliable electricity supply.

  Detailed Specifications:

  • Input:
    • Voltage: 230VAC
    • Selectable Voltage Range: 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances)
    • Frequency Range: 50Hz/60Hz (Auto Sensing)
  • Output:
    • AC Voltage Regulation (Batt. Mode): 230VAC ± 10%
    • Surge Power: 11200VA for handling peak loads efficiently
    • Efficiency (Peak): 93% ensures high energy conversion efficiency
    • Transfer Time: 10ms (For Personal Computers), 20ms (For Home Appliances)
    • Waveform: Pure Sine Wave for safe and stable operation of sensitive electronics
  • Battery:
    • Battery Voltage: 48VDC
    • Floating Charge Voltage: 54VDC
    • Overcharge Protection: 63VDC
  • Solar Charger & AC Charger:
    • Solar Charger Type: MPPT
    • Maximum PV Array Open Circuit Voltage: 500VDC
    • Maximum PV Array Power: 6500W
    • MPPT Range @ Operating Voltage: 60 ~ 450 VDC
    • Maximum Solar Charge Current: 120A
    • Maximum AC Charge Current: 100A
    • Maximum Charge Current: 120A
  • Physical Specifications:
    • Dimensions (DWH): 107 x 322.6 x 420.3 mm
    • Net Weight: 10.5 kg
    • Communication Interface: USB/RS232 for versatile connectivity
  • Operating Environment:
    • Humidity: 5% to 95% Relative Humidity (Non-condensing)
    • Operating Temperature: -10°C to 50°C
    • Storage Temperature: -10°C to 60°C

  Why Choose Comfort Solar?

  Comfort Solar is committed to providing top-tier solar solutions that simplify energy needs while ensuring sustainability. Invest in the HYBRID SOLAR INVERTER – GALAXY DUAL PV6500+ 5.6KW to achieve long-term energy efficiency and reliability.

  Call to Action:

  Ready to upgrade to an advanced hybrid solar inverter? Visit Comfort Solar today to learn more about our products. For inquiries or to place an order, contact us via WhatsApp at +92 3166225526. Take the step towards sustainable energy solutions with Comfort Solar!
  The price of PRIMAX HYBRID SOLAR INVERTER – GALAXY DUAL PV6500+ 5.6KW is Rs.145000 in Pakistan as of 29 May 2025.
