₨ 265,000
Due to high market volatility, prices for our products are subject to change.
The actual price will be provided once the customer contacts our sales representative via WhatsApp.
The product will be dispatched only after a partial deposit is made in our business account.
Looking for more than just solar equipment? Comfort Solar designs and installs customized on-grid, hybrid, and off-grid solar systems for homes and businesses in Islamabad, Rawalpindi, Wah Cantt, Taxila, and nearby areas. Visit our Solar Installation Services page or book a free indicative quotation today.
| Model | Nitrox 3KW |
|---|---|
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range (V) | 20-30 |
| Max. Charging Current (A) | 140 |
| Max. Discharging Current (A) | 140 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS |
| Number of Battery Input | 1 |
| Max. DC Input Power (W) | 3900 |
| Max. DC Input Voltage (V) | 500 |
| Start-up Voltage (V) | 125 |
| MPPT Voltage Range (V) | 150-425 |
| Rated DC Input Voltage (V) | 370 |
| Max. Operating PV Input Current (A) | 18 |
| Max. Input Short-Circuit Current (A) | 27 |
| No. of MPP Trackers/ No. of Strings per MPP Tracker | 1/1 |
| Rated AC Input/Output Active Power(W) | 3000 |
| Max. AC Input/Output Apparent Power(VA) | 3300 |
| Rated AC Input/Output Current (A) | 13.7/13.1 |
| Max. AC Input/Output Current (A) | 15/14.4 |
| Max. Continuous AC Passthrough (grid to load) (A) | 35 |
| Peak Power (off-grid) (W) | 2 times of rated power, 10S |
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging |
| Rated Input/Output Voltage/Range (V) | 220/230 0.85Un-1.1Un |
| Rated Input/Output Grid Frequency/Range (Hz) | 50/45-55, 60/55-65 |
| Grid Connection Form | L+N+PE |
| Total Current Harmonic Distortion THDi | <3% (of nominal power) |
| DC injection current | In |
| Max. Efficiency | 97.6% |
| Euro Efficiency | 96.5% |
| Communication Interface | WIFI, RS485, CAN |
| Operating Temperature Range | -40 to +60 °C, >45°C Derating |
| Permissible Ambient Humidity | 0-100% |
| Permissible Altitude | 2000m |
| Noise (dB) | < 30 |
| Ingress Protection (IP) Rating | IP 65 |
| Inverter Topology | Non-isolated |
| Over Voltage Category | OVC I(DC), OVC III(AC) |
| Cabinet Size (WxHxD mm) | 376x470x241.5 (Excluding Connectors and Brackets) |
| Weight (Kg) | 17.6 |
| Type of Cooling | Natural Cooling |
| Warranty | 5 Years |
| Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 |
| Safety/EMC Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |

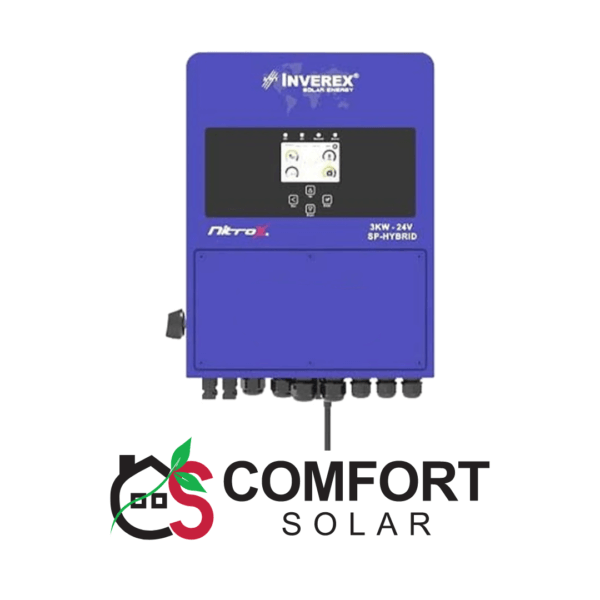

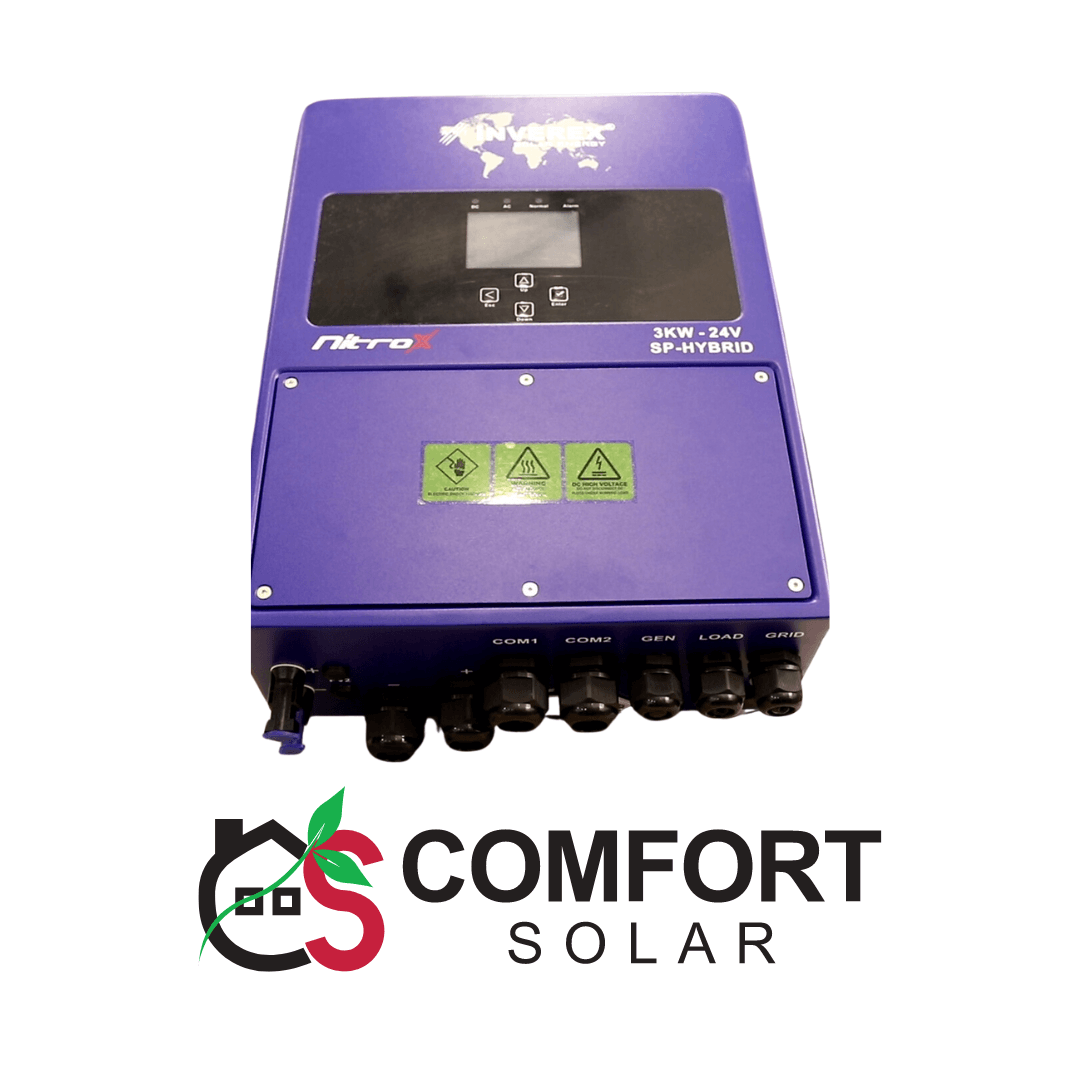

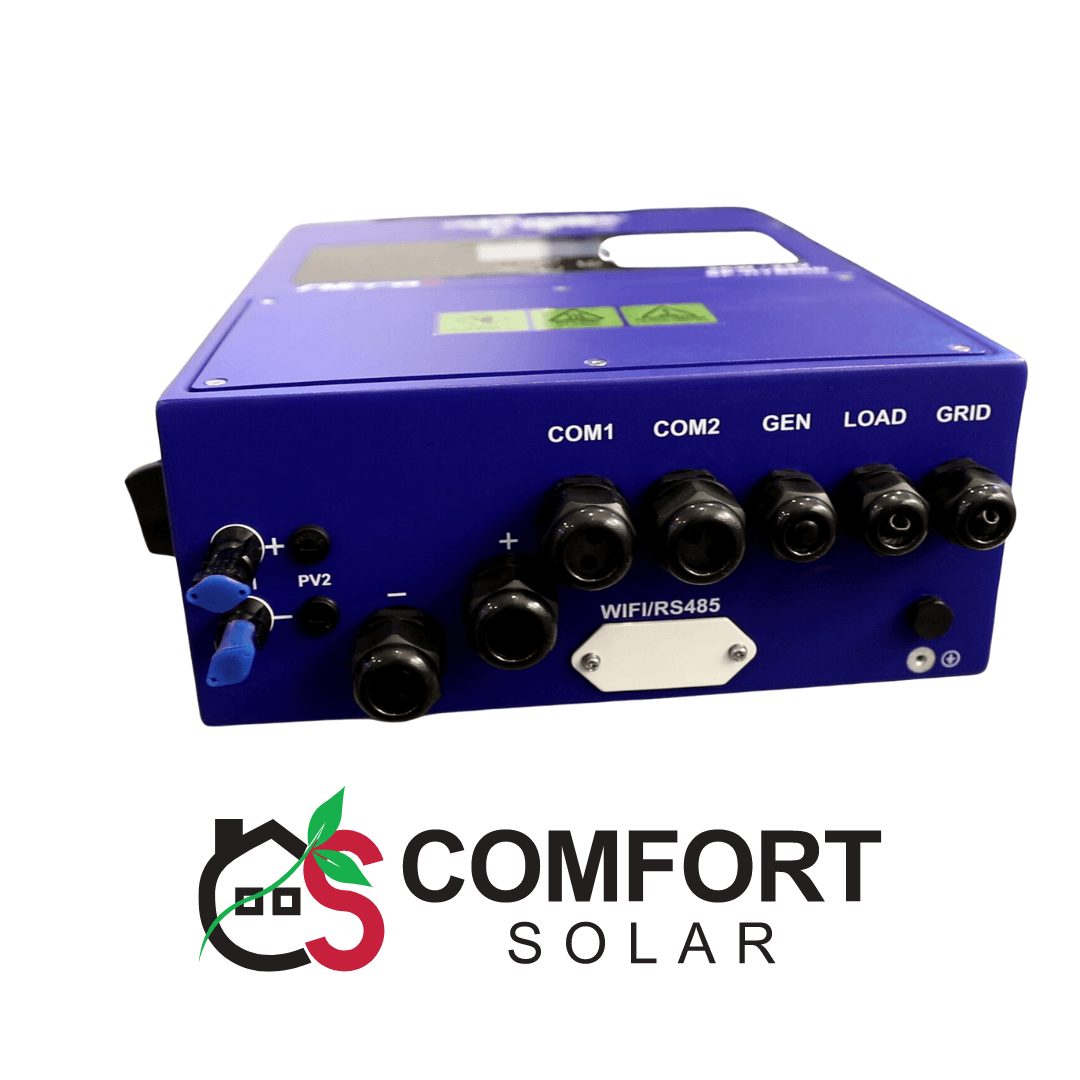

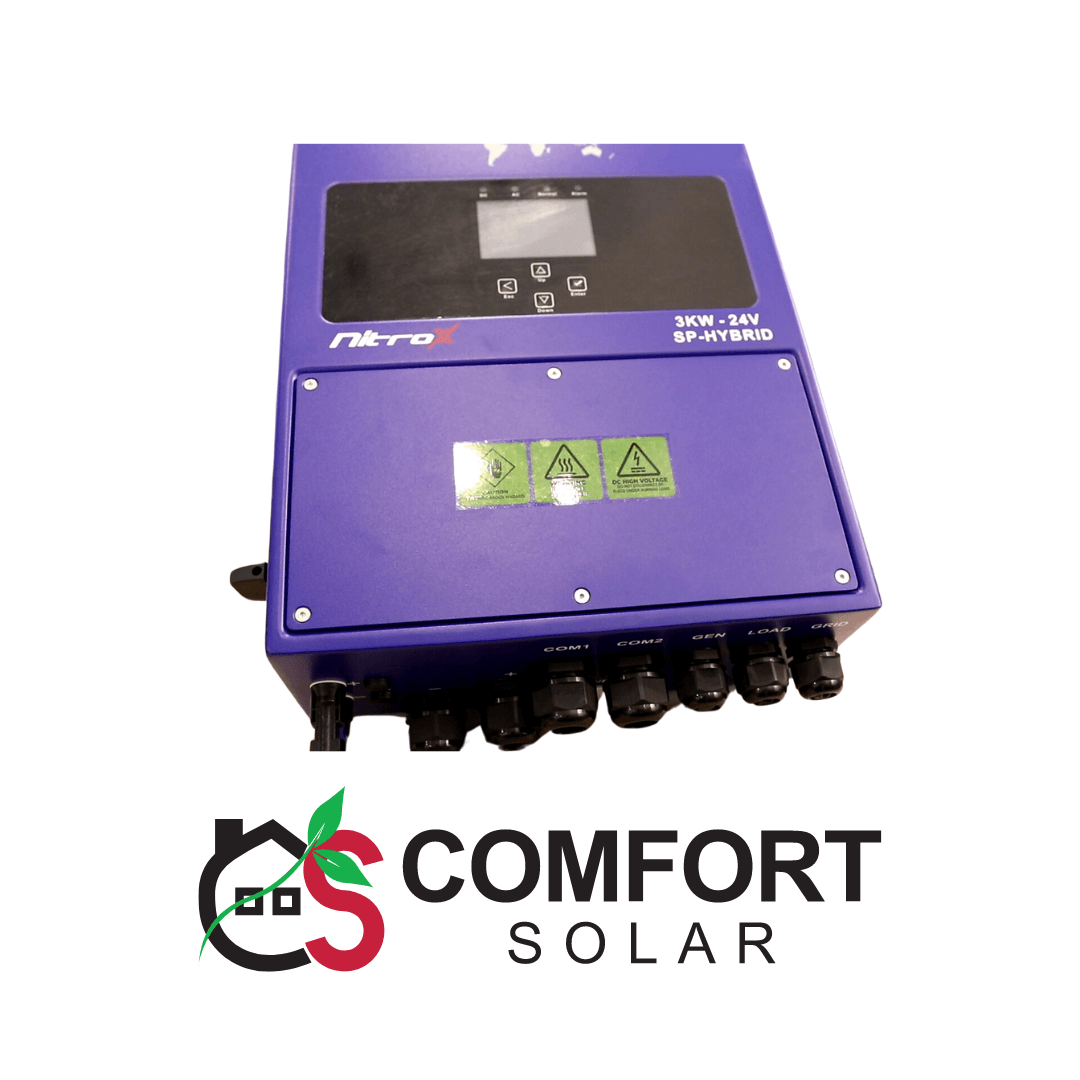

Are you searching for a robust solar inverter to power your home or office reliably with eco-friendly energy? Look no further than the Inverex Nitrox 3 KW – 24 V Solar Inverter available at Comfort Solar. This advanced inverter is designed to deliver exceptional performance, ensuring your solar power system operates efficiently. Priced competitively at ₨ [please insert your pricing], this inverter offers significant long-term energy savings.
Key Features:
Why Choose Comfort Solar? At comfortsolar.pk, we specialize in providing cutting-edge solar solutions designed for efficiency, reliability, and ease of use. Our commitment to sustainability ensures that each product, including the Inverex Nitrox 3 KW – 24 V Solar Inverter, meets international standards for performance and safety.
Call to Action: Ready to enhance your energy independence with our high-performance solar inverters? Visit comfortsolar.pk today to learn more about our products. For inquiries or to place an order, contact us directly on WhatsApp at 03166225526. Take the next step towards sustainable energy solutions with Comfort Solar!
