Looking for more than just solar equipment? Comfort Solar designs and installs customized on-grid, hybrid, and off-grid solar systems for homes and businesses in Islamabad, Rawalpindi, Wah Cantt, Taxila, and nearby areas. Visit our Solar Installation Services page or book a free indicative quotation today.
| Max. DC Input Voltage | 600 V DC |
|---|---|
| Start-up Voltage | 120 V DC |
| Number of MPPTs | 3 |
| MPPT Voltage Range | 100 – 500 V DC |
| Max. Input Current | 30 A (10 A per MPPT) |
| Max. Short Circuit Current | 46.8 A |
| Number of DC Inputs | 3 (1 per MPPT) |
| DC Disconnection Type | Load rated DC switch |
| Smart Grid Features | Volt/Freq Ride Through, Volt-Watt, etc. |
| Max. PV Power | 11.5 kW |
| Rated AC Output Power | 10 kW |
| Max. AC Output Power | 10 kW |
| Rated Voltage | 230 V AC |
| Voltage Range | 160 – 285 V AC |
| Grid Type | 1 Φ / PE |
| Rated Grid Current | 43.5 A |
| Max. Output Current | 45.9 A |
| Frequency | 50 / 60 Hz |
| Frequency Range | 47 – 52 / 57 – 62 Hz |
| Power Factor | 1 default (±0.8 adjustable) |
| Current THD | < 1.5 % |
| DC Injection Current | < 0.5 % of Rated Grid Output Current |
| AC Disconnect | Not Available |
| Topology | Transformerless |
| Max. Efficiency | 98.1 % |
| CEC Efficiency | 97.6 % |
| Night Consumption | < 1 W |
| Protection Degree | IP65 |
| Cooling | Natural Convection |
| Temperature Range | -25°C to +60°C |
| Storage Temp Range | -40°C to +70°C |
| Humidity | 0 – 100 % condensing |
| Altitude | 4000 m |
| Noise | < 30 dBA @ 1 m |
| Display | LCD + LED |
| Communication | RS485 (Modbus) |
| Dimensions (W×H×D) | 333 × 573 × 249 mm |
| Weight | 18 kg |
| Installation Angle | 90° from horizontal |
| DC Inputs | MC4 compatible |
| Safety Standards | IEC62109-1/-2, NB/T 32004, EN61000-6-1/-3 |
| Grid Standards | EN50438, G59/3, AS4777, VDE0126-1-1, etc. |
| CSI-9KTL1P-GI-FL | |
|---|---|
| DC Input | |
| Max. PV Power | 10.8 kW |
| Max. DC Input Voltage | 600 V DC |
| Start-up Voltage | 120 V DC |
| Number of MPPTs | 3 |
| MPPT Voltage Range | 100 – 500 V DC |
| Max. Input Current | 30 A (10 A per MPPT) |
| Max. Short Circuit Current | 46.8 A |
| Number of DC Inputs | 3 (1 per MPPT) |
| DC Disconnection Type | Load rated DC switch |
| AC Output | |
| Rated AC Output Power | 9 kW |
| Max. AC Output Power | 9.9 kW |
| Rated Voltage | 230 V AC |
| Voltage Range | 160 – 285 V AC |
| Grid Type | 1 Φ / PE |
| Rated Grid Current | 39.1 A |
| Max. Output Current | 41.3 A |
| Frequency | 50 / 60 Hz |
| Frequency Range | 47 – 52 / 57 – 62 Hz |
| Power Factor | 1 default (±0.8 adjustable) |
| Current THD | < 1.5 % |
| DC Injection Current | < 0.5 % of Rated Grid Output Current |
| AC Disconnect | Not Available |
| System | |
| Topology | Transformerless |
| Max. Efficiency | 98.1 % |
| CEC Efficiency | 97.6 % |
| Night Consumption | < 1 W |
| Environment | |
| Protection Degree | IP65 |
| Cooling | Natural Convection |
| Temperature Range | -25°C to +60°C |
| Storage Temp Range | -40°C to +70°C |
| Humidity | 0 – 100 % condensing |
| Altitude | 4000 m |
| Noise | < 30 dBA @ 1 m |
| Display & Communication | |
| Display | LCD + LED |
| Communication | RS485 (Modbus) |
| Mechanical | |
| Dimensions (W×H×D) | 333 × 573 × 249 mm |
| Weight | 18 kg |
| Installation Angle | 90° from horizontal |
| DC Inputs | MC4 compatible |
| Safety | |
| Safety Standards | IEC62109-1/-2, NB/T 32004, EN61000-6-1/-3 |
| Grid Standards | EN50438, G59/3, AS4777, VDE0126-1-1, etc. |
| Smart Grid Features | Volt/Freq Ride Through, Volt-Watt, etc. |

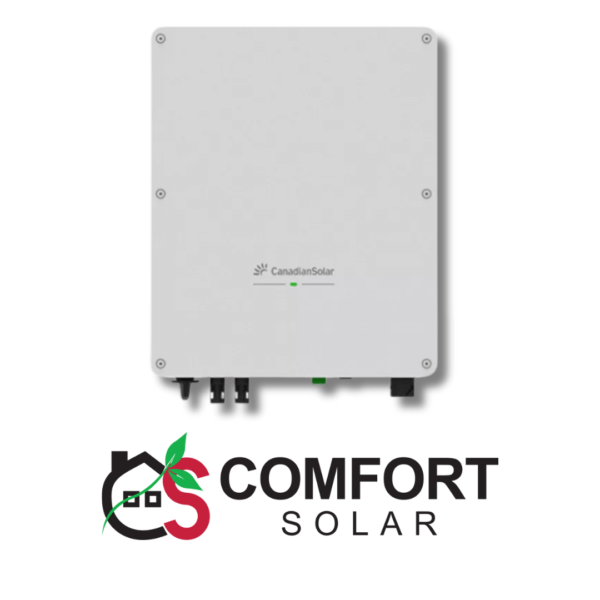

Built by Canadian Solar, the CSI-9KTL1P-GI-FL is ideal for users seeking performance and resilience. Capable of handling 10.8KW PV input, it comes with three independent MPPT channels, wide voltage support, and smart-grid integration. The inverter ensures quiet and reliable operation through its fanless cooling system and IP65-rated enclosure.
