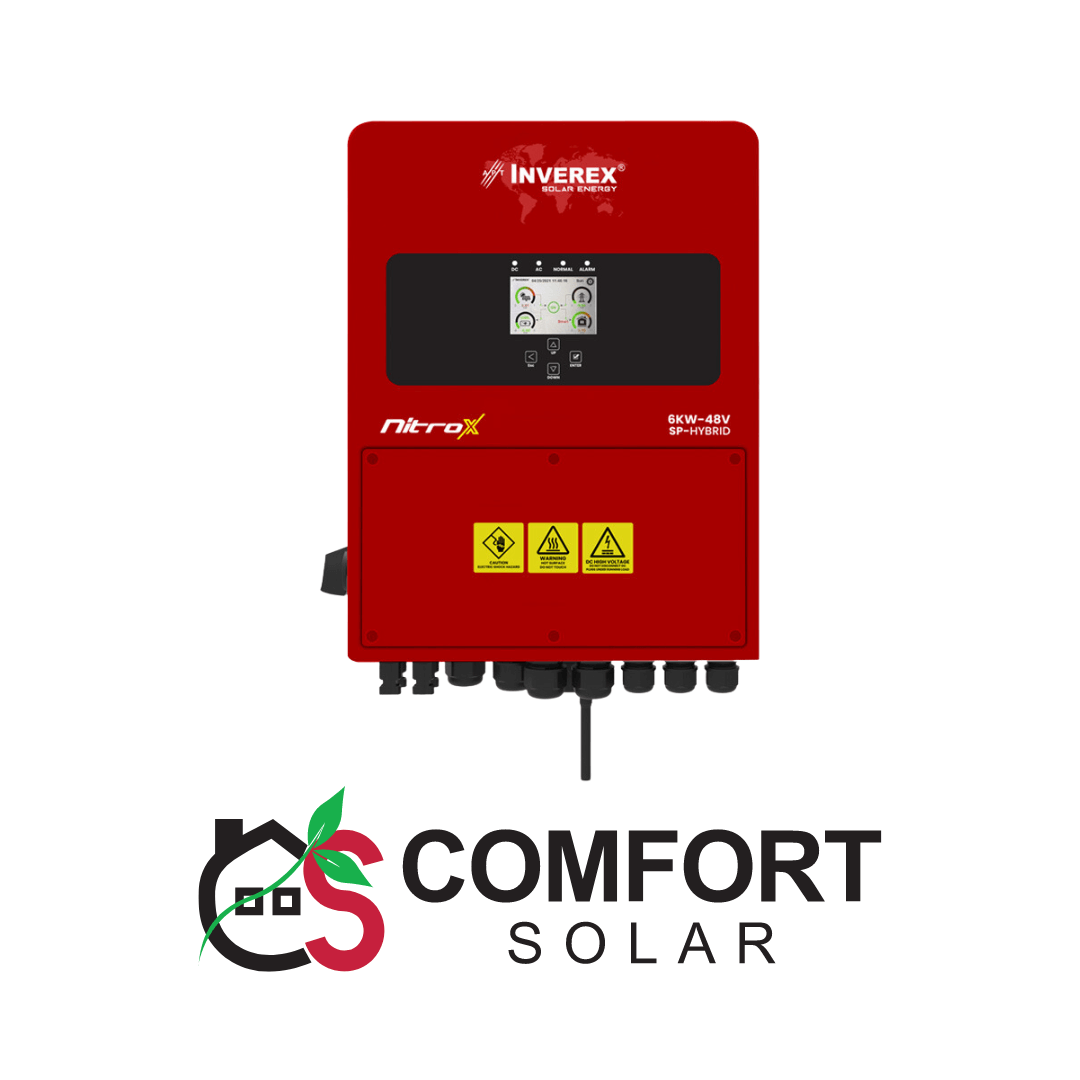

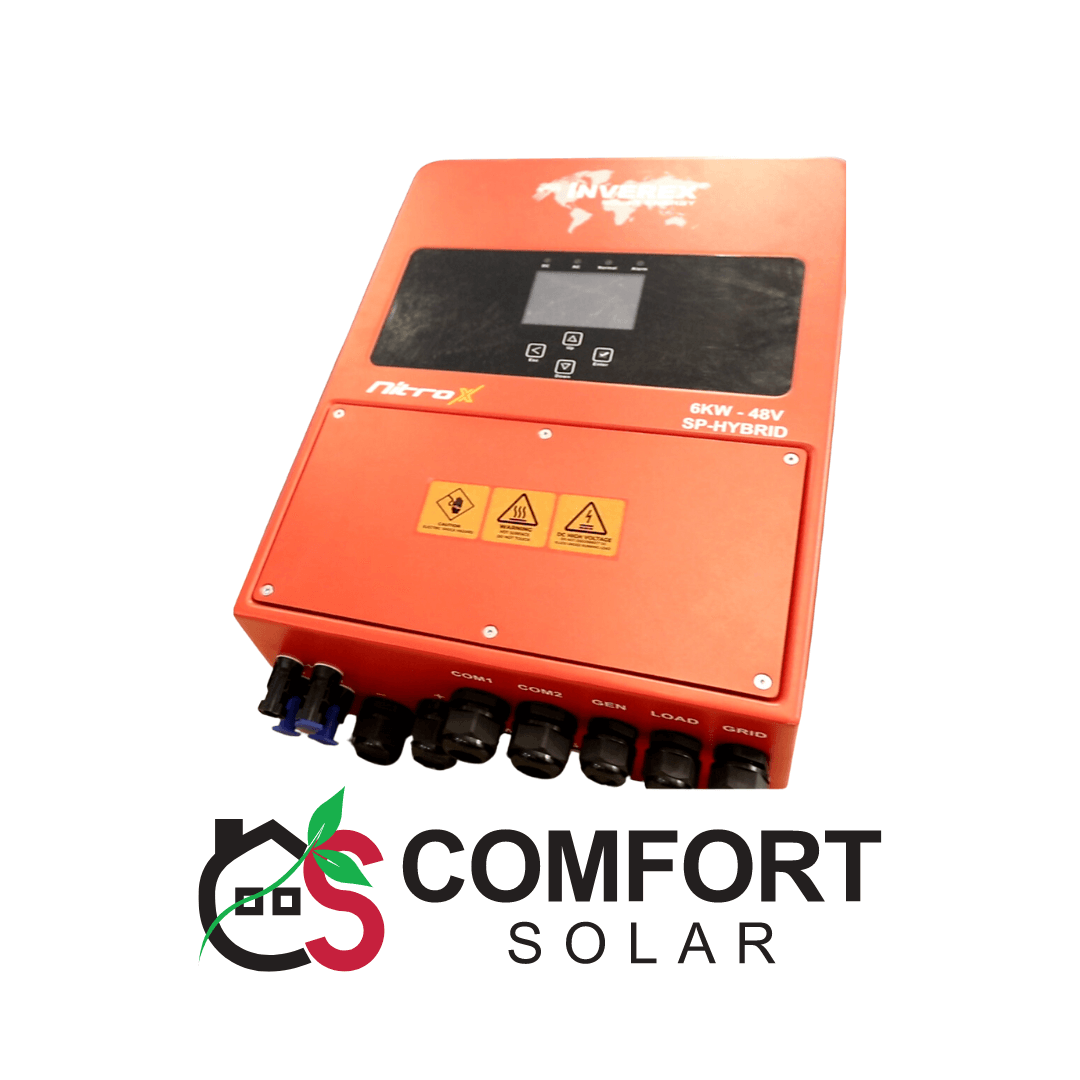

Name: Inverex Nitro X 6.6KW-48v SP Hybrid - Comfort Solar
Price: 310000 PKR
Availability: InStock

Additional information

Model	Nitrox 6KW
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range (V)	40-60
Max. Charging Current (A)	135
Max. Discharging Current (A)	135
Charging Strategy for Li-ion Battery	Self-adaption to BMS
Number of Battery Input	1
Max. DC Input Power (W)	7800
Max. DC Input Voltage (V)	500
Start-up Voltage (V)	125
MPPT Voltage Range (V)	150-425
Rated DC Input Voltage (V)	370
Max. Operating PV Input Current (A)	18+18
Max. Input Short-Circuit Current (A)	27+27
No. of MPP Trackers/ No. of Strings per MPP Tracker	2/1+1
Rated AC Input/Output Active Power(W)	6000
Max. AC Input/Output Apparent Power(VA)	6600
Rated AC Input/Output Current (A)	27.3/26.1
Max. AC Input/Output Current (A)	30/28.7
Max. Continuous AC Passthrough (grid to load) (A)	40
Peak Power (off-grid) (W)	2 times of rated power, 10S
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Rated Input/Output Voltage/Range (V)	220/230 0.85Un-1.1Un
Rated Input/Output Grid Frequency/Range (Hz)	50/45-55, 60/55-65
Grid Connection Form	L+N+PE
Total Current Harmonic Distortion THDi	<3% (of nominal power)
DC injection current	In
Max. Efficiency	97.6%
Euro Efficiency	96.5%
Communication Interface	WIFI, RS485, CAN
Operating Temperature Range	-40 to +60°C, >45°C Derating
Permissible Ambient Humidity	0-100%
Permissible Altitude	2000m
Noise (dB)	65
Ingress Protection (IP) Rating	IP 65
Inverter Topology	Non-isolated
Over Voltage Category	OVC II(DC), OVC III(AC)
Cabinet Size (WxHxD mm)	376x470x241.5 (Excluding Connectors and Brackets)
Weight (Kg)	19
Type of Cooling	Natural Cooling
Warranty	5 Years
Grid Regulation	IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
Safety/EMC Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

Description

Are you seeking a powerful single-phase solar inverter for residential or small commercial use? Look no further than the Inverex Nitrox 6.6 KW SP Hybrid Solar Inverter – 48 V Solar Inverter, available at Comfort Solar. This advanced inverter is designed to provide exceptional performance, ensuring your solar energy system operates efficiently and reliably.

Key Features

High Efficiency:
Delivers up to 97.6% maximum efficiency, ensuring better solar energy conversion with minimum power loss.

Hybrid Solar Operation:
Supports solar, battery, grid, and generator input, making it a flexible solution for both backup and energy-saving applications.

High PV Input Capacity:
Supports up to 10,560W maximum PV input power, allowing strong solar panel compatibility.

Wide MPPT Range:
MPPT voltage range of 150V–425V helps extract maximum power from solar panels under different sunlight conditions.

Battery Compatibility:
Supports lead-acid and lithium-ion batteries, with self-adaptation to BMS for lithium battery communication.

High Charging and Discharging Current:
Provides up to 140A charging and 140A discharging current, allowing fast battery charging and strong backup performance.

Touch LCD Display:
Equipped with a colorful touch LCD screen for easy operation, monitoring, and system control.

IP65 Protection:
The IP65 protection rating makes the inverter suitable for durable and reliable operation in outdoor environments.

Generator Support:
Can store energy from a diesel generator, providing additional backup flexibility during long power outages.

AC Coupling Support:
Supports AC coupling to retrofit existing solar systems, making it useful for upgrading older solar setups.

Parallel Operation:
Supports up to 16 units in parallel for both on-grid and off-grid operation, allowing system expansion when required.

Multiple Battery Time Settings:
Includes 6 time periods for battery charging and discharging, helping users manage battery usage according to their load and electricity schedule.

Advanced Protection:
Includes multiple safety protections such as DC polarity reverse protection, AC output overcurrent protection, thermal protection, short circuit protection, surge protection, and ground fault monitoring.

Smart Monitoring Options:
Supports monitoring through optional GPRS, WiFi, Bluetooth, 4G, or LAN options.

Detailed Features

Efficiency and Performance

The Inverex Nitrox 6.6 KW SP Hybrid inverter offers a rated AC output power of 6600W and a maximum AC input/output apparent power of 7200VA. With a maximum efficiency of 97.6% and MPPT efficiency of more than 99%, it ensures stable and efficient solar energy conversion.

Solar Input Capacity

This inverter supports a maximum PV input power of 10,560W, with a maximum PV input voltage of 500V. It has 2 MPPT trackers and supports PV input current of 27A + 27A, making it compatible with high-wattage modern solar panels.

Battery and Backup Support

The inverter supports both lead-acid and lithium-ion batteries with a battery voltage range of 40V–60V. Its 140A charging and discharging capacity provides strong backup support for homes and small commercial systems.

Protection and Durability

The inverter includes advanced internal protection features such as surge protection, short circuit protection, thermal protection, AC overcurrent protection, DC insulation monitoring, and residual current monitoring. Its IP65 ingress protection makes it suitable for reliable outdoor installation.

User-Friendly Monitoring

The colorful touch LCD display allows easy system monitoring and control. Optional smart monitoring modes such as WiFi, GPRS, Bluetooth, 4G, and LAN make it easier to monitor inverter performance remotely.

Why Choose Comfort Solar?

At Comfort Solar, we provide quality solar products, expert guidance, and reliable after-sales support. The Inverex Nitrox 6.6 KW SP Hybrid Solar Inverter is a strong choice for customers who want efficient solar power, battery backup, generator support, and future expansion capability in one advanced system.

Standard Delivery: 4–5 days
Warranty: Enjoy a 10-year warranty with a 5-year replacement Terms and conditions apply.
