Looking for more than just solar equipment? Comfort Solar designs and installs customized on-grid, hybrid, and off-grid solar systems for homes and businesses in Islamabad, Rawalpindi, Wah Cantt, Taxila, and nearby areas. Visit our Solar Installation Services page or book a free indicative quotation today.
| Start-up DC Input Voltage (V) | 250 |
|---|---|
| Max. DC Input Power (kW) | 65 |
| Max. Short Circuit Current (A) | 79.7 |
| Max. DC Input Voltage (V) | 1000 |
| MPPT Operating Range (V) | 60+60+60+60 |
| Max. DC Input Current (A) | 72.4 |
| Number of MPPT / Strings per MPPT | 4/3 |
| Rated Output Power (kW) | 50 |
| Max. Active Power (kW) | 55 |
| Nominal Output Voltage / Range (V) | 380vBzv-418v, 400v/340v-440V |
| Rated Grid Frequency (Hz) | 50 / 60 (Optional) |
| Operating Phase | Three phase |
| Rated AC Grid Output Current (A) | 108.7 |
| Max. AC Output Current (A) | 119.6 |
| Output Power Factor | 0.8 leading to 0.8 lagging |
| Grid Current THD | >0.99 |
| DC Injection Current (mA) | 47-52 or 57-62 (Optional) |
| Grid Frequency Range | 60+60+60+60+60+60 |
| Max. Efficiency | 98.7% |
| Euro Efficiency | 98.3% |
| MPPT Efficiency | Yes |
| DC Reverse Polarity Protection | Yes |
| AC Short Circuit Protection | Yes |
| AC Output Overcurrent Protection | Yes |
| Output Overvoltage Protection | Yes |
| Insulation Resistance Protection | Yes |
| Ground Fault Monitoring | Yes |
| Anti-islanding Protection | Yes |
| Temperature protection | Yes |
| Integrated DC switch | Yes |
| Remote software upload | Yes |
| Remote change of operating parameters | Yes |
| Surge Protection | DC Type II / AC Type II |
| Size (mm) | 838Wx568Hx323D |
| Weight (Kg) | 73.7 |
| Topology | Transformerless |
| Internal Consumption (Night) | 60W |
| Running Temperature | -25—65°C, >45°C derating |
| Ingress Protection | IP65 |
| Noise Emission (Typical) | 60 dB |
| Cooling Concept | Smart cooling |
| Max. Operating Altitude Without Derating | 2000 m |
| Designed Lifetime | >20 years |
| Grid Connection Standard | CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, 099, 098, VDE 0126-1-1, RD 1699, CIO-II |
| Operating Surroundings Humidity | 0-100% |
| Safety/EMC Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
| DC connection | MC-4 mateable |
| AC Connection | IP65 rated plug |
| Display | LCD 240 x 160 |
| Interface | RS485/RS232/Wifi/LAN |
| Warranty | 10 Years Warranty (5 Years Replacement Warranty) (T&C) |

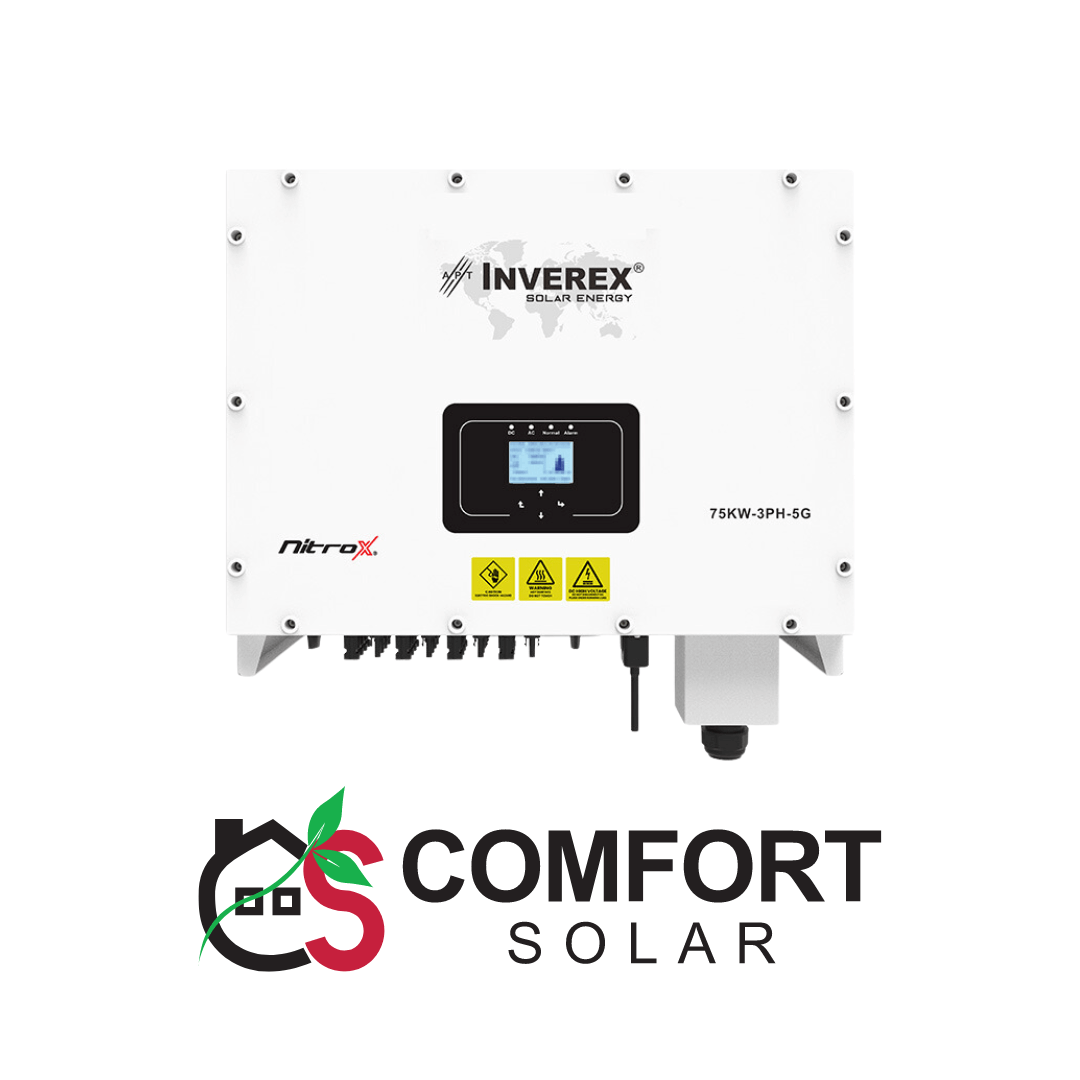

The Inverex NitroX 75KW 3Ph 5G is a high-capacity three-phase on-grid solar inverter designed for large residential, commercial, industrial, and solar PV installations. This Inverex 75kW solar inverter is suitable for customers looking for a 75kW on-grid inverter, 75kW three-phase solar inverter, Inverex Nitrox 75kW inverter, commercial solar inverter, industrial solar inverter, or large-scale grid-tied solar inverter in Pakistan.
The Inverex NitroX series is designed for high-capacity solar power systems where multiple solar panel strings need flexible MPPT management. The product specifications published by Comfort Solar list four MPPTs with three strings per MPPT, a maximum DC input voltage of 1000V, maximum DC input power of 65kW, maximum DC input current of 72.4A, and a three-phase AC output configuration.
The inverter features a transformerless design, IP65 protection, integrated DC and AC surge protection, DC reverse-polarity protection, AC short-circuit protection, AC overcurrent protection, overvoltage protection, insulation resistance protection, ground-fault monitoring, anti-islanding protection, temperature protection, and an integrated DC switch.
The Inverex NitroX 75KW 3Ph 5G also supports communication through RS485, RS232, Wi-Fi and LAN, making it suitable for solar system monitoring and operational management. The published specifications list a maximum efficiency of up to 98.7% and IP65 ingress protection for outdoor installation environments.
Comfort Solar supplies solar inverters and complete solar solutions for customers in Islamabad, Rawalpindi, Wah Cantt, Taxila, and nearby areas. If you are planning a 50kW, 60kW, 70kW, 75kW or larger commercial solar system, our team can help select the appropriate solar panels, inverter capacity, mounting structure, electrical protection, wiring, and installation configuration according to the project requirements.
The product page also lists a 10-year warranty with a 5-year replacement warranty, subject to the applicable terms and conditions.
