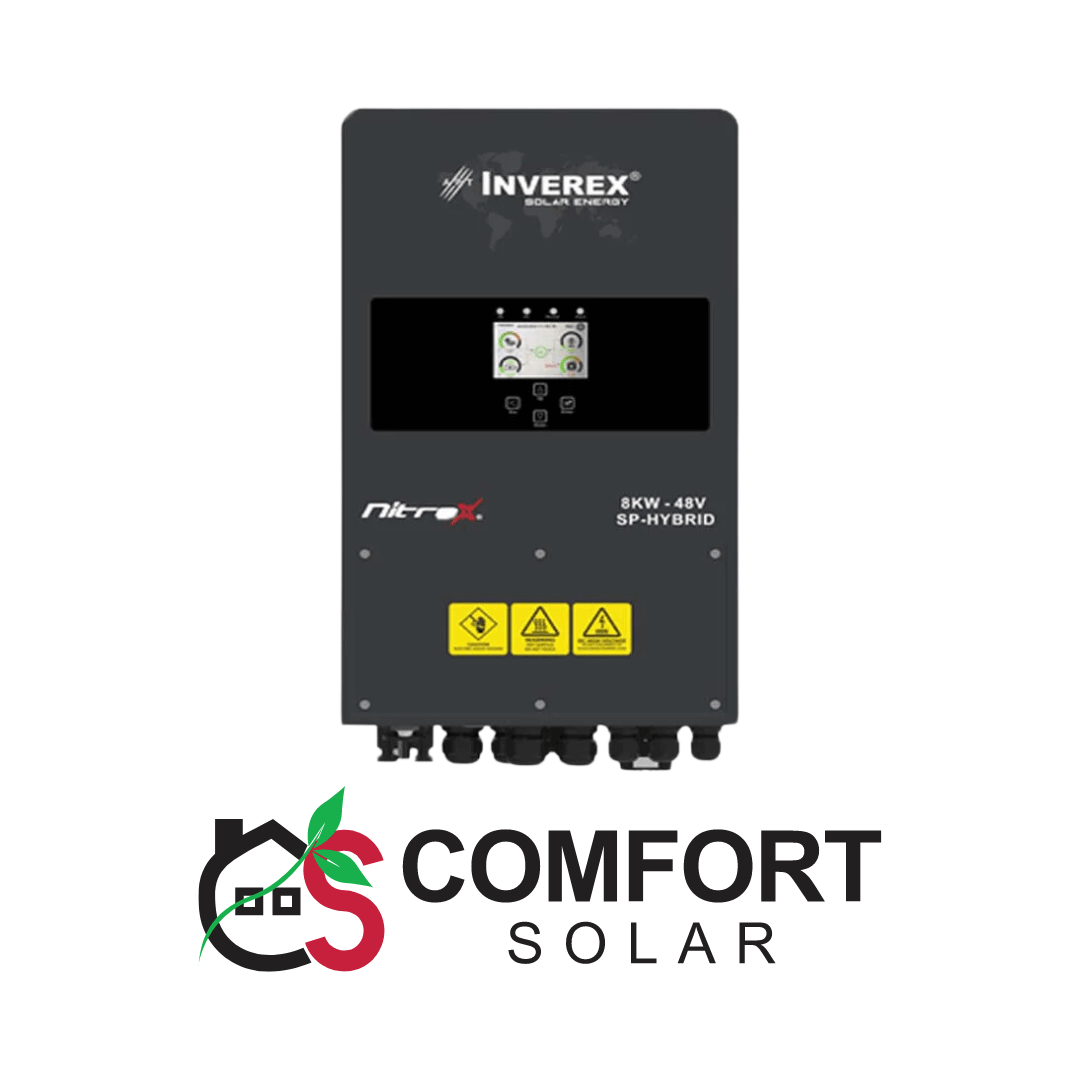

        Inverex Nitro X 8KW-48v SP Hybrid

         594,000

        Order on WhatsApp
        GUARANTEED SAFE PAYMENTS
        Jazz Cash, Easypaisa, Meezan Bank, and Bank Transfer logos
        Share it to:
        Variable Pricing

        Due to high market volatility, prices for our products are subject to change.

        Final Prices

        The actual price will be provided once the customer contacts our sales representative via WhatsApp.

        Deposit Requirement

        The product will be dispatched only after a partial deposit is made in our business account.

        Need a Complete Solar Installation?

        Looking for more than just solar equipment? Comfort Solar designs and installs customized on-grid, hybrid, and off-grid solar systems for homes and businesses in Islamabad, Rawalpindi, Wah Cantt, Taxila, and nearby areas. Visit our Solar Installation Services page or book a free indicative quotation today.

        Additional information

        Model

        Nitrox 8KW

        Battery Type

        Lead-acid or Lithium-ion

        Battery Voltage Range (V)

        40-60

        Max. Charging Current (A)

        190

        Max. Discharging Current (A)

        190

        Charging Strategy for Li-ion Battery

        Self-adaption to BMS

        Number of Battery Input

        1

        Max. DC Input Power (W)

        10400

        Max. DC Input Voltage (V)

        500

        Start-up Voltage (V)

        125

        MPPT Voltage Range (V)

        150-425

        Rated DC Input Voltage (V)

        370

        Max. Operating PV Input Current (A)

        26+26

        Max. Input Short-Circuit Current (A)

        34+34

        No. of MPP Trackers/ No. of Strings per MPP Tracker

        2/2+2

        Rated AC Input/Output Active Power(W)

        8000

        Max. AC Input/Output Apparent Power(VA)

        8800

        Rated AC Input/Output Current (A)

        36.4/34.8

        Max. AC Input/Output Current (A)

        40/38.3

        Max. Continuous AC Passthrough (grid to load) (A)

        50

        Peak Power (off-grid) (W)

        2 times of rated power, 10S

        Power Factor Adjustment Range

        0.8 leading to 0.8 lagging

        Rated Input/Output Voltage/Range (V)

        220/230 0.85Un-1.1Un

        Rated Input/Output Grid Frequency/Range (Hz)

        50/45-55, 60/55-65

        Grid Connection Form

        L+N+PE

        Total Current Harmonic Distortion THDi

        <3% (of nominal power)

        DC injection current

        In

        Max. Efficiency

        97.6%

        Euro Efficiency

        96.5%

        Surge Protection Level
        Communication Interface

        WIFI, RS485, CAN

        Operating Temperature Range

        -40 to +60°C, >45°C Derating

        Permissible Ambient Humidity

        0-100%

        Permissible Altitude

        2000m

        Noise (dB)

        65

        Ingress Protection (IP) Rating

        IP65

        Inverter Topology

        Non-isolated

        Over Voltage Category

        OVC II(DC), OVC III(AC)

        Cabinet Size (WxHxD mm)

        366×589.5×237 (Excluding Connectors and Brackets)

        Weight (Kg)

        26.8

        Type of Cooling

        Intelligent Air Cooling

        Warranty

        5 Years

        Grid Regulation

        IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105

        Safety/EMC Standard

        IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

        Description

        Are you seeking a powerful single-phase solar inverter for residential or small commercial use? Look no further than the Inverex Nitrox 6 KW – 48 V Solar Inverter, available at Comfort Solar. This advanced inverter is designed to provide exceptional performance, ensuring your solar energy system operates efficiently and reliably.

        Key Features:

        • High Efficiency: Achieves a maximum efficiency of 97.6%, optimizing solar energy utilization.
        • MPPT Support: Supports up to 600 watts per solar panel with a total of 15600 watts MPPT for efficient power extraction.
        • High Capacity Solar Charger: Equipped with a 240 AMP solar charger for rapid and effective charging.
        • Smart Monitoring: Includes a smart PV monitoring platform and stick logger for comprehensive system monitoring.
        • Scalability: Supports multiple parallel connections, allowing for system expansion as needed.
        • Zero Export: Manages energy export to the grid efficiently, maximizing energy usage.
        • Communication Interfaces: RS485 and CAN interfaces for seamless monitoring and integration.
        • Durable Design: IP65 ingress protection ensures durability and reliability in outdoor installations.
        • Generator Compatibility: Supports connection to a generator for added power reliability.
        • High Surge Endurance: Designed to withstand high surge currents, ensuring system protection.
        • High Power Factor: Ensures efficient energy conversion with minimal losses.
        • User-Friendly Interface: Features a touch screen display for easy operation and monitoring.
        • Safety Features: Includes internal surge protection devices (SPDs) and a built-in AC breaker for enhanced safety.
        • Time of Use Settings: Six-time of use settings for customized energy management.
        • Versatile Output: Provides dual three-phase output for flexibility in applications.

        Detailed Features:

        1. Efficiency and Performance: The Inverex Nitrox 6 KW inverter achieves a maximum efficiency of 97.6%, ensuring optimal conversion of solar energy. The MPPT support maximizes the performance of solar panels, supporting up to 600 watts per panel and a total of 15600 watts.
        2. Protection and Monitoring: Equipped with internal surge protection devices (SPDs) and a built-in AC breaker, the inverter protects against electrical surges and ensures safe operation. The zero export feature efficiently manages energy exported to the grid, optimizing energy consumption.
        3. Advanced Functions: Supports multiple parallel connections, enabling scalability as energy needs grow. It also supports generator connection, providing flexibility in power sources.
        4. Robust Design: With IP65 ingress protection, the Inverex Nitrox inverter is resistant to dust and water, making it suitable for outdoor installations. The high power factor minimizes energy losses, enhancing efficiency.
        5. User-Friendly Interface: The touch screen display offers an intuitive interface for monitoring and managing your solar power system. The smart PV monitoring platform and stick logger provide detailed insights into system performance.

        Why Choose Comfort Solar? At Comfort Solar, we are committed to offering premium solar solutions tailored to your needs. The Inverex Nitrox 6 KW – 48 V Solar Inverter embodies our dedication to efficiency, reliability, and ease of use. By choosing our products, you are investing in sustainability and long-term energy savings.

        Call to Action: Ready to enhance your energy independence with our high-performance single-phase solar inverter? Visit comfortsolar.pk today to learn more about our products. For inquiries or to place an order, contact our sales team directly on WhatsApp at 03166225526. Don’t wait—empower your home with the best solar technology available!

        Delivery & Returns:

        • Standard Delivery: 4-5 days.
        • Warranty and Returns: Enjoy a 10-year warranty with a 5-year replacement term, along with a 7-day return and exchange policy. Terms and conditions apply.

        Brand

        Inverex

        APT Inverex offers a variety of renewable energy products designed to enhance energy efficiency and promote zero-emission power solutions. Their product range includes photovoltaic systems, power backup solutions, and complete solar installations that cater to individual and industrial requirements. All products are geared towards reducing reliance on fuel-powered grids and supporting a sustainable future. These offerings from APT Inverex are available on our website, Comfort Solar, where customers can explore and select solutions that best fit their energy needs.
        Inverex solar energy logo in red rectangle with white text and graphics
        APT Inverex, established in 2007, is a company specializing in renewable energy solutions, particularly solar technology. They provide a wide range of products, including solar panels, inverters, and power backup solutions, catering to both residential and industrial needs. The company focuses on innovative, state-of-the-art engineering to promote sustainable energy use, offering comprehensive services from system design to installation and monitoring. APT Inverex aims to help customers transition from traditional energy consumption to becoming educated producers and consumers of green energy.
