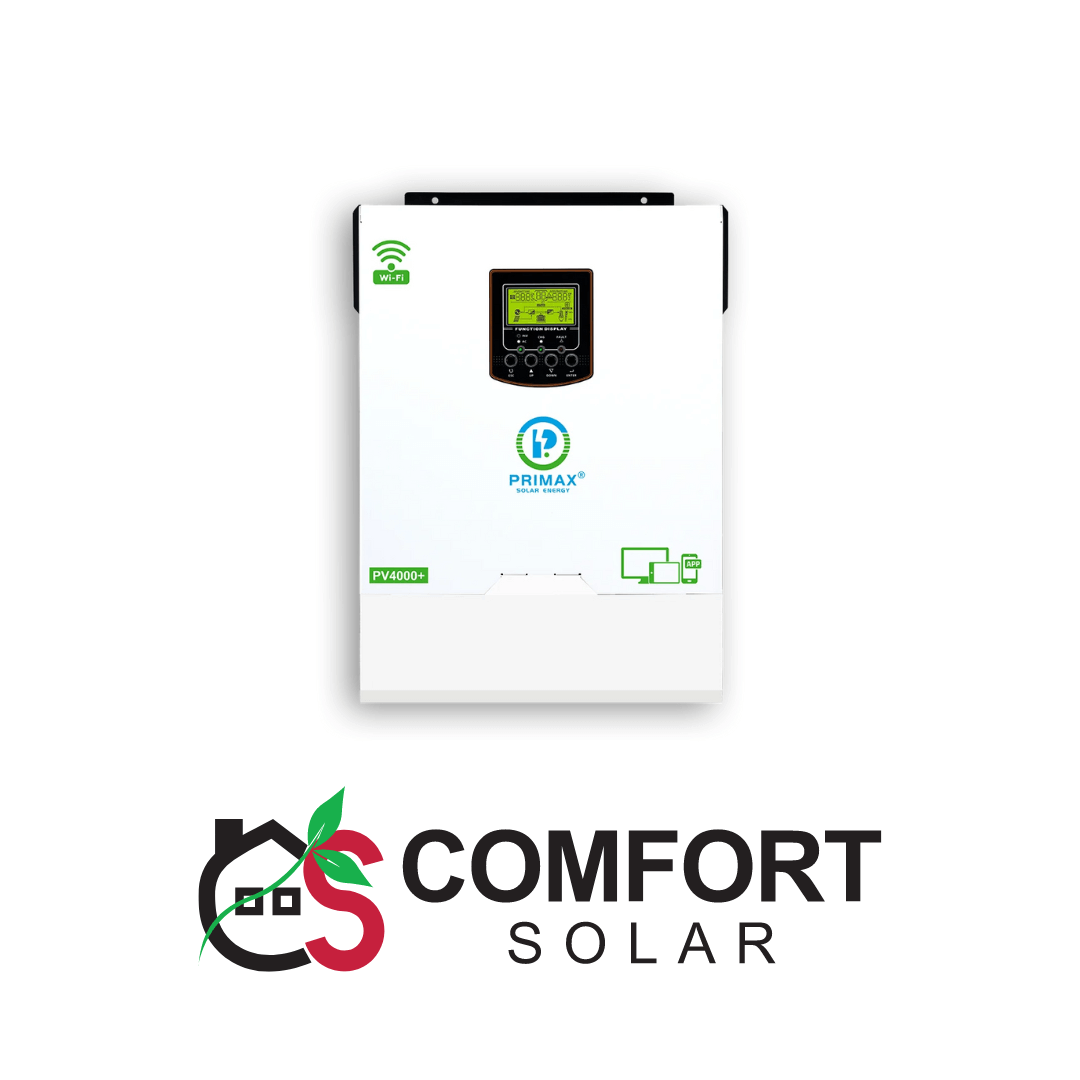

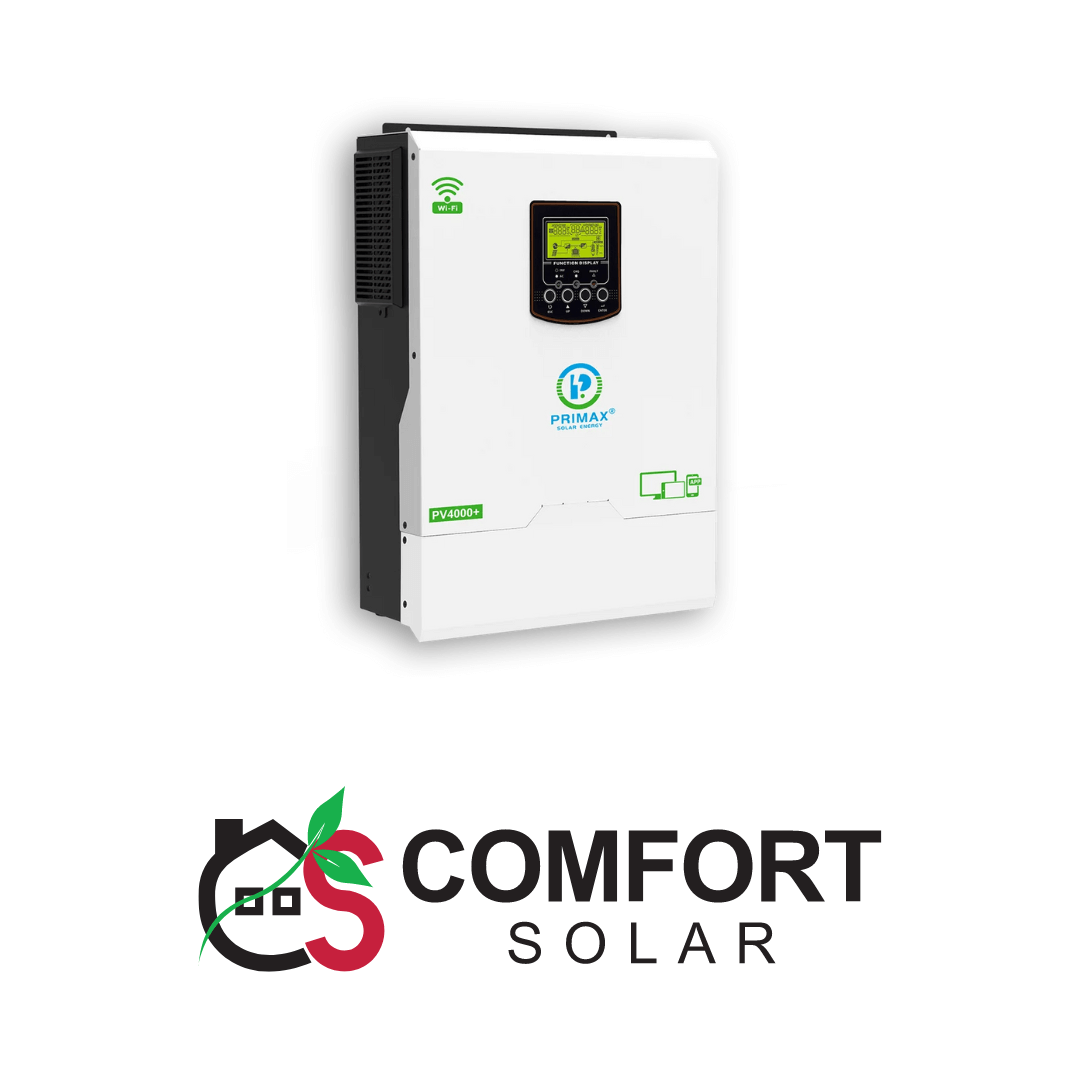

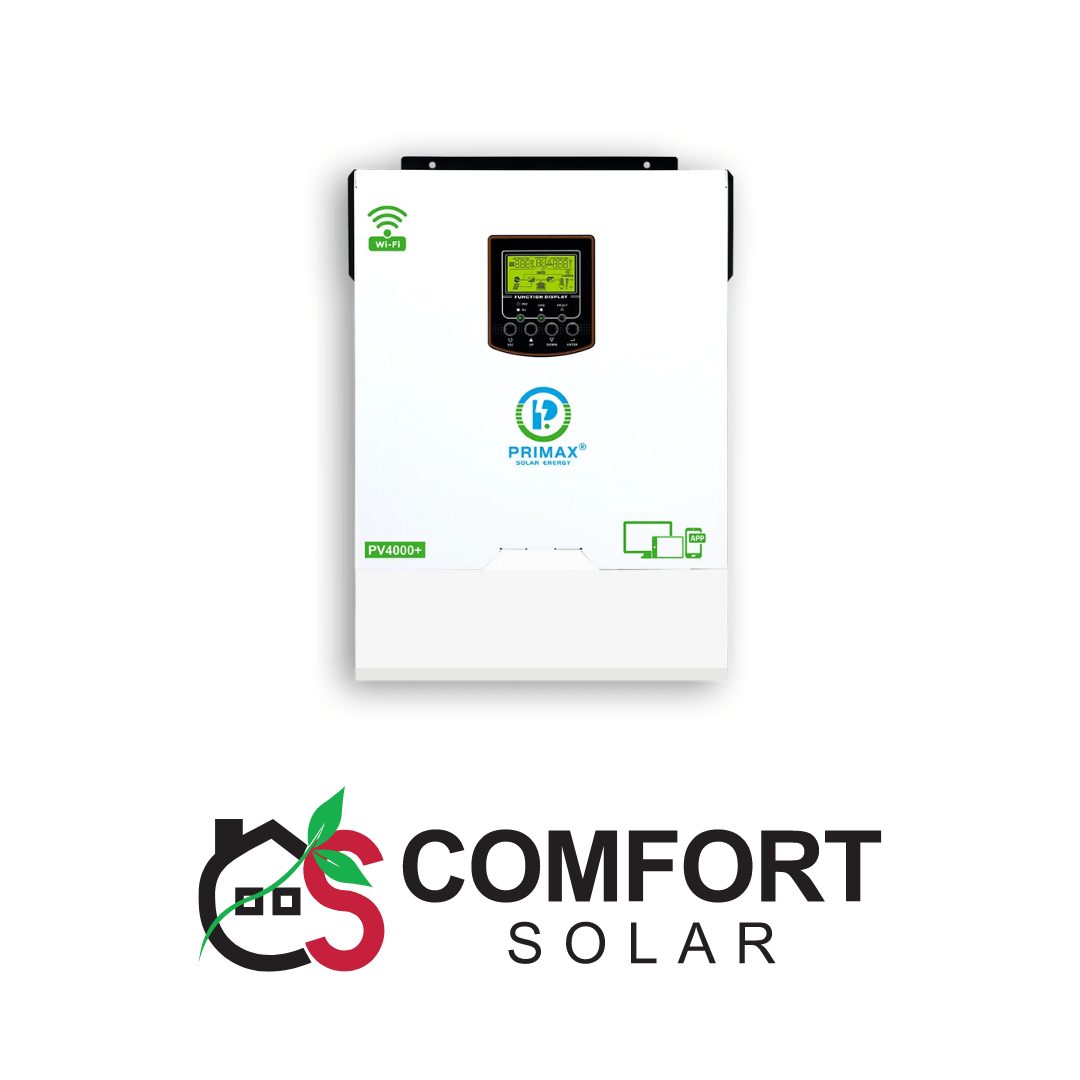

HYBRID SOLAR INVERTER – GALAXY PV4000+

Experience reliable and efficient solar energy management with the HYBRID SOLAR INVERTER – GALAXY PV4000+ from Comfort Solar. This pure sine wave inverter is designed to optimize energy usage for residential and commercial applications.

Key Features:

• Rated Power: 3000VA/3000W ensures robust performance.
• Wide PV Input Voltage Range: Supports inputs from 60VDC to 400VDC for maximum solar utilization.
• Maximum PV Input: Handles up to 4000W of solar power.
• Reserved Communication Port: Ready for integration with Battery Management Systems (BMS).
• Maximum Charging Current: Supports fast charging with up to 100A.
• Battery Independent Design: Offers flexibility in battery selection and configuration.
• Battery Equalization Function: Optimizes battery performance and extends battery life.
• Built-in Anti-dust Kit: Ensures durability and longevity in various environmental conditions.
• Maximum AC Output: Provides up to 3000W of stable AC power.

Detailed Specifications:

• Input:
  • Voltage: 230VAC
  • Selectable Voltage Range: 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances)
  • Frequency Range: 50Hz/60Hz (Auto Sensing)
• Output:
  • AC Voltage Regulation (Batt. Mode): 230VAC ± 5%
  • Surge Power: 6000VA for handling peak loads efficiently
  • Efficiency (Peak): 93% ensures high energy conversion efficiency
  • Transfer Time: 10ms (For Personal Computers), 20ms (For Home Appliances)
  • Waveform: Pure Sine Wave for safe and stable operation of sensitive electronics
• Battery:
  • Battery Voltage: 24V DC
  • Floating Charge Voltage: 27V DC
  • Overcharge Protection: 32V DC
• Solar Charger & AC Charger:
  • Solar Charger Type: MPPT
  • Maximum PV Array Open Circuit Voltage: 450V DC
  • Maximum PV Array Power: 3000W
  • MPPT Range @ Operating Voltage: 60-400VDC
  • Maximum Solar Charge Current: 100A
  • Maximum AC Charge Current: 80A
  • Maximum Charge Current: 100A
• Physical Specifications:
  • Dimensions (DWH): 110 x 288 x 390 mm
  • Net Weight: 7.2 kg
  • Communication Interface: RS232/RS485 for reliable data transmission
• Operating Environment:
  • Humidity: 0% to 90% Relative Humidity (Non-condensing)
  • Operating Temperature: -10°C to 50°C
  • Storage Temperature: -15°C to 60°C

Why Choose Comfort Solar?

Comfort Solar is committed to providing sustainable energy solutions that simplify your energy needs while preserving the environment. Invest in the HYBRID SOLAR INVERTER – GALAXY PV4000+ for reliable and efficient solar energy management.

Call to Action:

Ready to harness the power of solar energy? Visit Comfort Solar today to explore our range of products. For inquiries or to place an order, contact us via WhatsApp at +92 3166225526. Choose Comfort Solar for your journey towards sustainable energy solutions!
The price of PRIMAX HYBRID SOLAR INVERTER – GALAXY PV4000+ is Rs. 90000 in Pakistan as of 29 May 2025.
