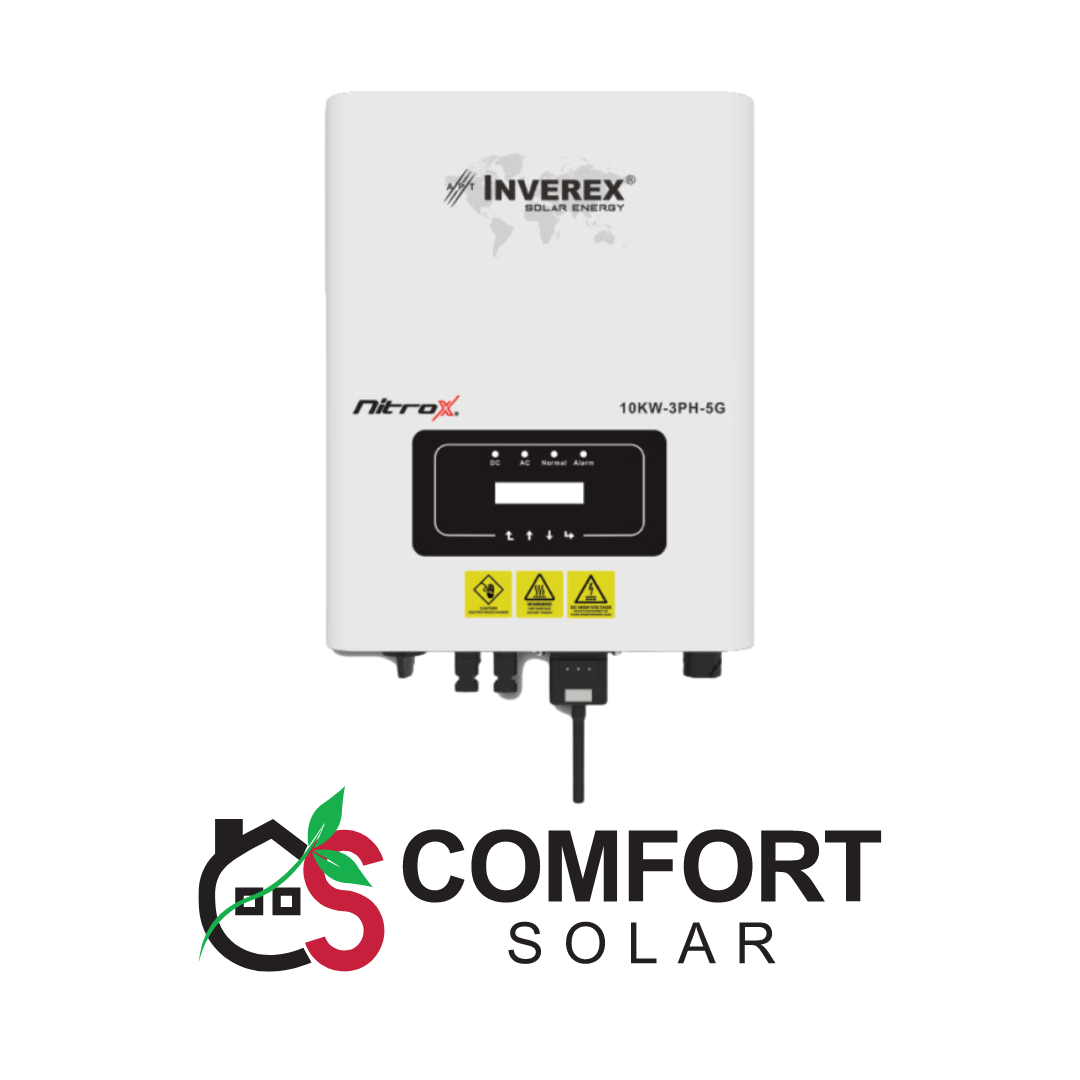

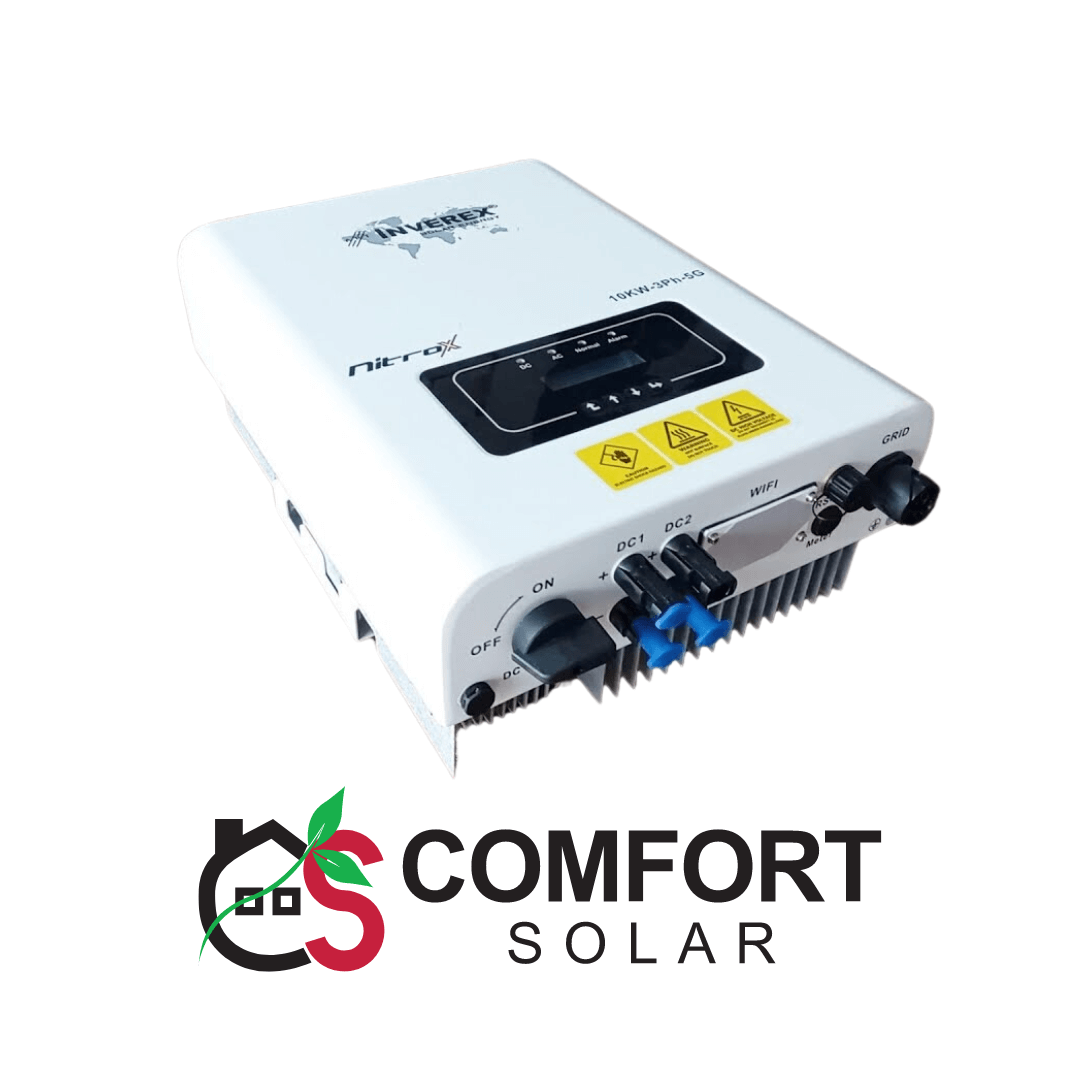

      Inverex NitroX 10KW-3ph 5G

       676,500

      GUARANTEED SAFE PAYMENTS
      Payment options: JazzCash, Easypaisa, and Cash on Delivery (COD) truck icon.
      Share it to:
      Variable Pricing

      Due to high market volatility, prices for our products are subject to change.

      Final Prices

      The actual price will be provided once the customer contacts our sales representative via WhatsApp.

      Deposit Requirement

      The product will be dispatched only after a partial deposit is made in our business account.

      Additional information

      Max. DC Input Power (kW)

      20, 7.8, 6, 6.6, 8.7, 9.6, 13+13, 19.5+19.5, 13, 10, 11, 26, 32+32, 48+48

      Start-up DC Input Voltage (V)

      250

      Max. DC Input Voltage (V)

      1000

      Model

      NITROX 6KW, NITROX IOKW, NITROX ISKW, NITROX 20KW

      MPPT Operating Range (V)

      200-850

      Max. DC Input Current (A)

      13+26, 19.5+39, 15, 16.5

      Rated Output Power (kW)

      20

      Nominal Output Voltage / Range (V)

      3L/N/PE 380V/323V-418V, 400V/340V-440V

      Rated Grid Frequency (Hz)

      SO / 60 (Optional)

      Operating Phase

      Three phase

      Rated AC Grid Output Current (A)

      14.5, 15.9, 21.7, 23.9, 31.9

      Output Power Factor

      0.8 leading to 0.8 lagging

      Grid Frequency Range

      47-52 or 57-62 (Optional)

      Max. Efficiency

      98.6%

      Euro Efficiency

      97.8%

      MPPT Efficiency

      Mpp-r Efficiency

      DC Reverse Polarity Protection

      Yes

      AC Short Circuit Protection

      Yes

      AC Output Overcurrent Protection

      Yes

      Output Overvoltage Protection

      Yes

      Insulation Resistance Protection

      Yes

      Ground Fault Monitoring

      Yes

      Anti-islanding Protection

      Yes

      Temperature protection

      Yes

      Integrated DC switch

      Yes

      Remote software upload

      Yes

      Remote change of operating parameters

      Yes

      Surge Protection

      DC Type II / AC Type II

      Size (mm)

      330Wx508Hx206D, 333Wx472Hx202D, 330Wx457Hx185D, 362Wx527Hx220D

      Weight (Kg)

      10, 10, 15, 20

      Topology

      Transformerless

      Running Temperature

      -25-6500, >450Cderating

      Ingress Protection

      IP65

      Noise Emission (Typical)

      dB

      Cooling Concept

      Smart cooling

      Max. Operating Altitude Without Derating

      2000m

      Grid Connection Standard

      CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, 099, 098, VDE 0126-1-1, RD 1699, CIO-II

      Operating Surroundings Humidity

      0-100%

      Safety/EMC Standard

      IEC/EN 61000-6-1/2/3/4. IEC/EN 62109-1, IEC/EN 62109-2

      DC connection

      MC-4 mateable

      AC Connection

      IP65 rated plug

      Display

      LCD1602

      Interface

      RS485/RS232/Wifi/LAN

      Warranty

      10 Years Warranty (5 Years Replacement Warranty) (T&C)

      Description

      Are you searching for a reliable and efficient solar inverter for your on-grid system? Look no further than the Inverex Nitrox 10 KW-3Ph On-Grid Solar Inverter, available at Comfort Solar. This cutting-edge inverter is engineered to deliver exceptional performance, ensuring your solar power system operates at its peak efficiency.

      Key Features:

      • High Efficiency: Achieves a maximum efficiency of 98.3%, ensuring optimal utilization of solar energy.
      • Dual MPPT Controller: Dual Maximum Power Point Tracking (MPPT) optimizes power extraction from your solar panels.
      • Communication Interfaces: RS485/RS232 for seamless monitoring and integration.
      • Transformerless Topology: Enhances efficiency and reduces weight.
      • Three-Phase Operation: Suitable for diverse applications with three-phase operating capability.
      • High Surge Endurance: Designed to withstand high surge currents, protecting your system.
      • Zero Export: Manages energy export to the grid for efficient energy use.
      • High Power Factor: Ensures efficient energy conversion.
      • IP65 Ingress Protection: Weather-resistant design for outdoor installations.
      • Warranty: 10-year warranty with a 5-year replacement term. Terms and conditions apply.

      Detailed Features:

      1. Efficiency and Performance: The Inverex Nitrox 10 KW inverter offers a maximum efficiency of 98.3%, ensuring your solar energy is converted efficiently. The dual MPPT controller optimizes the performance of your solar panels, ensuring maximum power extraction.
      2. Protection and Monitoring: Equipped with high surge endurance, this inverter safeguards your system against electrical surges. The zero export function allows for efficient management of energy exported to the grid, optimizing your energy consumption.
      3. Advanced Functions: The inverter’s three-phase operation makes it suitable for various applications, providing flexibility in installation. The transformerless topology enhances efficiency and reduces the overall weight of the inverter.
      4. Robust Design: With an IP65 rating, the Inverex Nitrox inverter is protected against dust and water, making it ideal for outdoor installations. The high power factor ensures efficient energy conversion, minimizing losses.
      5. Communication and Integration: Featuring RS485 and RS232 interfaces, this inverter facilitates seamless integration with monitoring systems, ensuring you can easily track your solar power performance.

      Why Choose Comfort Solar? At Comfort Solar, we are committed to offering premium solar solutions tailored to your needs. Our Inverex Nitrox 10 KW-3Ph On-Grid Solar Inverter is designed to deliver exceptional efficiency, reliability, and ease of use. By investing in our products, you are choosing sustainability and long-term energy savings.

      Call to Action: Ready to enhance your energy independence with our high-performance on-grid solar inverter? Visit comfortsolar.pk today to explore more about our products. For any inquiries or to place an order, contact us directly on WhatsApp at 03166225526. Don’t wait—empower your home with the best solar technology available!

      Delivery & Returns:

      • Standard Delivery: 4-5 days.
      • Warranty and Returns: 10-year warranty with a 5-year replacement term, and a 7-day return and exchange policy. Terms and conditions apply.

      Brand

      Inverex

      APT Inverex offers a variety of renewable energy products designed to enhance energy efficiency and promote zero-emission power solutions. Their product range includes photovoltaic systems, power backup solutions, and complete solar installations that cater to individual and industrial requirements. All products are geared towards reducing reliance on fuel-powered grids and supporting a sustainable future. These offerings from APT Inverex are available on our website, Comfort Solar, where customers can explore and select solutions that best fit their energy needs.
      Inverex solar energy logo in red rectangle with white text and graphics
      APT Inverex, established in 2007, is a company specializing in renewable energy solutions, particularly solar technology. They provide a wide range of products, including solar panels, inverters, and power backup solutions, catering to both residential and industrial needs. The company focuses on innovative, state-of-the-art engineering to promote sustainable energy use, offering comprehensive services from system design to installation and monitoring. APT Inverex aims to help customers transition from traditional energy consumption to becoming educated producers and consumers of green energy.
