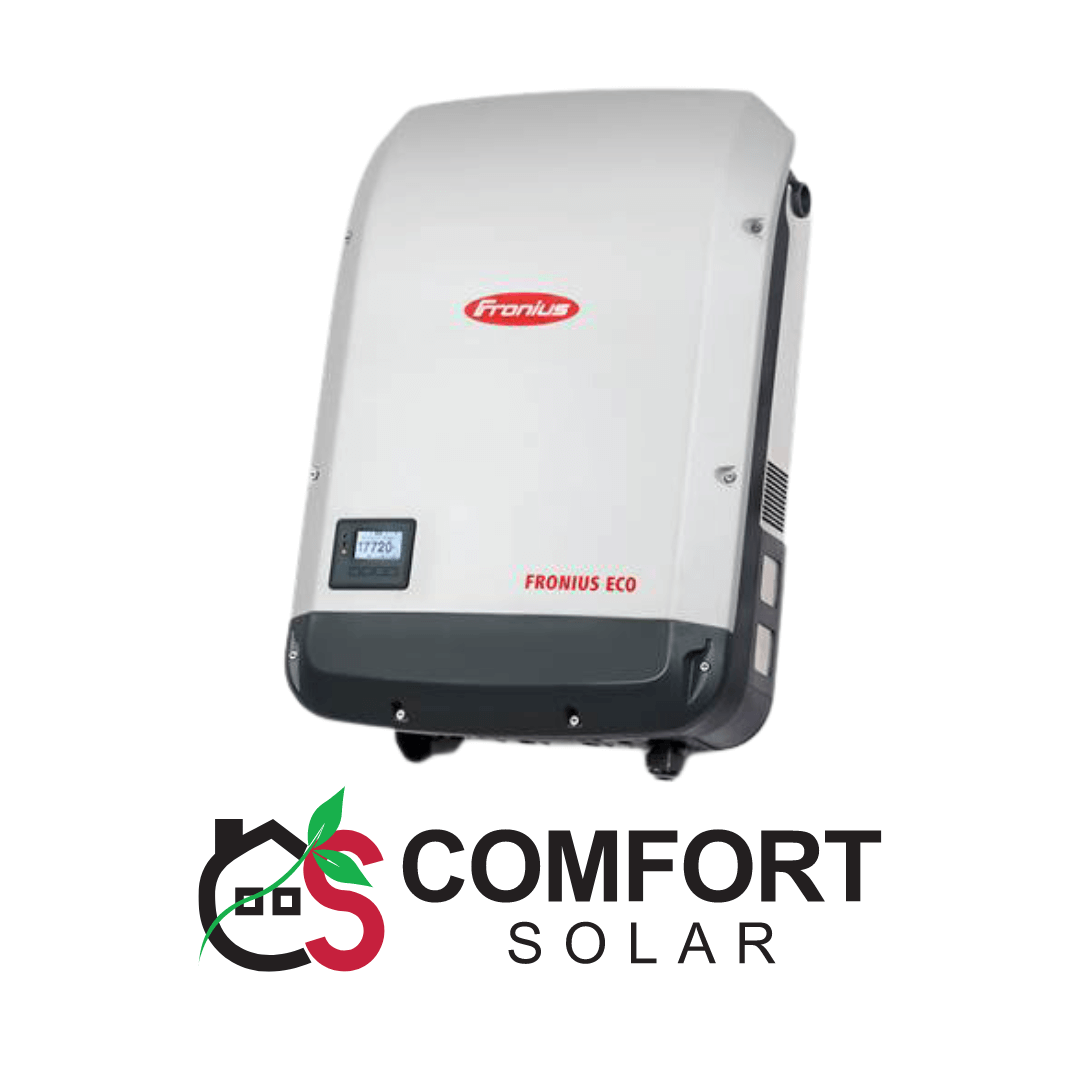

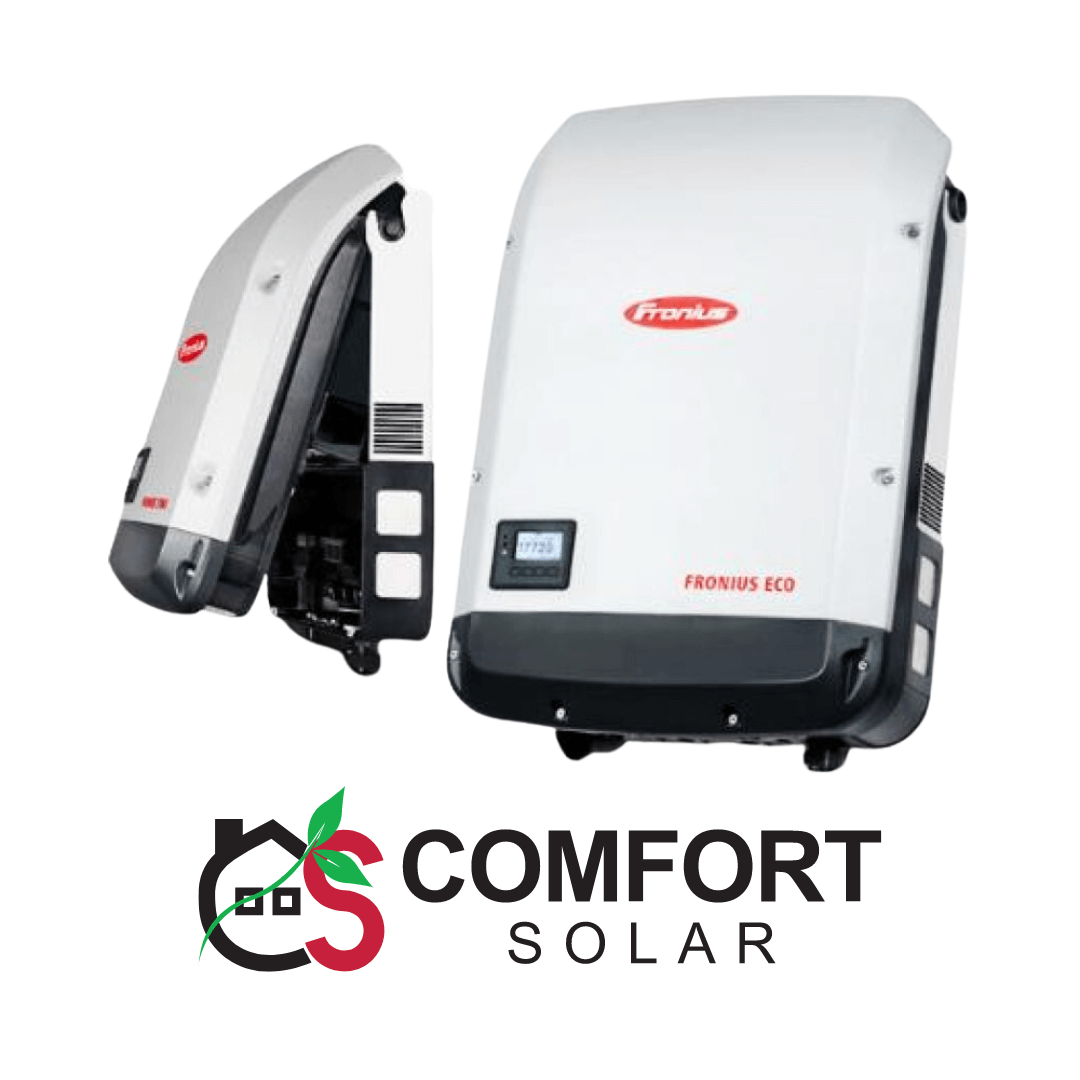

Inverex Fronius ECO On-Grid 25 KW
Meet the demands of large-scale solar installations with the Inverex Fronius ECO On-Grid 25 KW inverter. This three-phase powerhouse, available in power categories 25.0 and 27.0 kW, is engineered for efficiency and reliability, making it ideal for both indoor and outdoor installations.
Key Features:
Warranty and Policies:
Why Comfort Solar?
Comfort Solar is your trusted partner in solar energy solutions, committed to delivering products that excel in performance, sustainability, and longevity. Choose the Inverex Fronius ECO On-Grid 25 KW inverter to power your large-scale solar projects with confidence.
Call to Action:
Ready to elevate your solar installation with the Inverex Fronius ECO On-Grid 25 KW inverter? Visit Comfort Solar today to explore our comprehensive range of solar energy solutions. Contact us via WhatsApp at 03166225526 for inquiries or to place an order. Empower your business with Comfort Solar!
| Max. short circuit current, module array* | 80 A |
|---|---|
| Number of MPP trackers | 1 |
| Feed-in start voltage (Udc start) | 650 V |
| Max. input current (Idc max) | 44.2 A |
| DC input voltage range (Udc min – Udc max) | 580 – 1000 V |
| Nominal input voltage (Udc,r) | 580 V |
| MPP voltage range (Umpp min – Umpp max) | 580 – 850 V |
| Usable MPP voltage range | 580 – 850 V |
| Number of DC connections | 6 |
| Max. PV generator power (Pdc max) | 37.8 kWpeak |
| AC nominal output (Pac,r) | 25 kW |
| Max. output power (Pac max) | 25 kVA |
| AC output current (Iac nom) | 37.9 / 36.2 A |
| Grid connection (Uac,r) | 3~ NPE 400/230, 3~ NPE 380/220 V |
| AC voltage range (Umin – Umax) | 150 – 275 V |
| Frequency (fr) | 50 / 60 Hz |
| Frequency range (fmin – fmax) | 45 – 65 Hz |
| Total harmonic distortion | <3% @Pnom (230/400VAC 50Hz) |
| Power factor (cos φac,r) | 0 – 1 ind./cap. |
| Width | 512 mm |
| Height | 751 mm |
| Depth | 227.5 mm |
| Weight | 35.5 kg |
| Weight incl. packaging | 39.5 kg |
| Degree of protection | IP 66 |
| Protection class | 1 |
| Overvoltage category (DC/AC) | 2 / 3 |
| Night-time consumption | < 1 W |
| Inverter design | Transformerless |
| Cooling | Regulated air cooling |
| Installation | Indoors and outdoors |
| Ambient temperature range | -25°C – +60°C |
| Permitted humidity | 0 – 100% |
| Max. altitude | 2,000 m / 2500 m |
| DC connection technology | 6x DC+ and 6x DC- screw terminals 2.5 – 16 mm² |
| AC connection technology | 5-pin AC screw terminals 2.5 – 16 mm² |
| Certificates and compliance with standards | ÖVE / ÖNORM E 8001-4-712, DIN V VDE 0126-1-1/A1, VDE AR N 4105, IEC 62109-1/-2, IEC 62116, IEC 61727, AS 3100, AS 4777-2, AS 4777-3, CER 06-190, G99, UNE 206007-1, SI 4777, CEI 0-16, CEI 0-21 |
| Sound emissions | 60.3 dB(A) |
| Interference emission class | B |
| Max. efficiency (PV – grid) | 98.2% |
| European efficiency (ηEU) | 98.0% |
| η at 5% Pac,r | 95.1 / 91.5% |
| η at 10% Pac,r | 97.0 / 95.2% |
| η at 20% Pac,r | 97.8 / 96.9% |
| η at 25% Pac,r | 98.0 / 97.0% |
| η at 30% Pac,r | 98.1 / 97.2% |
| η at 50% Pac,r | 98.2 / 97.5% |
| η at 75% Pac,r | 98.2 / 97.5% |
| η at 100% Pac,r | 98.2 / 97.5% |
| MPP adaptation efficiency | > 99.9% |
| DC insulation measurement | Yes |
| Overload behaviour | Operating point shift, power limitation |
| DC disconnector | Yes |
| Integrated string fuse holder | Yes |
| DC Reverse Polarity Protection | Yes |
| WLAN / Ethernet LAN | Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON) |
| 6 inputs and 4 digital inputs/outputs | Interface to ripple control receiver |
| USB (type A socket) | Data logging, inverter update via USB flash drive |
| 2x RS422 (RJ45 socket) | Fronius Solar Net |
| Signalling output | Energy management (floating relay output) |
| Datalogger and web server | Integrated |
| External input | S0 meter connection / Evaluation of overvoltage protection |
| RS485 | Modbus RTU SunSpec or meter connection |
