Description
| Parameter | Specification |
|---|---|
| Model | ECO-LFP24100-BG |
| Nominal Voltage | 25.6V |
| Voltage Range | 20V – 29.2V |
| Charge Voltage | 29.2V |
| Low Voltage Cut-Off | 20.0V |
| Nominal Capacity | 100Ah |
| Nominal Energy | 2.56kWh |
| Usable Energy | 2.56kWh |
| Dimensions (W×H×D) | 41.9 × 38.0 × 19.3 cm (16.5 × 15.0 × 7.6 in) |
| Weight | 30kg (66.14 lb) |
| Standard Charge Current | ≤50A |
| Max. Charge Current | 100A |
| Standard Discharge Current | ≤50A |
| Max. Discharge Current | 100A (initial temp. ≤35°C) |
| Communication Ports | RS485 / CAN / RS232 |
| Max. Parallel Units | 15 pcs |
| Charge Temperature | 0°C to 55°C |
| Discharge Temperature | -20°C to 55°C |
| Storage Temperature | 20°C to 40°C |
| Humidity at Shipment | 60±25% RH |
| Storage Life (Uncharged) | <1 year (20–40°C), <3 months (≤25°C) |

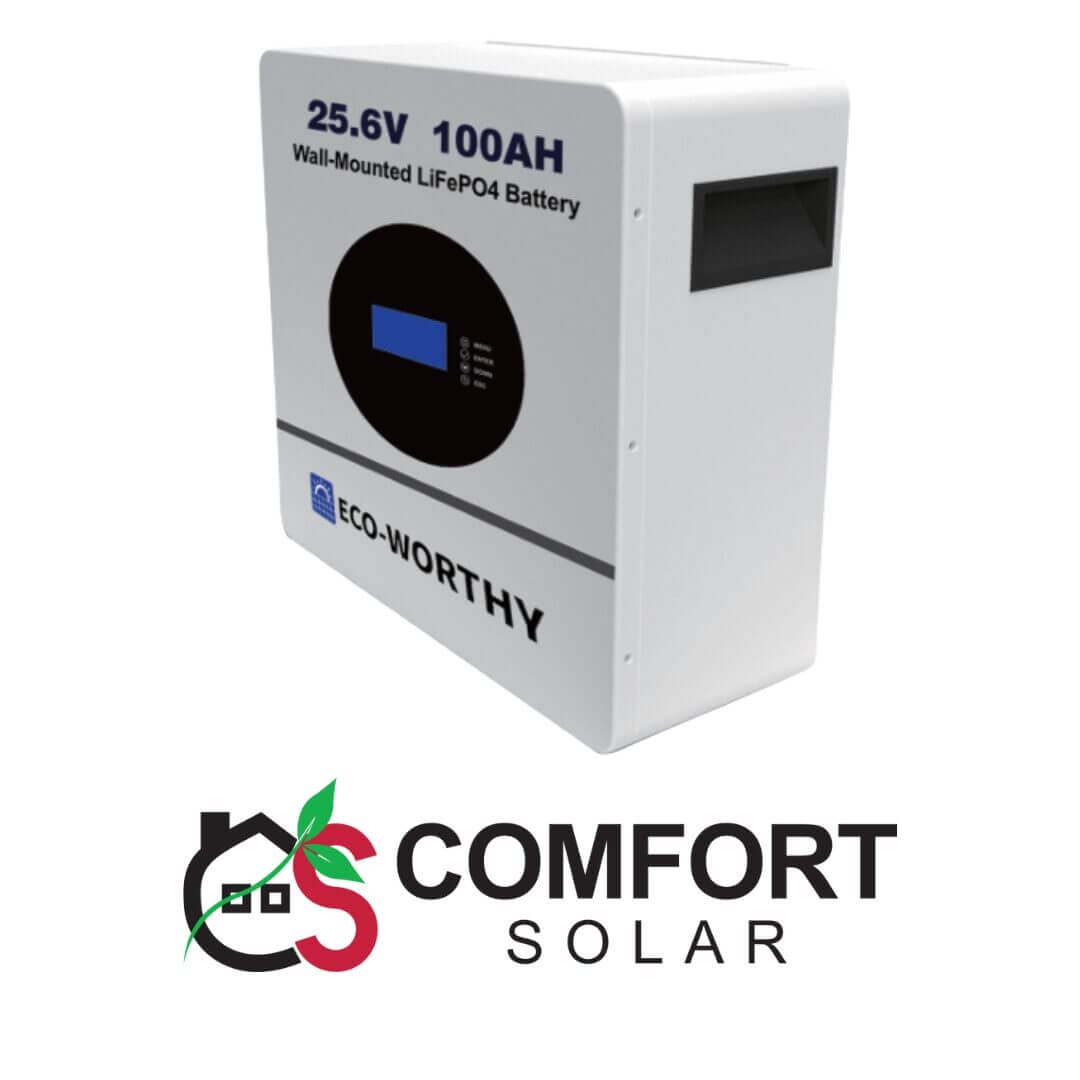

The ECO-LFP24100-BG is a 25.6V 100Ah lithium iron phosphate (LiFePO₄) battery designed for dependable performance in solar, backup, and energy storage systems. With a compact footprint and lightweight design, this 2.56kWh battery offers both flexibility and powerful output.
It’s engineered for safety and efficiency, with an integrated smart Battery Management System (BMS) that ensures stable communication and protection. Compatible with a wide range of inverters and systems via RS485, CAN, and RS232 interfaces, this battery can be used in standalone or scalable setups — supporting up to 15 units in parallel.
Ideal for solar applications, off-grid cabins, telecom systems, and home UPS setups, the ECO-LFP24100-BG offers efficient energy storage without compromising on safety or performance.
