Due to high market volatility, prices for our products are subject to change.
The actual price will be provided once the customer contacts our sales representative via WhatsApp.
The product will be dispatched only after a partial deposit is made in our business account.
| Max. DC Input Voltage | 1000 VDC, 278-800 VDC, 417-800 VDC |
|---|---|
| Start-up DC Input Voltage/Power | 350 V, 350 V, 350 V |
| Nominal AC Output Current @480 Vac | 30.3/28.7 A, 37.9/36.1 A, 45.5/43.3 A |
| Operating DC Input Voltage Range | 200-800 VDC, 417-800 VDC |
| Max. PV Power | 23 kW (13.5 kW/MPPT), 28 kW (13.5 kW/MPPT), 34 kW (13.5 kW/MPPT) |
| Number of MPP trackers | 4 |
| MPPT Full Power Voltage Range | 347-800 VDC |
| Operating Current (Imp) | 30.3/28.7 A, 45.5/43.3 A, 72 A (18 A per MPPT) |
| Max. Input Current (Isc) | –, 93.6 A (23.4 A per MPPT) |
| Number of DC Inputs | 8 (2 per MPPT) |
| DC Disconnection Type | Load rated DC switch |
| Rated AC Output Power | 20 kW, 25 kW, 30 kW |
| Max. AC Output Power | 22 kW, 27.5 kW, 33 kW |
| Rated Output Voltage | 380/400 V |
| Output Voltage Range | 304-460 V |
| Grid Connection Type | 3 W/ N/ PE |
| Rated Output Frequency | 50/60 Hz |
| Output Frequency Range* | 47-52/57-62 Hz |
| Power Factor | 1 default (±0.8 adjustable) |
| Current THD | <3% |
| Topology | Transformerless |
| Max. Efficiency | 98.6% |
| CEC Efficiency | 98.3% |
| Night Consumption | – |
| Protection Degree | IP65 |
| Cooling | Natural Convection Cooling |
| Operating Temperature Range | -25°C to +60°C |
| Storage temperature range | -40°F to +158°F/ -40°C to +70°C |
| Operating Humidity | 0-100% |
| Operating Altitude | 4000 m |
| Audible Noise | dBA@1m |
| Display | LCD + LED |
| Communication | Standard: RS485 (Modbus) |
| Dimensions (W / H / D) | 530 x 700 x 356.5 mm |
| Weight | 58.2 kg |
| Installation Angle | 90 degrees from horizontal |
| DC Inputs | MC4 |
| Safety | IEC62109-1/-2 |
| Grid Standard | AS4777, NRS097 |
| Smart-Grid Features | Voltage-Ride Thru, Frequency-Ride Thru, Soft-Start, Volt-Var, Frequency-watt, Volt-Watt |

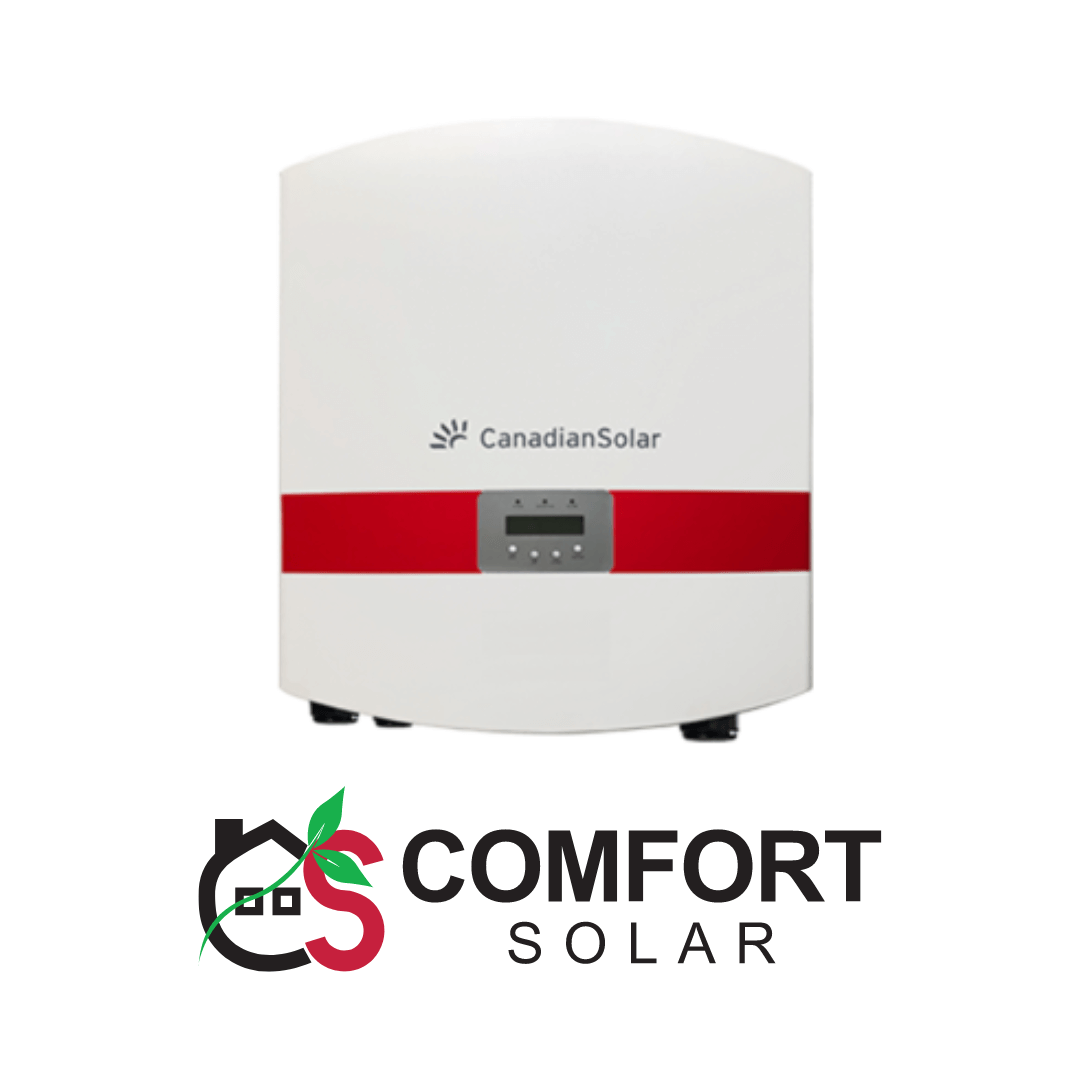

Discover the advanced capabilities of the THREE PHASE STRING INVERTER 20-30 KW from Comfort Solar, engineered for optimal performance in commercial rooftop and small ground-mount solar installations. This series combines efficiency, reliability, and adaptability to maximize energy harvest and reduce operational costs.
Key Features:
Efficiency Curve:
Why Choose Comfort Solar? Comfort Solar is committed to delivering cutting-edge solar solutions that enhance efficiency, reliability, and sustainability. Our THREE PHASE STRING INVERTER 20-30 KW series sets new benchmarks for performance in commercial and industrial solar applications, ensuring long-term value and energy savings.
Call to Action: Ready to integrate the THREE PHASE STRING INVERTER 20-30 KW into your solar project? Visit comfortsolar.pk today to explore our full range of solar products. For inquiries or to place an order, contact us directly on WhatsApp at 03166225526. Experience the reliability and efficiency of Comfort Solar’s advanced solar solutions!
