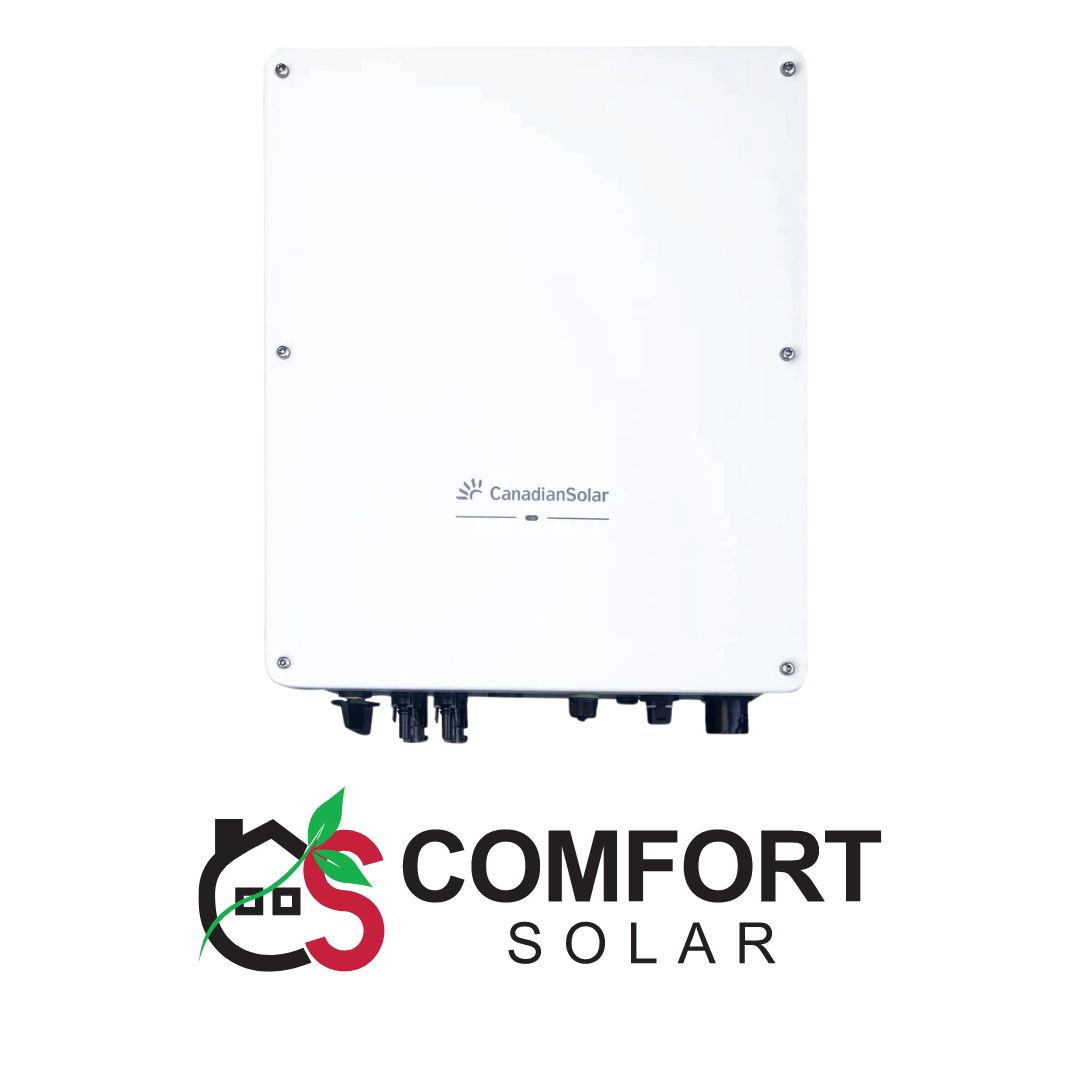

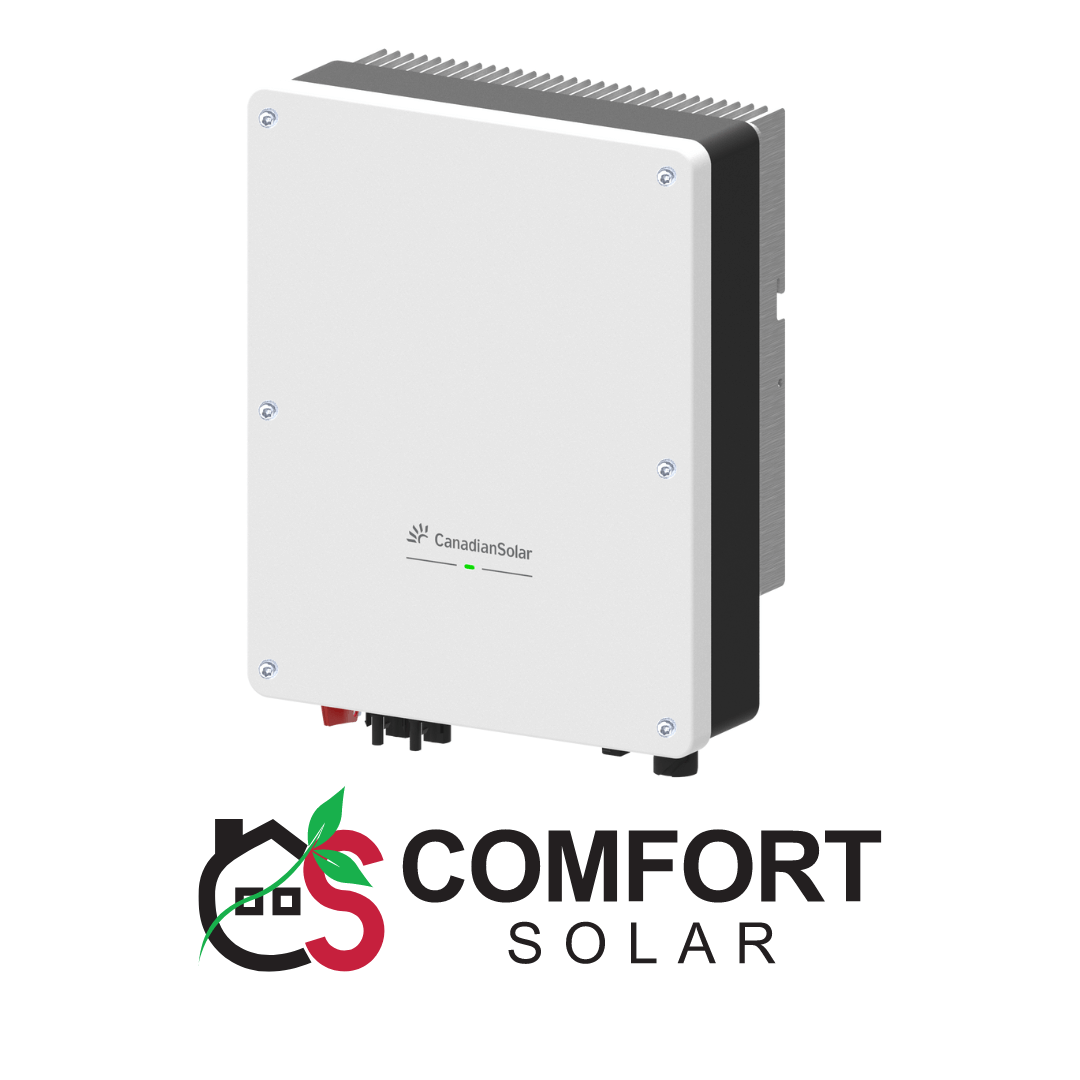

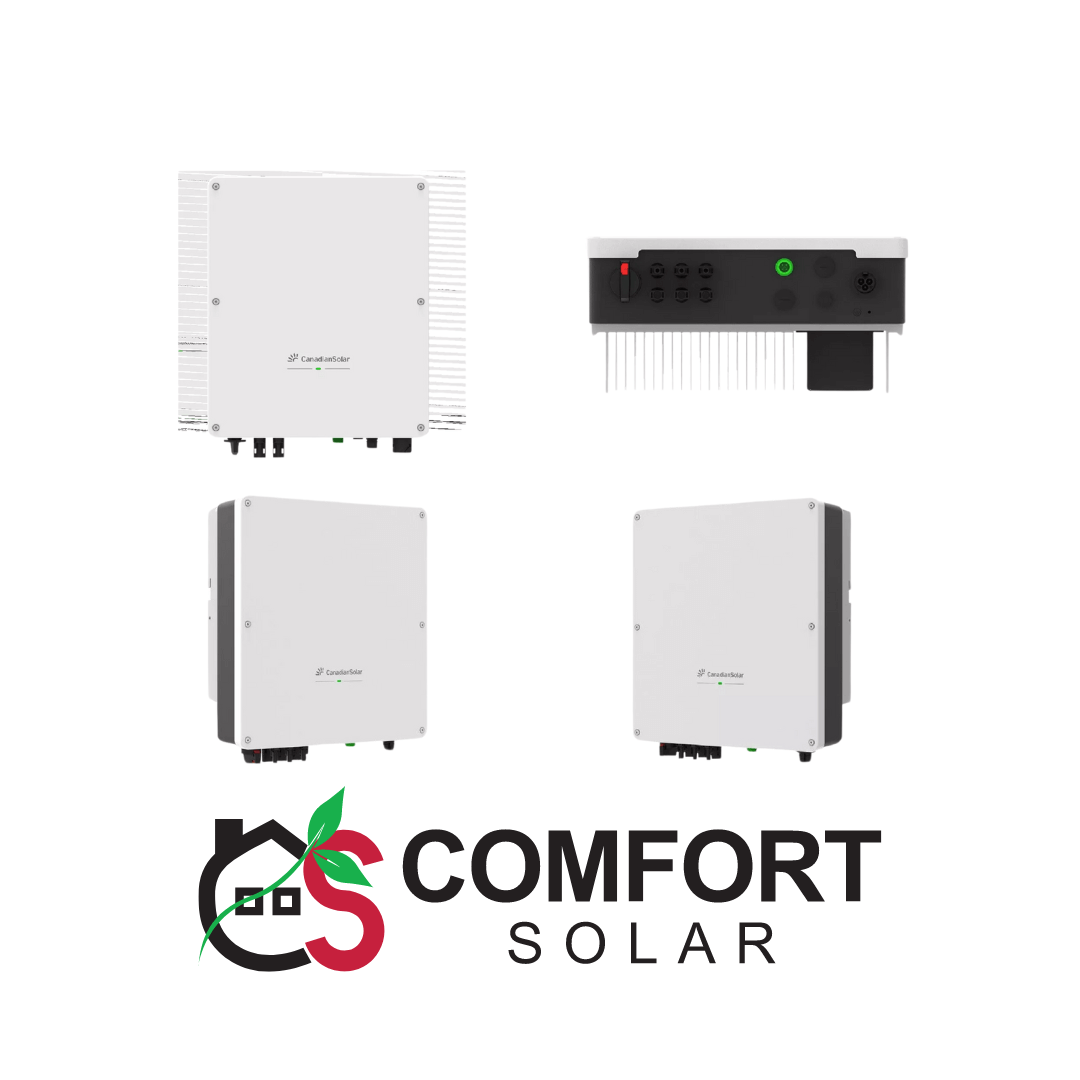

Explore the advanced features and reliability of Comfort Solar’s THREE PHASE STRING INVERTER 12-20 KW series, designed for commercial and industrial applications. These inverters combine high efficiency, robust design, and flexible connectivity options to maximize solar energy utilization.
Key Features:
System/Technical Data:
Why Choose Comfort Solar? Comfort Solar is committed to delivering high-quality solar solutions that combine innovation, efficiency, and reliability. Our THREE PHASE STRING INVERTER 12-20 KW series is designed to optimize energy harvesting and reduce operational costs, making it an ideal choice for commercial and industrial solar installations.
Contact Us: Visit comfortsolar.pk to explore our complete range of solar products. For inquiries or to place an order, contact us via WhatsApp at 03166225526. Experience the efficiency and reliability of Comfort Solar’s advanced solar solutions today!
| Start-up DC Input Voltage/Power | 180 V, 180 V, 180 V, 180 V |
|---|---|
| Max. DC Power | 14.5 kW, 18 kW, 20.4 kW, 24 kW |
| Max. Short Circuit Current (Isc) | 19.1 A, 34.3 A / 34.3 A, 34.3 A / 34.3 A, 31.8 A |
| Max. DC Input Voltage | 1000 V |
| Number of MPP trackers | 2 |
| MPPT Voltage Range | 160 – 850 V |
| Max. Input Current (Imp) | 18.2 A / 17.3 A, 22 A / 22 A, 30.4 A / 28.9 A |
| Number of DC Inputs | 2/4 |
| DC Disconnection Type | N/A |
| Rated AC Output Power | 12 kW, 15 kW, 17 kW, 20 kW |
| Max. AC Output Power | 13.2 kW, 16.5 kW, 18.7 kW, 22 kW |
| Rated Output Voltage | 220/380 VAC, 230/400 V |
| Grid Connection Type | 3W/N/PE |
| Rated Grid Output Current | 22.8 A / 21.7 A, 25.8 A / 24.6 A, 30.4 A / 28.9 A |
| Max. Output Current | 23.8 A, 27 A, 31.8 A |
| Rated Output Frequency | 50/60 Hz |
| Output Frequency Range* | 45-55 Hz / 55-65 Hz |
| Power Factor | >0.99 (0.8 leading … 0.8 lagging) |
| Current THD | < 1.5% |
| DC injection current | < 0.5 % of Rated Grid Output Current |
| Max. Efficiency | 98.7% |
| EU Efficiency | 98.1% |
| Night Consumption | – |
| Protection Degree | IP65 |
| Cooling | Forced Ventilation |
| Operating Temperature Range | -25°C to +60°C |
| Storage temperature range | -40°C to 0°C |
| Operating Humidity | 0-100% Condensing |
| Operating Altitude | 4000 m |
| Audible Noise | dBA@1m |
| Display | LCD, 2x20Z |
| Communication | WIFI/RS485 Optional |
| Dimensions (W / H / D) | 563 x 310 x 219 mm |
| Weight | 18.9 kg, 19.8 kg |
| Installation Angle | 0—15 Degrees from Vertical |
| DC Inputs | MC4 |
| Safety and EMC Standard | IEC62109-1/2, EN61000-6-1/2/3/4 |
| Grid Standard | AS4777-2:2015, IEC61727, IEC62116 |
