₨ 119,000
Due to high market volatility, prices for our products are subject to change.
The actual price will be provided once the customer contacts our sales representative via WhatsApp.
The product will be dispatched only after a partial deposit is made in our business account.
| Number of MPP Trackers / String per MPPT | 1/1 |
|---|---|
| Max. Short Circuit Current per MPPT | 26A |
| Max. Current per MPPT | 20A |
| Max. Input Power | 4.5kW |
| Max. Input Voltage | 600V |
| Start Voltage | 60V |
| Rated Input Voltage | 360V |
| MPPT Voltage Range | 50V 550V |
| Output (AC) |
|
| Max. Output Current | 15A |
| Rated Output Power | 3kW |
| Max. Output Power | 3.3kVA |
| Rated Grid Frequency | 50Hz / 60Hz |
| Rated Grid Voltage | 220Vac / 230Vac / 240Vac |
| Power Factor | >0.99 ( 0.8 leading 0.8 lagging ) |
| THDi | <3% ( Rated Power ) |
| Efficiency |
|
| Max. Efficiency | 97.60% |
| European Efficiency | 97.20% |
| MPPT Efficiency | 99.90% |
| Protectlon |
|
| DC switch | Optional |
| DC Reverse Polarity Protection | Yes |
| Anti-islanding Protection | Yes |
| AC Short Circuit Protection | Yes |
| Residual Current Monitoring Unit | Yes |
| Insulation Resistance Monitoring | Yes |
| Ground Fault Monitoring | Yes |
| Grid Monitoring | Yes |
| PV String Monitoring | Yes |
| Surge Protection | Yes |
| AFCI Protection | Optional |
| Communication | RS485 / WiFi / 4G |
| Display | LCD / LED+APP |
| Standard Compliance |
|
| Certification | IEC/EN 62109-1/2, IEC/EN 61000-1/3, IEC 61727/62116, IEC 60068, IEC 61683 BIS, ABNT |
| General Data |
|
| Dimensions (W x H x D) | 270 x 250 x 130 mm |
| Weight | 6kg |
| Operating Temperature Range | -300C -e +600C |
| Cooling Method | Natural |
| Protection Degree | IP66 |
| Max. Operating Altitude | 4000m |
| Relative Humidity | o – 100% |
| Topology | Transformerless |
| Night Power Consumption | <1W |

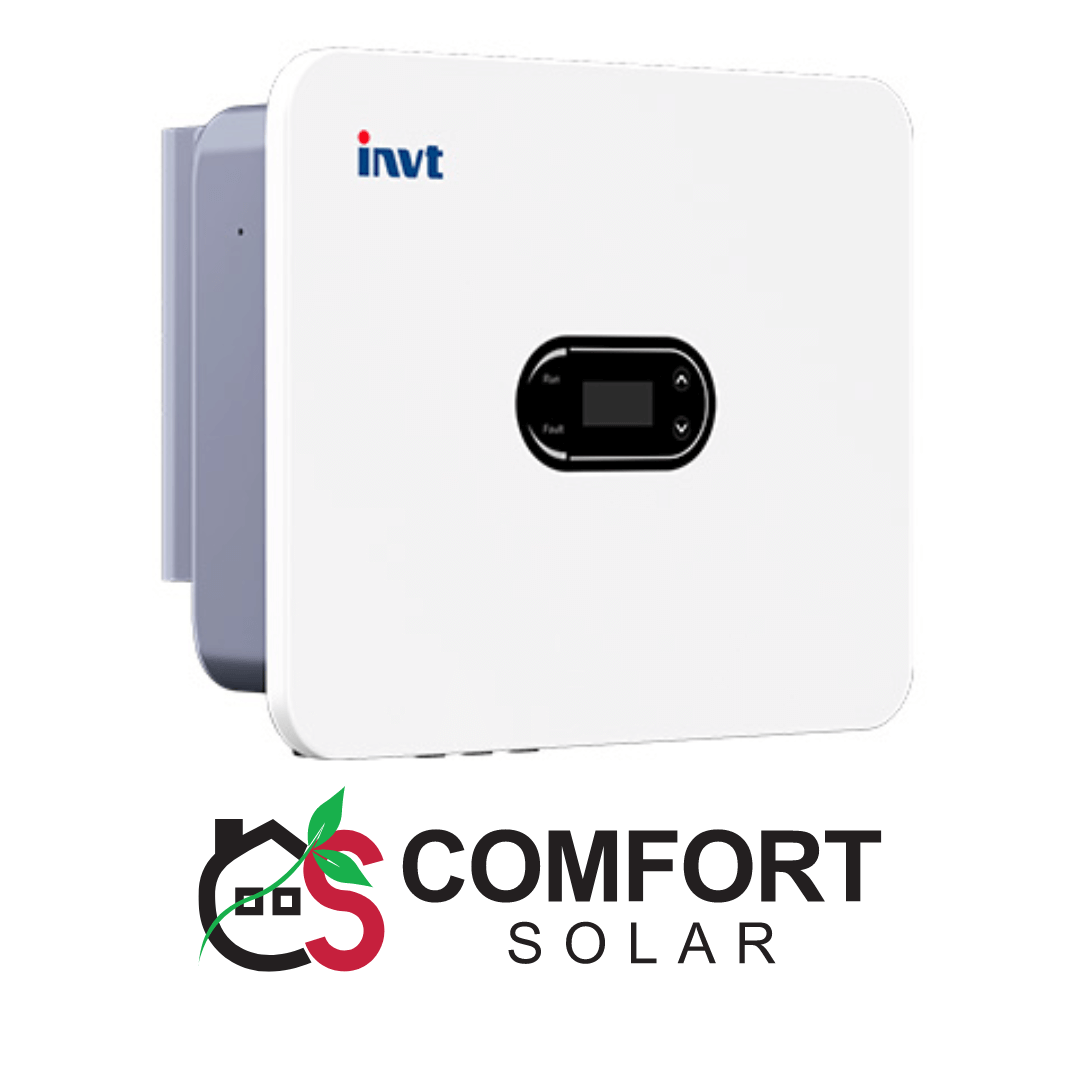

Enhance your solar energy system with the XG30-40KTR three-phase on-grid solar inverter, designed for medium-sized residential and commercial applications. Combining a modern design with advanced features, this inverter delivers exceptional performance and a superior user experience.
Key Features:
Why Choose the XG30-40KTR?
The XG30-40KTR inverter is designed to deliver high efficiency and reliability for medium-sized solar installations. Its intelligent monitoring and advanced protection features ensure a seamless and efficient solar energy experience.
Call to Action:
Upgrade your solar energy system with the XG30-40KTR inverter. Visit comfortsolar.pk for more information and to explore our range of products. For inquiries or to place an order, contact us directly on WhatsApp at 03166225526. Experience cutting-edge solar technology with Comfort Solar today!
