₨ 55,000
Due to high market volatility, prices for our products are subject to change.
The actual price will be provided once the customer contacts our sales representative via WhatsApp.
The product will be dispatched only after a partial deposit is made in our business account.
| Number of MPP Trackers / String per MPPT | 1/1 |
|---|---|
| Max. Short Circuit Current per MPPT | 26A |
| Max. Current per MPPT | 20A |
| Max. Input Power | 3.7kW |
| Max. Input Voltage | 600V |
| Start Voltage | 60V |
| Rated Input Voltage | 360V |
| MPPT Voltage Range | 50V 550V |
| Output (AC) |
|
| Max. Output Current | 12.5A |
| Rated Output Power | 2.5kW |
| Max. Output Power | 2.75kVA |
| Rated Grid Frequency | 50Hz / 60Hz |
| Rated Grid Voltage | 220Vac / 230Vac / 240Vac |
| Power Factor | >0.99 ( 0.8 leading 0.8 lagging ) |
| THDi | <3% ( Rated Power ) |
| Efficiency |
|
| Max. Efficiency | 97.30% |
| European Efficiency | 97.00% |
| MPPT Efficiency | 99.90% |
| Protectlon |
|
| DC switch | Optional |
| DC Reverse Polarity Protection | Yes |
| Anti-islanding Protection | Yes |
| AC Short Circuit Protection | Yes |
| Residual Current Monitoring Unit | Yes |
| Insulation Resistance Monitoring | Yes |
| Ground Fault Monitoring | Yes |
| Grid Monitoring | Yes |
| PV String Monitoring | Yes |
| Surge Protection | Yes |
| AFCI Protection | Optional |
| Communication | RS485 / WiFi / 4G |
| Display | LCD / LED+APP |
| Standard Compliance |
|
| Certification | IEC/EN 62109-1/2, IEC/EN 61000-1/3, IEC 61727/62116, IEC 60068, IEC 61683 BIS, ABNT |
| General Data |
|
| Dimensions (W x H x D) | 270 x 250 x 130 mm |
| Weight | 6kg |
| Operating Temperature Range | -300C -e +600C |
| Cooling Method | Natural |
| Protection Degree | IP66 |
| Max. Operating Altitude | 4000m |
| Relative Humidity | o – 100% |
| Topology | Transformerless |
| Night Power Consumption | <1W |

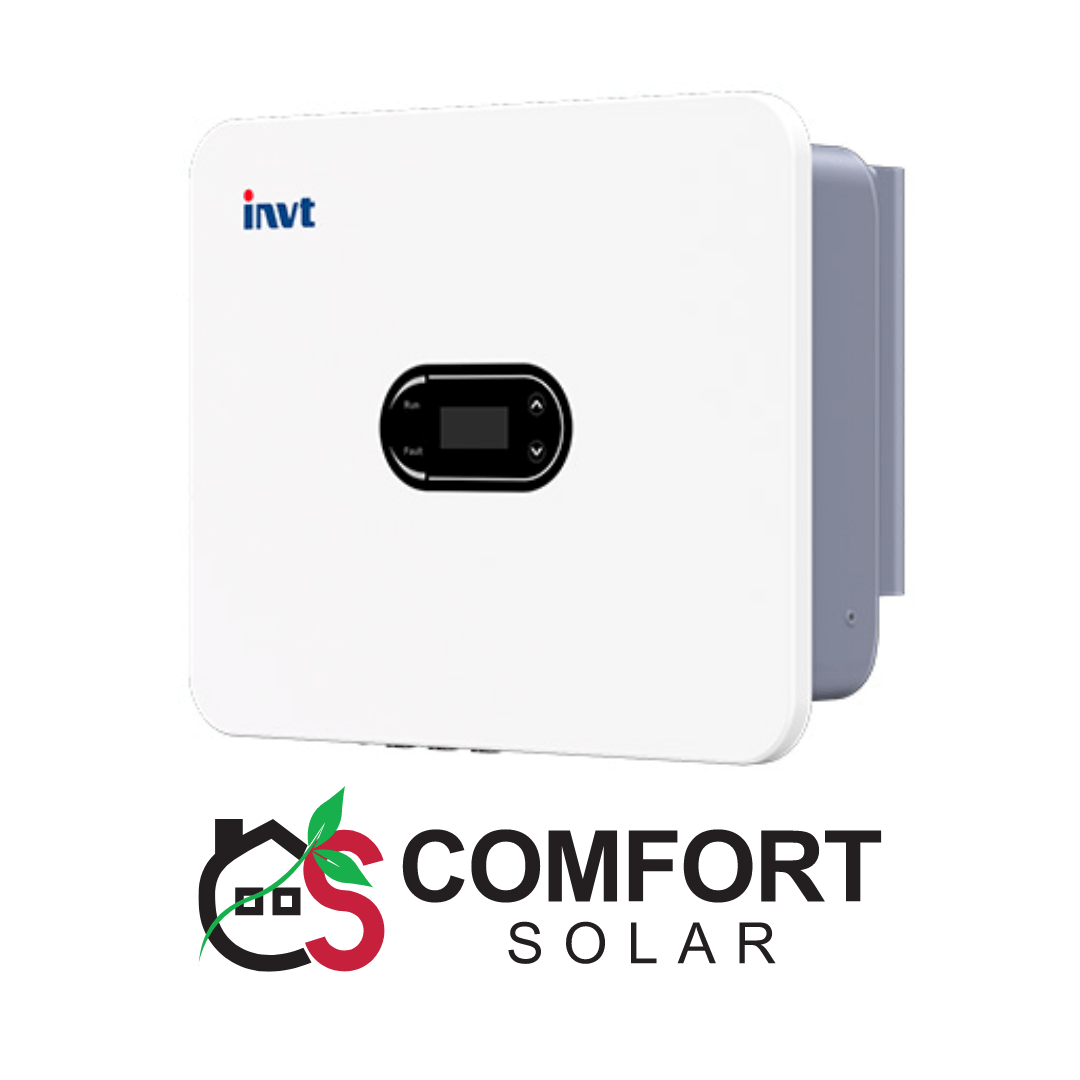

Elevate your solar energy experience with the XG17-25KTR three-phase on-grid solar inverter. Designed for small household and commercial applications, this inverter combines sleek aesthetics with advanced technology to provide a superior power consumption solution.
Key Features:
Why Choose the XG17-25KTR?
The XG17-25KTR inverter is engineered to deliver robust performance and reliability for smaller-scale solar installations. Its modern design and intelligent monitoring capabilities make it a standout choice for those seeking an efficient and user-friendly solar power solution.
Call to Action:
Ready to enhance your solar power setup with the XG17-25KTR inverter? Visit comfortsolar.pk for more information and explore our range of products. For inquiries or to place an order, contact us directly on WhatsApp at 03166225526. Experience the future of solar energy with our innovative technology today!
