₨ 28,000
Due to high market volatility, prices for our products are subject to change.
The actual price will be provided once the customer contacts our sales representative via WhatsApp.
The product will be dispatched only after a partial deposit is made in our business account.

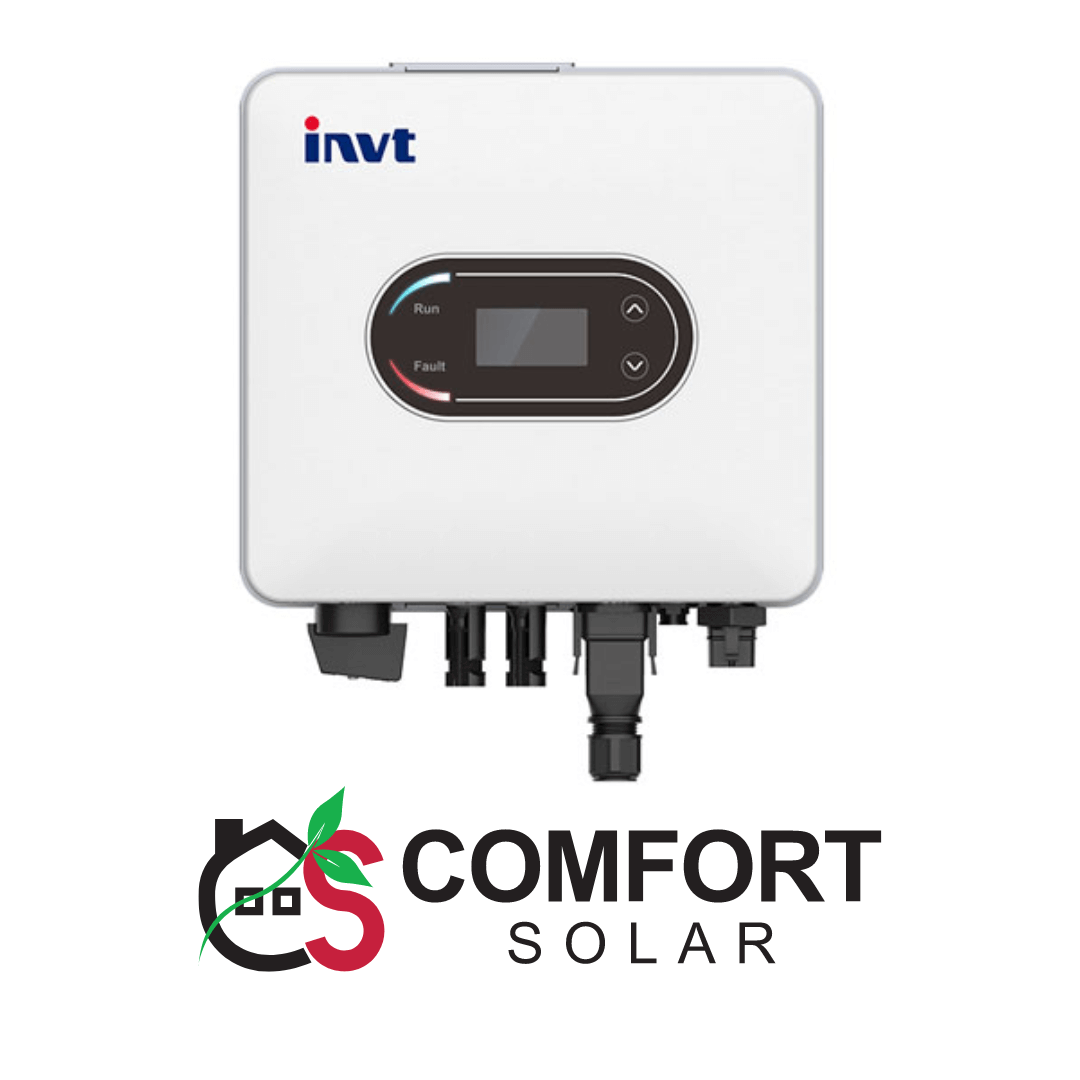

Discover the latest in solar technology with Comfort Solar’s advanced inverter, designed to enhance efficiency, simplify maintenance, and provide reliable performance for your solar power system.
Key Features:
Why Choose Comfort Solar?
At Comfort Solar, we are committed to providing cutting-edge solar solutions that enhance efficiency, simplify operations, and ensure reliable performance. Our latest inverter model offers advanced features and robust protection to meet your solar power needs.
Call to Action:
Ready to optimize your solar energy system with our advanced inverter? Visit comfortsolar.pk to learn more about our products. For inquiries or to place an order, contact us directly on WhatsApp at 03166225526. Enhance your solar setup with our high-performance technology today!
| Number of MPP Trackers / String per MPPT | 1/1 |
|---|---|
| Max. Short Circuit Current per MPPT | 26A |
| Max. Current per MPPT | 20A |
| Max. Input Power | 1.5kW |
| Max. Input Voltage | 600V |
| Start Voltage | 60V |
| Rated Input Voltage | 360V |
| MPPT Voltage Range | 50V 550V |
| Output (AC) |
|
| Max. Output Current | 5A |
| Rated Output Power | 1kW |
| Max. Output Power | 1.1kVA |
| Rated Grid Frequency | 50Hz / 60Hz |
| Rated Grid Voltage | 220Vac / 230Vac / 240Vac |
| Power Factor | >0.99 ( 0.8 leading 0.8 lagging ) |
| THDi | <3% ( Rated Power ) |
| Efficiency |
|
| Max. Efficiency | 97.30% |
| European Efficiency | 97.00% |
| MPPT Efficiency | 99.90% |
| Protectlon |
|
| DC switch | Optional |
| DC Reverse Polarity Protection | Yes |
| Anti-islanding Protection | Yes |
| AC Short Circuit Protection | Yes |
| Residual Current Monitoring Unit | Yes |
| Insulation Resistance Monitoring | Yes |
| Ground Fault Monitoring | Yes |
| Grid Monitoring | Yes |
| PV String Monitoring | Yes |
| Surge Protection | Yes |
| AFCI Protection | Optional |
| Communication | RS485 / WiFi / 4G |
| Display | LCD / LED+APP |
| Standard Compliance |
|
| Certification | IEC/EN 62109-1/2, IEC/EN 61000-1/3, IEC 61727/62116, IEC 60068, IEC 61683 BIS, ABNT |
| General Data |
|
| Dimensions (W x H x D) | 270 x 250 x 130 mm |
| Weight | 6kg |
| Operating Temperature Range | -300C -e +600C |
| Cooling Method | Natural |
| Protection Degree | IP66 |
| Max. Operating Altitude | 4000m |
| Relative Humidity | o – 100% |
| Topology | Transformerless |
| Night Power Consumption | <1W |
