Tigfox TB5120 Plus Ultra Slim LiFePO4 Battery (Technical Specifications)
Model
TB5120 Plus
Nominal Capacity
100Ah
Usable Capacity
4.86kWh (95% DOD)
Battery Type / Chemistry
LiFePO4
Nominal Voltage
51.2V
Energy Density
5120Wh
Installation Type
Wall Mounted
Charging Rate
1C
Discharge Rate
1.5C
Working Voltage Range
43.2 ~ 58.4V DC
Max. Charge Current
100A
Max. Discharge Current
150A
Communication Ports
RS485, CAN, DRY CONTACT, RS232
Dimensions (L × W × H)
780 × 630 × 68 mm
Weight
49 kg
Design Life
10 Years (at 25℃)
Cycle Life
> 6000 cycles (60% EOL @ 25℃)
Scalability
Up to 16 Modules in Parallel (Max. 81.92kWh)
Working Temperature
Charging: 0℃ ~ 50℃
Discharging: -20℃ ~ 60℃
Storage Temperature
-10℃ ~ 35℃ (Recommended)
Working Humidity
≤ 95% RH (Non-condensing)
Storage Humidity
≤ 85% RH
Working Altitude
≤ 2000m
Ingress Protection
IP54
Certifications
CE, IEC62619, UN38.3 (Upcoming)

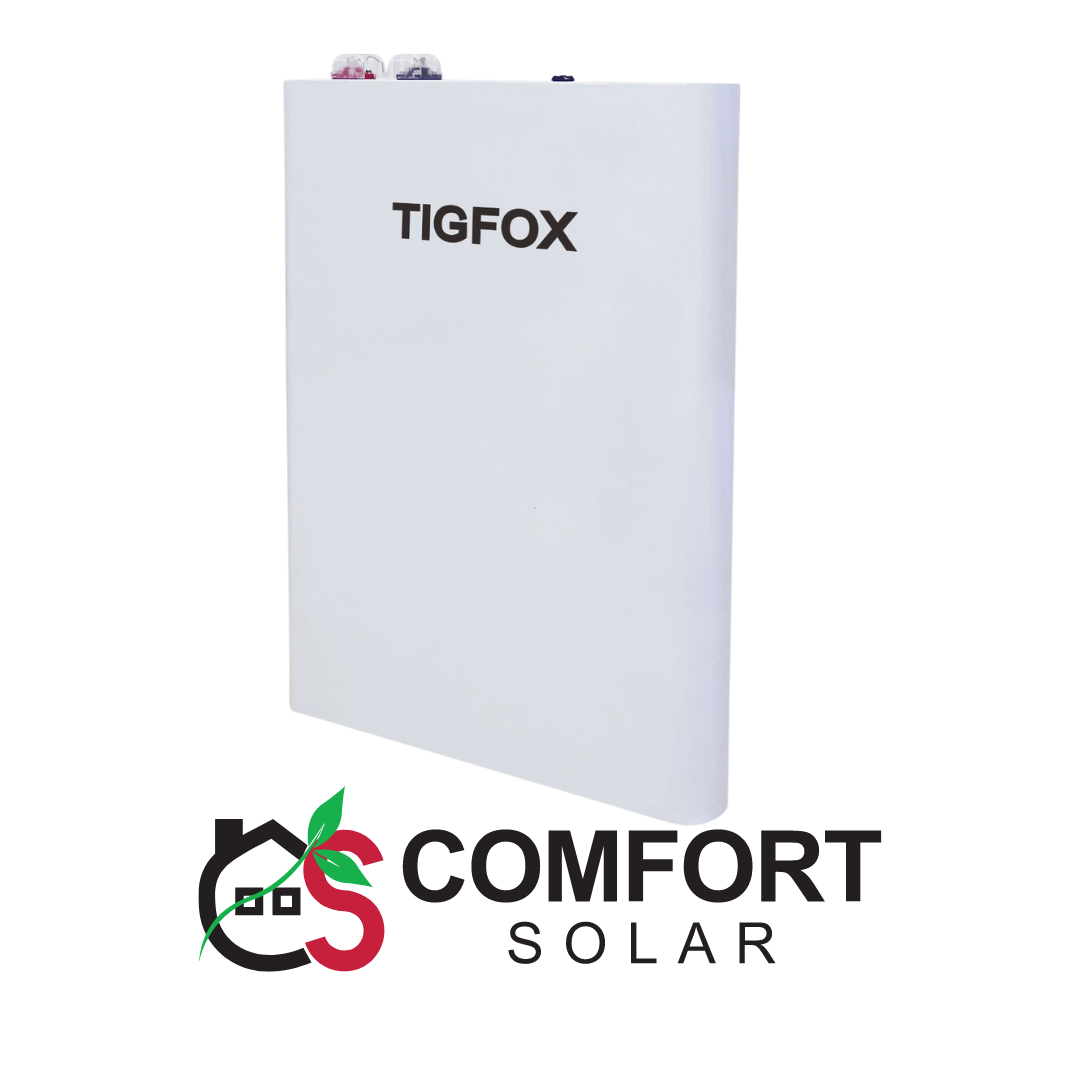

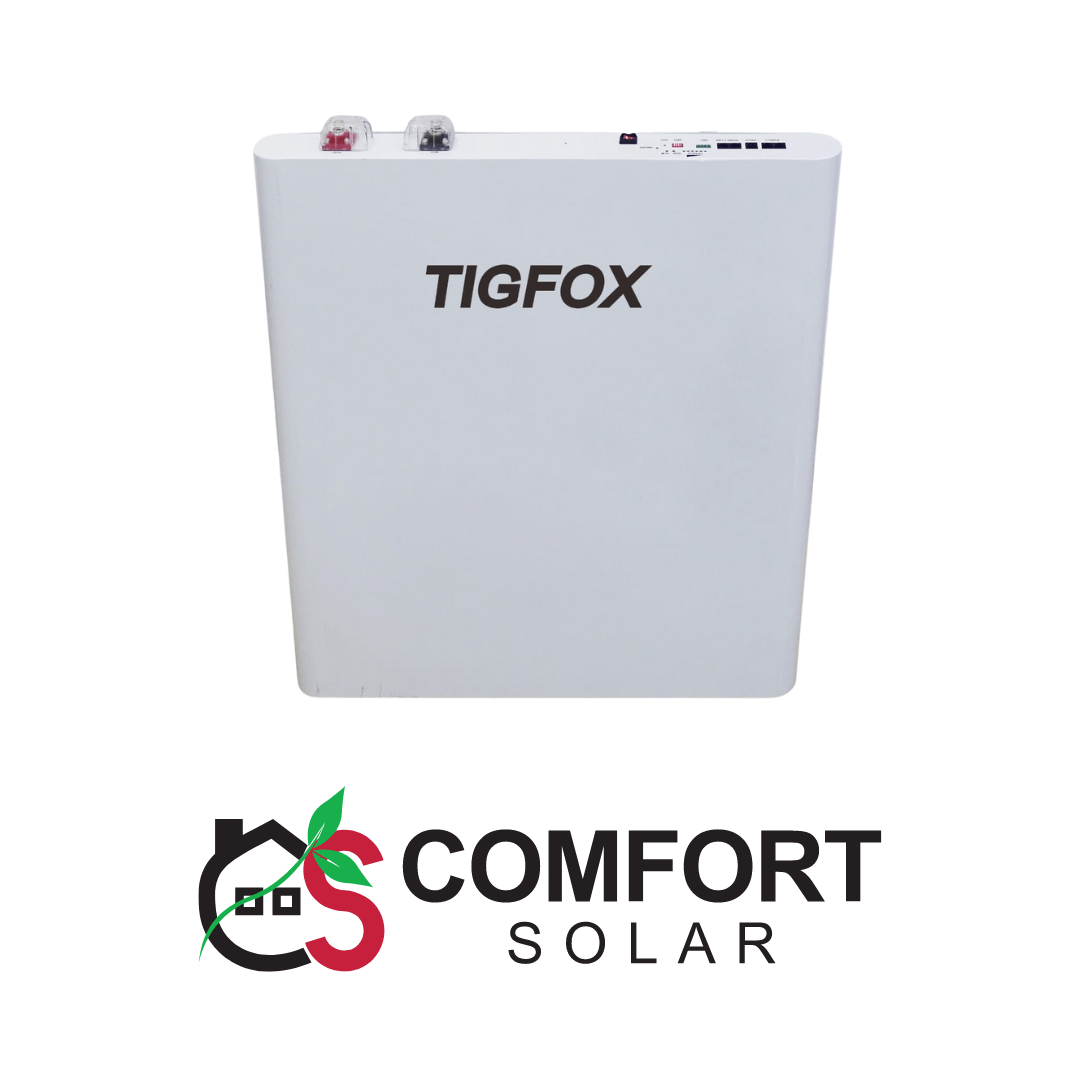

Tigfox TB5120 Plus Ultra Slim LiFePO4 Battery
The Tigfox TB5120 Plus Ultra Slim LiFePO4 Battery is a cutting-edge energy storage solution, designed to provide high efficiency and long-term reliability for your solar power systems. With its ultra-slim design and advanced technology, this battery model is ideal for both residential and commercial installations, ensuring optimal performance with minimal space requirements.
Key Specifications:
Nominal Capacity: 5.12kWh
Usable Capacity: 4.86kWh (95% Depth of Discharge)
Nominal Voltage: 51.2V
Nominal Capacity: 100Ah
Energy Density: 5120Wh
Charging Rate: 1C
Discharge Rate: 1.5C
Durability and Performance:
Cycle Life: Over 6000 cycles at 25℃, with 60% End of Life (EOL) capacity.
Design Life: 10 years at 25℃, ensuring long-lasting performance.
Max. Charge Current: 100A
Max. Discharge Current: 150A
Working Voltage Range: 43.2 ~ 58.4V DC
Advanced Features:
New Material and Technology: Incorporates the latest advancements in battery technology for superior performance.
Scalability: Supports up to 16 modules in parallel, allowing for a total capacity of 81.92kWh.
Compatibility: Compatible with 80% of solar inverters, making it versatile and easy to integrate.
Communication Ports: RS485, CAN, DRY CONTACT, RS232 for seamless connectivity with system components.
Environmental and Operational Conditions:
Working Temperature: Charging: 0℃~50℃; Discharging: -20℃~60℃
Storage Temperature: -10℃~35℃ (Recommended)
Working Humidity: ≤95% RH (No Condensation)
Storage Humidity: ≤85% RH
Working Altitude: ≤2000m
Ingress Protection: IP54, offering protection against dust and splashes.
Design and Installation:
Installation Type: Wall-mounted, making it ideal for compact installations.
Dimensions (LxWxH): 78063068mm
Weight: Approximately 49 kg
Certifications:
Compliance: CE, IEC62619, UN38.3 (upcoming)
Why Choose the Tigfox TB5120 Plus? The Tigfox TB5120 Plus is designed for those who demand high performance in a compact form. Its ultra-slim profile and advanced features make it a perfect choice for maximizing energy storage without sacrificing space. With a long lifespan, robust warranty, and the option for trade-in discounts after the warranty period, this battery offers unbeatable value.
Contact Us For more information on the Tigfox TB5120 Plus or to explore our other energy storage solutions, visit comfortsolar.pk or contact us at +92 316 6225526. Our team at Comfort Solar is ready to assist you with your energy needs.
Brand
Tigfox
TIGFOX offers a comprehensive range of reliable, sustainable, and versatile energy storage solutions, providing both ODM and OEM services. The company boasts a strong R&D team, a strict quality control system, and a dedicated lithium battery test laboratory to ensure product quality, including 100% aging tests and inspections before shipment. Trusted by global entities such as Huawei, Newman, and the Ukrainian military, TIGFOX supports its products with a five-year warranty and robust after-sales service. To explore TIGFOX’s complete range of home solar power systems, visit our website, "Comfort Solar," where you can learn more about their offerings and how they can meet your energy needs.
TIGFOX is a leading manufacturer specializing in home solar power systems, with nearly 20 years of experience in the industry. Recognized as one of the top manufacturers in China, TIGFOX operates with two factories in Dongguan and Hunan, employing over 600 staff, including 48 professional engineers. The company has established a global presence with branch offices and after-sales centers in countries such as Pakistan, South Africa, Germany, the Netherlands, and the USA. TIGFOX is ISO9001, SA8000, and ISO14001 certified, and its products adhere to international standards like FCC, UL, IEC62619, UN38.3, REACH, and ROHS.
