Due to high market volatility, prices for our products are subject to change.
The actual price will be provided once the customer contacts our sales representative via WhatsApp.
The product will be dispatched only after a partial deposit is made in our business account.

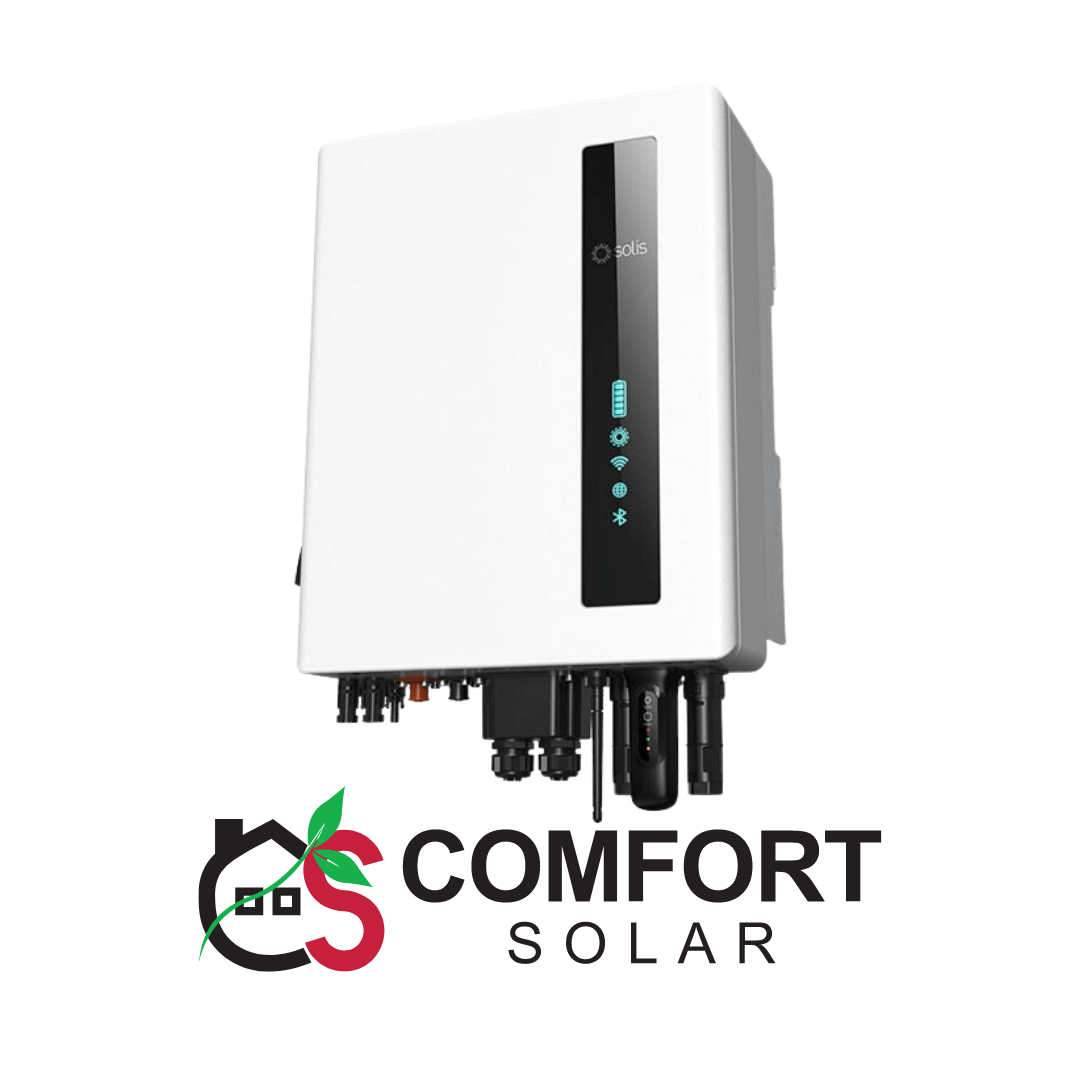

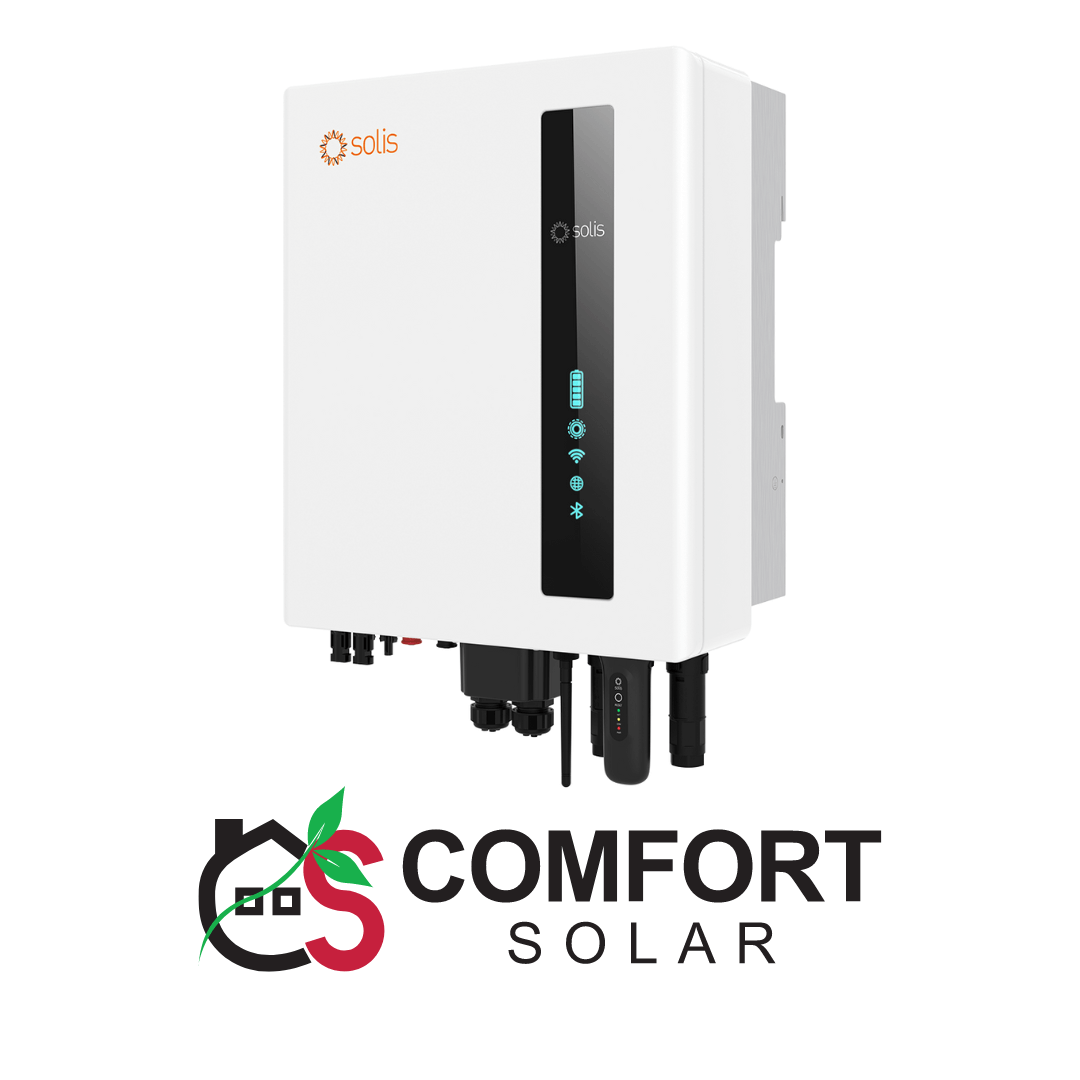

Introducing Comfort Solar’s S6-EH1P(3-6)K-L-PRO Series Energy Storage Inverter, the ideal solution for residential PV energy storage systems. This advanced inverter series is designed to deliver exceptional performance and reliability, ensuring your home is powered efficiently and sustainably.
Key Features:
Why Choose Comfort Solar? At Comfort Solar, we specialize in cutting-edge solar solutions designed to empower homes with sustainable energy. Our S6-EH1P(3-6)K-L-PRO Series Energy Storage Inverter sets the standard for performance, reliability, and safety in residential PV systems.
Call to Action: Ready to transform your home’s energy efficiency and reliability? Visit Comfort Solar today to discover more about the S6-EH1P(3-6)K-L-PRO Series Energy Storage Inverter and explore our comprehensive range of solar products. Contact us directly on WhatsApp at 03166225526 for inquiries or to place an order. Join Comfort Solar for a brighter, sustainable future!
| Recommended max. PV power | 12 kW, 13.5 kW, 15 kW, 18 kW, 19.5 kW, 22.5 kW, 25.5 kW, 30 kW, 4.5 kW, 6 kW, 7.5 kW, 9 kW |
|---|---|
| Max. Input Voltage | 1100 V |
| Rated Voltage | 600 V |
| Start-up Voltage | 180 V |
| MPPT Voltage Range | 160-1000 V |
| Max. Input Current | 16 A / 16 A, 32 A / 32 A |
| Max. Short Circuit Current per MPPT | 20 A / 20 A, 40 A / 40 A |
| MPPT number/Max.input strings number | 2/2, 2/4 |
| Rated Output Power | 10 kW, 12 kW, 13 kW, 15 kW, 17 kW, 20 kW, 3 kW, 4 kW, 5 kW, 6 kW, 8 kW, 9 kW |
| Max. Apparent Output Power (Grid Side) | 11 kVA, 13.2 kVA, 14.3 kVA, 16.5 kVA, 18.7 kVA, 22 kVA, 3.3 kVA, 4.4 kVA, 5.5 kVA, 6.6 kVA, 8.8 kVA, 9.9 kVA |
| Max. Output Power | 11 kW, 13.2 kW, 14.3 kW, 16.5 kW, 18.7 kW, 22 kW, 3.3 kW, 4.4 kW, 5.5 kW, 6.6 kW, 8.8 kW, 9.9 kW |
| Rated Grid Voltage | 230 V / 400 V, 3/N/PE, 220 V / 380 V |
| Rated Grid Frequency | 50 Hz / 60 Hz |
| Rated Grid Output Current | 12.2 A / 11.5 A, 13.7 A / 13.0 A, 15.2 A / 14.4 A, 18.2 A / 17.3 A, 19.8 A / 18.8 A, 22.8 A / 21.7 A, 25.8 A / 24.6 A, 30.4 A / 28.9 A, 4.6 A / 4.3 A, 6.1 A / 5.8 A, 7.6 A / 7.2 A, 9.1 A / 8.7 A |
| Max. Output Current | 12.7 A, 14.3 A, 15.9 A, 19.1 A, 20.7 A, 23.8 A, 27 A, 31.8 A, 4.7 A, 6.4 A, 7.9 A, 9.5 A |
| Power Factor | >0.99 (0.8 leading – 0.8 lagging) |
| THDi | <2% |
| Max. Efficiency | 98.3%, 98.5%, 98.6%, 98.7% |
| EU Efficiency | 97.7%, 97.9%, 98.0%, 98.1% |
| DC Reverse Polarity Protection | Yes |
| Short circuit protection | Yes |
| Output over current protection | Yes |
| Surge Protection | Yes |
| Grid Monitoring | Yes |
| Anti-islanding Protection | Yes |
| Temperature protection | Yes |
| Integrated AFCI | 2.0, Optional |
| Integrated DC switch | Yes |
| Dimensions (W*H*D) | 310*563*219 mm |
| Weight | 16.5 kg, 16.9 kg, 17.9 kg, 19.6 kg, 20.8 kg |
| Topology | Transformerless |
| Operating Ambient Temperature Range | -25 ~ +60°C |
| Relative Humidity | 0-100% |
| Ingress Protection | IP66 |
| Noise Emission (Typical) | <30 dB(A), <60 dB(A) |
| Cooling Concept | Intelligent redundant fan-cooling, Natural Convection |
| Max. Operation Altitude | 4000 m |
| Grid Connection Standard | |
| Safety/EMC Standard | IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4 |
| DC connection | MC4 connector |
| Self-Consumption Night | <1 W |
| AC Connection | Quick connection plug |
| Display | LCD |
| Communication | RS485, Optional: Wi-Fi, GPRS |
