₨ 346,500
Your orders are shipped seamlessly between countries
You have the right to return your orders within 30 days.
Your payments are secure with our private security network.

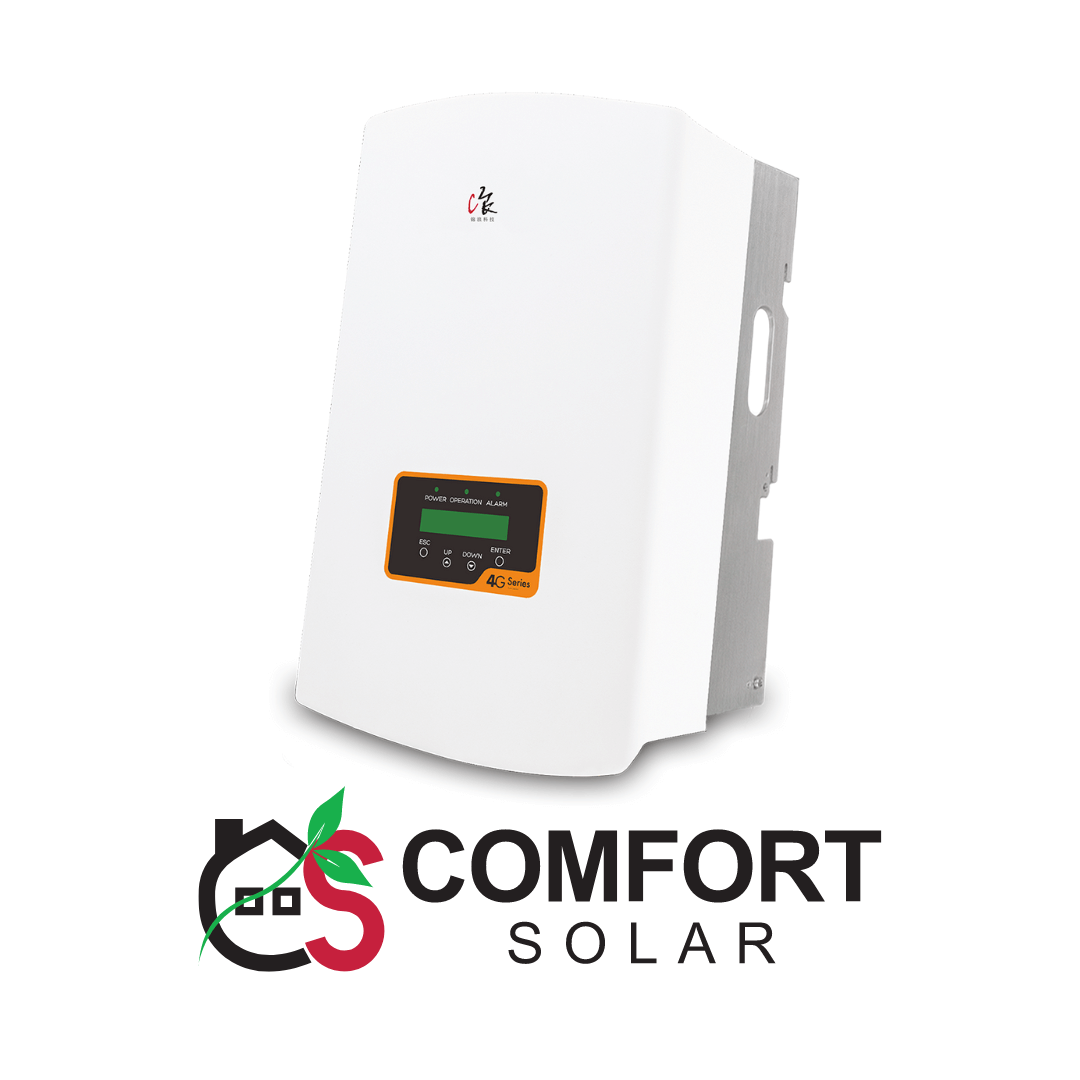

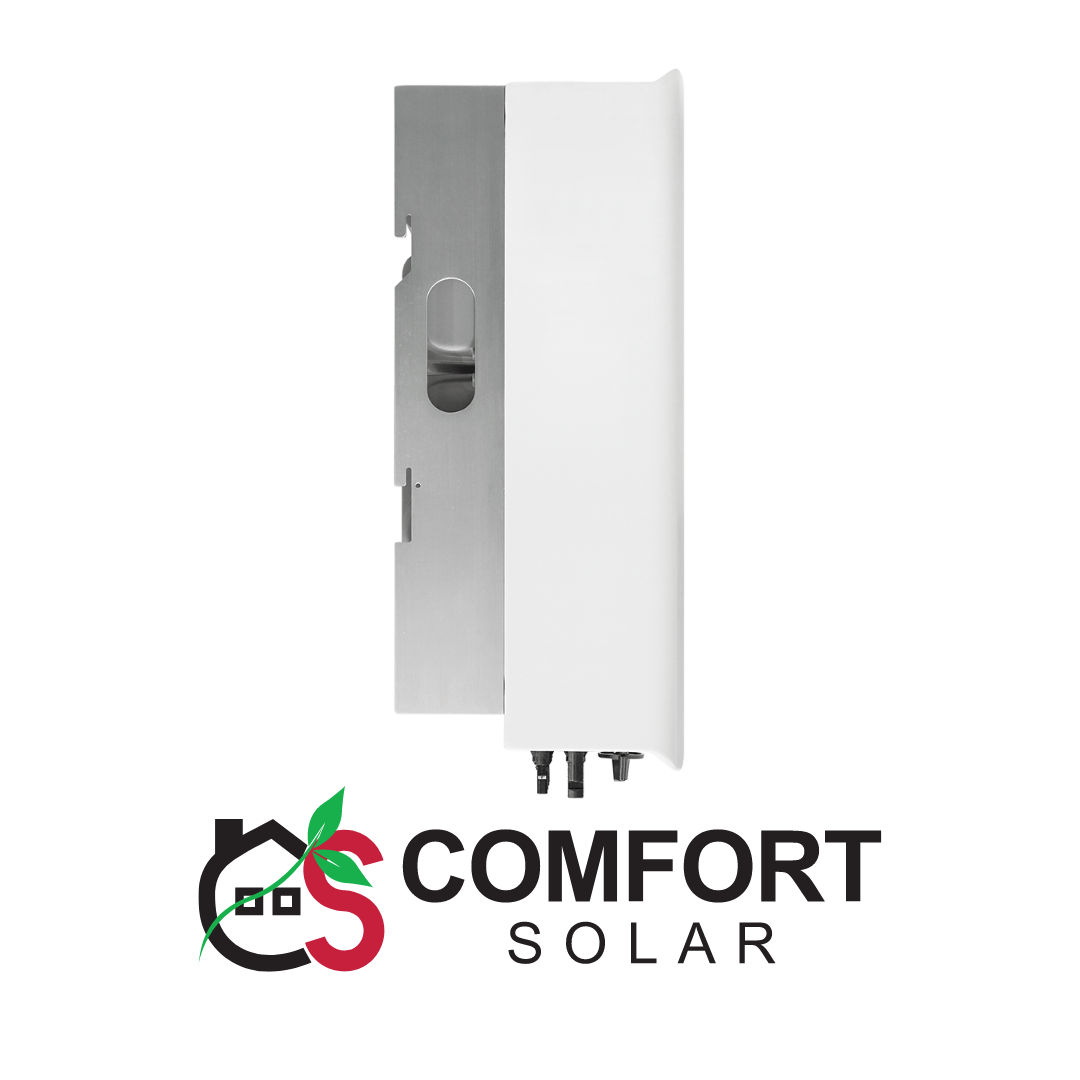

Enhance your solar power system with Comfort Solar’s Solis S5-GR3P(5-25)K Three-Phase Series String Inverter. This advanced inverter series is designed for residential, small industrial, and commercial PV stations, offering exceptional performance, reliability, and flexibility.
At Comfort Solar, we provide top-tier solar solutions designed to meet your energy needs efficiently and reliably. Our Solis S5-GR3P(5-25)K Three-Phase Series String Inverter is engineered to deliver exceptional performance and safety, making it the preferred choice for your solar power system.
Ready to optimize your solar power system with the Solis S5-GR3P(5-25)K Three-Phase Series String Inverter? Contact Comfort Solar today to learn more about this innovative solution and explore our wide range of solar products. Reach out to us directly on WhatsApp at 03166225526 for inquiries or to place an order. Empower your energy future with Comfort Solar!
| Recommended max. PV power | 12 kW, 13.5 kW, 15 kW, 18 kW, 19.5 kW, 22.5 kW, 25.5 kW, 30 kW, 4.5 kW, 6 kW, 7.5 kW, 9 kW |
|---|---|
| Max. Input Voltage | 1100 V |
| Rated Voltage | 600 V |
| Start-up Voltage | 180 V |
| MPPT Voltage Range | 160-1000 V |
| Max. Input Current | 16 A / 16 A, 32 A / 32 A |
| Max. Short Circuit Current per MPPT | 20 A / 20 A, 40 A / 40 A |
| MPPT number/Max.input strings number | 2/2, 2/4 |
| Rated Output Power | 10 kW, 12 kW, 13 kW, 15 kW, 17 kW, 20 kW, 3 kW, 4 kW, 5 kW, 6 kW, 8 kW, 9 kW |
| Max. Apparent Output Power (Grid Side) | 11 kVA, 13.2 kVA, 14.3 kVA, 16.5 kVA, 18.7 kVA, 22 kVA, 3.3 kVA, 4.4 kVA, 5.5 kVA, 6.6 kVA, 8.8 kVA, 9.9 kVA |
| Max. Output Power | 11 kW, 13.2 kW, 14.3 kW, 16.5 kW, 18.7 kW, 22 kW, 3.3 kW, 4.4 kW, 5.5 kW, 6.6 kW, 8.8 kW, 9.9 kW |
| Rated Grid Voltage | 230 V / 400 V, 3/N/PE, 220 V / 380 V |
| Rated Grid Frequency | 50 Hz / 60 Hz |
| Rated Grid Output Current | 12.2 A / 11.5 A, 13.7 A / 13.0 A, 15.2 A / 14.4 A, 18.2 A / 17.3 A, 19.8 A / 18.8 A, 22.8 A / 21.7 A, 25.8 A / 24.6 A, 30.4 A / 28.9 A, 4.6 A / 4.3 A, 6.1 A / 5.8 A, 7.6 A / 7.2 A, 9.1 A / 8.7 A |
| Max. Output Current | 12.7 A, 14.3 A, 15.9 A, 19.1 A, 20.7 A, 23.8 A, 27 A, 31.8 A, 4.7 A, 6.4 A, 7.9 A, 9.5 A |
| Power Factor | >0.99 (0.8 leading – 0.8 lagging) |
| THDi | <2% |
| Max. Efficiency | 98.3%, 98.5%, 98.6%, 98.7% |
| EU Efficiency | 97.7%, 97.9%, 98.0%, 98.1% |
| DC Reverse Polarity Protection | Yes |
| Short circuit protection | Yes |
| Output over current protection | Yes |
| Surge Protection | Yes |
| Grid Monitoring | Yes |
| Anti-islanding Protection | Yes |
| Temperature protection | Yes |
| Integrated AFCI | 2.0, Optional |
| Integrated DC switch | Yes |
| Dimensions (W*H*D) | 310*563*219 mm |
| Weight | 16.5 kg, 16.9 kg, 17.9 kg, 19.6 kg, 20.8 kg |
| Topology | Transformerless |
| Operating Ambient Temperature Range | -25 ~ +60°C |
| Relative Humidity | 0-100% |
| Ingress Protection | IP66 |
| Noise Emission (Typical) | <30 dB(A), <60 dB(A) |
| Cooling Concept | Intelligent redundant fan-cooling, Natural Convection |
| Max. Operation Altitude | 4000 m |
| Grid Connection Standard | |
| Safety/EMC Standard | IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4 |
| DC connection | MC4 connector |
| Self-Consumption Night | <1 W |
| AC Connection | Quick connection plug |
| Display | LCD |
| Communication | RS485, Optional: Wi-Fi, GPRS |
