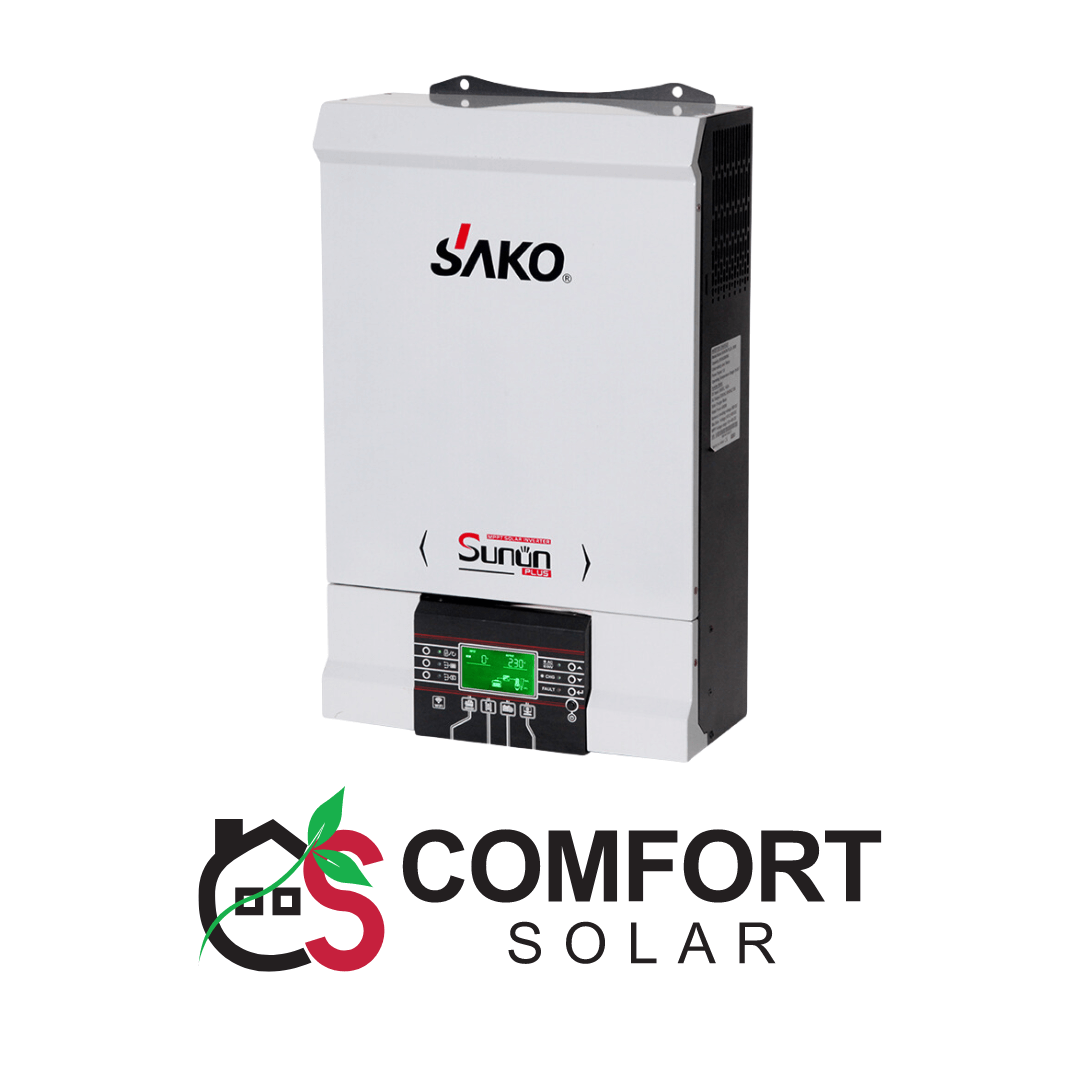

SUNON PRO Series 5.5KW Hybrid Inverter

 145,000

Short Description:

  • Pure Sine Wave Output: Clean, stable power for sensitive electronics.
  • Smart LCD Setting: Configure working modes, charge current, and voltage easily.
  • Built-in MPPT Solar Charge Controller: Maximizes solar energy efficiency.
  • MAX PV Array Open Circuit Voltage: 450V: Supports high voltage solar arrays.
  • Battery-Independent Operation: Supplies power without needing a battery.
  • Hybrid Power Source Integration: Combines solar, AC utility, and battery power.
  • Comprehensive Protection: Overload, short circuit, and deep discharge protection.
  • Cold Start Function: Reliable startup in low temperatures.
  • Monitoring Capabilities: USB and RS485 for data tracking and management.
  • Optional WIFI Remote Monitoring: Manage your energy system remotely via WIFI.
  • High Efficiency: Ensures minimal energy loss.
  • Robust Build Quality: Designed for durability and reliability.
  • Scalable and Flexible: Easily expandable to meet increasing energy demands
GUARANTEED SAFE PAYMENTS
Share it to:
International Shipment

Your orders are shipped seamlessly between countries

30 Days Warranty

You have the right to return your orders within 30 days.

Secure Payment

Your payments are secure with our private security network.

Description

Description:

SUNON PRO Series 5.5KW Hybrid Inverter: Experience Uninterrupted Power with Advanced Hybrid Technology. The SUNON PRO Series 5.5KW Hybrid Inverter is engineered for optimal performance, providing a pure sine wave output for smooth and reliable energy. Perfect for homes, businesses, and off-grid applications, this inverter integrates seamlessly with solar systems, AC utilities, and battery power sources to ensure continuous power supply. With a built-in MPPT solar charge controller and a smart LCD interface, managing your energy needs has never been easier. Shop now to enjoy sustainable, efficient, and versatile power solutions with the SUNON PRO Series 5.5KW Hybrid Inverter!

Key Features:

  1. Pure Sine Wave Output:
    • Provides clean and stable power, protecting sensitive electronics and ensuring efficient energy use.
  2. Smart LCD Setting:
    • Easily configure working modes, charge current, charge voltage, and other parameters with the intuitive LCD interface, offering enhanced control and monitoring.
  3. Built-in MPPT Solar Charge Controller:
    • Maximizes solar energy capture and efficiency, ensuring optimal performance from your solar panels.
  4. MAX PV Array Open Circuit Voltage: 450V:
    • Supports a high PV array open circuit voltage of up to 450V, accommodating a wide range of solar panel configurations.
  5. Battery-Independent Operation:
    • Can supply power to the load without a battery, providing flexibility in various energy setups.
  6. Hybrid Power Source Integration:
    • Combines solar system, AC utility, and battery power sources to deliver a continuous and reliable power supply.
  7. Comprehensive Protection Features:
    • Equipped with overload, short circuit, and deep discharge protection to ensure safety and reliability.
  8. Cold Start Function:
    • Allows the inverter to start up in low temperature conditions, ensuring reliable performance in diverse environments.
  9. Monitoring Capabilities:
    • Supports USB and RS485 monitoring functions for easy data tracking and system management.
  10. Optional WIFI Remote Monitoring:
    • Offers the convenience of remote monitoring via WIFI, allowing you to manage and monitor your energy system from anywhere.

Additional Benefits:

  • High Efficiency: Delivers maximum usable power with minimal loss.
  • Robust Build Quality: Durable and reliable for both residential and commercial use.
  • Scalable and Flexible: Expandable to meet growing energy needs and integrate with additional components.

Harness advanced hybrid technology with the SUNON PRO Series 5.5KW Hybrid Inverter. Achieve energy efficiency and independence today!

Additional information

Selectable Voltage Range

170-280VAC(UPS),90-280VAC(Appliances)

AC Voltage   Regulation(Batt. Model)

230VAC±5%

Frequnecy   Range

50Hz/60Hz(Auto sensing)

The rated power

3500VA/3500W, 5500VA/5500W

Voltage

230 VAC

Surge Power

11000VA, 7000VA

Efficiency(Peak)

>90%

Transfer Time

10MS(UPS),20MS(Appliances)

Wave form

Pure Sine Wave

No load   current

1.0A, 1.1A

Battery Voltage

24VDC, 48VDC

Low battery   alarming voltage

22.0VDC, 44.0VDC

Low battery   cut off protection voltage

21VDC, 42VDC

Low battery   recovery voltage

23.0VDC, 46.0VDC

Floating Charge Voltage

27VDC, 54VDC

Overcharge Protection

32VDC, 64VDC

Maximum PV Array Power

5000W, 6000W

MPPT Range at   Operation Vol.

120-450VDC

Maximum PV Array Open Circuit Voltage

500DC

Number of MPPT Trackers/Maximum Input Current

100A

Maximum AC Charge Current

60A

Maxmum Charge   Current

100A

Maxmum   Efficiency

98%

Best Panel   configuration

300Wp*9pcs*36V(2700Wp)*2Parallel, 330Wp*9pcs*36V(2970Wp)*2Parallel

Products   Dimension,D*W*H(mm)

481mm*313mm*117mm

Packing   size,D*W*H(mm)

543mm*394mm*204mm

Net Weight(kgs)

10.5KG, 9.8KG

G.W.(kgs)

11.7KG, 11KG

Humidity

5% to 95% Relative Humidity(Non-condensing)

Operation temperature

0℃-50℃

Brand

Sako

SAKO's products are widely available through its extensive network of over 20 agents across the Middle East, South Africa, and Asia, and the company primarily focuses on export markets. For those interested, SAKO also provides OEM and ODM services, allowing for customization based on specific sourcing requirements. You can view and purchase SAKO products through our website, "Comfort Solar," where detailed information about each product is provided.
SAKO is a professional manufacturer specializing in the development, production, and sale of power and solar energy products. With 29 years of experience, the company leverages core technologies and operates multiple factories to offer comprehensive solar energy storage solutions. SAKO's main products include home inverters, solar inverters, solar panels, lithium battery packs, and solar energy storage systems. By manufacturing all components in-house, SAKO ensures effective cost and quality control across its product range.
