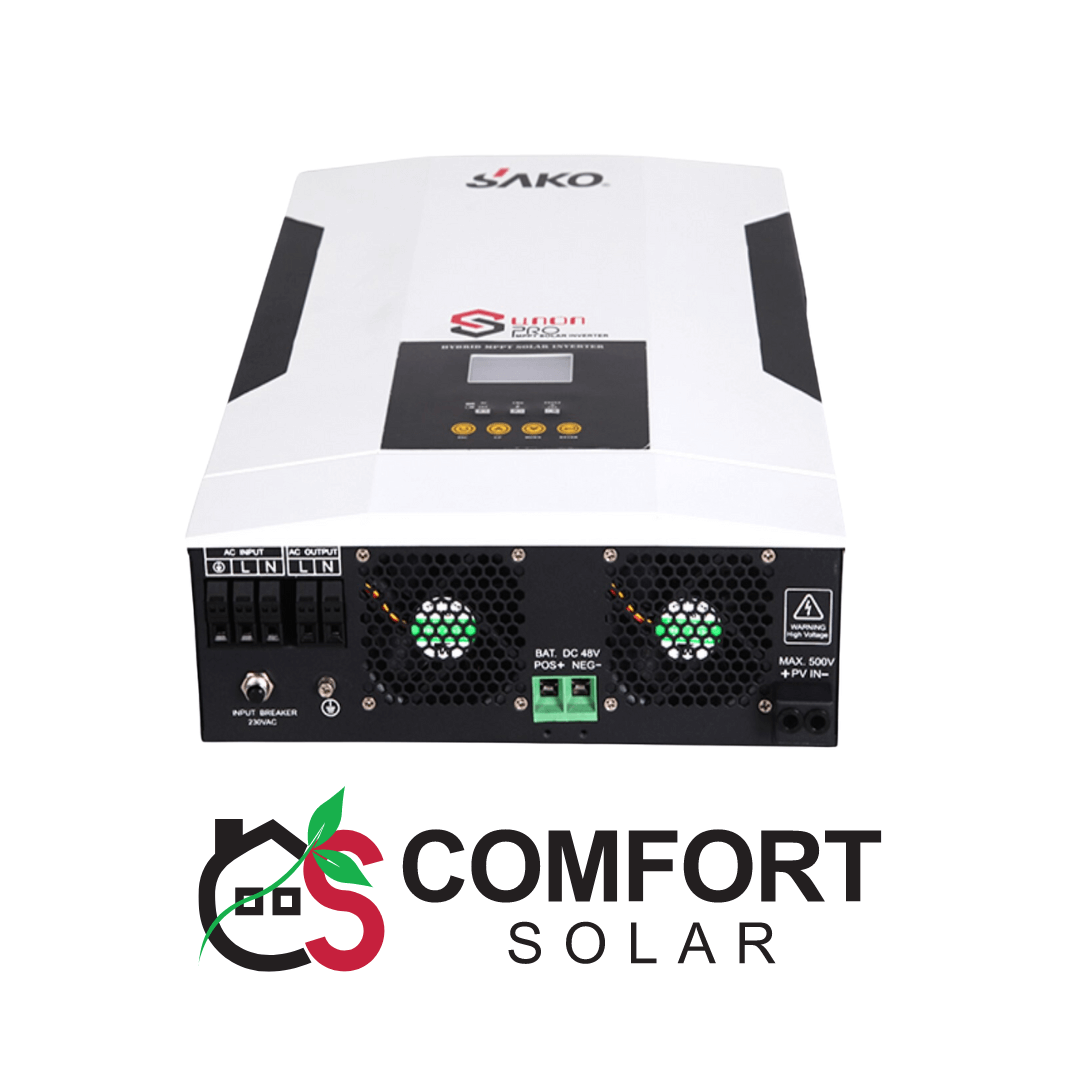

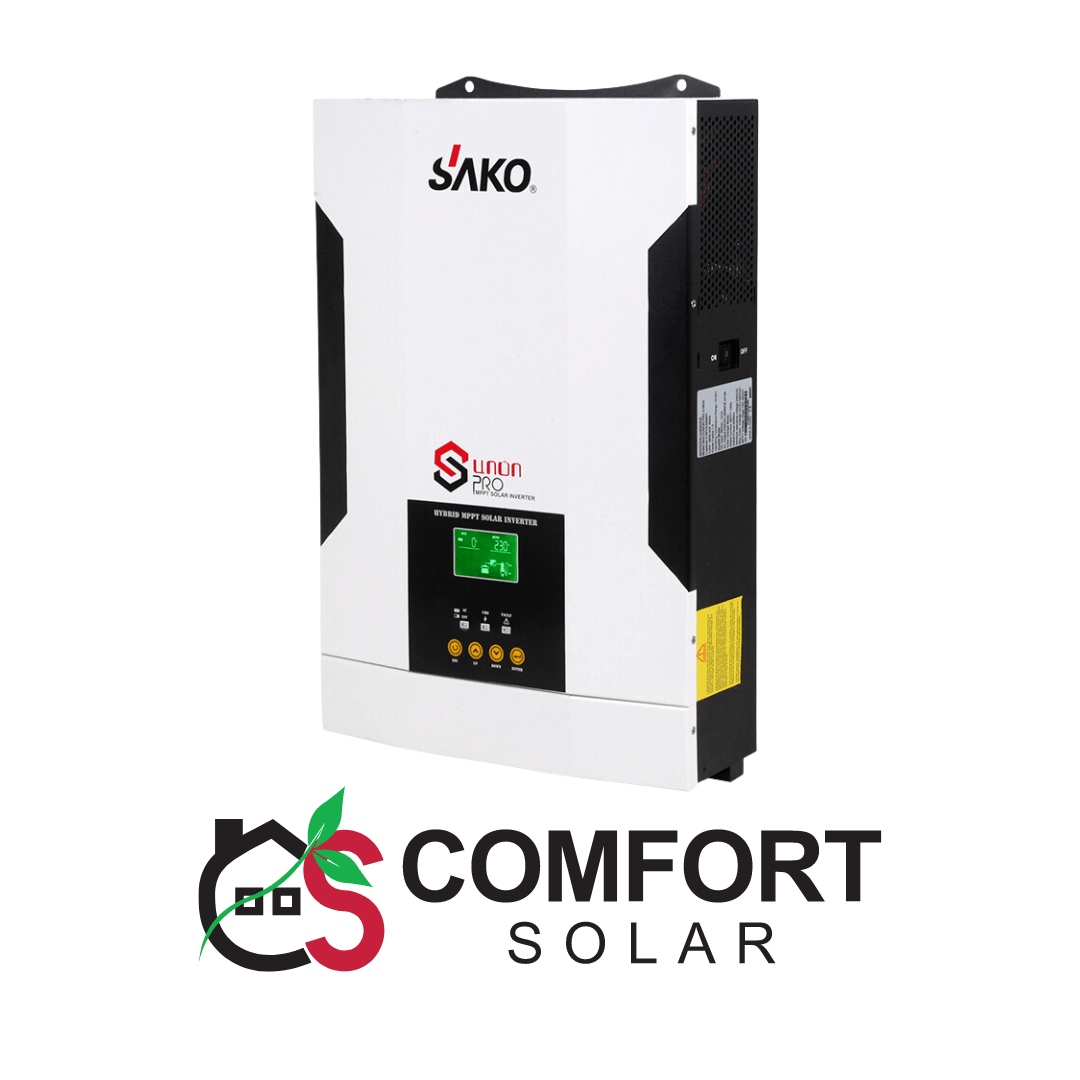

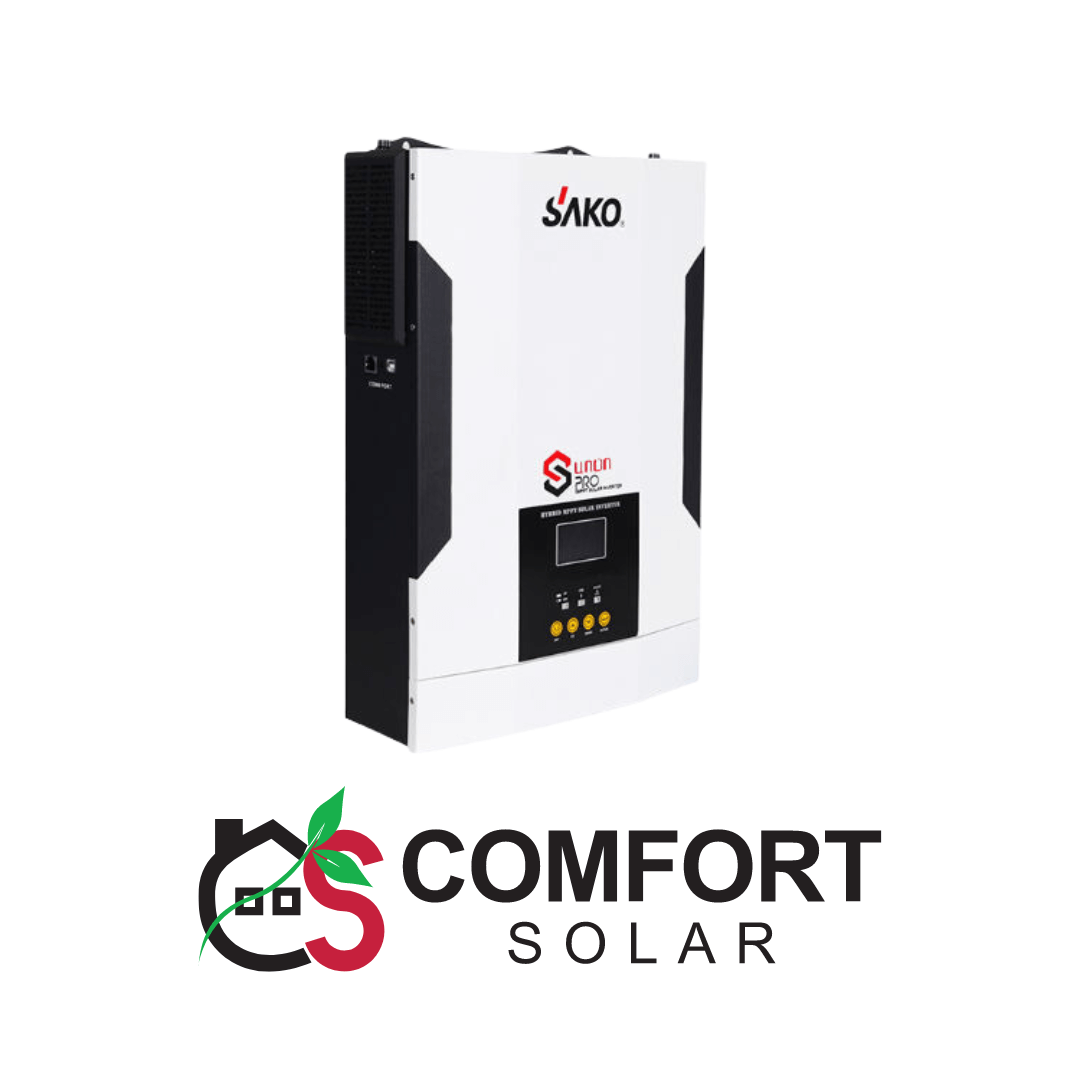

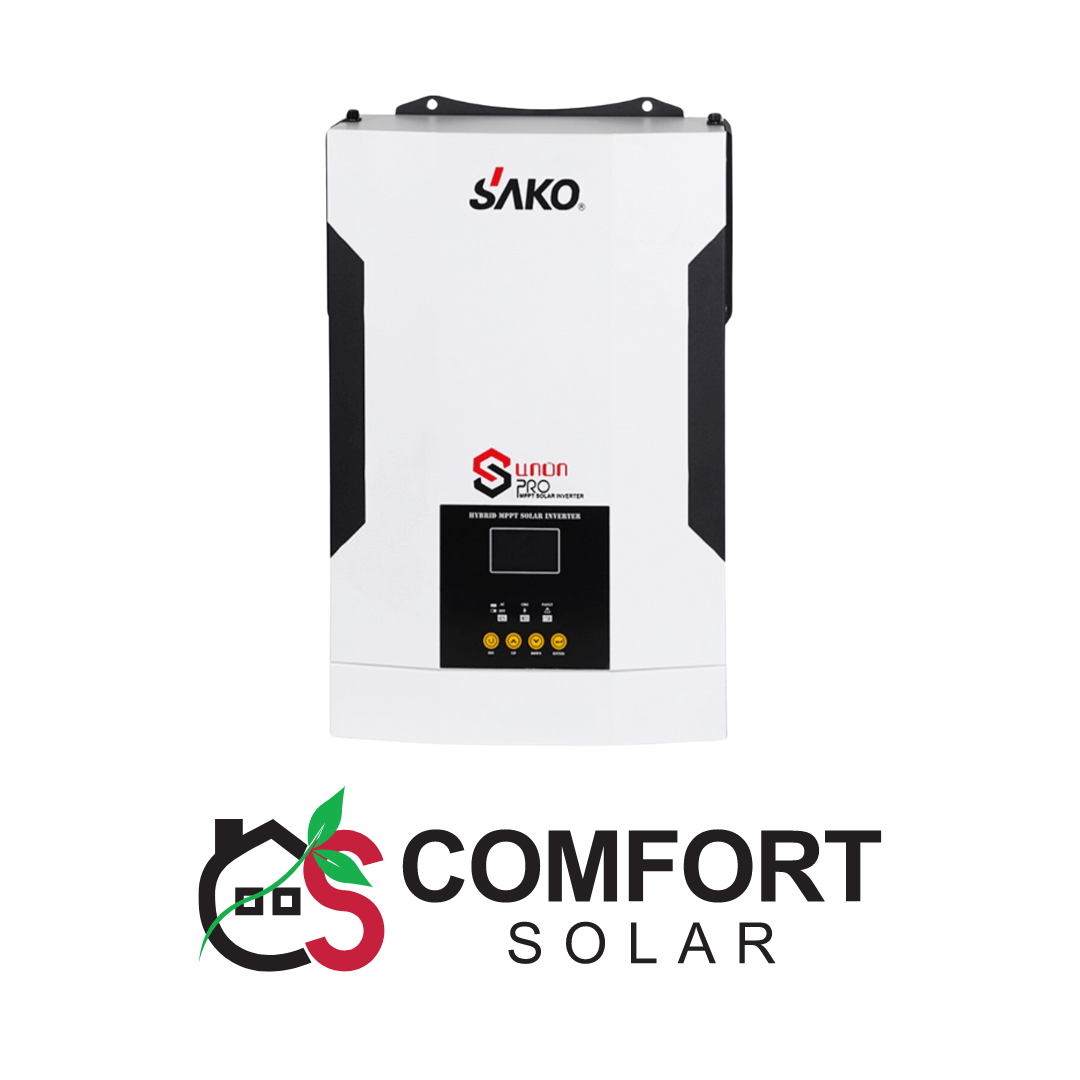

      SUNON Pro 3.5KW Hybrid Inverter

       115,000

      Short Description:

      • 3.5 KW Output: Reliable and robust power delivery for various applications.
      • 100A MPPT Controller: Maximizes solar energy capture and efficiency.
      • Max PV Input: 450VDC: Supports high-voltage solar arrays for versatile use.
      • Optimal PV Input Voltage (VOC): 360V: Ensures maximum energy harvest.
      • Max PV Input Power: 5000W: Accommodates significant solar power input.
      • Battery Flexibility: Operates with or without a connected battery.
      • Hybrid Operation: Seamlessly switches between solar and battery power.
      • User-Friendly Interface: Easy monitoring and control of your energy system.
      • High Efficiency: Delivers more usable power with minimal loss.
      • Robust Build Quality: Withstands various environmental conditions.
      • Scalable System: Expandable to meet growing energy demands
      GUARANTEED SAFE PAYMENTS
      Payment options: JazzCash, Easypaisa, and Cash on Delivery (COD) truck icon.
      Share it to:
      Variable Pricing

      Due to high market volatility, prices for our products are subject to change.

      Final Prices

      The actual price will be provided once the customer contacts our sales representative via WhatsApp.

      Deposit Requirement

      The product will be dispatched only after a partial deposit is made in our business account.

      Additional information

      Selectable Voltage Range

      170-280VAC(UPS),90-280VAC(Appliances)

      AC Voltage   Regulation(Batt. Model)

      230VAC±5%

      Frequnecy   Range

      50Hz/60Hz(Auto sensing)

      The rated power

      3500VA/3500W, 5500VA/5500W

      Voltage

      230 VAC

      Surge Power

      11000VA, 7000VA

      Efficiency(Peak)

      >90%

      Transfer Time

      10MS(UPS),20MS(Appliances)

      Wave form

      Pure Sine Wave

      No load   current

      1.0A, 1.1A

      Battery Voltage

      24VDC, 48VDC

      Low battery   alarming voltage

      22.0VDC, 44.0VDC

      Low battery   cut off protection voltage

      21VDC, 42VDC

      Low battery   recovery voltage

      23.0VDC, 46.0VDC

      Floating Charge Voltage

      27VDC, 54VDC

      Overcharge Protection

      32VDC, 64VDC

      Maximum PV Array Power

      5000W, 6000W

      MPPT Range at   Operation Vol.

      120-450VDC

      Maximum PV Array Open Circuit Voltage

      500DC

      Number of MPPT Trackers/Maximum Input Current

      100A

      Maximum AC Charge Current

      60A

      Maxmum Charge   Current

      100A

      Maxmum   Efficiency

      98%

      Best Panel   configuration

      300Wp*9pcs*36V(2700Wp)*2Parallel, 330Wp*9pcs*36V(2970Wp)*2Parallel

      Products   Dimension,D*W*H(mm)

      481mm*313mm*117mm

      Packing   size,D*W*H(mm)

      543mm*394mm*204mm

      Net Weight(kgs)

      10.5KG, 9.8KG

      G.W.(kgs)

      11.7KG, 11KG

      Humidity

      5% to 95% Relative Humidity(Non-condensing)

      Operation temperature

      0℃-50℃

      Description

      Description:

      SUNON Pro 3.5KW Hybrid Inverter: Power Your Life with Versatile, High-Efficiency Energy Management. The SUNON Pro 3.5KW Hybrid Inverter is your go-to solution for reliable and efficient off-grid energy. With its advanced MPPT controller and flexible battery options, this inverter is perfect for homes, cabins, RVs, and backup power systems. Capable of handling a maximum PV input of 450VDC and optimized for a VOC of 360V, the SUNON Pro ensures maximum energy capture from your solar panels. With support for up to 5000W of solar power, you can achieve unparalleled energy independence. Shop now and take control of your energy needs with the SUNON Pro 3.5KW Hybrid Inverter!

      Key Features:

      1. 3.5 KW Power Output:
        • Delivering a robust 3.5 KW power output, the SUNON Pro meets the demands of various energy applications, ensuring reliable performance and energy availability.
      2. 100A MPPT Controller:
        • The integrated 100A Maximum Power Point Tracking (MPPT) controller optimizes solar energy capture, maximizing efficiency and ensuring the best possible performance from your PV system.
      3. Max PV Input: 450VDC:
        • Capable of handling up to 450VDC, the SUNON Pro is designed to accommodate high-voltage solar arrays, making it versatile and highly efficient in energy conversion.
      4. Optimal PV Input Voltage (VOC) 360V:
        • For best performance, the inverter is optimized for a PV input voltage (VOC) of 360V, ensuring maximum energy harvest from your solar panels.
      5. Max PV Input Power: 5000W:
        • Supports up to 5000W of solar input, allowing you to harness significant solar power to meet your energy needs and achieve greater energy independence.
      6. Battery Flexibility:
        • The SUNON Pro can operate with or without a connected battery, offering flexibility and adaptability to different energy storage solutions and usage scenarios.
      7. Hybrid Operation:
        • Seamlessly switches between solar power and battery power, ensuring continuous energy supply even when sunlight is insufficient.
      8. User-Friendly Interface:
        • Equipped with an intuitive interface for easy monitoring and control, making it simple to manage and optimize your energy system.

      Additional Benefits:

      • High Efficiency: Ensures minimal energy loss, delivering more usable power from your solar panels.
      • Robust and Reliable: Built to withstand various environmental conditions, ideal for both residential and remote applications.
      • Scalable System: Easily expandable to meet growing energy demands and integrate with additional solar panels or batteries.

      Harness the power of the sun with the SUNON Pro 3.5KW Hybrid Inverter. Achieve energy independence and efficiency today!

      Brand

      Sako

      SAKO's products are widely available through its extensive network of over 20 agents across the Middle East, South Africa, and Asia, and the company primarily focuses on export markets. For those interested, SAKO also provides OEM and ODM services, allowing for customization based on specific sourcing requirements. You can view and purchase SAKO products through our website, "Comfort Solar," where detailed information about each product is provided.
      sako logo with "SINCE 1993" below. Red accent on the "S".
      SAKO is a professional manufacturer specializing in the development, production, and sale of power and solar energy products. With 29 years of experience, the company leverages core technologies and operates multiple factories to offer comprehensive solar energy storage solutions. SAKO's main products include home inverters, solar inverters, solar panels, lithium battery packs, and solar energy storage systems. By manufacturing all components in-house, SAKO ensures effective cost and quality control across its product range.
