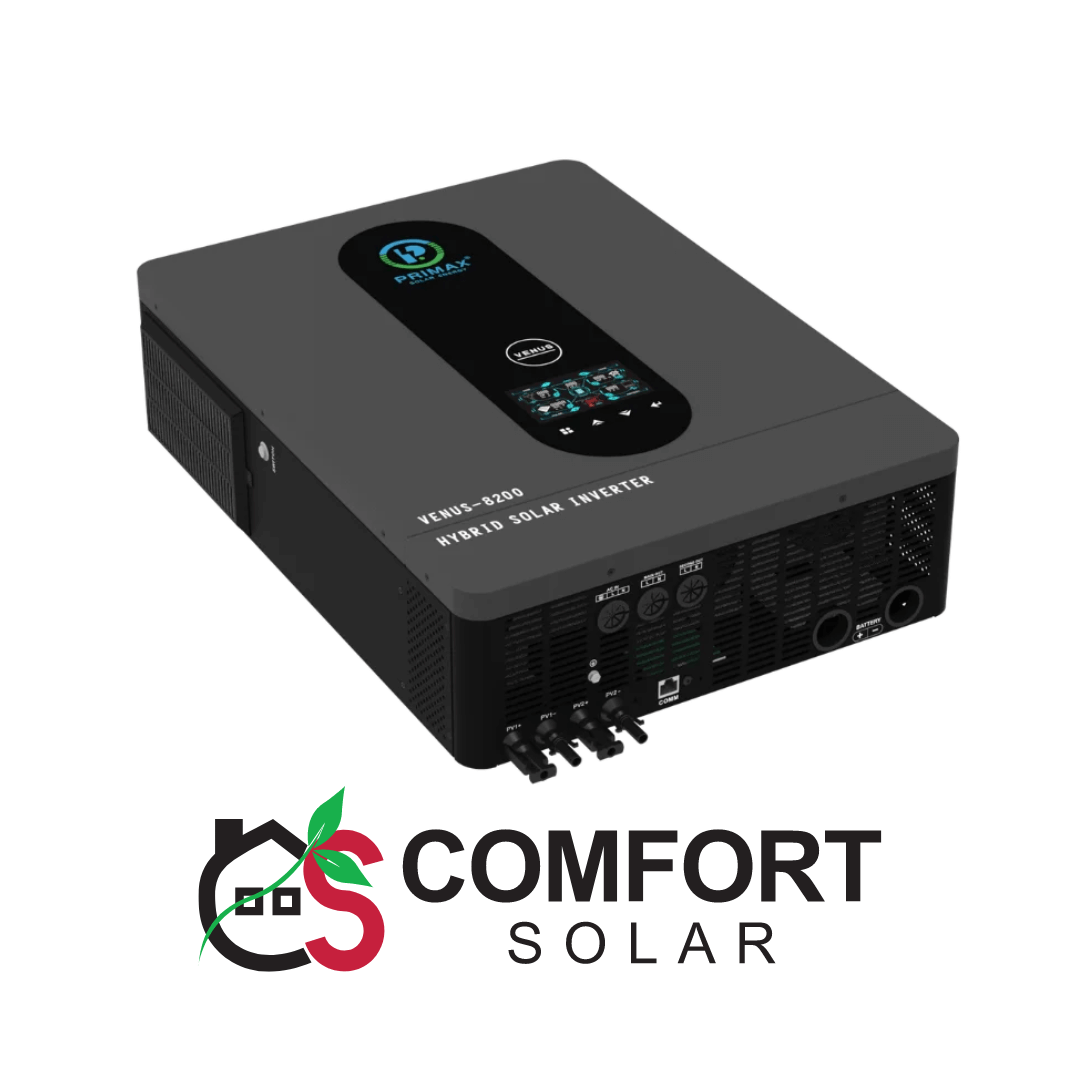

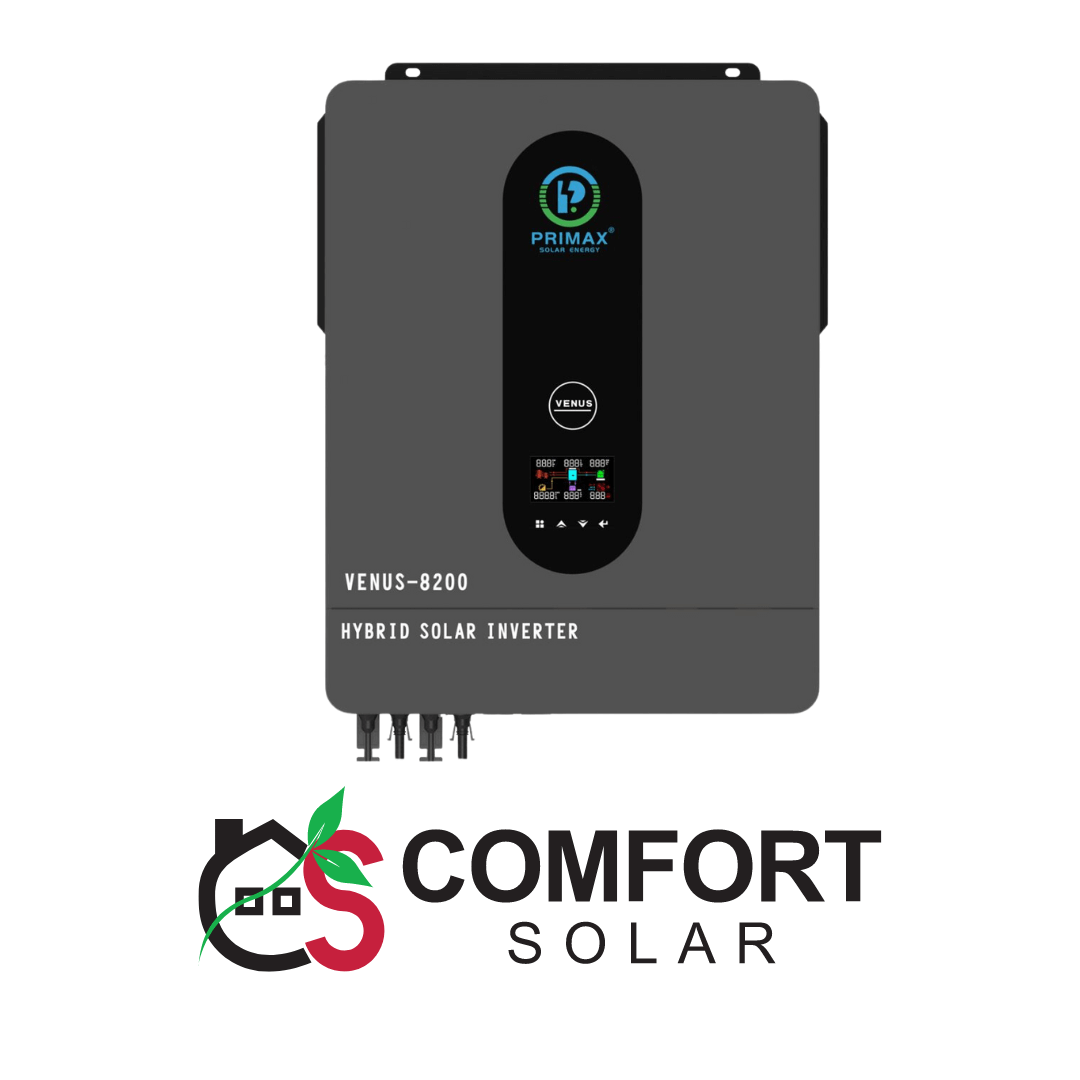

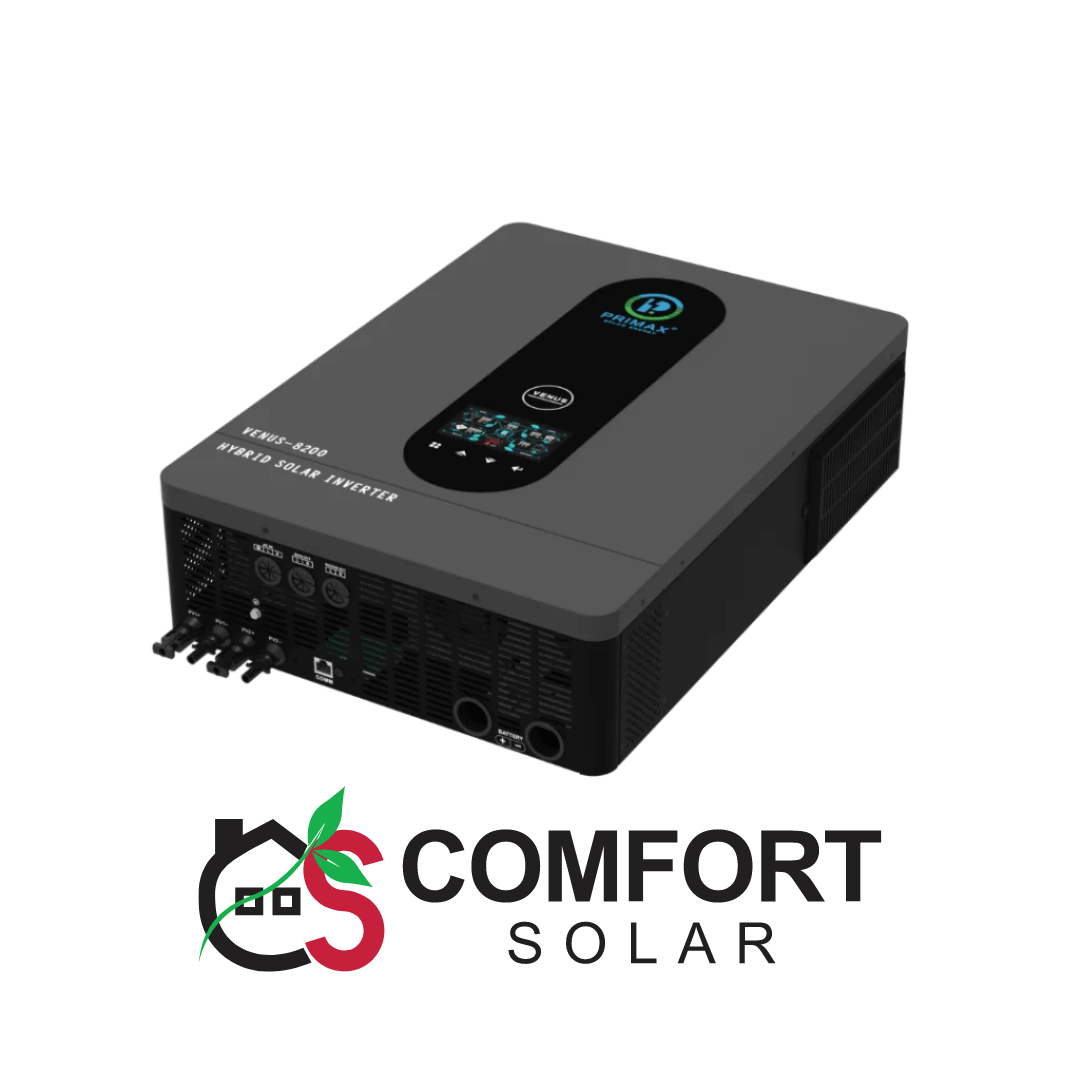

PRIMAX HYBRID SOLAR INVERTER-VENUS-8200

 299,200

GUARANTEED SAFE PAYMENTS
Share it to:
Variable Pricing

Due to high market volatility, prices for our products are subject to change.

Final Prices

The actual price will be provided once the customer contacts our sales representative via WhatsApp.

Deposit Requirement

The product will be dispatched only after a partial deposit is made in our business account.

Description

Are you in need of a versatile solar inverter that ensures reliable power for your home or office, whether on-grid or off-grid? Discover the PRIMAX VENUS 10200 Hybrid Solar Inverter, available at Comfort Solar. This state-of-the-art inverter is engineered to deliver exceptional performance and efficiency, making it an ideal choice for sustainable energy solutions. Priced competitively at ₨ 400,000, it represents a sound investment for long-term energy savings.

Key Features:

  • Pure Sine Wave Output: Provides clean and stable power suitable for sensitive electronics.
  • High Output Power: 10200W/10200VA with a power factor of 1.0, ensuring robust energy support.
  • WiFi & GPRS Connectivity: Optional feature for iOS and Android devices, enabling remote monitoring and management.
  • Battery-Free Operation: Capable of running without a battery, ensuring continuous operation during daylight hours.
  • Factory Reset Function: One-key restoration to factory settings for ease of maintenance.
  • Built-in Lithium Battery Activation: Automatically activates built-in lithium batteries for seamless energy storage.
  • Built-in 160A MPPT Solar Charge Controller: Optimizes solar power extraction with maximum efficiency.
  • High PV Input Voltage Range: Accepts a wide range of PV input voltages from 90V to 500V DC.
  • Built-in Anti-dust Kit: Designed for durability in harsh environmental conditions, ensuring longevity.
  • Smart Battery Charge Design: Enhances battery life through intelligent charging management.
  • Dual Output: Provides flexibility for connecting multiple devices or systems.
  • Dual PV Input: Supports dual PV inputs totaling 10200W, maximizing solar panel utilization.
  • Touch Button Interface: User-friendly touch button interface for convenient operation.

Specifications:

  • Phase Configuration: Single-phase operation suitable for residential and small commercial applications.
  • Maximum PV Input Power: 5600W x 2 (10200W), with maximum PV input current of 18A per input.
  • Grid-Tie and Off-Grid Capability: Versatile operation modes adapt to various energy needs.
  • Physical Dimensions: Compact design measuring 500mm x 390mm x 130mm, weighing 14.5 kg.

Why Comfort Solar? At Comfort Solar, we specialize in delivering top-tier solar solutions designed to maximize efficiency, reliability, and ease of use. The PRIMAX VENUS 10200 Hybrid Solar Inverter embodies our commitment to sustainability and customer satisfaction, offering unparalleled performance and long-term energy savings.

Call to Action: Ready to experience the benefits of advanced solar technology? Visit comfortsolar.pk today to learn more about our products. For inquiries or to place an order, contact us directly on WhatsApp at 03166225526. Join us in embracing a sustainable future with Comfort Solar!

Additional information

Maximum AC Charging Current

140A

Cartoon Dimension, D X W X H(mm)

588*463*205

Rated Output Power

8200W/8200VA

Maximum Solar Charging Current

160A

Maximum PV Input Power

5600W x 2 (10200W)

Nominal DC Voltage/Maximum DC Voltage

360VDC/500VDC

Start-up Voltage/Initial Feeding Voltage

90VDC/120VDC

MPPT Voltage Range

90VDC-450VDC

Number of MPPT Trackers/Maximum Input Current

2/18A

Nominal Output Voltage

220/230/240VAC

Output Voltage Range

195-253VAC

Nominal Output Current

35.6A

Power Factor

>0.99

Feed-in Grid Frequency Range

49-51+1Hz

Maximum Conversion Efficiency( Solar to AC)

98%

Full Load

8200W

Maximum Main Load

8200W

Maximum Second Load(battery mode)

2733W

Main Load Cut Off Voltage

52VDC

Main Load Return Voltage

54VDC

AC Start-up Voltage/Auto Restart Voltage

120-140VAC/180VAC

Acceptable Input Voltage Range

90-280VAC or 170-280VAC

Maximum AC Input Current

40A

Nominal operating frequency

50/60Hz

Surge Power

16400W

Maximum DC Voltage

500VDC

Output Waveform

Pure Sine Wave

Efficiency(DC to AC)

94%

Nominal DC Voltage

48VDC

Dimension, D X W X H(mm)

500*390*130

Net Weight(kgs)

14.5

Gross Weight(kgs)

16

Communication Port

RS232/WIFI/GPRS/LITHIUM

Brand

Primax

The complete range of Primax Solar Energy's offerings is available on our website, "Comfort Solar." You can browse through and purchase their solar panels and inverters, tailored to fit various energy needs. For more details on their products and to explore how they can benefit your energy setup, visit our site to view the comprehensive catalog of Primax Solar Energy's solutions.
Primax Solar Energy (Pvt) Ltd, founded in 2019, is dedicated to addressing electricity production challenges through its range of solar panels and inverters. The company focuses on delivering effective and sustainable energy solutions for both residential and mini-commercial projects. Their products are designed to meet the growing demand for renewable energy and support sustainable development goals.
