PRIMAX HYBRID SOLAR INVERTER-VENUS-6200

 189,840

GUARANTEED SAFE PAYMENTS
Share it to:
International Shipment

Your orders are shipped seamlessly between countries

30 Days Warranty

You have the right to return your orders within 30 days.

Secure Payment

Your payments are secure with our private security network.

Description

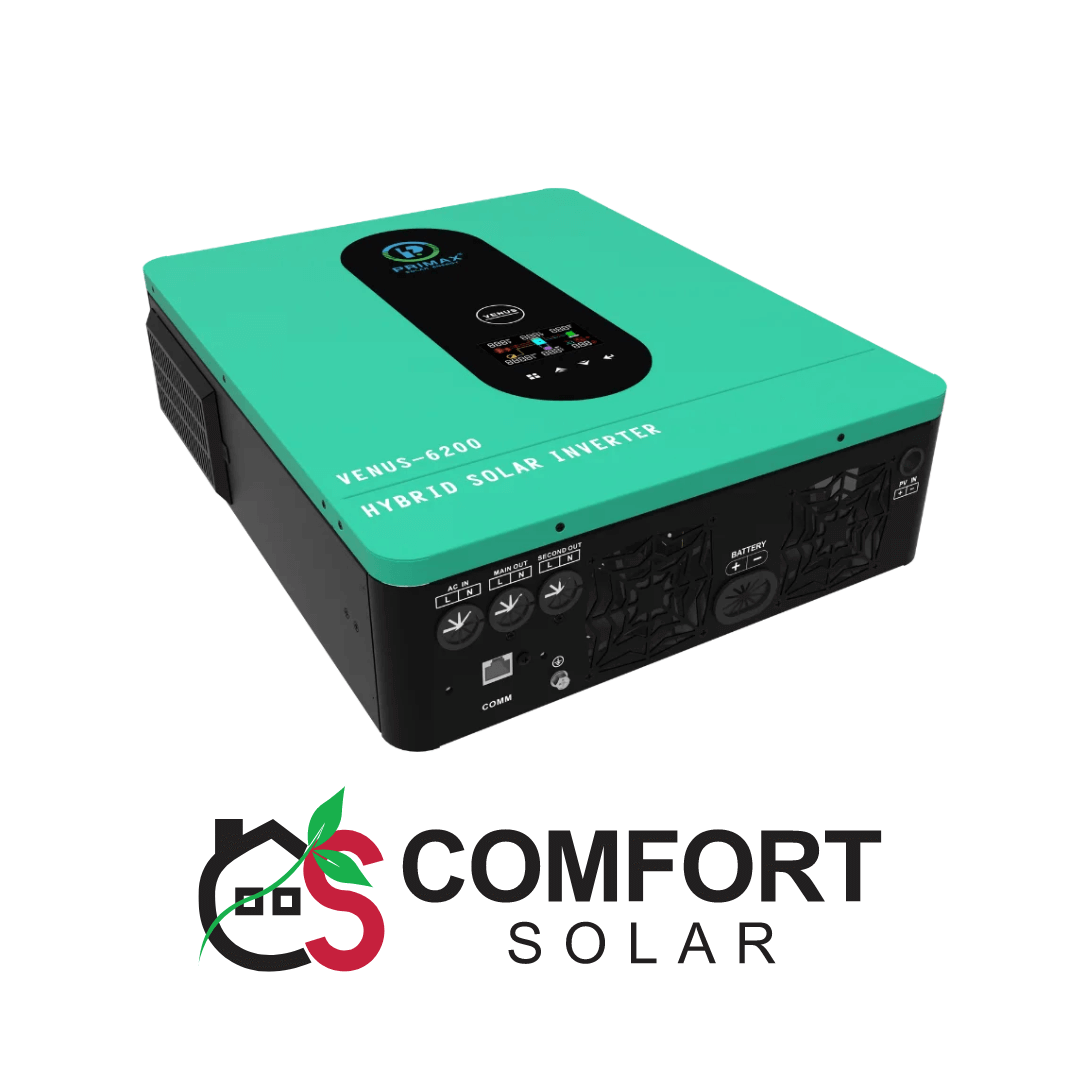

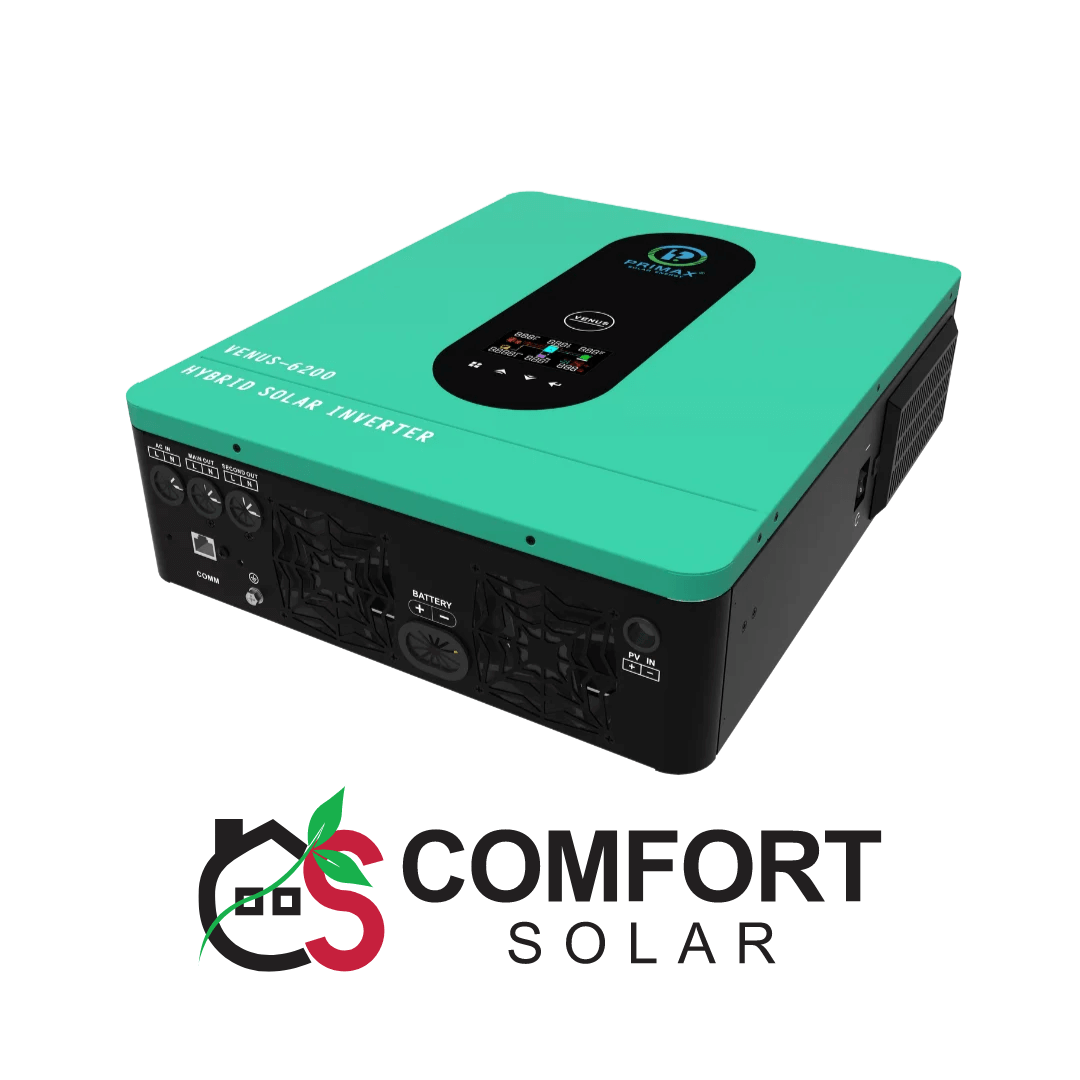

Are you seeking a reliable solar inverter capable of powering your home or office efficiently, whether connected to the grid or operating independently? Explore the PRIMAX VENUS 6200 Hybrid Solar Inverter, available at Comfort Solar. This advanced inverter is designed to deliver superior performance and energy efficiency, making it an ideal choice for sustainable energy solutions. Priced competitively at ₨ 300,000, it represents a wise investment for long-term energy savings.

Key Features:

  • Pure Sine Wave Output: Provides stable and clean power suitable for sensitive electronics.
  • High Output Power: 6200W with a power factor of 1.0, ensuring robust energy support.
  • Optional WiFi & GPRS Connectivity: Enables remote monitoring and management via iOS and Android devices.
  • Battery-Free Operation: Capable of running without a battery, ensuring uninterrupted daytime operation.
  • Factory Reset Function: Easily restore to factory settings with one key press for simplified maintenance.
  • Built-in Lithium Battery Activation: Automatically activates built-in lithium batteries for seamless energy storage.
  • Built-in 120A MPPT Solar Charge Controller: Maximizes solar power extraction with a maximum input of 7200W.
  • High PV Input Voltage Range: Accepts a wide range of PV input voltages from 60V to 500V DC.
  • Built-in Anti-dust Kit: Designed for durability in harsh environments, ensuring longevity.
  • Smart Battery Charge Design: Enhances battery life through intelligent charging management.
  • Dual Output: Provides flexibility for connecting multiple devices or systems.

Specifications:

  • Phase Configuration: Single-phase operation suitable for residential and small commercial applications.
  • Maximum PV Input Current: 22A, ensuring efficient power conversion.
  • Grid-Tie and Off-Grid Capability: Adapts to various energy needs with versatile operation modes.
  • Physical Dimensions: Compact design measuring 500mm x 390mm x 130mm, weighing 14.5 kg.

Why Comfort Solar? At Comfort Solar, we specialize in delivering top-tier solar solutions designed to maximize efficiency, reliability, and user-friendliness. The PRIMAX VENUS 6200 Hybrid Solar Inverter exemplifies our commitment to sustainability and customer satisfaction, offering exceptional performance and long-term energy savings.

Call to Action: Ready to harness the power of advanced solar technology? Visit comfortsolar.pk today to learn more about our products. For inquiries or to place an order, contact us directly on WhatsApp at 03166225526. Join us in embracing a sustainable future with Comfort Solar!

Additional information

Maximum AC Charging Current

100A

Cartoon Dimension, D X W X H(mm)

500*415*180

Rated Output Power

6200W

Maximum PV Input Power

7200W

Maximum Solar Charging Current

120A

Nominal DC Voltage/Maximum DC Voltage

360VDC/500VDC

MPPT Voltage Range

60VDC-450VDC

Number of MPPT Trackers/Maximum Input Current

1/22A

Nominal Output Voltage

220/230/240VAC

Output Voltage Range

195.5-253VAC

Nominal Output Current

27.0A

Power Factor

>0.99

Feed-in Grid Frequency Range

49-51+1Hz

Maximum Conversion Efficiency( Solar to AC)

98%

Full Load

6200W

Maximum Main Load

6200W

Maximum Second Load(battery mode)

2067W

Main Load Cut Off Voltage

52VDC

Start-up Voltage/Initial Feeding Voltage

60VDC/90VDC

Main Load Return Voltage

54VDC

AC Start-up Voltage/Auto Restart Voltage

120-140VAC/180VAC

Acceptable Input Voltage Range

90-280VAC or 170-280VAC

Maximum AC Input Current

40A

Frequency Range

49-51+1Hz

Surge Power

10000W

Output Waveform

Pure Sine Wave

Efficiency(DC to AC)

94%

Nominal DC Voltage

48VDC

Dimension, D X W X H(mm)

420*310*110

Net Weight(kgs)

9.8

Gross Weight(kgs)

11

Communication Port

RS232/WIFI/GPRS/LITHIUM

Brand

Primax

The complete range of Primax Solar Energy's offerings is available on our website, "Comfort Solar." You can browse through and purchase their solar panels and inverters, tailored to fit various energy needs. For more details on their products and to explore how they can benefit your energy setup, visit our site to view the comprehensive catalog of Primax Solar Energy's solutions.
Primax Solar Energy (Pvt) Ltd, founded in 2019, is dedicated to addressing electricity production challenges through its range of solar panels and inverters. The company focuses on delivering effective and sustainable energy solutions for both residential and mini-commercial projects. Their products are designed to meet the growing demand for renewable energy and support sustainable development goals.
