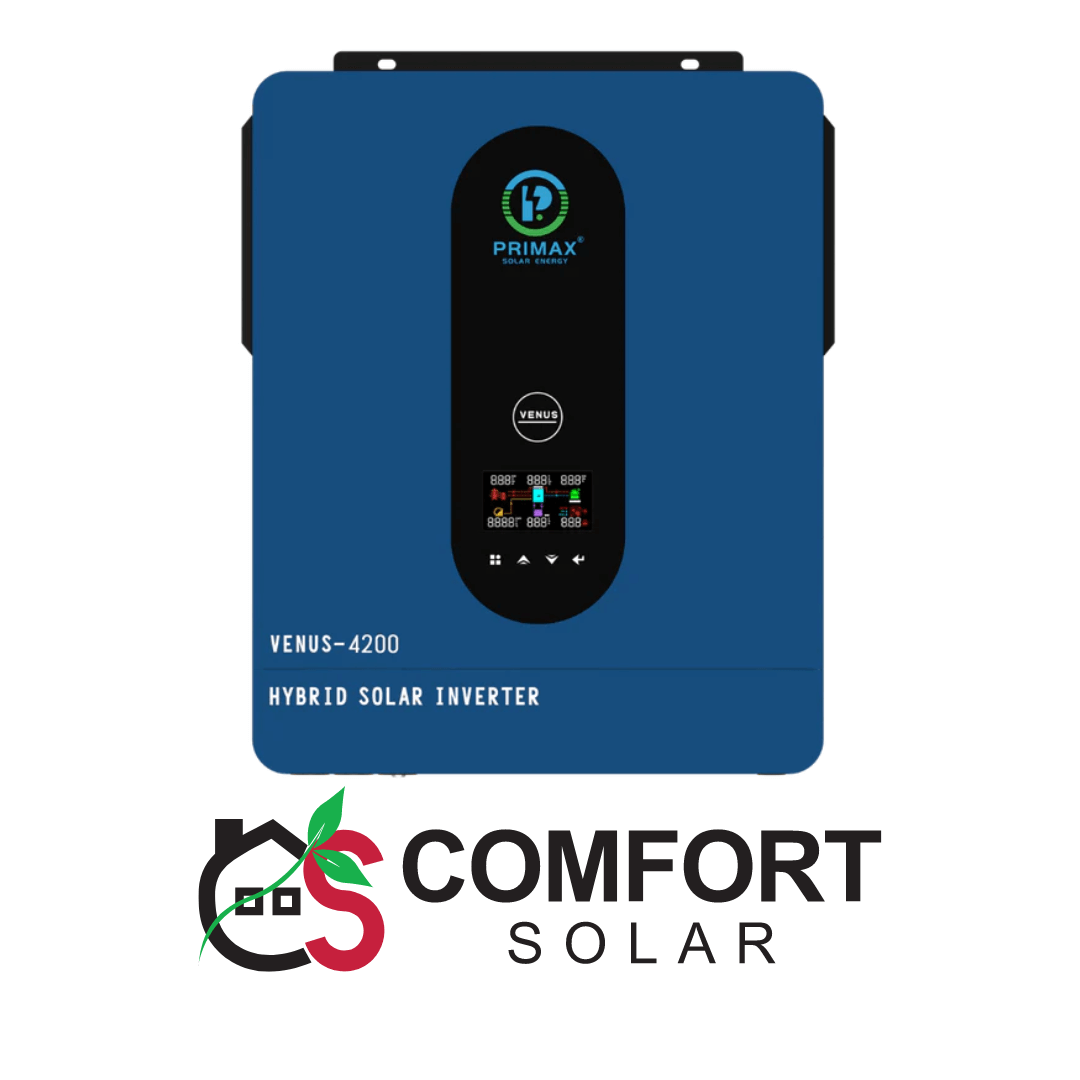

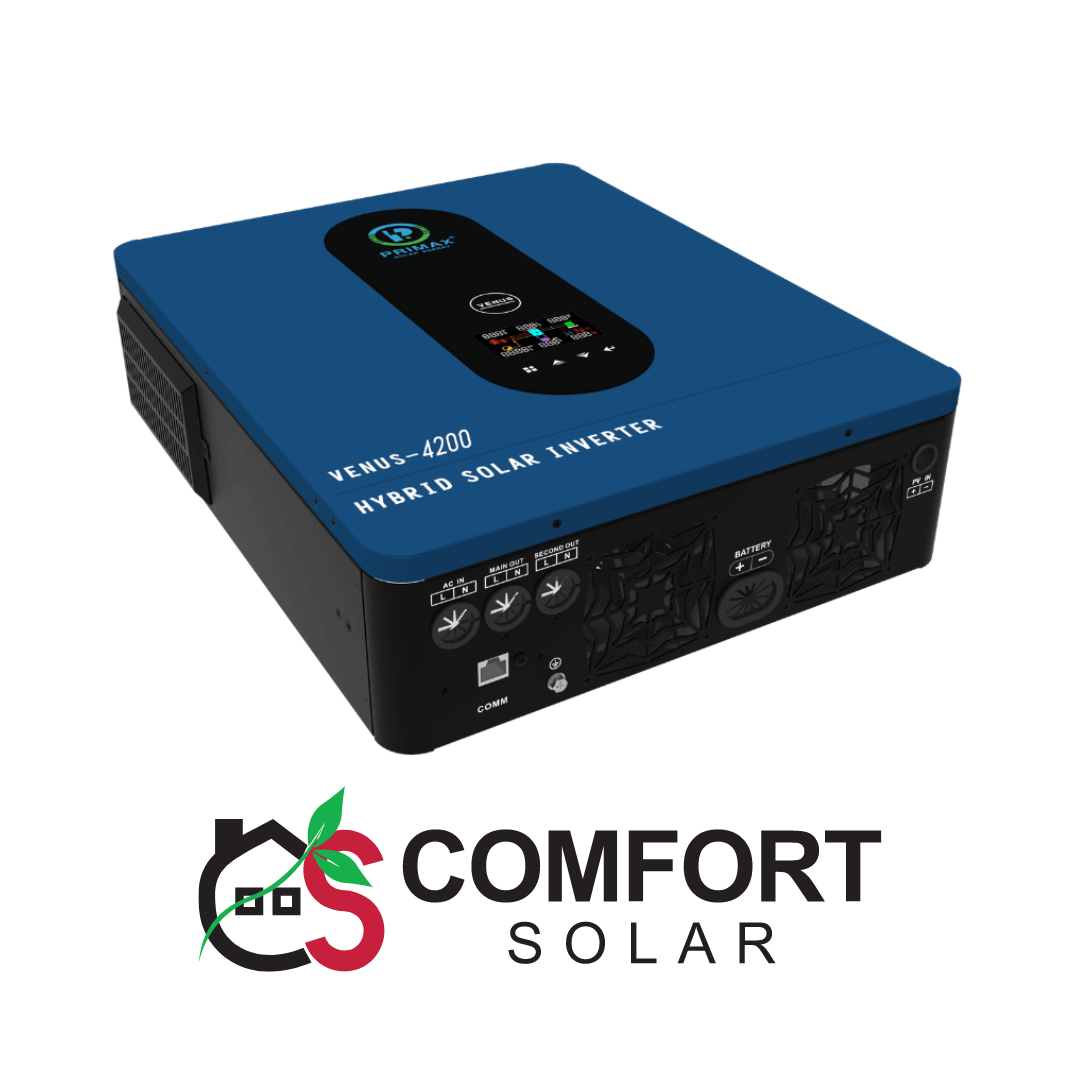

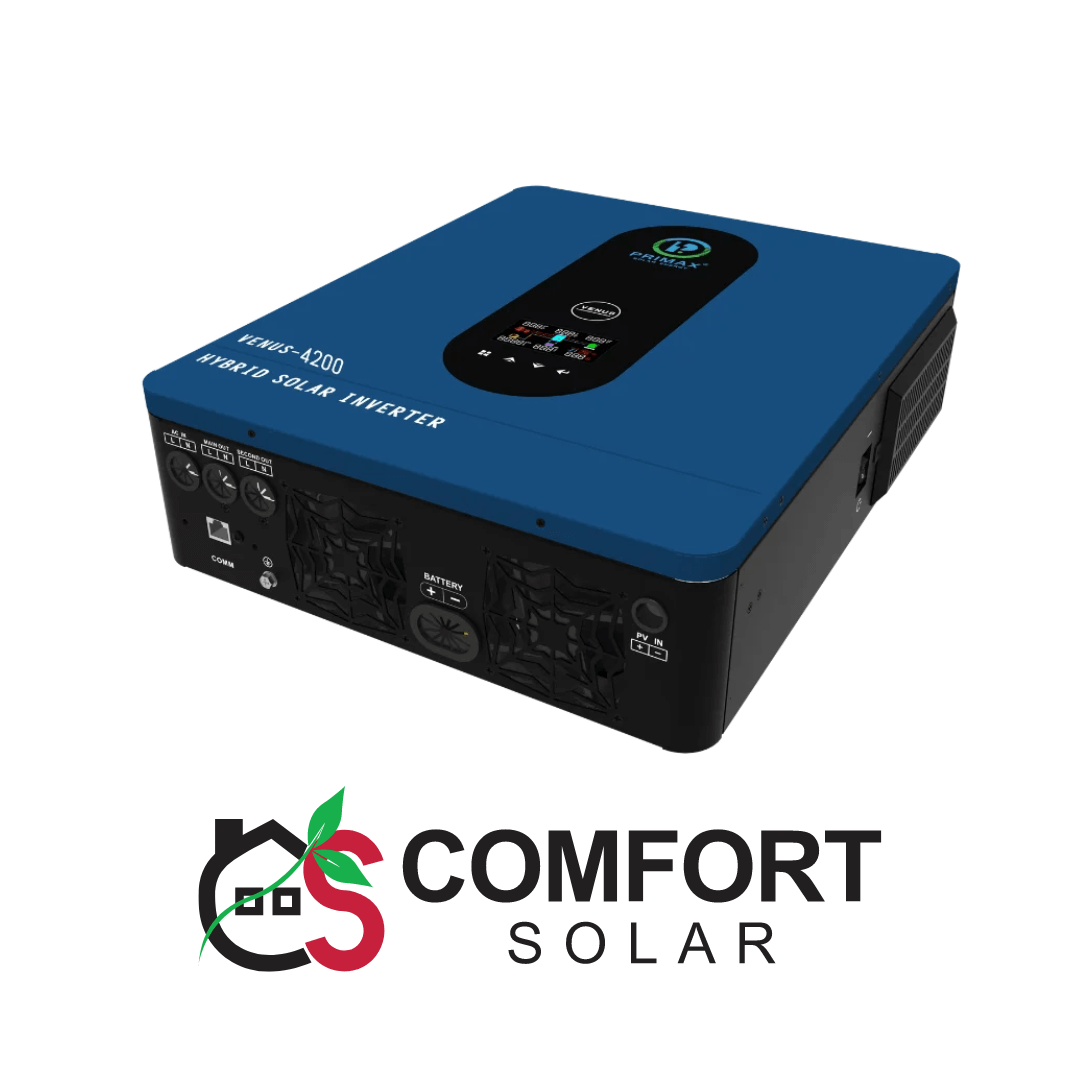

PRIMAX HYBRID SOLAR INVERTER-VENUS-4200

 156,400

GUARANTEED SAFE PAYMENTS
Share it to:
Variable Pricing

Due to high market volatility, prices for our products are subject to change.

Final Prices

The actual price will be provided once the customer contacts our sales representative via WhatsApp.

Deposit Requirement

The product will be dispatched only after a partial deposit is made in our business account.

Description

Are you looking for a reliable solar solution to power your home or office efficiently, whether connected to the grid or off-grid? Introducing the HYBRID SOLAR INVERTER-VENUS-4200 from Comfort Solar. This advanced inverter is engineered to provide exceptional performance and energy efficiency, making it an ideal choice for sustainable energy solutions. Priced competitively at ₨ 250,000, it represents a smart investment for long-term energy savings.

Key Features:

  • Pure Sine Wave Output: Ensures stable and clean power suitable for sensitive electronics.
  • High Output Power: Available in 3.6KW/4.2KW and 6.2KW variants, with a power factor of 1.0 for robust energy support.
  • Optional WiFi & GPRS Connectivity: Allows remote monitoring and management via iOS and Android devices.
  • Battery-Free Operation: Capable of running without a battery, ensuring uninterrupted operation during daylight hours.
  • Factory Reset Function: Easily restore to factory settings with a single key press for simplified maintenance.
  • Built-in Lithium Battery Activation: Automatically activates built-in lithium batteries for seamless energy storage.
  • Built-in 120A MPPT Solar Charge Controller: Maximizes solar power extraction with a maximum input of 6200W for 3.6KW/4.2KW and 6500W for 6.2KW.
  • High PV Input Voltage Range: Accepts a wide range of PV input voltages from 60V to 500V DC.
  • Built-in Anti-dust Kit: Designed for durability in harsh environments, ensuring longevity.
  • Smart Battery Charge Design: Enhances battery life through intelligent charging management.
  • Dual Output: Provides flexibility for connecting multiple devices or systems.

Specifications:

  • Phase Configuration: Single-phase operation suitable for residential and small commercial applications.
  • Maximum PV Input Current: 18A, ensuring efficient power conversion.
  • Grid-Tie and Off-Grid Capability: Adapts to various energy needs with versatile operation modes.
  • Physical Dimensions: Compact design measuring [Insert Dimensions], weighing [Insert Weight].

Why Comfort Solar? At Comfort Solar, we specialize in delivering top-tier solar solutions designed to maximize efficiency, reliability, and ease of use. The HYBRID SOLAR INVERTER-VENUS-4200 exemplifies our commitment to sustainability and customer satisfaction, offering outstanding performance and long-term energy savings.

Call to Action: Ready to power your future with advanced solar technology? Visit comfortsolar.pk today to learn more about our products. For inquiries or to place an order, contact us directly on WhatsApp at 03166225526. Join us in building a sustainable future with Comfort Solar!

Additional information

Maximum AC Charging Current

100A

Cartoon Dimension, D X W X H(mm)

500*410*190

Rated Output Power

4200W

Maximum PV Input Power

6200W

Maximum Solar Charging Current

120A

MPPT Voltage Range

60VDC-450VDC

Number of MPPT Trackers/Maximum Input Current

1/18A

Nominal Output Voltage

220/230/240VAC

Output Voltage Range

195.5-253VAC

Nominal Output Current

18.2A

Power Factor

>0.99

Feed-in Grid Frequency Range

49-51+1Hz

Maximum Conversion Efficiency( Solar to AC)

98%

Nominal DC Voltage/Maximum DC Voltage

360VDC/500VDC

Start-up Voltage/Initial Feeding Voltage

60VDC/90VDC

Full Load

4200W

Maximum Main Load

4200W

Maximum Second Load(battery mode)

1400W

Main Load Cut Off Voltage

26VDC

Main Load Return Voltage

27VDC

AC Start-up Voltage/Auto Restart Voltage

120-140VAC/180VAC

Acceptable Input Voltage Range

90-280VAC or 170-280VAC

Maximum AC Input Current

30A

Nominal operating frequency

50/60Hz

Surge Power

8400W

Output Waveform

Pure Sine Wave

Efficiency(DC to AC)

94%

Nominal DC Voltage

24VDC

Dimension, D X W X H(mm)

420*310*110

Net Weight(kgs)

8.5

Gross Weight(kgs)

9.5

Communication Port

RS232/WIFI/GPRS/LITHIUM

Brand

Primax

The complete range of Primax Solar Energy's offerings is available on our website, "Comfort Solar." You can browse through and purchase their solar panels and inverters, tailored to fit various energy needs. For more details on their products and to explore how they can benefit your energy setup, visit our site to view the comprehensive catalog of Primax Solar Energy's solutions.
Primax Solar Energy (Pvt) Ltd, founded in 2019, is dedicated to addressing electricity production challenges through its range of solar panels and inverters. The company focuses on delivering effective and sustainable energy solutions for both residential and mini-commercial projects. Their products are designed to meet the growing demand for renewable energy and support sustainable development goals.
