170¬280VAC (For Personal Computers) ; 90¬280VAC (For Home Appliances)
Frequency Range
50Hz/60Hz(Auto Sensing)
Solar Charger Type
MPPT
Surge Power
12000VA
Efficiency (Peak)
90% ¬ 93%
Transfer Time
15ms (For Personal Computers) 20ms (For Home Appliances)
Waveform
Pure Sine Wave
Maximum PV Array Power
6000W
Floating Charge Voltage
54VDC
Overcharge Protection
63VDC
Maximum AC Charge Current
100A
Voltage
230VAC
AC Voltage Regulation (Batt. Mode)
230VAC+-10%
Battery Voltage
48VDC
Maximum PV Array Open Circuit Voltage
500VDC
MPPT Range @ Operating Voltage
60¬450VDC 27A
Maximum Solar Charge Current
120A
Maximum Charge Current
120A
Dimension D*W*H(mm) Net Weight (Kgs)
119*313.6*457.5 12
Communication Interface
USB/RS232/RS485/WiFi/Dry-contact
Humidity
5% to 95% Relative Humidity (Non-Condensing)
Operating Temperature
-10¬50C
Storage Temperature
-15¬60C
Description

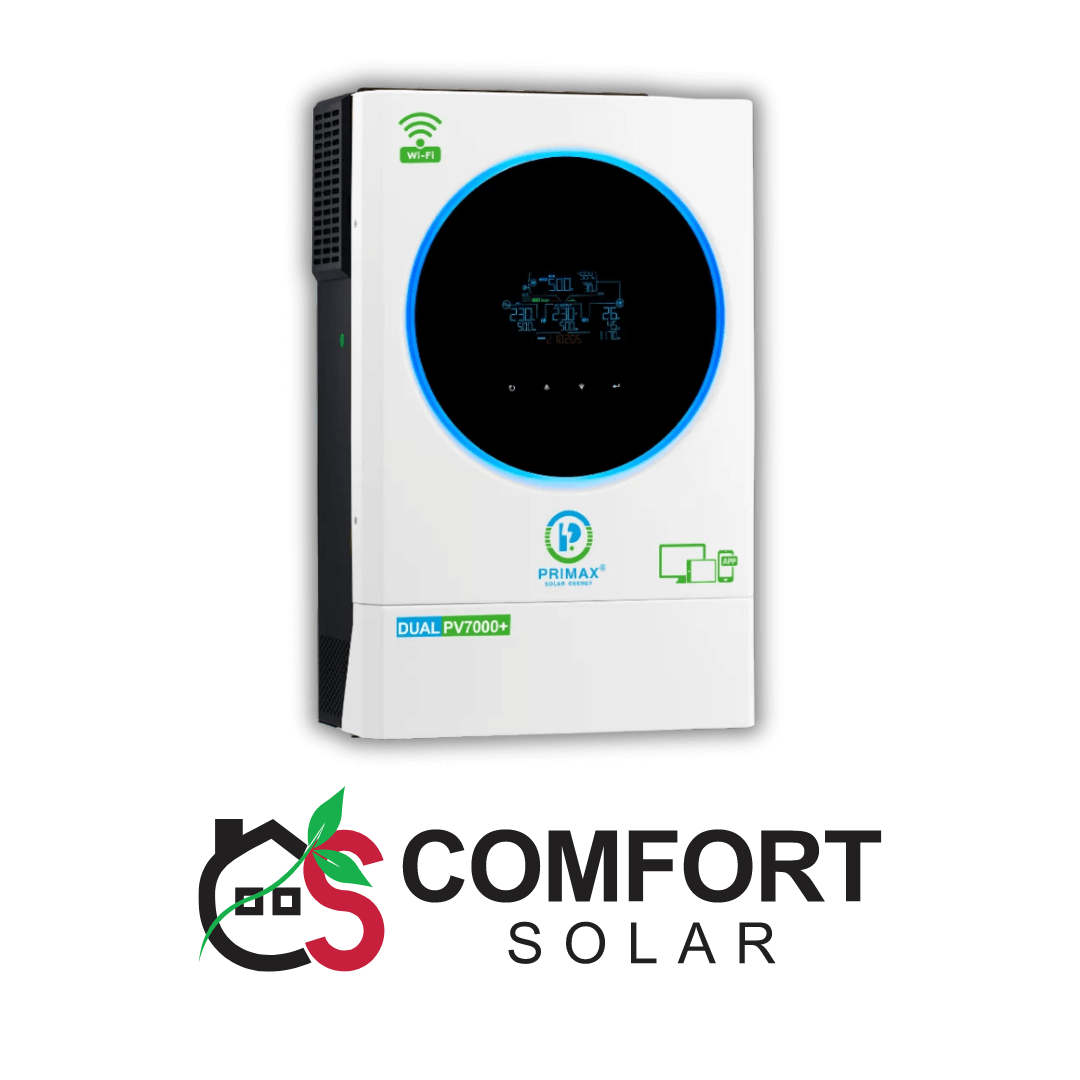

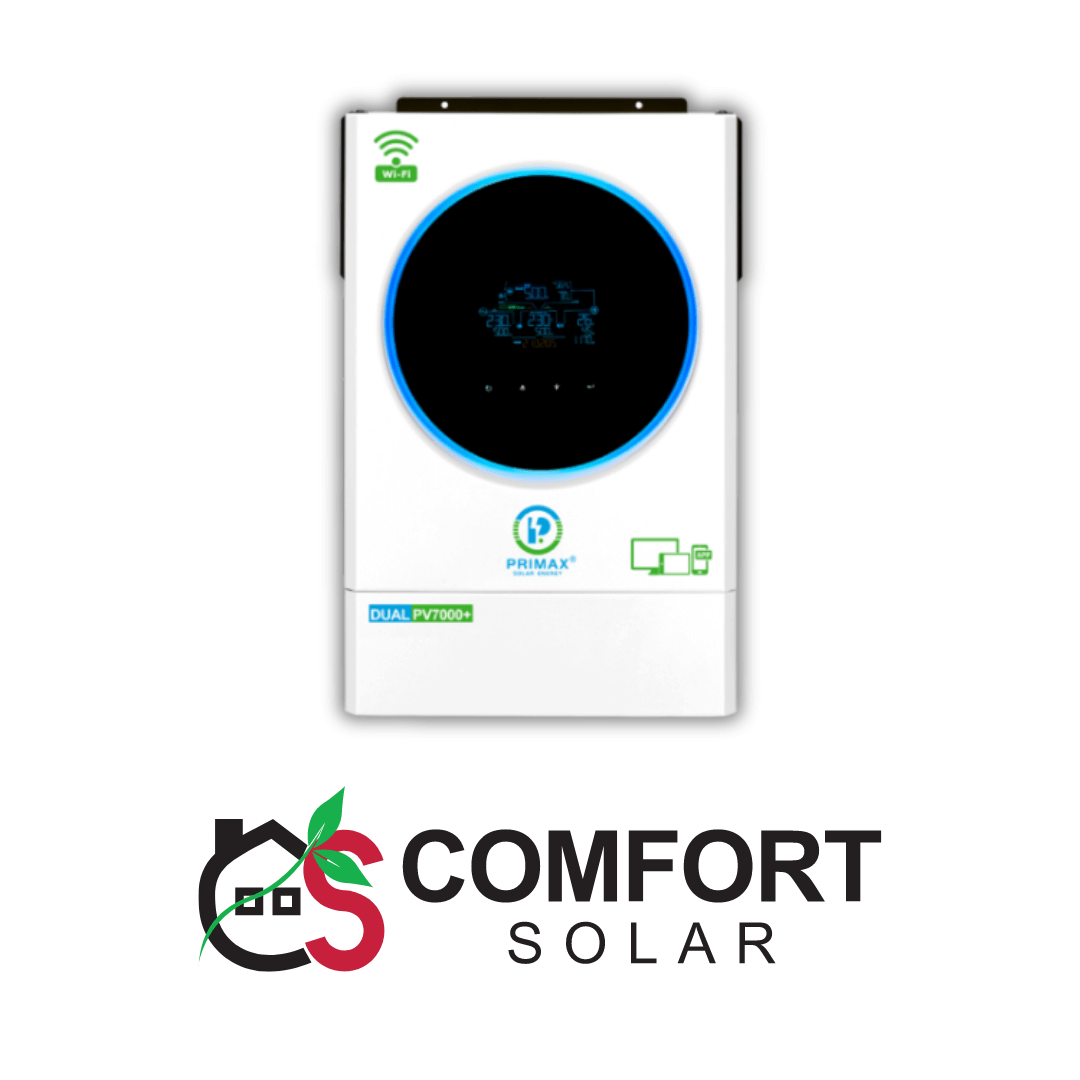

Technical Specifications – PRIMAX Galaxy DUAL PV7000+ PRO
Model
Galaxy DUAL PV7000+ PRO
Inverter Type
Hybrid (On-Grid / Off-Grid)
Rated Output Power
7000VA / 7000W
Battery Voltage
48V DC
Output Waveform
Pure Sine Wave
Dual MPPT Inputs
Yes – 4100W + 4100W
MPPT Solar Charging Current
120A
MPPT Voltage Range
90V – 450VDC
Max PV Input Power
8200W
Battery Compatibility
Lithium-ion, GEL, AGM, Lead-Acid
Batteryless Operation
Supported
Monitoring Options
WiFi / GPRS (optional)
Mobile App Support
iOS and Android
User Interface
Touch Button + RGB Light Display
Communication Ports
USB, RS232, Dry Contact
Protection Features
Overload, Overheat, Short Circuit, Overcharge
Cooling System
Smart Fan Cooling
Dust Protection
Anti-Dust Kit Built-in
Reset Function
One-Key Factory Reset
Application
Homes, Offices, Shops, Hybrid Solar Systems
Warranty
2 Years Standard
Introducing the Dual-Output Solar Inverter, a state-of-the-art solution designed by Comfort Solar to optimize energy management for residential and commercial applications. This advanced inverter incorporates cutting-edge features for enhanced performance and reliability.
Key Features:
Dual Outputs for Smart Load Management: Maximizes efficiency in energy distribution.
Maximum PV Input Current: Handles up to 27A for efficient solar energy conversion.
Maximum PV Input: Supports a maximum of 7000W PV input power, ensuring optimal solar energy utilization.
Wide PV Input Voltage Range: Operates effectively between 60VDC to 450VDC, accommodating various solar panel configurations.
Touchable Button with Large 4.3″ Colored LCD: User-friendly interface for intuitive operation and monitoring.
Customizable Status LED Ring with RGB Lights: Provides clear visual indication of system status.
Built-in Wi-Fi: Enables mobile monitoring via dedicated apps for Android and iOS devices.
USB On-the-Go Function: Supports USB connectivity for flexible data handling and device interaction.
Reserved Communication Port for BMS: Includes RS485, CAN-BUS, or RS232 ports for seamless integration with Battery Management Systems (BMS).
Maximum Charging Current: Capable of handling up to 120A for efficient battery charging.
Battery Independent Design: Ensures continuous operation regardless of battery presence or condition.
Feed-in to Grid with Storage Backup: Allows feeding excess energy into the grid while providing backup power during outages.
Battery Equalization: Enhances battery life cycle by ensuring balanced charging.
Built-in Anti-dust Kit: Enhances durability and reliability in various environmental conditions.
Data Log Event Storage: Records event data directly within the inverter for comprehensive system monitoring and troubleshooting.
Why Choose Comfort Solar? Comfort Solar is committed to delivering cutting-edge solar solutions that enhance energy efficiency, reliability, and sustainability. The Dual-Output Solar Inverter exemplifies our dedication to providing high-performance energy management solutions for residential and commercial environments.
Call to Action: Ready to enhance your energy management with the Dual-Output Solar Inverter? Visit comfortsolar.pk today to explore our full range of products. For inquiries or to place an order, contact us via WhatsApp at 03166225526. Experience superior energy solutions with Comfort Solar! The price of PRIMAX HYBRID SOLAR INVERTER – GALAXY DUAL PV7000+ PRO is Rs.155000 in Pakistan as of 29 May 2025.
Brand
Primax
The complete range of Primax Solar Energy's offerings is available on our website, "Comfort Solar." You can browse through and purchase their solar panels and inverters, tailored to fit various energy needs. For more details on their products and to explore how they can benefit your energy setup, visit our site to view the comprehensive catalog of Primax Solar Energy's solutions.
Primax Solar Energy (Pvt) Ltd, founded in 2019, is dedicated to addressing electricity production challenges through its range of solar panels and inverters. The company focuses on delivering effective and sustainable energy solutions for both residential and mini-commercial projects. Their products are designed to meet the growing demand for renewable energy and support sustainable development goals.
