170¬280VAC (For Personal Computers) ; 90¬280VAC (For Home Appliances)
Frequency Range
50Hz/60Hz(Auto Sensing)
Storage Temperature
-10°C to 60°C
Surge Power
8000VA
Efficiency (Peak)
90% ¬ 93%
Transfer Time
15ms (For Personal Computers) 20ms (For Home Appliances)
Waveform
Pure Sine Wave
Maximum PV Array Open Circuit Voltage
500VDC
Voltage
230VAC
AC Voltage Regulation (Batt. Mode)
230VAC+-10%
Battery Voltage
24VDC
Floating Charge Voltage
27VDC
Overcharge Protection
33VDC
Solar Charger Type
MPPT
Maximum PV Array Power
5500W
MPPT Range @ Operating Voltage
60¬450VDC 27A
Maximum Solar Charge Current
120A
Maximum AC Charge Current
100A
Maximum Charge Current
120A
Dimension D*W*H(mm) Net Weight (Kgs)
119 x 313.6 x 457.5 10
Communication Interface
USB/RS232/RS485/WiFi/Dry-contact
Humidity
5% to 95% Relative Humidity (Non-Condensing)
Operating Temperature
-10°C to 50°C
Description

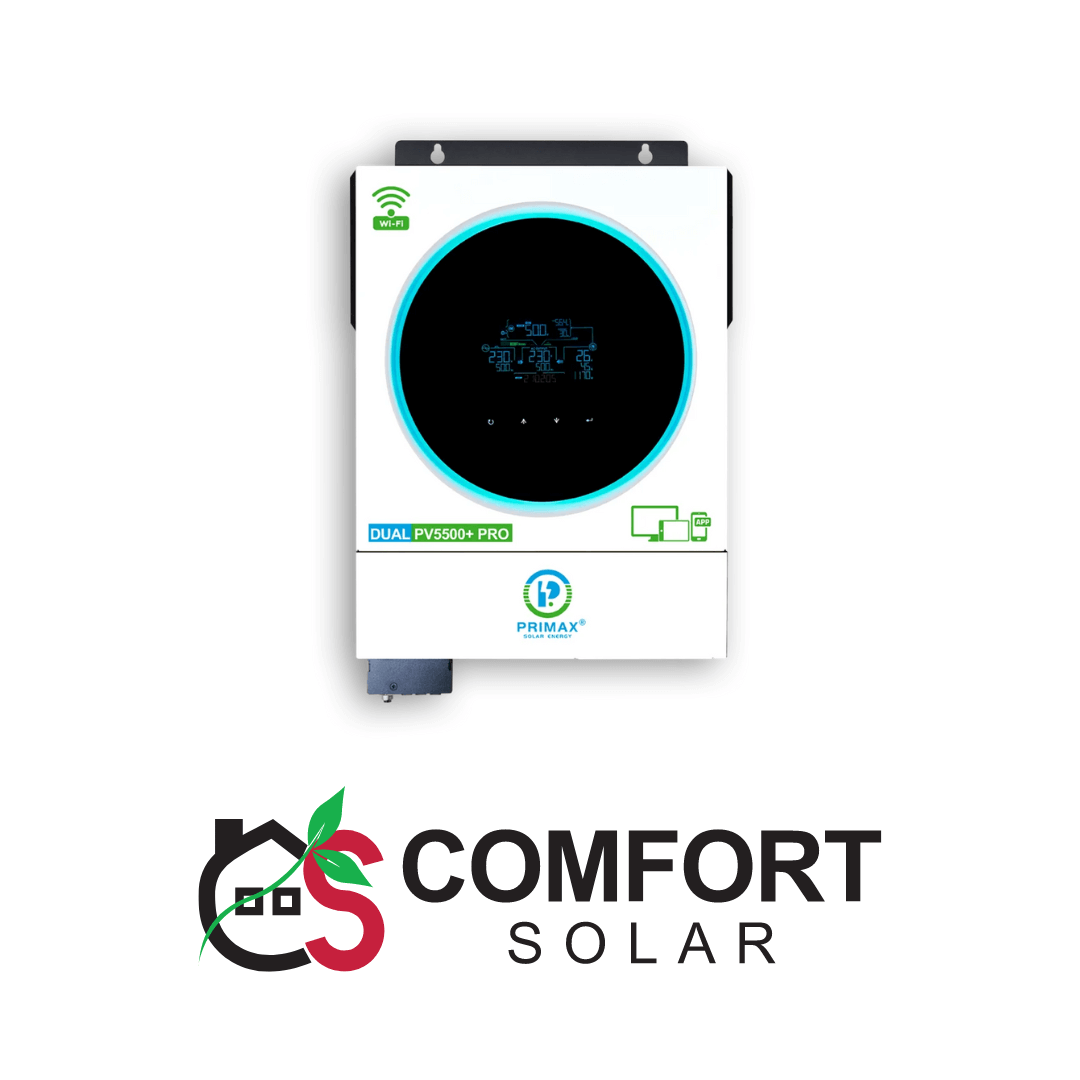

Technical Specifications – PRIMAX Galaxy DUAL PV5500+ PRO
Model
Galaxy DUAL PV5500+ PRO
Inverter Type
Hybrid (On-Grid / Off-Grid)
Rated Output Power
5500VA / 5500W
Output Waveform
Pure Sine Wave
Battery Voltage
48V DC
Supported Battery Types
Lithium-ion, AGM, GEL, Flooded Lead-Acid
MPPT Solar Charge Controller
120A Built-in Dual MPPT
Maximum PV Input Power
6000W
MPPT Voltage Range
90V – 450VDC
Dual MPPT Inputs
Yes – Independent PV Inputs
AC Input Voltage Range
90V – 280V AC
Batteryless Operation
Supported
Display
Touch LCD + RGB LED Indicators
Monitoring Options
WiFi & GPRS (Optional)
Mobile App Support
Compatible with Android & iOS
Communication Interfaces
USB, RS232, Dry Contact
System Protections
Overload, Short Circuit, Deep Discharge, Overcharge
Cooling
Smart Fan Cooling
Dust Protection
Anti-Dust Design
Application
Home, Office, Shops, Commercial Hybrid Systems
Warranty
2 Years Standard
Introducing the Dual-Output Solar Inverter from Comfort Solar, designed to redefine energy management with unparalleled efficiency and reliability. Ideal for residential and commercial applications, this advanced inverter integrates cutting-edge features for optimal performance.
Key Features:
Dual Outputs for Smart Load Management: Optimizes energy distribution for diverse power needs.
Maximum PV Input Current: Handles up to 27A for efficient solar energy conversion.
Maximum PV Input: Supports up to 5500W of PV input power, maximizing solar energy utilization.
Wide PV Input Voltage Range: Operates effectively between 60VDC to 450VDC, adaptable to various solar panel configurations.
Touchable Button with Large 4.3″ Colored LCD: User-friendly interface for intuitive operation and monitoring.
Customizable Status LED Ring with RGB Lights: Provides clear visual indication of system status.
Built-in Wi-Fi: Enables mobile monitoring via Android and iOS apps, ensuring remote system management.
Supports USB On-the-Go Function: Facilitates flexible data handling and device interaction.
Reserved Communication Port for BMS: Includes RS485, CAN-BUS, or RS232 ports for seamless integration with Battery Management Systems (BMS).
Maximum Charging Current: Capable of handling up to 120A for swift and efficient battery charging.
Battery Independent Design: Ensures continuous operation regardless of battery status, ensuring uninterrupted power supply.
Feed-in to Grid with Storage Backup: Allows surplus energy to be fed into the grid while providing backup power during outages.
Battery Equalization Function: Optimizes battery performance and extends lifespan through balanced charging cycles.
Built-in Anti-dust Kit: Enhances durability and reliability in various environmental conditions, ensuring longevity.
Data Log Event Storage: Records comprehensive event data directly within the inverter for detailed system monitoring.
Why Choose Comfort Solar? Comfort Solar is committed to delivering innovative solar solutions that prioritize energy efficiency, reliability, and sustainability. The Dual-Output Solar Inverter exemplifies our dedication to providing high-performance energy management solutions for diverse applications.
Call to Action: Ready to optimize your energy management with the Dual-Output Solar Inverter? Explore our complete range of products at comfortsolar.pk today. For inquiries or to place an order, contact us via WhatsApp at 03166225526. Discover superior energy solutions with Comfort Solar! The price of PRIMAX HYBRID SOLAR INVERTER – GALAXY DUAL PV5500+ PRO is Rs.120000 in Pakistan as of 29 May 2025.
Brand
Primax
The complete range of Primax Solar Energy's offerings is available on our website, "Comfort Solar." You can browse through and purchase their solar panels and inverters, tailored to fit various energy needs. For more details on their products and to explore how they can benefit your energy setup, visit our site to view the comprehensive catalog of Primax Solar Energy's solutions.
Primax Solar Energy (Pvt) Ltd, founded in 2019, is dedicated to addressing electricity production challenges through its range of solar panels and inverters. The company focuses on delivering effective and sustainable energy solutions for both residential and mini-commercial projects. Their products are designed to meet the growing demand for renewable energy and support sustainable development goals.
