170¬280VAC (For Personal Computers) ; 90¬280VAC (For Home Appliances)
Frequency Range
50Hz/60Hz(Auto Sensing)
Solar Charger Type
MPPT
Surge Power
7200VA
Efficiency (Peak)
93%
Transfer Time
10ms (For Personal Computers) 20ms (For Home Appliances)
Waveform
Pure Sine Wave
Maximum PV Array Power
5000W
Floating Charge Voltage
27VDC
Overcharge Protection
33VDC
Maximum AC Charge Current
100A
Voltage
230VAC
AC Voltage Regulation (Batt. Mode)
230VAC+-10%
Battery Voltage
24VDC
Maximum PV Array Open Circuit Voltage
500VDC
MPPT Range @ Operating Voltage
90¬450V DC 27A
Maximum Solar Charge Current
120A
Maximum Charge Current
120A
Dimension D*W*H(mm) Net Weight (Kgs)
107*322.6*420.3 9.5
Communication Interface
USB/RS232
Humidity
5% to 95% Relative Humidity (Non-Condensing)
Operating Temperature
-10¬50C
Description

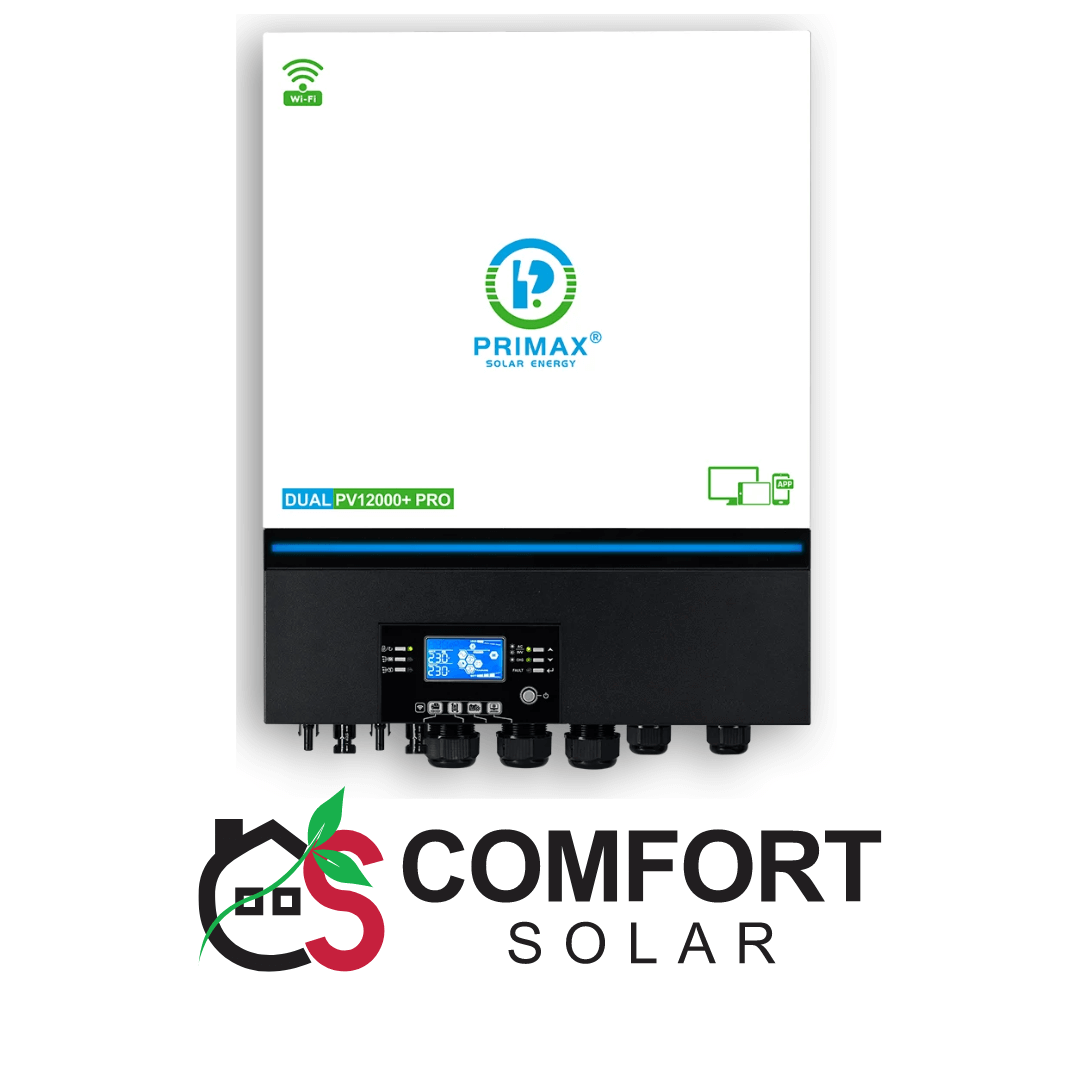

Primax Galaxy Dual PV12000+ Pro – Technical Data
Model
Galaxy Dual PV12000+ Pro
Solar Capacity
12000W
Maximum PV Input Current
27A × 2 (Max 40A)
PV Input Voltage Range
90VDC ~ 450VDC
Dual Output
Yes (for smart load management)
Status Indication
RGB Lights
Wi-Fi Monitoring
Built-in Wi-Fi (Android/iOS App Supported)
USB On-the-Go
Supported
Communication Ports
RS485, CAN-BUS, RS232 (for BMS)
Maximum Charging Current
150A
Battery Dependency
Battery Independent Design
Grid Compatibility
Supports Feed-in to Grid with Storage Backup
Generator Compatibility
Yes
Anti-Dust Kit
Built-in
Parallel Operation
Up to 6 Units
Maximum AC Output
11000W
Are you searching for a high-capacity solar inverter to power your home or office with reliable, eco-friendly energy? Look no further than the HYBRID SOLAR INVERTER – GALAXY DUAL PV12000+ PRO available at Comfort Solar. This state-of-the-art inverter is designed to deliver exceptional performance, ensuring that your solar power system operates at its best.
Key Features:
High Rated Power: 11000W for robust energy support.
Dual Outputs: For smart load management.
Maximum PV Input Current: 27A x 2 (Max 40A).
Maximum PV Input: 12000W (6000W x 2).
Wide PV Input Voltage Range: 90VDC ~ 450VDC.
Status Indication: RGB lights for clear status indication.
Built-in Wi-Fi: For mobile monitoring (Android/iOS App available).
USB On-the-Go: Supports USB On-the-Go function.
Reserved Communication Port: RS485, CAN-BUS, or RS232 for BMS.
Maximum Charging Current: 120A.
Battery Independent Design: Operates with or without a battery.
Grid Feed-in: Feed-in to the grid with storage backup.
Utility Mains Compatibility: Compatible with utility mains or generator input.
Anti-dust Kit: Built-in for enhanced durability.
Parallel Operation: Supports parallel operation with up to 6 units.
Maximum AC Output: 11000W.
Detailed Features:
Rated Power and Phase Configuration: With a rated power of 11000W and dual outputs for smart load management, the HYBRID SOLAR INVERTER – GALAXY DUAL PV12000+ PRO is suitable for both residential and commercial applications, ensuring uninterrupted power supply.
Input Specifications: This inverter offers a maximum PV input current of 27A x 2 (max 40A) and a maximum PV input of 12000W (6000W x 2), with a wide PV input voltage range of 90VDC ~ 450VDC. These features ensure optimal performance and flexibility for different types of solar installations.
Output Specifications: Experience consistent power delivery with a maximum AC output of 11000W. The inverter supports feed-in to the grid with storage backup, providing reliable power even during high-demand periods. The dual output feature enhances smart load management, ensuring efficient energy use.
Battery and Charging Specifications: The inverter’s maximum charging current is 120A, supporting efficient and safe battery charging. Its battery-independent design allows it to operate with or without a battery, providing flexibility and reliability.
Physical and Environmental Specifications: The status indication with RGB lights provides clear visual status of the inverter, while the built-in anti-dust kit ensures durability and longevity. The parallel operation capability allows you to expand your system with up to 6 units, ensuring scalability for future needs.
Communication Interface: The HYBRID SOLAR INVERTER – GALAXY DUAL PV12000+ PRO offers multiple communication interfaces, including RS485, CAN-BUS, and RS232 for BMS. These options provide comprehensive monitoring and management capabilities, making it easy to keep track of your system’s performance.
Why Choose Comfort Solar?
At comfortsolar.pk, we are committed to providing top-tier solar solutions tailored to your needs. Our HYBRID SOLAR INVERTER – GALAXY DUAL PV12000+ PRO is designed to offer maximum efficiency, reliability, and ease of use. By investing in our products, you are choosing sustainability and long-term energy savings.
Call to Action:
Ready to enhance your energy independence with our high-performance hybrid solar inverter? Visit comfortsolar.pk today to explore more about our products. For any inquiries or to place an order, contact us directly on WhatsApp at 03166225526. Don’t wait—empower your home with the best solar technology available!<
The price of PRIMAX HYBRID SOLAR INVERTER – GALAXY DUAL PV12000+ PRO is Rs320000. in Pakistan as of 29 May 2025
Brand
Primax
The complete range of Primax Solar Energy's offerings is available on our website, "Comfort Solar." You can browse through and purchase their solar panels and inverters, tailored to fit various energy needs. For more details on their products and to explore how they can benefit your energy setup, visit our site to view the comprehensive catalog of Primax Solar Energy's solutions.
Primax Solar Energy (Pvt) Ltd, founded in 2019, is dedicated to addressing electricity production challenges through its range of solar panels and inverters. The company focuses on delivering effective and sustainable energy solutions for both residential and mini-commercial projects. Their products are designed to meet the growing demand for renewable energy and support sustainable development goals.
