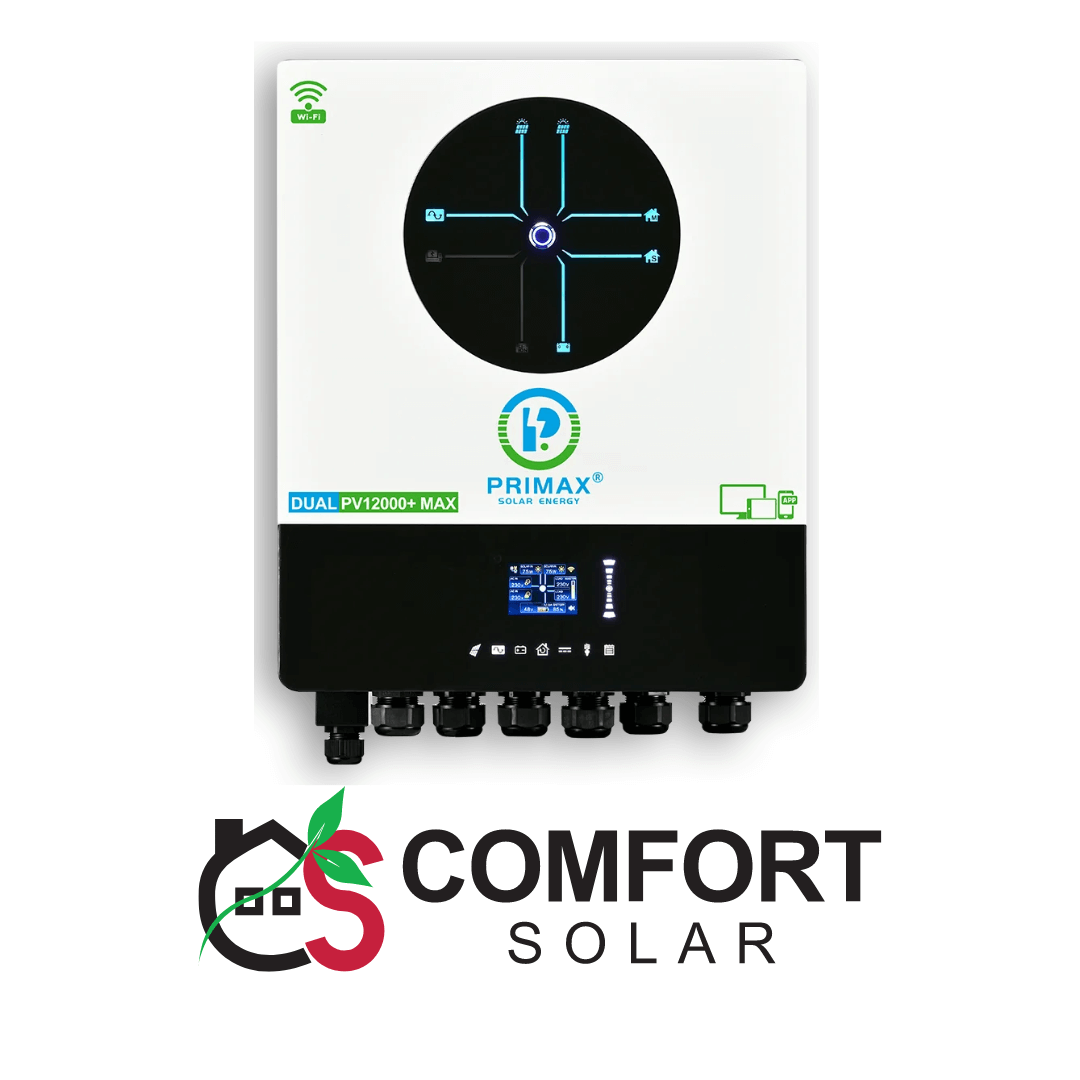

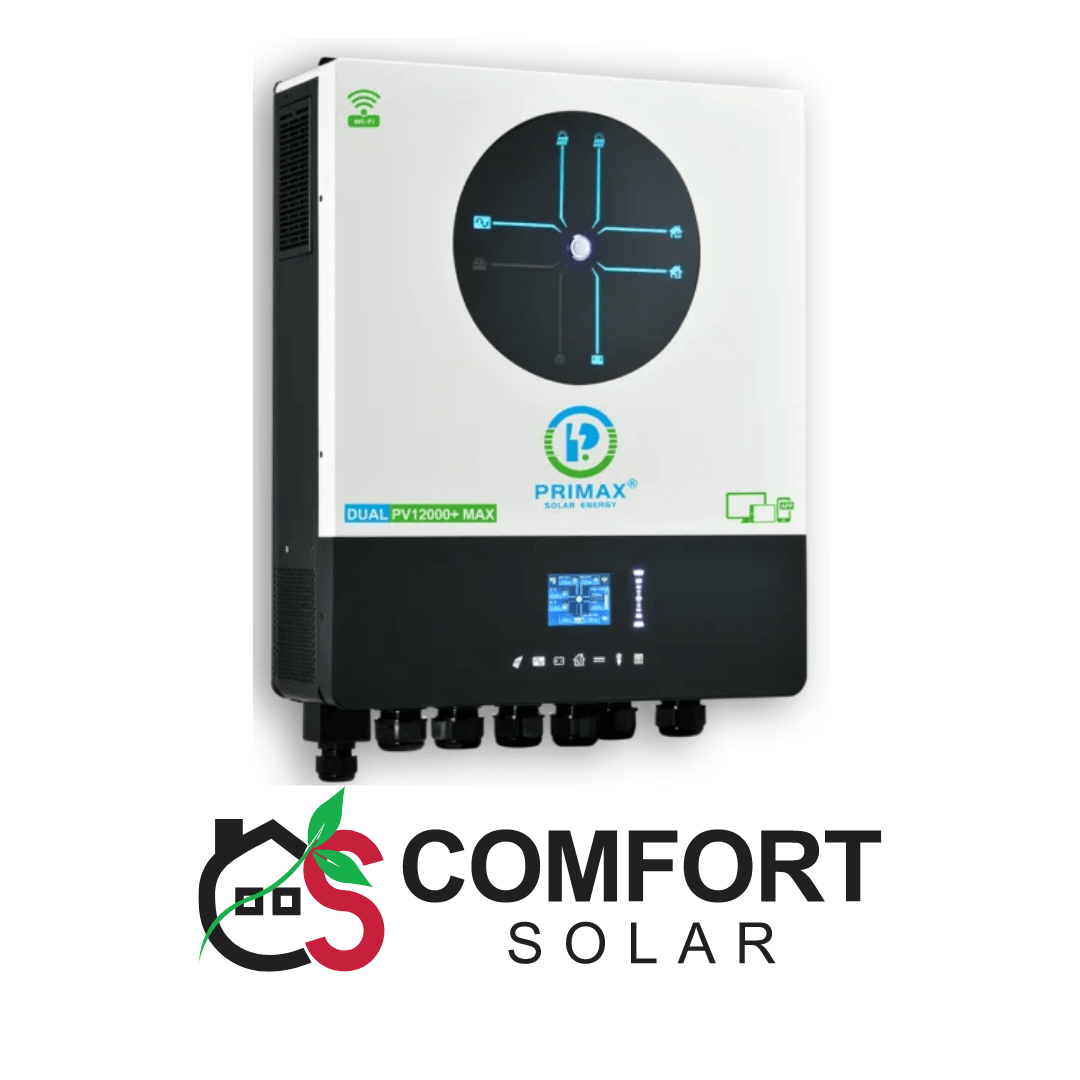

Name: PRIMAX HYBRID SOLAR INVERTER – GALAXY DUAL PV12000+ PRO - Comfort Solar
Price: 290000 PKR
Availability: InStock

Additional information

Voltage	230VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances)
Frequency Range	50Hz/60Hz(Auto Sensing)
AC Voltage Regulation (Batt. Mode)	230VAC+-5%
Surge Power	22000VA
Efficiency (Peak)	93%
Transfer Time	10ms (For Personal Computers) 20ms (For Home Appliances)
Waveform	Pure Sine Wave
Battery Voltage	48VDC
Floating Charge Voltage	54VDC
Overcharge Protection	63VDC
Solar Charger Type	MPPT
Maximum PV Array Open Circuit Voltage	500VDC
Maximum PV Array Power	12000W (6000W x 2)
MPPT Range @ Operating Voltage	90 ~ 450 VDC 27A x 2 (MAX 40A)
Maximum Solar Charge Current	150A
Maximum AC Charge Current	150A
Maximum Charge Current	150A
Dimension DWH(mm) Net Weight (Kgs)	145 x 438 x 553.6 18.4

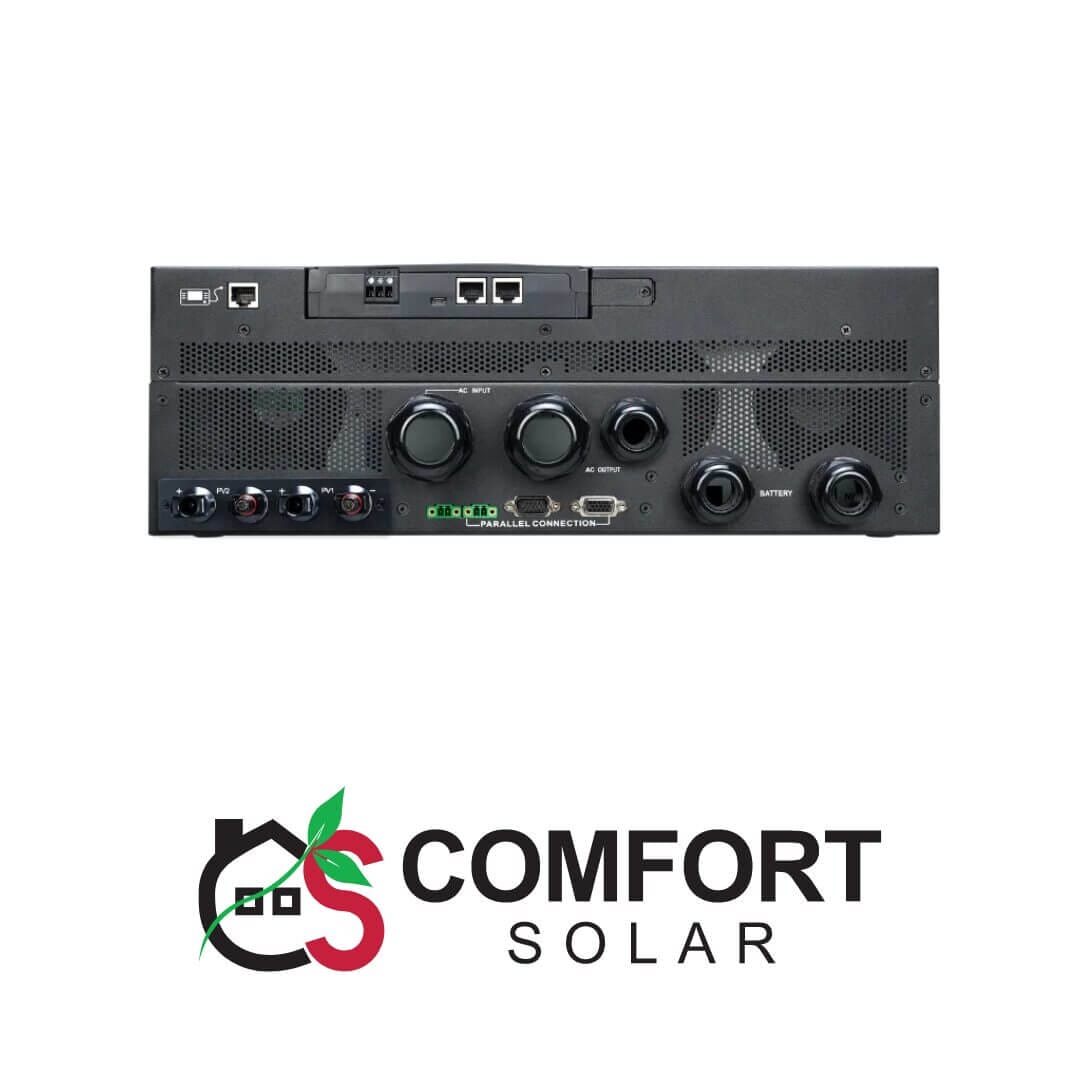

Communication Interface	USB/RS232/RS485/WiFi/Dry-contact/BTS Support optional GFCI, Rapid shutdown, AFCI detection
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	-10°C to 50°C
Storage Temperature	-10°C to 60°C
STANDARD Compliance Safety	CE

Description

Technical Specifications – PRIMAX Galaxy DUAL PV12000+ PRO
Model	Galaxy DUAL PV12000+ PRO
Inverter Type	Hybrid (On-Grid / Off-Grid)
Rated Output Power	12000VA / 12000W
Battery Voltage	48V DC
Battery Compatibility	Lithium-ion, Lead-Acid, AGM, GEL
Dual MPPT Inputs	Yes – 6100W + 6100W
MPPT Solar Charging Current	Up to 200A
MPPT Voltage Range	90V – 450VDC
Startup Voltage	90VDC
Max PV Input Current	2 × 18A
Waveform	Pure Sine Wave
AC Input Voltage Range	90V – 280V AC
Batteryless Operation	Supported
User Interface	Touch Button + RGB Light Display
Monitoring	WiFi / GPRS (Optional)
Mobile App Support	iOS and Android
Communication Ports	USB, RS232, Dry Contact
Protection Features	Overload, Overcharge, Short Circuit, Overheat
Cooling System	Smart Fan Cooling
Dust Protection	Anti-Dust Kit Included
Reset Feature	One-Key Factory Reset
Application	Large Homes, Offices, Industries, Commercial Sites
Warranty	2 Years Standard

Are you searching for a high-capacity solar inverter to power your home or office with reliable, eco-friendly energy? Look no further than the HYBRID SOLAR INVERTER – GALAXY DUAL PV12000+ MAX available at Comfort Solar. This state-of-the-art inverter is designed to deliver exceptional performance, ensuring that your solar power system operates at its best.

Key Features:

High Rated Power: 11000W for robust energy support.
Dual Outputs: For smart load management.
Maximum PV Input Current: 27A x 2 (Max 40A).
Maximum PV Input: 12000W (6000W x 2).
Wide PV Input Voltage Range: 90 ~ 450 VDC.
Status Indication: RGB lights for clear status indication.
Built-in Wi-Fi: For mobile monitoring (Android/iOS App available).
USB On-the-Go: Supports USB On-the-Go function.
Reserved Communication Port: USB/RS232/RS485/WiFi/Dry-contact/BTS.
Optional Support: GFCI, Rapid shutdown, AFCI detection.
Maximum Charging Current: 150A.
Battery Independent Design: Operates with or without a battery.
Grid Feed-in: Feed-in to the grid with storage backup.
Utility Mains Compatibility: Compatible with utility mains or generator input.
Anti-dust Kit: Built-in for enhanced durability.
Parallel Operation: Supports parallel operation with up to 6 units.
Maximum AC Output: 11000W.

Detailed Features:

Rated Power and Phase Configuration: With a rated power of 11000W and dual outputs for smart load management, the HYBRID SOLAR INVERTER – GALAXY DUAL PV12000+ MAX is suitable for both residential and commercial applications, ensuring uninterrupted power supply.
Input Specifications: This inverter offers a maximum PV input current of 27A x 2 (max 40A) and a maximum PV input of 12000W (6000W x 2), with a wide PV input voltage range of 90 ~ 450 VDC. These features ensure optimal performance and flexibility for different types of solar installations.
Output Specifications: Experience consistent power delivery with a maximum AC output of 11000W. The inverter supports feed-in to the grid with storage backup, providing reliable power even during high-demand periods. The dual output feature enhances smart load management, ensuring efficient energy use.
Battery and Charging Specifications: The inverter’s maximum charging current is 150A, supporting efficient and safe battery charging. Its battery-independent design allows it to operate with or without a battery, providing flexibility and reliability.
Physical and Environmental Specifications: The built-in anti-dust kit ensures durability and longevity, while the parallel operation capability allows you to expand your system with up to 6 units. The inverter operates efficiently in a wide temperature range, ensuring reliable performance in various environmental conditions.
Communication Interface: The HYBRID SOLAR INVERTER – GALAXY DUAL PV12000+ MAX offers multiple communication interfaces, including USB, RS232, RS485, WiFi, Dry-contact, and BTS. These options provide comprehensive monitoring and management capabilities, making it easy to keep track of your system’s performance.

Why Choose Comfort Solar?

At comfortsolar.pk, we are committed to providing top-tier solar solutions tailored to your needs. Our HYBRID SOLAR INVERTER – GALAXY DUAL PV12000+ MAX is designed to offer maximum efficiency, reliability, and ease of use. By investing in our products, you are choosing sustainability and long-term energy savings.

Call to Action:

Ready to enhance your energy independence with our high-performance hybrid solar inverter? Visit comfortsolar.pk today to explore more about our products. For any inquiries or to place an order, contact us directly on WhatsApp at 03166225526. Don’t wait—empower your home with the best solar technology available!
The price of PRIMAX HYBRID SOLAR INVERTER – GALAXY DUAL PV12000+ PRO is Rs.290000 in Pakistan as of 29 May 2025.

Brand

Primax

The complete range of Primax Solar Energy's offerings is available on our website, "Comfort Solar." You can browse through and purchase their solar panels and inverters, tailored to fit various energy needs. For more details on their products and to explore how they can benefit your energy setup, visit our site to view the comprehensive catalog of Primax Solar Energy's solutions.

Primax Solar Energy (Pvt) Ltd, founded in 2019, is dedicated to addressing electricity production challenges through its range of solar panels and inverters. The company focuses on delivering effective and sustainable energy solutions for both residential and mini-commercial projects. Their products are designed to meet the growing demand for renewable energy and support sustainable development goals.
