Description

• •


    Technical Specifications – PRIMAX Galaxy DUAL PV7500+ MAX
    Model	Galaxy DUAL PV7500+ MAX
    Inverter Type	Hybrid (On-Grid / Off-Grid)
    Rated Output Power	7500VA / 7500W
    Battery Voltage	48V DC
    Battery Types Supported	Lithium-ion, Lead-Acid, AGM, GEL
    Dual MPPT Inputs	Yes – Combined up to 8600W
    MPPT Solar Charging Current	120A
    MPPT Voltage Range	90V – 450VDC
    Startup Voltage	90VDC
    AC Input Voltage Range	90V – 280V AC
    Batteryless Operation	Yes – Supported
    Monitoring Support	WiFi / GPRS (Optional)
    Mobile App	iOS and Android Compatible
    User Interface	Touch Buttons + RGB LED Display
    Communication Ports	USB, RS232, Dry Contact
    Protection Features	Overload, Overcharge, Short Circuit, Overheat
    Cooling Method	Smart Fan Cooling
    Anti-Dust Kit	Included
    Reset Option	One-Key Factory Reset
    Application	Homes, Commercial Buildings, Mid to Large Solar Systems
    Warranty	2 Years Standard

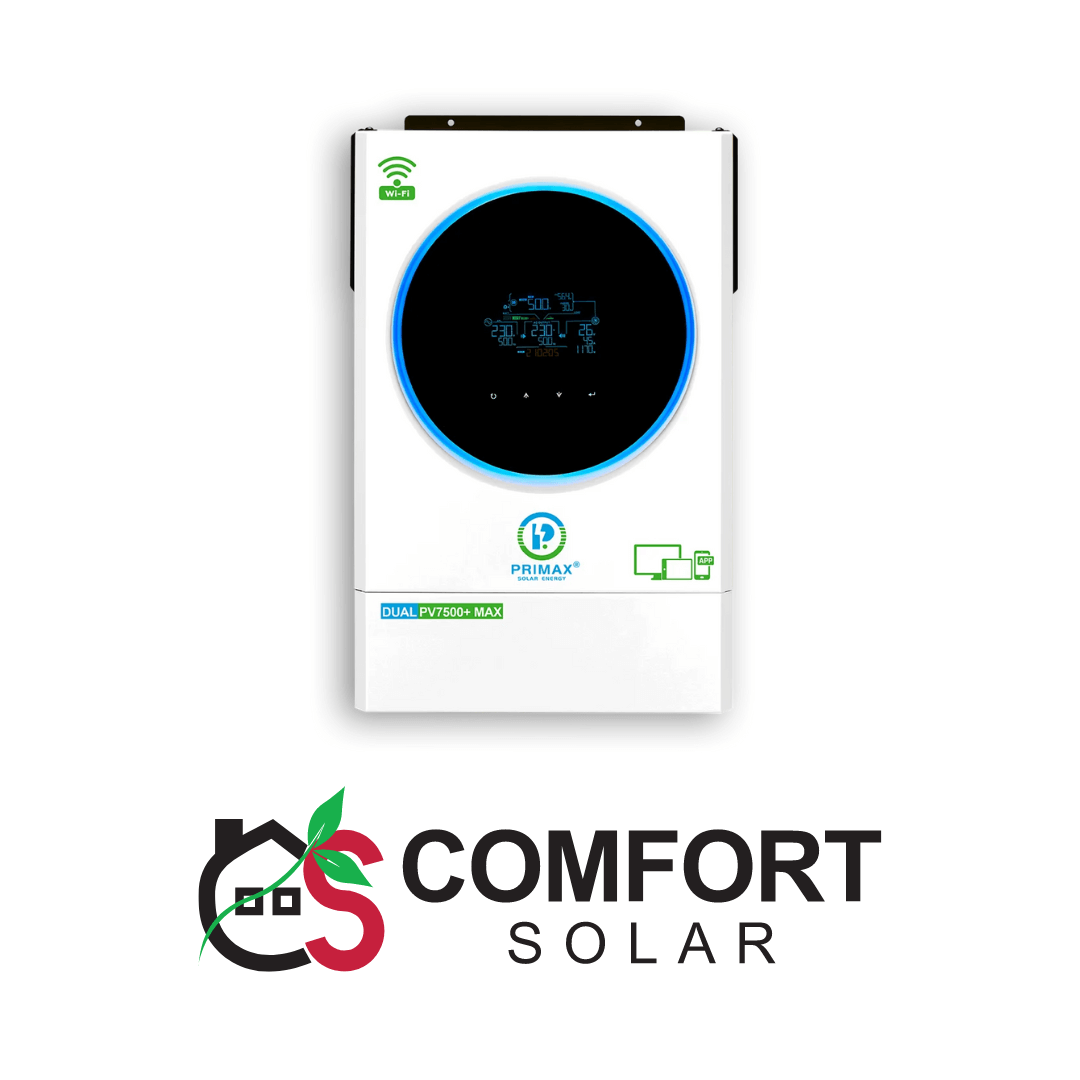

    HYBRID SOLAR INVERTER – GALAXY DUAL PV7500+ MAX

    Explore the cutting-edge features of the HYBRID SOLAR INVERTER – GALAXY DUAL PV7500+ MAX from Comfort Solar. This advanced inverter is engineered to provide efficient, reliable, and smart energy management solutions for both residential and commercial settings.Key Features:

    • Rated Output Power: 6000W ensures ample energy supply for various applications.
    • Maximum PV Input Power: Supports up to 7500W of solar input, maximizing energy harvesting.
    • Maximum Charging Power: Capable of handling up to 6000W for rapid battery charging.
    • Grid-Tie Operation: Allows seamless integration with the grid, supporting feed-in with storage backup.
    • Dual Outputs: Optimizes load management for enhanced energy distribution efficiency.
    • Customizable Status LED Ring: Features RGB lights for intuitive operational status indication.
    • Touchable Button with 4.3″ Colored LCD: Provides user-friendly interface for easy monitoring and control.
    • Built-in Wi-Fi: Enables mobile monitoring via dedicated apps (Android/iOS), ensuring remote management convenience.
    • USB On-the-Go Function: Supports direct data exchange and configuration via USB.
    • Communication Ports: Includes USB, RS232, RS485, WiFi, and Dry-contact for comprehensive system integration.
    • Parallel Operation: Supports parallel operation up to 9 units for scalable power solutions.
    • Built-in Anti-dust Kit: Maintains optimal performance in varied environmental conditions.

    Detailed Specifications:

    • Phase Configuration: 1-Phase In / 1-Phase Out, suitable for single-phase applications.
    • Grid Output (AC):
      • Nominal Output Voltage: 220/230/240 VAC
      • Output Voltage Range: 18 ~ 264.4 VAC or 195.5 ~ 253 VAC (Selectable)
      • Nominal Output Current: 26A, with power factor > 0.99 ensuring efficient energy utilization.
    • Efficiency:
      • Maximum Conversion Efficiency (DC/AC): 96%, maximizing energy conversion from solar and battery sources.
    • Off-Grid Operation:
      • AC Input: Accepts input voltages from 90 ~ 280 VAC or 170 ~ 280 VAC, with AC start-up voltage of 120 ~ 140 VAC and auto-restart at 180 VAC.
      • PV Input (DC): Supports up to 500VDC, with MPPT voltage range of 120 VDC ~ 430 VDC.
    • Hybrid Operation:
      • PV Input (DC): Operates at nominal DC voltage of 360 VDC / 500 VDC, with start-up voltage of 120 VDC / 150 VDC and MPPT range from 120 VDC to 430 VDC.
    • Battery & Charger:
      • Nominal DC Voltage: 48 VDC, supporting maximum solar charge current of 120A and AC charge current up to 120A.
    • Physical and Environmental Specifications:
      • Compact dimensions (140mm x 295mm x 468mm) and lightweight design (12 kg) for easy installation.
      • Operating temperature range of -10°C to 50°C, ensuring reliable performance in diverse climates.
      • Storage temperature range from -15°C to 60°C, suitable for long-term storage.

    Why Choose Comfort Solar?

    At Comfort Solar (comfortsolar.pk), we prioritize delivering top-tier solar solutions designed for maximum efficiency and ease of use. Invest in the HYBRID SOLAR INVERTER – GALAXY DUAL PV7500+ MAX to achieve sustainable energy savings and reliable power solutions.

    Call to Action:

    Ready to elevate your energy independence with our advanced hybrid solar inverter? Visit comfortsolar.pk today to learn more about our products. For inquiries or to place an order, contact us directly via WhatsApp at +92 3166225526. Don’t miss out—transform your energy management with Comfort Solar today!
    The price of PRIMAX HYBRID SOLAR INVERTER – GALAXY DUAL PV7500+ MAX is Rs.170000 in Pakistan as of 29 May 2025.
