Description

•


  Galaxy Dual PV5000+ – Technical Specifications
  Model	Galaxy Dual PV5000+
  Inverter Type	Hybrid Solar Inverter
  Maximum PV Input Current	27A
  PV Input Voltage Range	60VDC ~ 450VDC
  Maximum Charging Current	120A
  AC Output (Max)	3600W
  Monitoring	Built-in WiFi (Android/iOS App available)
  Design	Battery Independent
  Special Features	Dual output for smart load management Battery equalization function Feed-in to grid with storage backup Built-in anti-dust kit

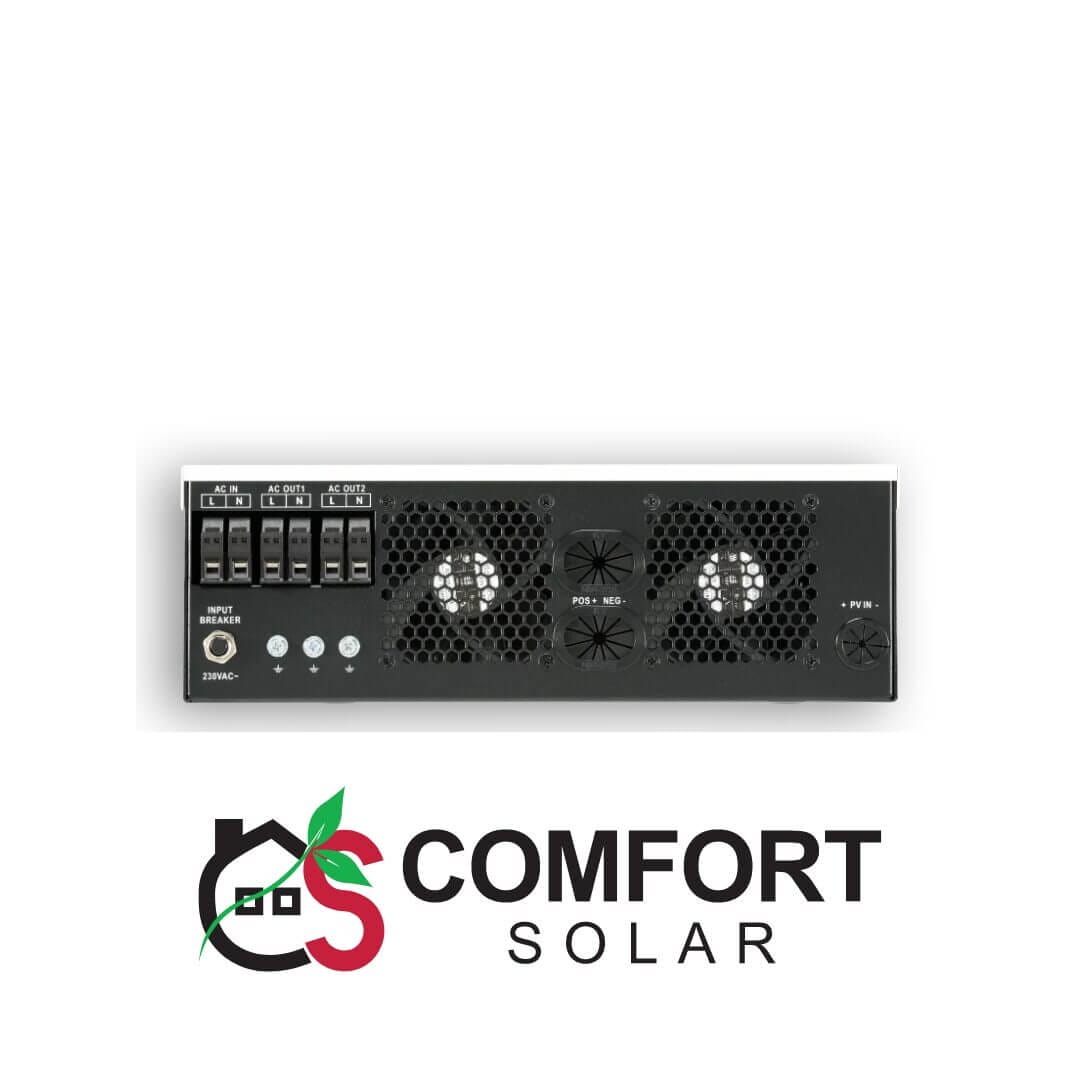

  HYBRID SOLAR INVERTER – GALAXY DUAL PV5000+

  Discover the efficiency and reliability of the HYBRID SOLAR INVERTER – GALAXY DUAL PV5000+ from Comfort Solar. This advanced inverter is designed to optimize energy management for both residential and commercial applications.Key Features:

  • Rated Power: 3600VA/3600W ensures robust energy support.
  • Dual Outputs: Smart load management for efficient energy distribution.
  • Maximum PV Input Current: 27A, supporting up to 5000W of solar input.
  • Wide PV Input Voltage Range: Operates from 60VDC to 450VDC, maximizing solar harvesting efficiency.
  • Built-in WiFi: Enables mobile monitoring via Android/iOS apps for remote management convenience.
  • Reserved Communication Port: Supports RS485, CAN-BUS, or RS232 for seamless integration with Battery Management Systems (BMS).
  • Maximum Charging Current: Handles up to 120A for rapid battery charging.
  • Battery Independent Design: Offers flexibility in battery choice and configuration.
  • Feed-in to the Grid with Storage Backup: Ensures continuous power supply with grid connectivity and storage capabilities.
  • Battery Equalization Function: Optimizes battery performance and extends battery life cycle.
  • Built-in Anti-dust Kit: Maintains optimal performance in varied environmental conditions.
  • Maximum AC Output: 3600W for stable and reliable electricity supply.

  Detailed Specifications:

  • Input:
    • Voltage: 230VAC
    • Selectable Voltage Range: 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances)
    • Frequency Range: 50Hz/60Hz (Auto Sensing)
  • Output:
    • AC Voltage Regulation (Batt. Mode): 230VAC ± 10%
    • Surge Power: 7200VA for handling peak loads efficiently
    • Efficiency (Peak): 93% ensures high energy conversion efficiency
    • Transfer Time: 10ms (For Personal Computers), 20ms (For Home Appliances)
    • Waveform: Pure Sine Wave for safe and stable operation of sensitive electronics
  • Battery:
    • Battery Voltage: 24VDC
    • Floating Charge Voltage: 27VDC
    • Overcharge Protection: 33VDC
  • Solar Charger & AC Charger:
    • Solar Charger Type: MPPT
    • Maximum PV Array Open Circuit Voltage: 500VDC
    • Maximum PV Array Power: 5000W
    • MPPT Range @ Operating Voltage: 90 ~ 450 VDC
    • Maximum Solar Charge Current: 120A
    • Maximum AC Charge Current: 100A
    • Maximum Charge Current: 120A
  • Physical Specifications:
    • Dimensions (DWH): 107 x 322.6 x 420.3 mm
    • Net Weight: 9.5 kg
    • Communication Interface: USB/RS232 for versatile connectivity
  • Operating Environment:
    • Humidity: 5% to 95% Relative Humidity (Non-condensing)
    • Operating Temperature: -10°C to 50°C
    • Storage Temperature: -15°C to 60°C

  Why Choose Comfort Solar?

  Comfort Solar is dedicated to providing top-tier solar solutions that simplify energy needs while ensuring sustainability. Invest in the HYBRID SOLAR INVERTER – GALAXY DUAL PV5000+ to achieve long-term energy efficiency and reliability.

  Call to Action:

  Ready to upgrade to an advanced hybrid solar inverter? Visit Comfort Solar today to learn more about our products. For inquiries or to place an order, contact us via WhatsApp at +92 3166225526. Take the step towards sustainable energy solutions with Comfort Solar!
  The price of PRIMAX HYBRID SOLAR INVERTER – GALAXY DUAL PV5000+ is Rs105000. in Pakistan as of 29 May 2025.
