10ms (For Personal Computers); 20ms (For Home Appliances)
Wave form
Pure Sine Wave
Nominal Output Voltage
220/230/240 VAC
Output Voltage Range
184-264.5 VAC or 195.5 – 253 VAC (Selectable)
Nominal Output Current
29.54A
Battery Voltage
48VDC
Floating Charge Voltage
54VDC
Overcharge Protection
63VDC
Solar Charger Type
DUAL MPPT (PARALLEL)
Maximum PV Array Open Circuit Voltage
500VDC
MPPT Range @ Operating Voltage
120~450 VDC
Maximum Solar Charge Current
80A + 80A = 160A
Maximum PV Input Current
36A
Nominal PV Voltage
240 VDC
Maximum AC Charge Current
60A
Maximum PV Array Power
8500W 98%
Dimension.D*W*H(mm)
224 x535 x 425 mm
Net Weight (kgs)
13.5 KGS
Communication Interface
USB and Rs232
Humidity
O to 90% Relative Humidity (Non-condensing)
Operating Temperature
-10°C to 50°C
Storage Temperature
-15°C to 60°C
Description

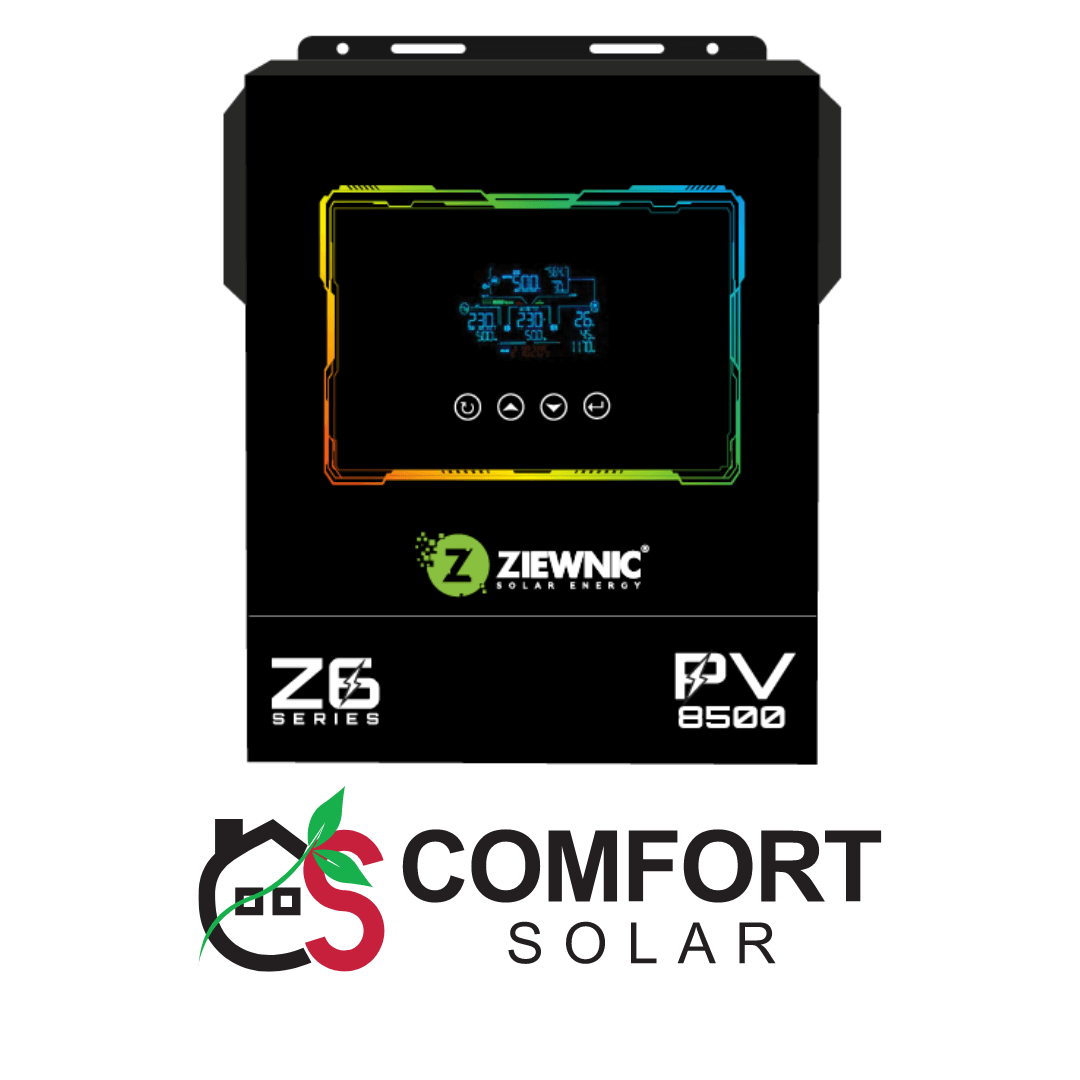

Are you seeking an advanced solar inverter that combines European engineering with cutting-edge features? Comfort Solar proudly presents the revolutionary 6th Gen European Inverter, now available in Pakistan for the first time. Designed to deliver superior performance and reliability, this inverter is perfect for both residential and commercial applications.
Key Features:
Single Phase Inverter: Supports three-phase operation when installed in parallel.
Pure Sine Wave Output: Ensures 100% pure sine wave output for safe and efficient operation of your appliances.
Built-in Wi-Fi: Includes built-in Wi-Fi with a 10-meter range, compatible with Android devices.
Flexible Battery Operation: Can run with or without a battery.
Battery Management System: Integrated Battery Management System (BMS) for optimal battery health.
Multiple Operation Modes: Supports On Grid, Off Grid, and Hybrid modes.
Net Metering: Grid-tied net metering with 100% reverse grid feeding and built-in zero export.
Voltage Adaptability: Adaptable to main voltage and generator power.
Conformal Coating: Prevents dust and humidity, enhancing durability.
Smart LCD Screen: Features a new color screen LCD with touch buttons.
Durability: Built-in anti-dust feature for harsh environments.
Lithium Battery Compatibility: Compatible with all kinds of lithium batteries, supporting multiple parameters.
Surge Capacity: Handles surge capacity of 2x rated power for 5 seconds.
Data Recording: Records energy generated, load, history, and fault information.
Parallel Operation: Supports parallel operation of up to 9 units.
Dual MPPT Solar Charge Controller: Equipped with a dual MPPT parallel-based 8500W solar charge controller (160A).
Smart Power Management: Allows for multiple schedule settings.
Communication Ports: Includes RS232, USB, RS485, and CAN ports.
Zero Transfer Time: Ensures seamless power transition.
Overload Protection: Provides overload protection on 150% load.
High PV Input Range: Supports high PV input voltage range (120-500 VDC).
Dual AC Output: Features dual AC output.
Maximum PV Input Current: Supports up to 36A PV input current.
European Design: Designed in Europe and engineered in Taiwan.
Detailed Features:
Robust Performance: The single-phase inverter supports three-phase operation when installed in parallel, making it versatile for various setups. Its pure sine wave output ensures the safety and efficiency of your appliances.
Advanced Monitoring and Control: With built-in Wi-Fi compatible with Android devices and a smart color screen LCD with touch buttons, monitoring and controlling your solar power system has never been easier. The inverter also includes a battery management system for optimal battery health.
Adaptability and Protection: The inverter is adaptable to main voltage and generator power, providing flexibility in different scenarios. It features a conformal coating to prevent dust and humidity, ensuring long-lasting performance even in harsh environments.
Data and Parallel Operation: This inverter records energy generated, load, history, and fault information, offering comprehensive insights into your system’s performance. It supports parallel operation of up to 9 units, making it scalable for larger applications.
High Capacity and Efficiency: Equipped with a dual MPPT parallel-based 8500W solar charge controller (160A) and a high PV input voltage range of 120-500 VDC, this inverter maximizes power extraction from your solar panels. It also features smart power management with multiple schedule settings.
Comprehensive Protection and Communication: The inverter includes built-in overload protection for 150% load, ensuring safety during high-demand periods. It provides seamless power transition with zero transfer time and offers multiple communication ports (RS232, USB, RS485, CAN) for enhanced connectivity.
Why Choose Comfort Solar? At Comfort Solar, we are committed to providing top-tier solar solutions tailored to your needs. Our 6th Gen European Inverter is designed to offer maximum efficiency, reliability, and ease of use. By investing in our products, you are choosing sustainability and long-term energy savings.
Call to Action: Ready to enhance your energy independence with our high-performance 6th Gen European Inverter? Visit comfortsolar.pk today to explore more about our products. For any inquiries or to place an order, contact us directly on WhatsApp at 03166225526. Don’t wait—empower your home with the best solar technology available!
Brand
Ziewnic
Their product range includes solutions tailored to both small and large-scale energy requirements. ZIEWNIC is committed to providing quality products and technical solutions while prioritizing customer satisfaction. For more information about their offerings, customers can visit their website or contact them directly for assistance.
ZIEWNIC PK (Pvt) Ltd. was established in 2014 and has since developed a strong reputation in the solar industry. The company specializes in solar panels and solar inverters, aiming to address electricity production deficiencies and promote sustainable development. ZIEWNIC offers a broad range of products suitable for residential, commercial, and industrial applications, ensuring they meet varying consumer needs and support eco-friendly practices.
