Description

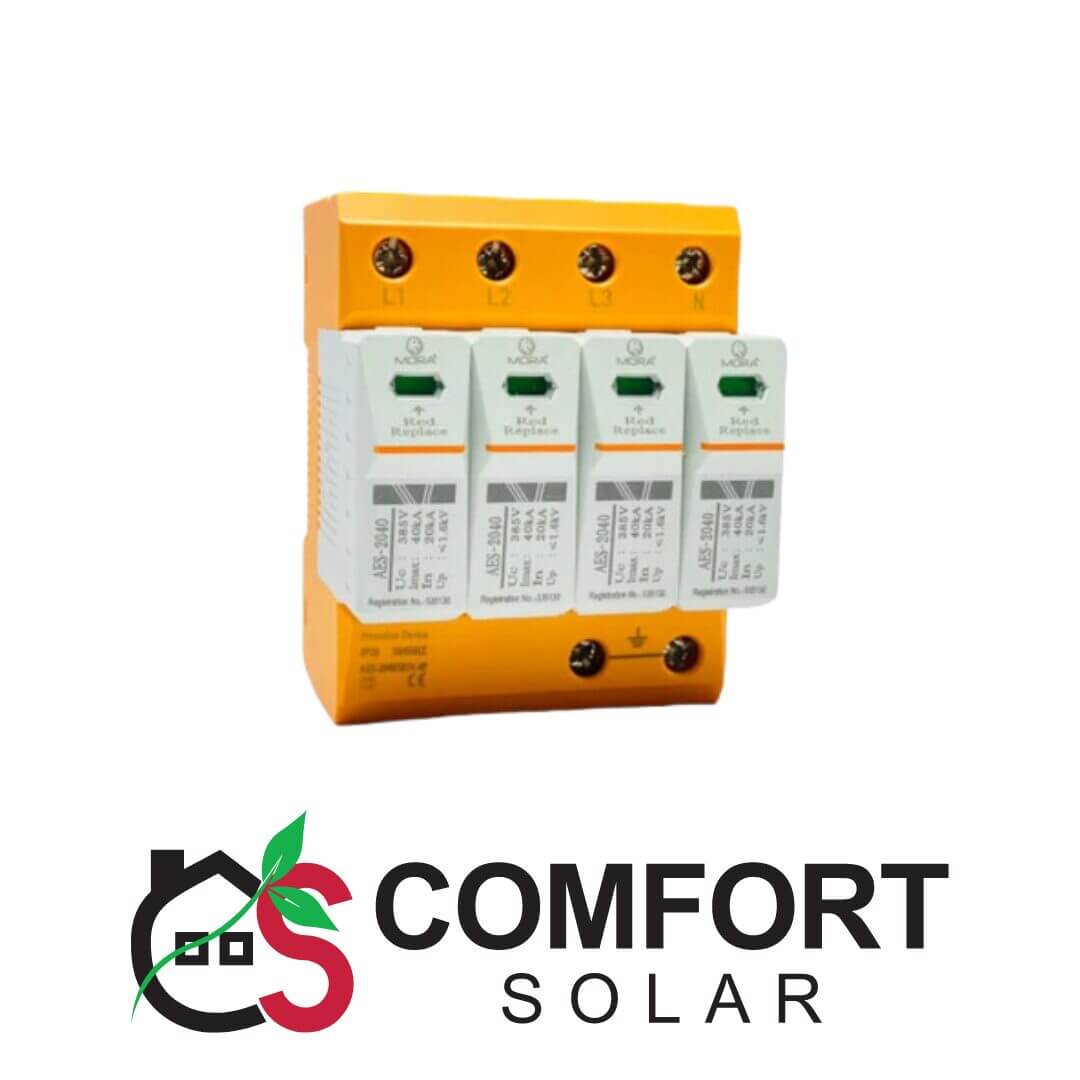

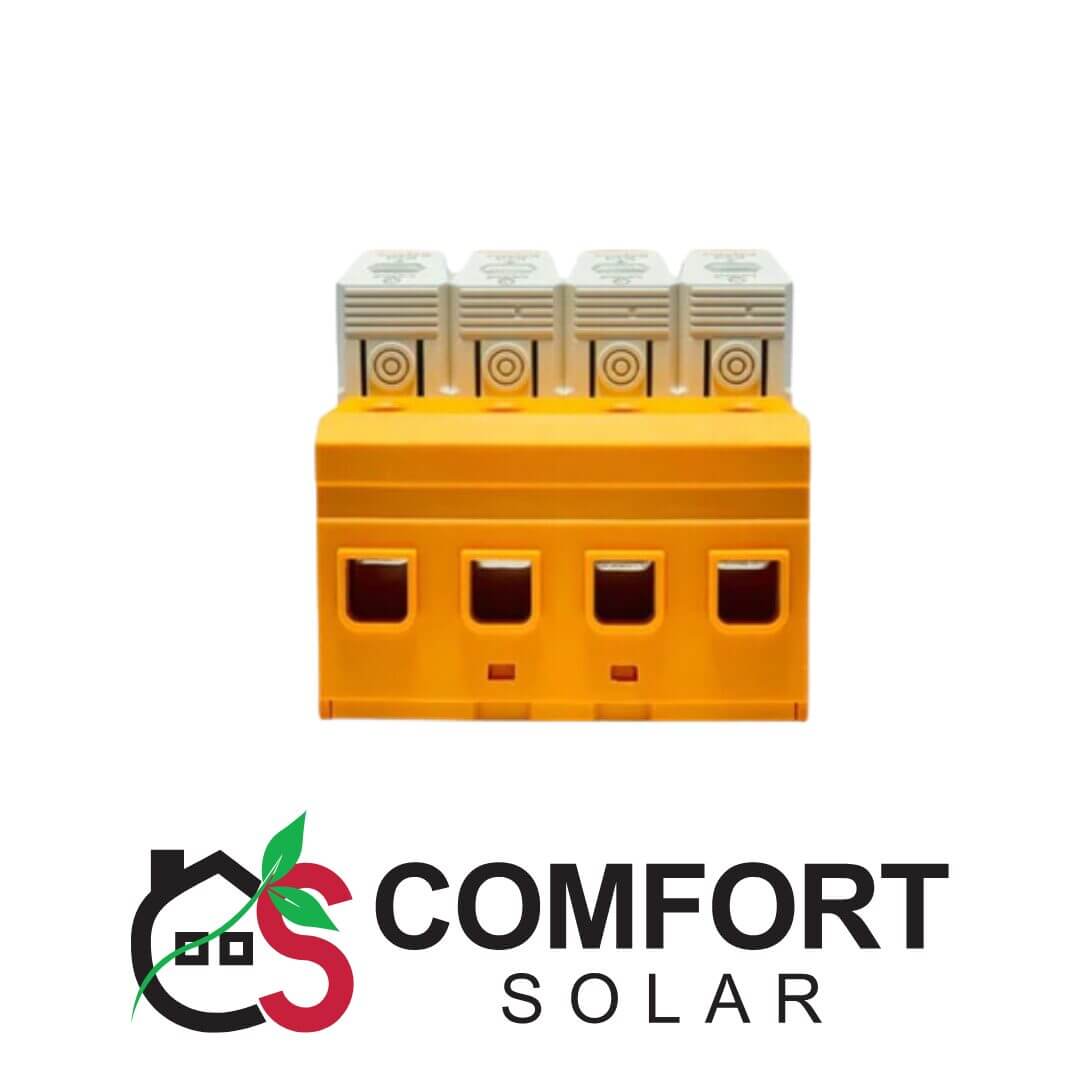

Mora AES-2040 4-Pole Surge Protection Device (SPD) – 40kA

Guard your electrical systems from damaging surges and voltage spikes with the Mora AES-2040 4-Pole Surge Protection Device. This robust SPD is designed to offer high-level protection and ensure the stability and longevity of your electrical infrastructure.

Key Features:

• Model: AES-2040
• Related Operating Voltage: 380V AC, with a maximum continuous operating voltage of 415V.
• Nominal Discharge Current: 20kA, effectively handling typical surge conditions.
• Maximum Discharge Current: 40kA, providing superior protection against extreme surges.
• Response Time: Fast response time of ≤ 25 nanoseconds, ensuring minimal impact from surges.
• Operating Temperature Range: -40°C to 85°C, suitable for a wide range of environmental conditions.
• Connection Line Capacity: Accommodates up to 35 mm² for hard or strand wire; recommended 16 mm² hard wire or 25 mm² strand wire for optimal performance.
• Installation: Mounts on a standard DIN rail (35mm), making installation straightforward and secure.

The Mora AES-2040 4-Pole SPD is an essential addition to your electrical system, offering advanced surge protection to prevent damage and maintain system reliability.
