10ms (For Personal Computers); 20ms (For Home Appliances)
Wave form
Pure Sine Wave
Nominal Output Voltage
220/230/240 VAC
Output Voltage Range
184-264.5 VAC or 195.5 – 253 VAC (Selectable)
Nominal Output Current
29.54A
Battery Voltage
48 VDC
Floating Charge Voltage
54 VDC
Overcharge Protection
63 VDC
Solar Charger Type
DUAL MPPT (PARALLEL)
Maximum PV Array Open Circuit Voltage
500 VDC
Maximum PV Array Power
8500W 98%
MPPT Range @ Operating Voltage
120~450 VDC
Maximum Solar Charge Current
80A + 80A = 160A
Maximum AC Charge Current
60A
Maximum PV Input Current
36A
Nominal PV Voltage
240 VDC
Dimension.D*W*H(mm)
224 x 535 x 425 mm
Net Weight (kgs)
13.5 KG
Communication Interface
USB and Rs232
Humidity
0 to 90% Relative Humidity (Non-condensing)
Operating Temperature
-10°C to 50°C
Storage Temperature
-15°C to 60°C
Description

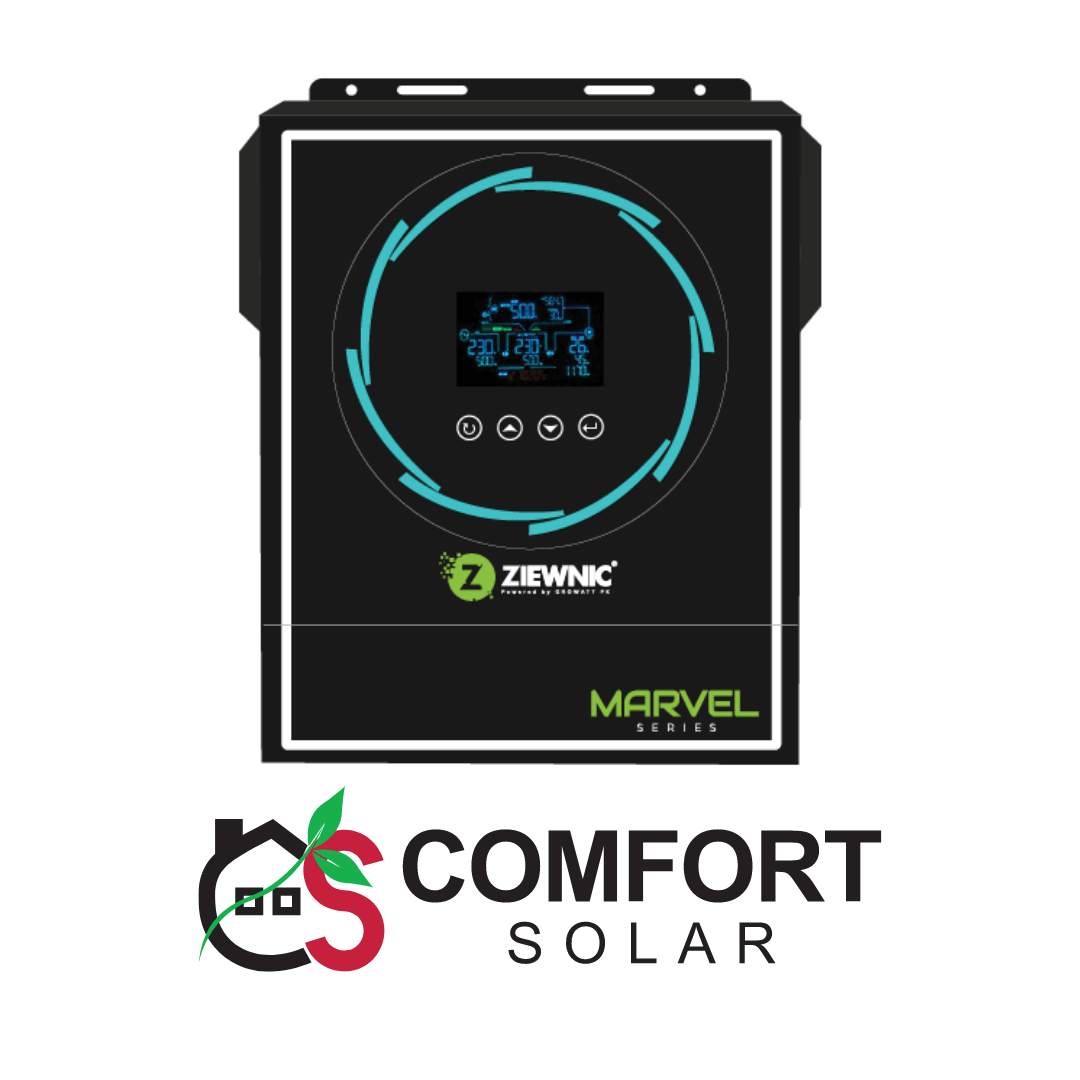

Comfort Solar proudly presents the 5th Gen European Inverter, making its debut in Pakistan. This cutting-edge inverter is engineered for high performance and versatility, providing a superior solar power solution for both residential and commercial applications.
Key Features:
Single Phase Inverter: Supports three-phase operation when installed in parallel for versatile setups.
Pure Sine Wave Output: Delivers 100% pure sine wave output, ensuring safe and efficient operation of your appliances.
Smart Connectivity: Monitor and control your system with built-in Wi-Fi (10-meter range) and Android app compatibility.
Flexible Operation: Can operate with or without a battery for added flexibility.
Comprehensive Data Recording: Records energy generated, load data, history information, and fault records.
Advanced Battery Management: Features built-in battery equilization and BMS (Battery Management System) for optimal battery performance.
Voltage Adaptability: Adaptable to main voltage and generator power for enhanced versatility.
Durable Design: Conformal coating protects against dust and humidity, making it suitable for harsh environments.
Smart LCD Screen: New smart color screen LCD with touch buttons for intuitive operation.
Lithium Battery Compatibility: Compatible with all kinds of lithium batteries with multiple parameters.
Efficient Power Management: Smart power management with multiple schedule settings.
Communication Ports: Includes RS232, USB, RS485, and CAN ports for versatile connectivity.
Seamless Operation: Zero transfer time and 98% real-time sharing capability.
Overload Protection: Overload protection for 150% load, ensuring safety during high-demand periods.
Surge Capacity: Capable of handling surge capacity of 2x rated power for 5 seconds.
Scalable Setup: Supports parallel operation of up to 12 units for scalable solutions.
Dual MPPT: Built-in dual MPPT parallel-based 8500W solar charge controller (160A) for efficient solar power tracking.
High PV Input Range: High PV input voltage range (120-500 VDC) for flexibility in panel configurations.
Output Specifications: 12VDC output at 32A, dual AC output, and maximum PV input current of 36A.
Versatile Operation Modes: Multiple operation modes including On Grid, Off Grid, and Hybrid.
Net Metering Feature: Grid-tied net metering with 100% reverse grid feeding and built-in zero export capability.
European Design: Engineered with European standards for quality and performance.
Detailed Features:
High Performance and Flexibility: The single-phase inverter supports three-phase operation when installed in parallel, offering flexibility for various setups. Its pure sine wave output ensures the safe operation of sensitive equipment.
Smart Connectivity and Data Tracking: With built-in Wi-Fi and an Android-compatible app, you can easily monitor and control your system. The inverter records comprehensive data including energy generated, load, history, and faults for detailed performance insights.
Robust Design: The inverter’s conformal coating provides protection against dust and humidity, ensuring durability in harsh environments. The new smart color LCD screen with touch buttons enhances user interaction.
Efficient and Scalable: Equipped with dual MPPT and a high PV input range, this inverter maximizes solar power efficiency. It supports parallel operation of up to 12 units, making it suitable for scalable installations.
Safety and Adaptability: Overload protection and surge capacity ensure safety during high-demand periods. The inverter is adaptable to various voltage sources and includes multiple communication ports for flexible connectivity.
Why Choose Comfort Solar? At Comfort Solar, we are committed to delivering high-quality solar solutions that meet your needs. Our 5th Gen European Inverter combines advanced technology, ease of installation, and reliable performance to provide a top-tier solar power solution.
Call to Action: Ready to enhance your energy system with our advanced 5th Gen European Inverter? Visit comfortsolar.pk to learn more about our products. For inquiries or to place an order, contact us directly on WhatsApp at 03166225526. Don’t wait—upgrade your solar power system with cutting-edge technology today!
Brand
Ziewnic
Their product range includes solutions tailored to both small and large-scale energy requirements. ZIEWNIC is committed to providing quality products and technical solutions while prioritizing customer satisfaction. For more information about their offerings, customers can visit their website or contact them directly for assistance.
ZIEWNIC PK (Pvt) Ltd. was established in 2014 and has since developed a strong reputation in the solar industry. The company specializes in solar panels and solar inverters, aiming to address electricity production deficiencies and promote sustainable development. ZIEWNIC offers a broad range of products suitable for residential, commercial, and industrial applications, ensuring they meet varying consumer needs and support eco-friendly practices.
