Original price was: ₨ 27,500.₨ 19,890Current price is: ₨ 19,890.
Power Range: 585 W
Technology: N-type with HOT 3.0 and TOPCon for high efficiency
Durability: Dual glass, 5400 Pa front/2400 Pa rear load capacity
Certifications: IEC61215, IEC61730, IEC61701, IEC62716, ISO9001, ISO14001, ISO45001
Performance: Up to 22.84% efficiency, low degradation rates (0.4% annually)
Temperature Range: Operates from -40 °C to +70 °C
Bifacial: Up to 98% backside gain in suitable conditions
Protection: IP68-rated junction box, Anti-PID, Class II protection
Due to high market volatility, prices for our products are subject to change.
The actual price will be provided once the customer contacts our sales representative via WhatsApp.
The product will be dispatched only after a partial deposit is made in our business account.

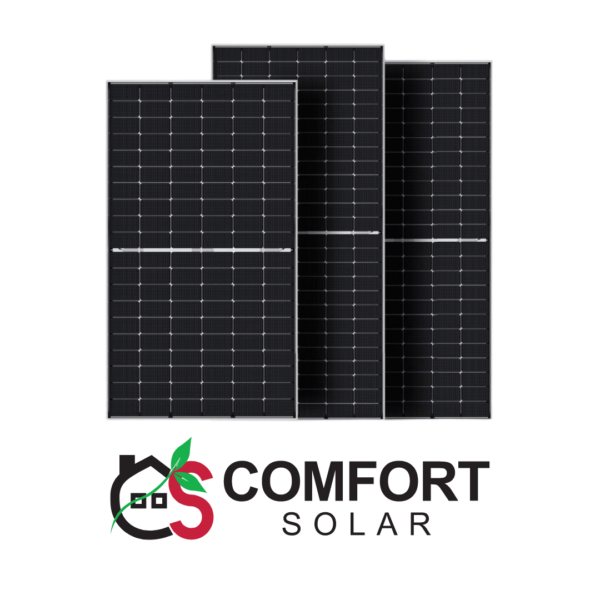

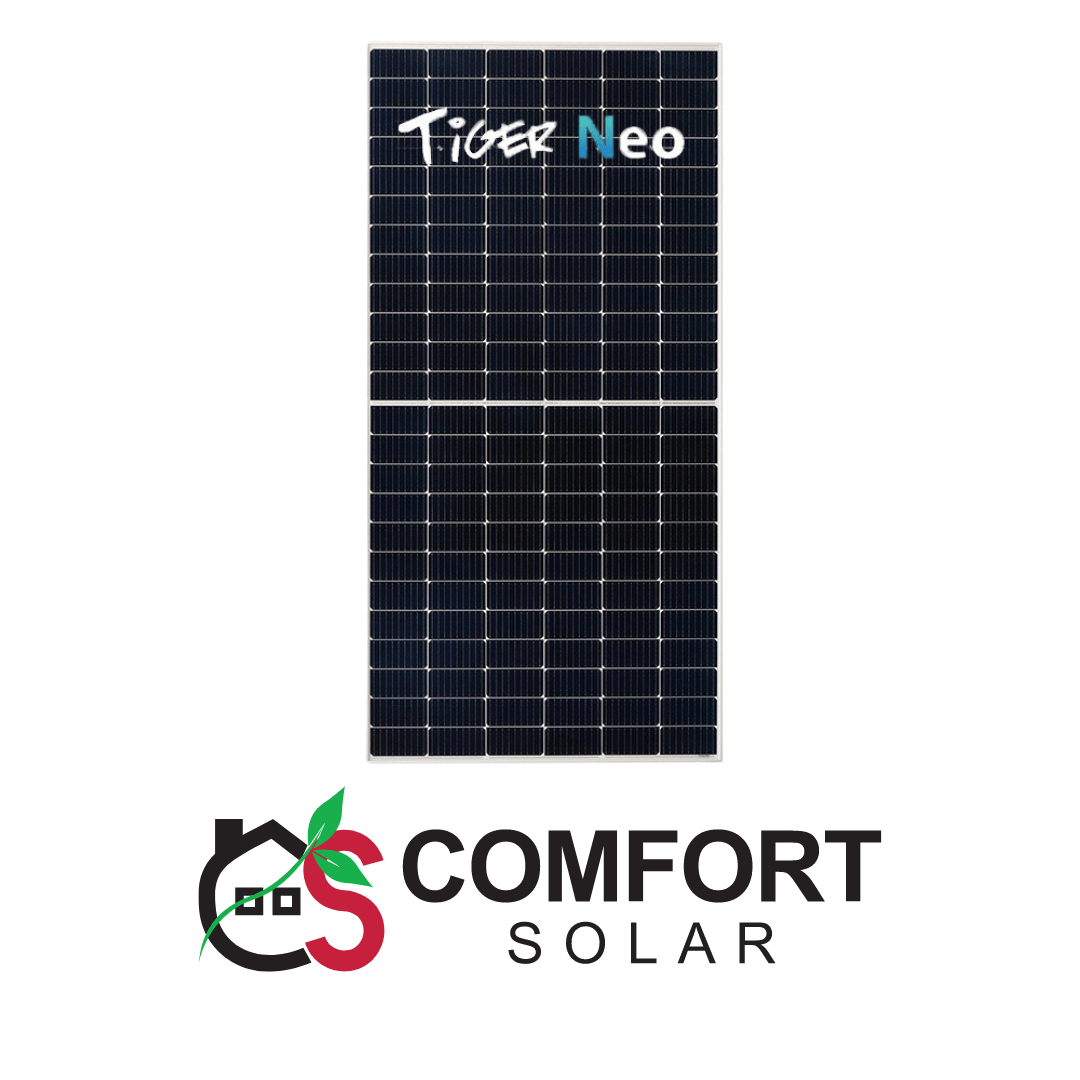

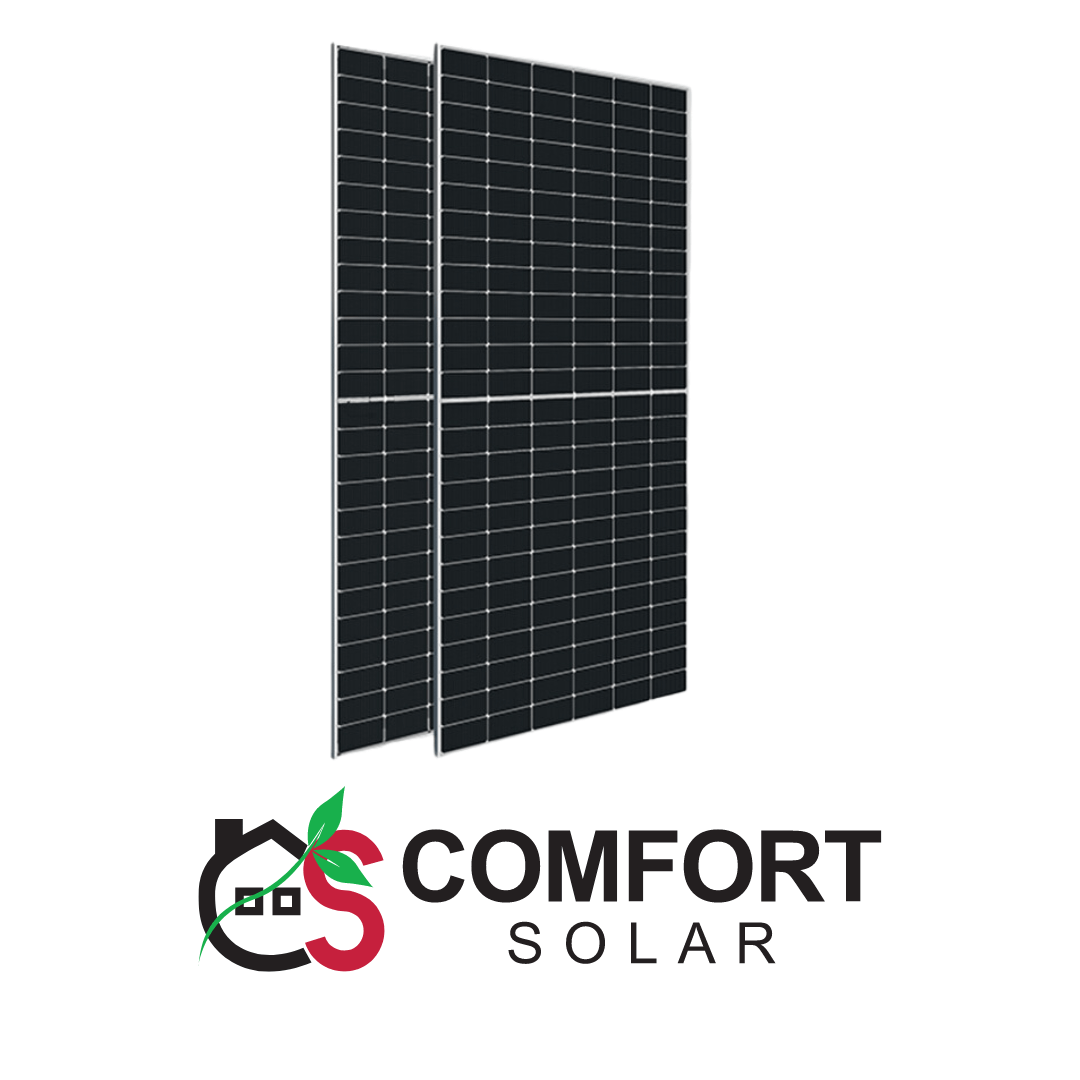

The Jinko JKM575-600N-72HL4-BDV-F9-EN bifacial module is designed for high efficiency and durability in large-scale solar installations. With an output of 585 W, it incorporates Jinko’s HOT 3.0 and N-type Tunnel Oxide Passivating Contact (TOPCon) technologies, which enhance light trapping, current collection, and provide better performance in low-light conditions. Featuring dual glass construction, this module captures energy from both sides, achieving up to 98% bifaciality coefficient for significant backside gain in reflective environments.
Built to withstand harsh conditions, the module has certifications for dust, ammonia, salt mist, and fire resistance, and is certified for high mechanical loads (5400 Pa front and 2400 Pa rear). The module offers minimal power loss with only 1% first-year degradation and 0.4% annual degradation over a 30-year lifespan, ensuring long-term output stability. It’s protected against PID, with SMBB technology further enhancing power output by improving current collection.
| Product Warranty | 12 Years |
|---|---|
| Power Warranty | 30 Years of 87.4% Output Power |
| Maximum Power (Pmax) | 430 Wp 433 Wp 437 Wp 441 Wp 445 Wp |
| Voltage at Maximum Power (Vmpp) | 40.56 V 40.73 V 40.89 V 41.05 V 41.21 V |
| Current at Maximum Power (Impp) | 10.59 A 10.64 A 10.69 A 10.74 A 10.79 A |
| Temperature Coefficient of Isc | 0.045 %/°C |
| Panel Efficiency | 22.07 % 22.26 % 22.45 % 22.65 % 22.84 % |
| Temperature | 45±2 °C |
| Panel Dimension (H/W/D) | 2278x1134x30 mm |
| Short Circuit Current (Isc) | 11.16 A 11.21 A 11.26 A 11.31 A 11.36 A |
| Temperature Coefficient of Voc | -0.25 %/°C |
| Maximum System Voltage | 1500 V |
| Series Fuse Rating | 30 A |
| Glass Type | Anti-reflection Coating |
| Temperature Coefficient of Pmax | -0.29 %/°C |
| Glass Thickness | 2 mm |
| Frame Type | Anodized Aluminium |
| Junction Box Protection Class | IP 68 |
| Cable Crossection | 4 mm2 |
| Model NO. | 570W 575W 580W 585W 590W |
| Open Circuit Voltage (Voc) | 49.49 V 49.68 V 49.87 V 50.06 V 50.25 V |
| Operating Temperature Range | -40~85 °C |
| Weight | 31 kg |
