₨ 165,000
Due to high market volatility, prices for our products are subject to change.
The actual price will be provided once the customer contacts our sales representative via WhatsApp.
The product will be dispatched only after a partial deposit is made in our business account.
| Model | IPV-4K24U |
|---|---|
| MPPT Tracking Efficiency | 99.9% |
| Max. Battery Mode Conversion Efficiency | 93% |
| Max. PV Input Power | 4000W |
| Max. DC Input Voltage | 500V |
| Start-up Voltage | 75V |
| MPPT Voltage Range | 85V~450V |
| Max. Input Current | 15A |
| Number of MPPT Trackers | 1 |
| Max. Grid Input Voltage | >380VAC |
| Input Voltage Range | 90-280VAC |
| Maximum AC Input Current | 22A |
| Nominal Operating Frequency | 50/60Hz |
| Nominal AC Output Power | 4000W / 4000VA |
| Nominal AC Output Voltage | 220/230/240VAC |
| Total Voltage Harmonic Distortion | <3% |
| Nominal AC Output Current | 18.2A |
| Surge Power | 8000VA |
| Load Capacity of Motor | 3.5HP |
| Overload Capacity | 10s@110%~150% load, 5s@150%~200% load |
| Battery Type | Lead-acid/Li-ion/User Defined |
| Rated Battery Voltage | 24VDC |
| Battery Voltage Range | 20V-30V |
| Max. MPPT Charging Current | 120A |
| Max. Mains/Generator Charging Current | 100A |
| Max. Battery Discharging Current | 160A |
| Max. Output Apparent Power | 4000VA |
| Dimensions D*W*H (mm) | 120*346.6*444.7 |
| Net Weight (kg) | 11.4 |
| Operating Temperature Range | -10~+55°C (>45°C Power Derating) |
| Max. Operating Altitude | >2000m (Power Derating) |
| Communication | WIFI/RS485(BMS)/Dry Contact/RS232 |
| Diesel Generator Support | Yes, External ATS |
| Smart Load Support | Yes, External Contactor |
| Number of Parallel | Not supported |
| Cooling Method | Intelligent Fan Cooling |
| Noise | 60dB |
| Authentication Level | IEC62109-1, IEC62109-2, IEC61683 |
| Ingress Protection | IP54 |
| Overload Protection | Yes |
| Short Circuit Protection | Yes |
| Over Temperature Protection | Yes |
| Surge Protection | DC: Type III, AC: Type III |
| Hybrid Inverter – SP-HYBRID6kW-48V | |
|---|---|
| Model | IPV-6K48U |
| MPPT Tracking Efficiency | 99.9% |
| Max. Battery Mode Conversion Efficiency | 93% |
| Max. PV Input Power | 6000W |
| Max. DC Input Voltage | 500V |
| Start-up Voltage | 75V |
| MPPT Voltage Range | 85V~450V |
| Max. Input Current | 27A |
| Max. Grid Input Voltage | >380VAC |
| Input Voltage Range | 90-280VAC |
| Maximum AC Input Current | 50A |
| Nominal Operating Frequency | 50/60Hz |
| Nominal AC Output Power | 6000W / 6000VA |
| Nominal AC Output Voltage | 220/230/240VAC |
| Total Voltage Harmonic Distortion | <3% |
| Nominal AC Output Current | 27.3A |
| Nominal AC Frequency | 50Hz/60Hz |
| Switch Time | 10ms |
| Surge Power | 12000VA |
| Load Capacity of Motor | 5HP |
| Overload Capacity | 5s@150%~200% load |
| Battery Type | Lead-acid/Li-ion/User Defined |
| Rated Battery Voltage | 48VDC |
| Battery Voltage Range | 40V-60V |
| Max. MPPT Charging Current | 120A |
| Max. Mains/Generator Charging Current | 120A |
| Max. Battery Discharging Current | 130A |
| Max. Output Apparent Power | 6000VA |
| Dimensions (D*W*H mm) | 120*346.6*444.7 |
| Net Weight | 15kg |
| Operating Temperature Range | -10~+55°C |
| Max. Operating Altitude | >2000m (Power Derating >4000m) |
| Cooling Method | Intelligent Fan Cooling |
| Noise | 60dB |
| Communication | WIFI/RS485(BMS)/Dry Contact/RS232 |
| Diesel Generator Support | Yes, External ATS |
| Smart Load Support | Yes, External Contactor |

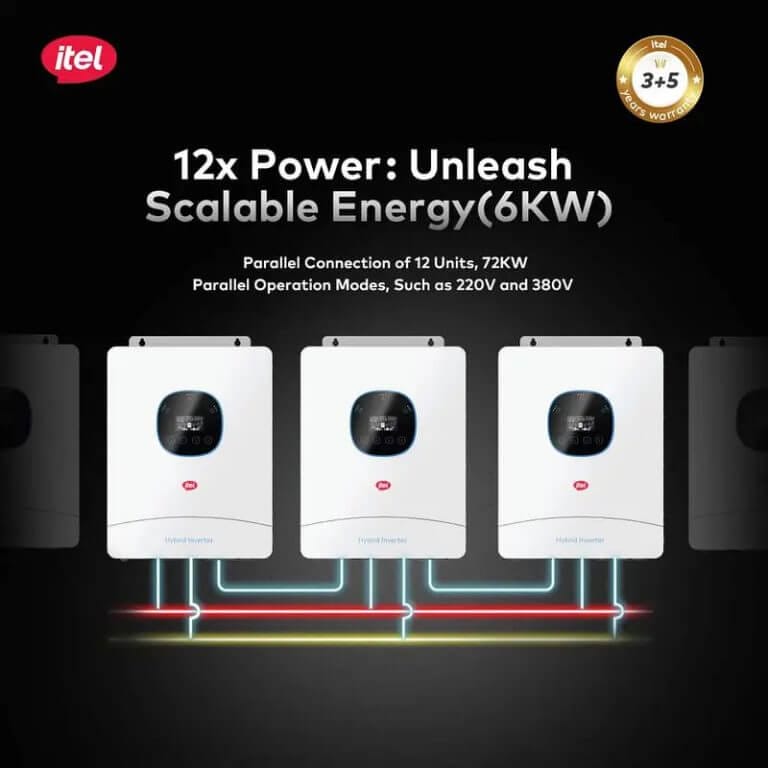

| Number of Parallel Units | 12 |
| Ingress Protection | IP54 |
| Authentication Level | IEC62109-1, IEC62109-2, IEC61683 |
| DC/AC Surge Protection | Type III |
| Overload Protection | Yes |
| Short Circuit Protection | Yes |
| Over Temperature Protection | Yes |
The Itel 6kW Hybrid Solar Inverter is a state-of-the-art solution for those seeking energy independence and sustainability. With its advanced features, it ensures optimal performance, safety, and convenience:
Ideal for residential, commercial, and off-grid applications, the Itel 6kW Hybrid Solar Inverter offers a reliable and eco-friendly energy solution.
Q: Is this inverter compatible with both Lead-Acid and Li-ion batteries?
A: Yes, it supports Lead-Acid, Li-ion, and user-defined battery types.
Q: Can I monitor the inverter remotely?
A: Absolutely! It offers WiFi connectivity for real-time monitoring via mobile app and web portal.
Q: What is the warranty period?
A: It comes with a 3-year replacement warranty and a 5-year service warranty.
Q: Is it suitable for outdoor installation?
A: Yes, with its IP54 rating, it’s designed to withstand various environmental conditions.
Q: Does it support generator input?
A: Yes, it is compatible with diesel generators and supports external ATS.
