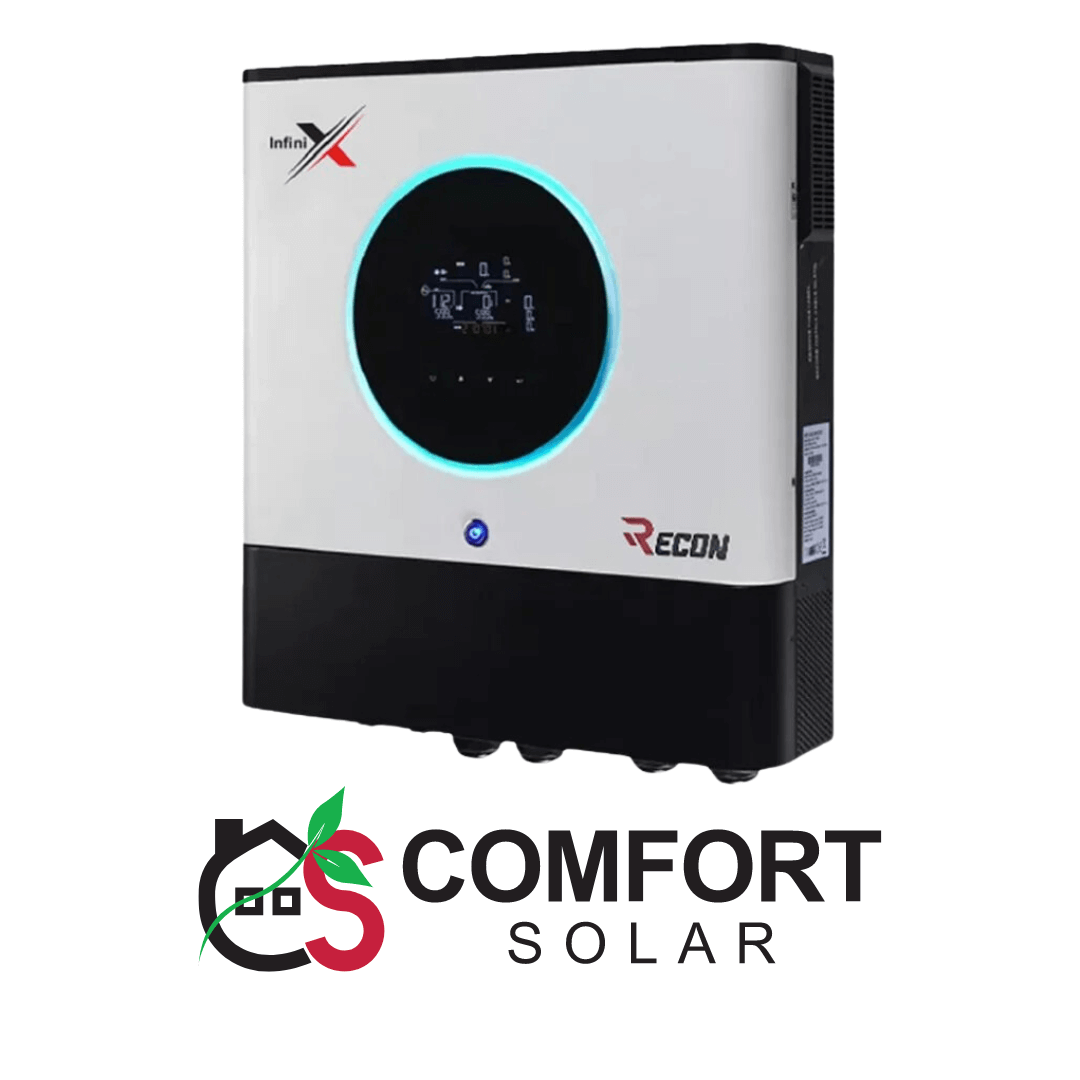

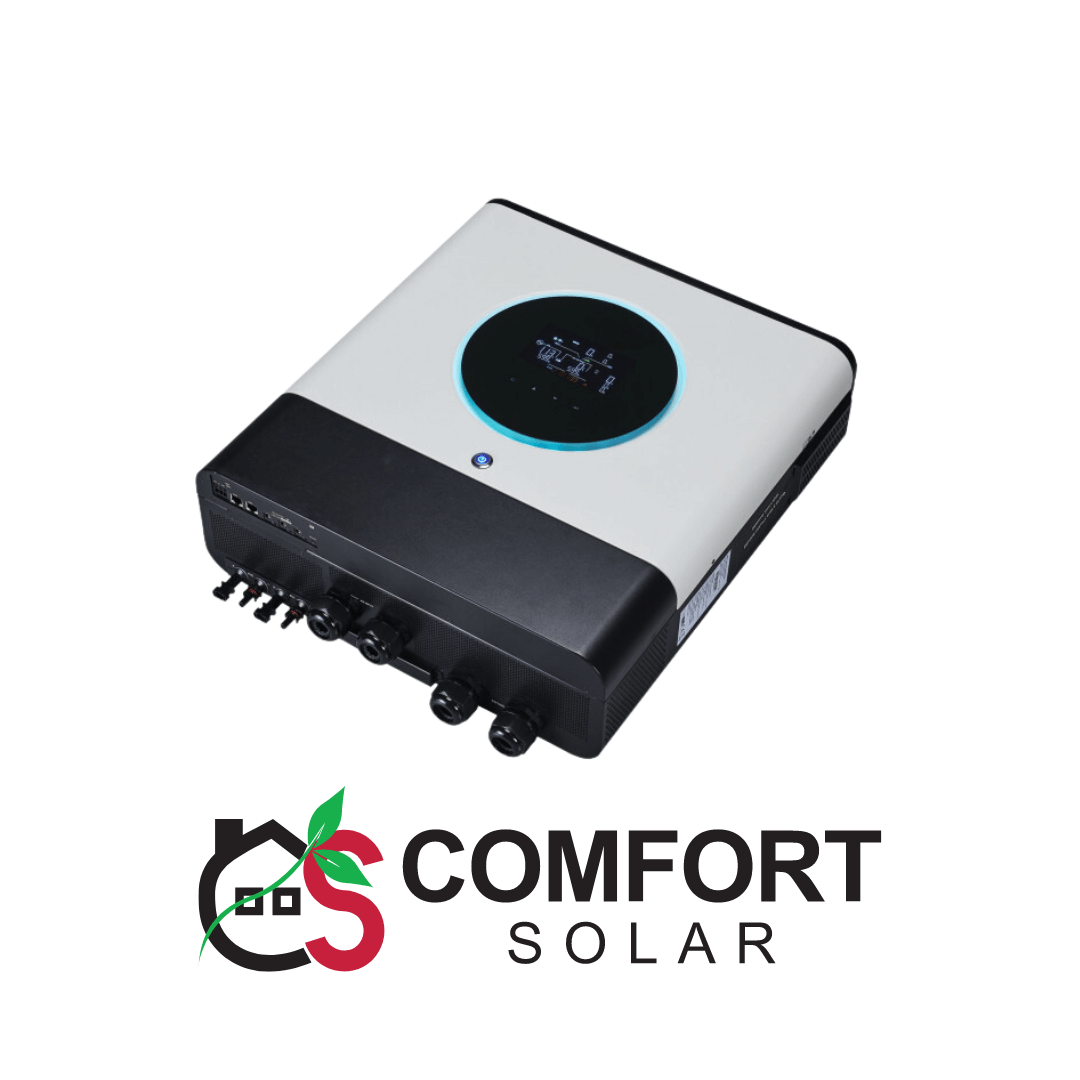

Infinix Hybrid Recon(Voltronic ) Max II Twin 11KW11000PV

GUARANTEED SAFE PAYMENTS
Share it to:
International Shipment

Your orders are shipped seamlessly between countries

30 Days Warranty

You have the right to return your orders within 30 days.

Secure Payment

Your payments are secure with our private security network.

Description

Description: Ensure a reliable power supply for your home or office with the INFINIX HYBRID RECON UPS SYSTEM – HIGH-CAPACITY MODEL, available at Comfort Solar. Designed with robust performance and high efficiency, this UPS system provides seamless power management and is perfect for both residential and commercial applications. Priced competitively, this system is a solid investment for those seeking long-term energy solutions.

Key Features:

  • High-Capacity UPS System: 11000 VA/11000 W rated power for substantial energy support.
  • Parallel Capability: Up to 6 units for expanded power capacity.
  • Pure Sine Wave Output: Ensures the safety and efficiency of your appliances.
  • Good Efficiency and Fast Transfer Times: Peak efficiency of 93% with minimal transfer times.

Detailed Features:

  1. Rated Power and Parallel Capability:
    • Rated Power: 11000 VA/11000 W ensures robust energy support.
    • Parallel Capability: Expandable up to 6 units to scale up your power system.
  2. Input Specifications:
    • Voltage: 230 VAC with selectable voltage ranges: 170-280 VAC for personal computers and 90-280 VAC for home appliances.
    • Frequency Range: Auto-sensing 50 Hz / 60 Hz for seamless integration.
  3. Output Specifications:
    • AC Voltage Regulation: 230 VAC ± 5% in battery mode.
    • Surge Power: 16000 VA / 22000 VA for handling high demand.
    • Efficiency: Peak efficiency of 93% for maximum energy savings.
    • Transfer Time: 10 ms for personal computers, 20 ms for home appliances to ensure minimal disruption.
    • Waveform: Pure sine wave for smooth operation of sensitive electronics.
  4. Battery and Charging Specifications:
    • Battery Voltage: 48 VDC with floating charge voltage of 54 VDC and overcharge protection at 63 VDC.

Why Choose Comfort Solar? At Comfort Solar, we are dedicated to providing top-tier solar solutions tailored to your needs. Our INFINIX HYBRID RECON UPS SYSTEM – HIGH-CAPACITY MODEL is engineered for maximum efficiency, reliability, and ease of use. Investing in our products means choosing sustainability and long-term energy savings.

Call to Action: Ready to upgrade your energy system with our high-performance UPS system? Visit comfortsolar.pk today to explore more about our products. For any inquiries or to place an order, contact us directly on WhatsApp at 03166225526. Empower your home with the best solar technology available!

Additional information

Rated Power

11000 VA / 11000 W, 8000 VA / 8000 W

Parallel Capability

YES, 6 units

Voltage

230 VAC

Selectable Voltage Range

170-280 VAC (For Personal Computers)

Frequency Range

50 HZ / 60 HZ (Auto Sensing)

AC Voltage Regulation (Batt. Mode)

230 VAC ± 5%

Surge Power

16000 VA, 22000 VA

Transfer Time

10 ms (For Personal Computers)

Waveform

Pure Sine Wave

Battery Voltage

48 VDC

Floating Charge Voltage

54 VDC

Overcharge Protection

63 VDC

Solar Charger Type

MPPT

Maximum PV Array Power

10000 W (5500 W x 2), 11000 W (5500 W x 2)

MPPT Range @ Operating Voltage

90-450 VDC

Maximum PV Array Open Circuit Voltage

500 VDC

Maximum PV Input Current

27A x 2

Maximum Solar Charge Current

Max 40A

Maximum AC Charge Current

120A, 150A

Maximum Charge Current

120A, 150A

Dimension, D x W x H (mm)

140 x 295 x 468, 158.4 x 503.6 x 553.6

Net Weight (kgs)

18.4, 20

Communication Interface

USB / RS232 / RS485 / WiFi / Dry-contact

External Current Sensor Port

Yes, built-in current transformer sensor

Humidity

5% to 95% Relative Humidity (Non-Condensing)

Operating Temperature

-10°C to 50°C

Storage Temperature

-15°C to 60°C

Brand

Infinix

Infinix Solar specializes in delivering a range of solar energy solutions, including residential, commercial, and agricultural systems. Their product lineup features advanced solar inverters and hybrid systems designed for efficiency and durability. Key offerings include models like the Infinix Taycan Ultra and the Infinix Hybrid Recon, which are known for their high performance and versatile applications. Their solar products are designed to meet various energy needs, providing reliable and cost-effective renewable energy solutions.
For those interested in exploring Infinix Solar’s offerings, their products are available on our website, Comfort Solar. You can find detailed information on various models and solutions tailored to different requirements, ensuring that you can find the right solar technology to meet your needs.
