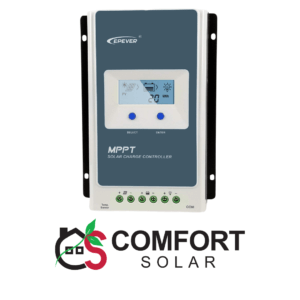

Introducing the XTRA-N G3 BLE series, a state-of-the-art MPPT solar charge controller available at Comfort Solar. This controller is engineered to maximize the efficiency of off-grid photovoltaic systems, ensuring optimal energy conversion and management. With optional display units (XDB1/XDS1/XDS2) and built-in Bluetooth for easy parameter control via mobile app, it meets international standards for quality, reliability, and safety.
Key Features:
Detailed Features:
Why Choose Comfort Solar? At Comfort Solar, we prioritize quality and innovation in solar energy solutions. The XTRA-N G3 BLE series exemplifies our commitment to providing reliable, efficient, and safe products that meet global standards.
Call to Action: Upgrade your solar system with the advanced XTRA-N G3 BLE series MPPT charge controller. Visit comfortsolar.pk today to learn more about our range of solar products. For inquiries or to place an order, contact us via WhatsApp at 03166225526. Experience the future of solar technology with Comfort Solar!
| Nominal system voltage | 12/24/36/48VDC/Auto, 12/24VDC/Auto |
|---|---|
| Battery Type | Lead-acid (Sealed/Gel/Flooded)/Lithium (LiFePO4/Li(NiCoMn)O2)/User |
| Battery input voltage range | 8～32V, 8～68V |
| Rated charge current | 10A, 20A, 30A, 40A |
| Rated discharge current | 10A, 20A, 30A, 40A |
| Rated charge power | 130W/12V 260W/24V, 260W/12V 520W/24V, 390W/12V 780W/24V, 390W/12V 780W/24V 1170W/36 1560W/48V, 520W/12V 1040W/24V, 520W/12V 1040W/24V 1560W/36V 2080W/48V |
| Max. conversion efficiency | 97.60%, 97.90%, 98.10%, 98.20%, 98.30%, 98.50%, 98.60% |
| Tracking efficiency | ≥99.5% |
| Max. PV open circuit voltage | 100V（At minimum operating environment temperature）; 92V（At 25℃ environment temperature）, 150V（At minimum operating environment temperature）; 138V（At 25℃ environment temperature）, 60V（At minimum operating environment temperature） 46V（At 25℃ environment temperature ） |
| MPPT Voltage Range | (Battery voltage +2V)~108V, (Battery voltage +2V)~36V, (Battery voltage +2V)~72V |
| Equalization voltage | Sealed:14.6V,Flooded:14.8V,User-defined:9-17V |
| Boost voltage | Gel:14.2V,Sealed:14.4V,Flooded:14.6V,User-defined:9-17V |
| Float voltage | Gel/Sealed/Flooded:13.8V,User-defined:9-17V |
| Low Voltage Reconnect Voltage | Gel/Sealed/Flooded:12.6V,User-defined:9-17V |
| Low Voltage Disconnect Voltage | Gel/Sealed/Flooded:11.1V,User-defined:9-17V |
| Self-consumption | ≤14mA(12V) ≤15mA(24V), ≤30mA(12V) ≤16mA(24V), ≤30mA(12V) ≤16mA(24V) ≤13mA(36V) ≤13mA(48V) |
| Temperature compensation( for lead-acid battery) | -3mV/℃/2V (Default) |
| Relative Humidity | ≤95%, N.C |
| Enclosure | IP33 |
| Communication Interface | RS485(RJ45) |
| Grounding | Common Negative |
| Operating Temperature Range | -25℃～+45℃(LCD);-30℃～+45℃(No LCD), -25℃～+50℃(LCD); -30℃～+50℃(No LCD) |
| Dimensions(LxWxH)(mm) | 175×143×48, 217×158×56.5, 230×165×63, 255×185×67.8, 255×187×75.7, 255×189×83.2 |
| Net Weight | 0.57kg, 0.96kg, 1.31kg, 1.70kg, 2.07kg, 2.47kg |
