| Max. PV open circuit voltage | 50V, 96V |
|---|---|
| Equalize Charging Voltage※ | Sealed: 14.6V / Gel: No / Flooded: 14.8V |
| Discharge circuit voltage drop | ≤0.16V |
| Battery Type | Sealed / Gel / Flooded |
| Battery input voltage range | 9V～32V, 9V～64V |
| Rated charge/discharge current | 10A@55℃, 20A@55℃, 30A@55℃, 45A@55℃, 60A@55℃ |
| Boost Charging Voltage※ | Sealed: 14.4V / Gel: 14.2V / Flooded: 14.6V |
| Float Charging Voltage※ | Sealed/Gel/Flooded: 13.8V |
| Low Voltage Reconnect Voltage | Sealed/Gel/Flooded: 12.6V |
| Low Voltage Disconnect Voltage | Sealed/Gel/Flooded: 11.1V |
| Self-consumption | ≤9.2mA/12V; ≤11.7mA/24V; ≤14.5mA/36V; ≤17mA/48V |
| Temperature compensation coefficient | -3mV/℃/2V (25℃) |
| Charge Circuit Voltage Drop | ≤0.29V |
| LCD temperature range | -20℃～+70℃ |
| Working environment temperature | -25℃～+55℃ (Product can work continuously at full load) |
| Relative Humidity | ≤95%, N.C. |
| Enclosure | IP30 |
| Grounding | Common Positive |
| Overall dimension | 142x85x41.5mm, 160×94.9×49.3mm, 181×100.9×59.8mm, 194×118.4×63.8mm, 214×128.7×72.2mm |
| Mounting dimension | 130x60mm, 148x70mm, 172x80mm, 185x90mm, 205x100mm |
| Mounting hole size | Φ4.5mm, Φ5mm |
| Terminals | 10mm2 / 8AWG, 16mm2 / 6AWG, 25mm2 / 4AWG, 4mm2 / 12AWG |
| Net Weight | 0.22kg, 0.35kg, 0.55kg, 0.58kg, 0.76kg, 0.88kg, 1.02kg, 1.04kg |

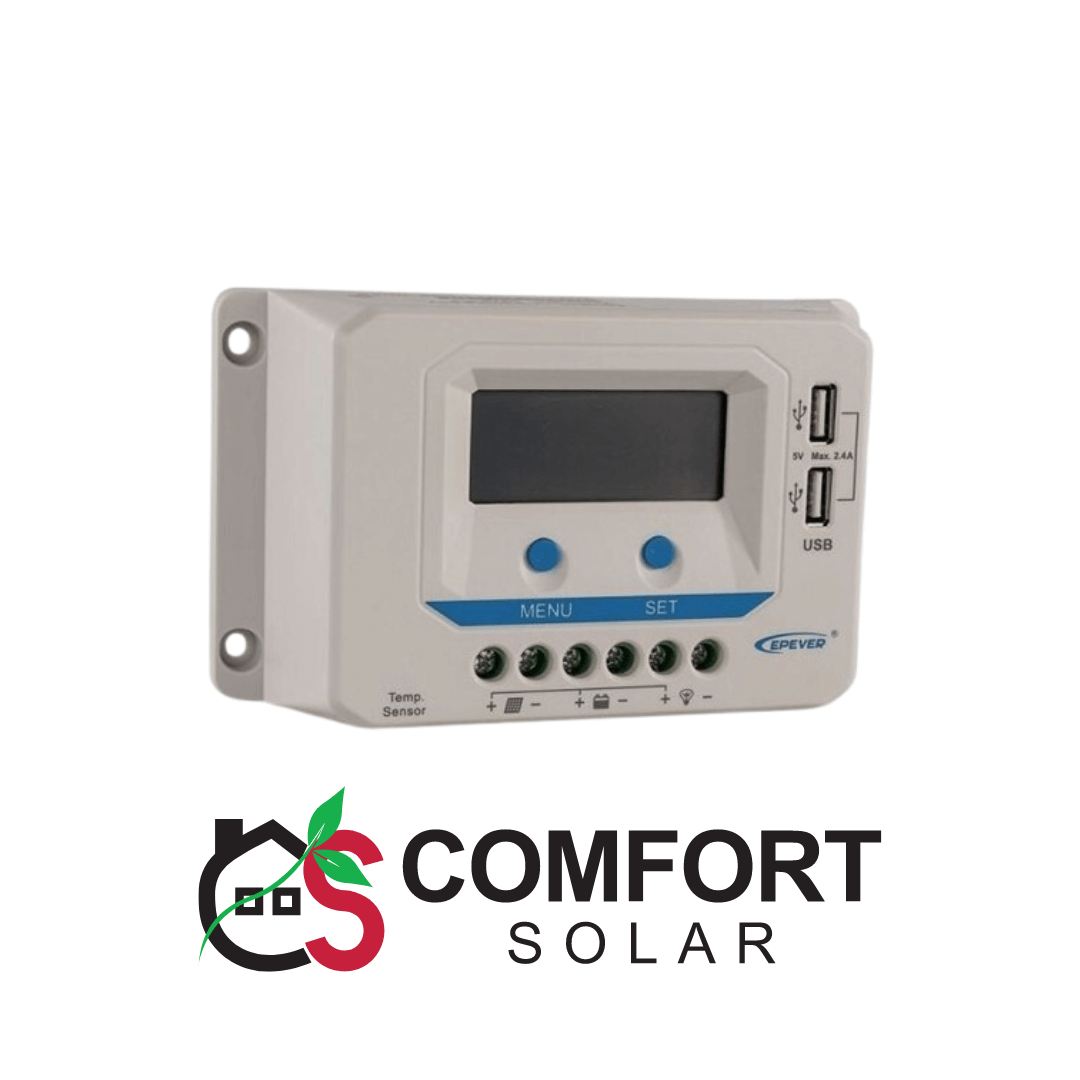

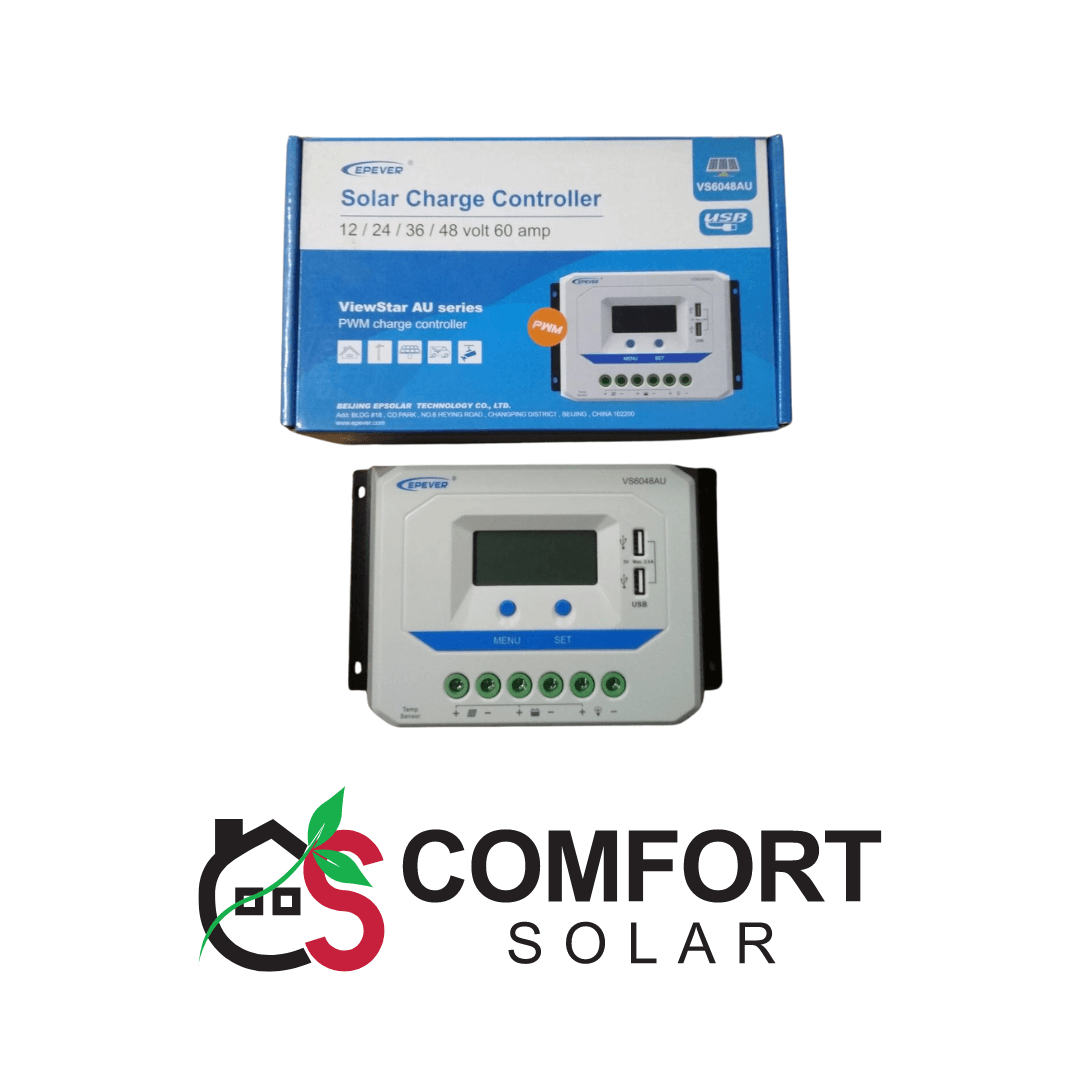

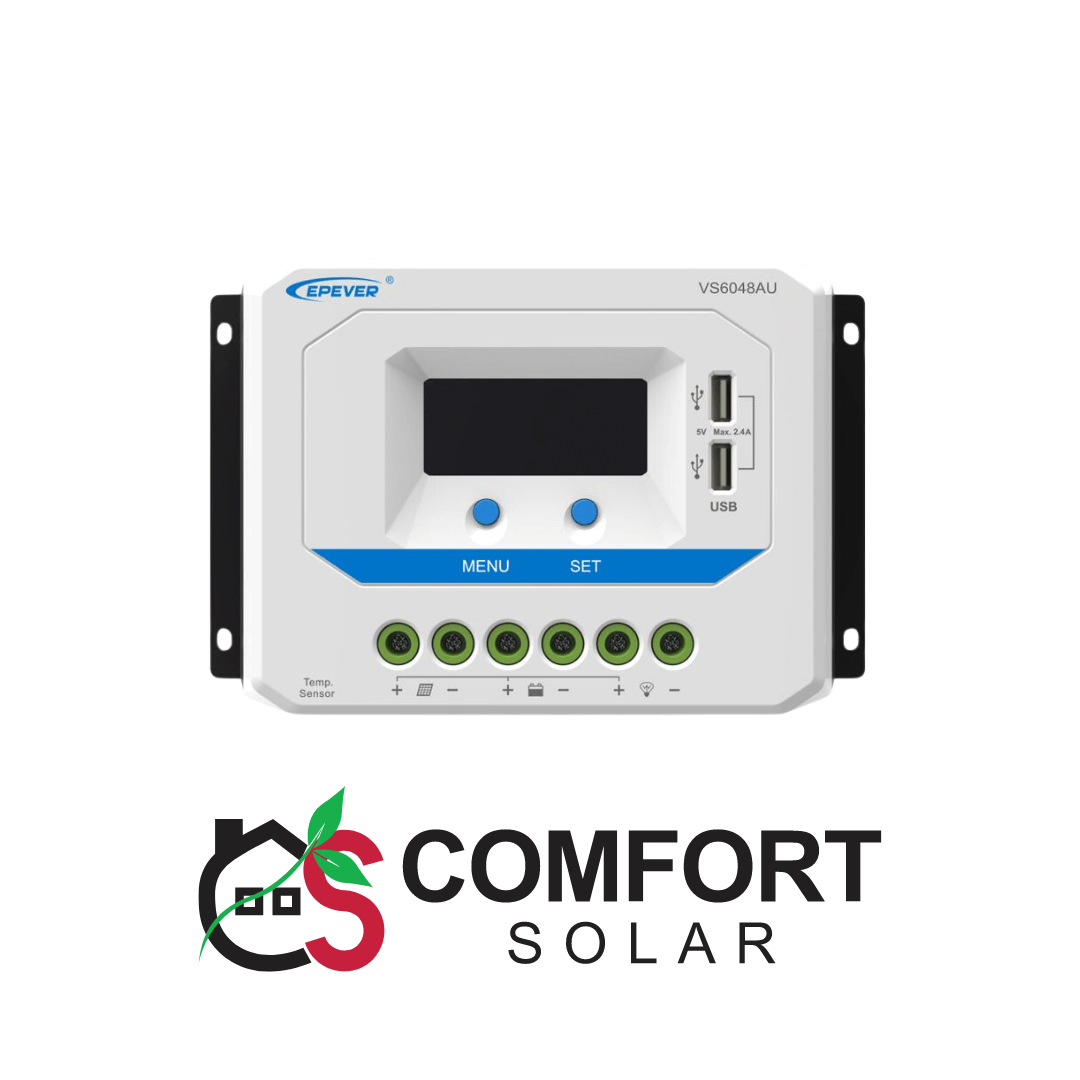

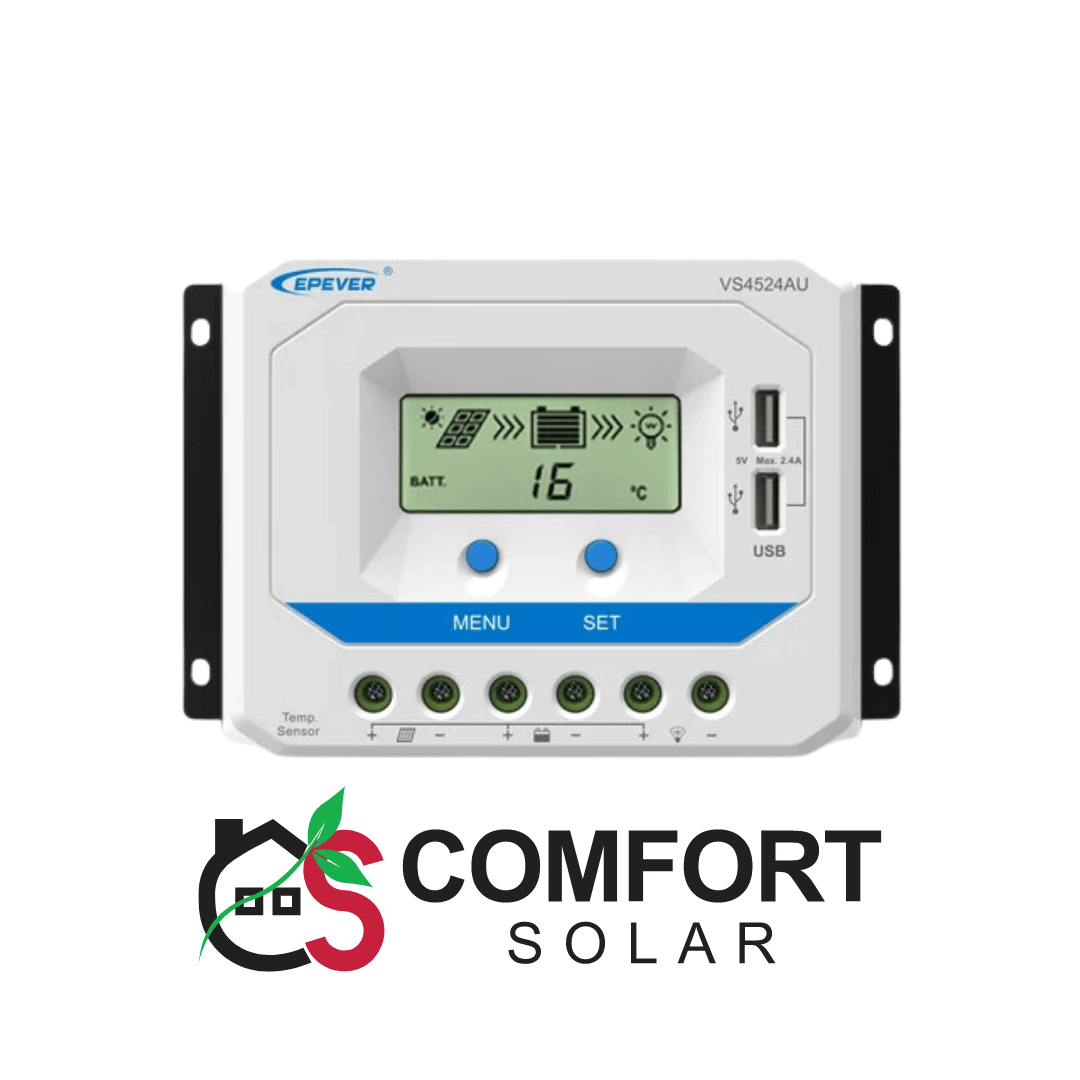

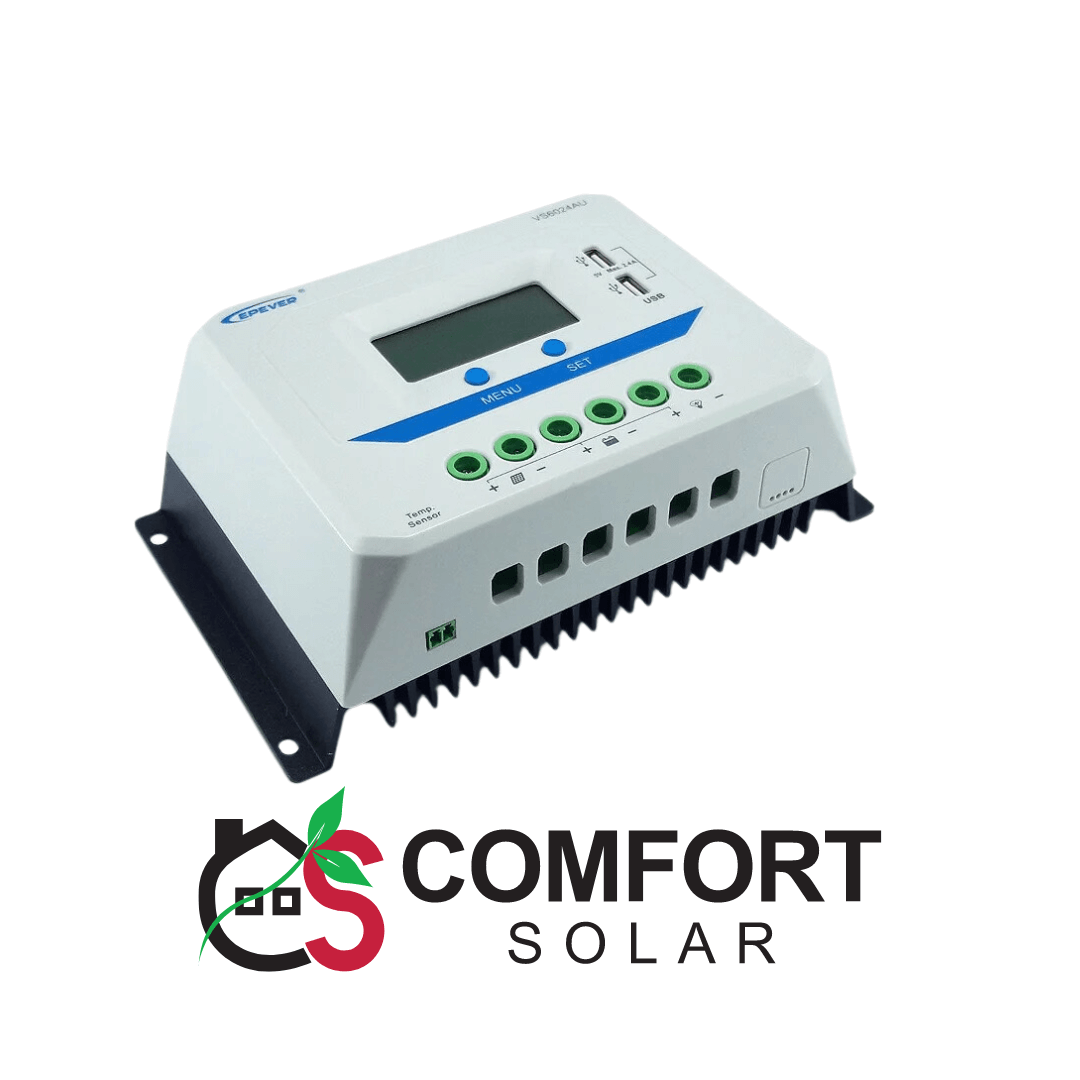

Highlights: Featuring an LCD screen and dual USB interface design, this solar charge controller is ideal for mobile phone charging. It employs intelligent PWM charge detection with three stages: Bulk, Boost/Equalize, and Float, supporting Sealed, Gel, and Flooded battery types. Multiple charging control modes enhance its versatility.
Application: Widely used in home systems, solar lighting systems, road lighting, solar-powered motorhomes and boats, small solar systems, and more.
Technical Data:
Battery Type Supported: Gel, Sealed, and Flooded batteries
Certificates & Warranty: CE, ROHS, FC; includes a 2-year manufacturer’s warranty.
