Epever Upower Series UP 3000-M2142

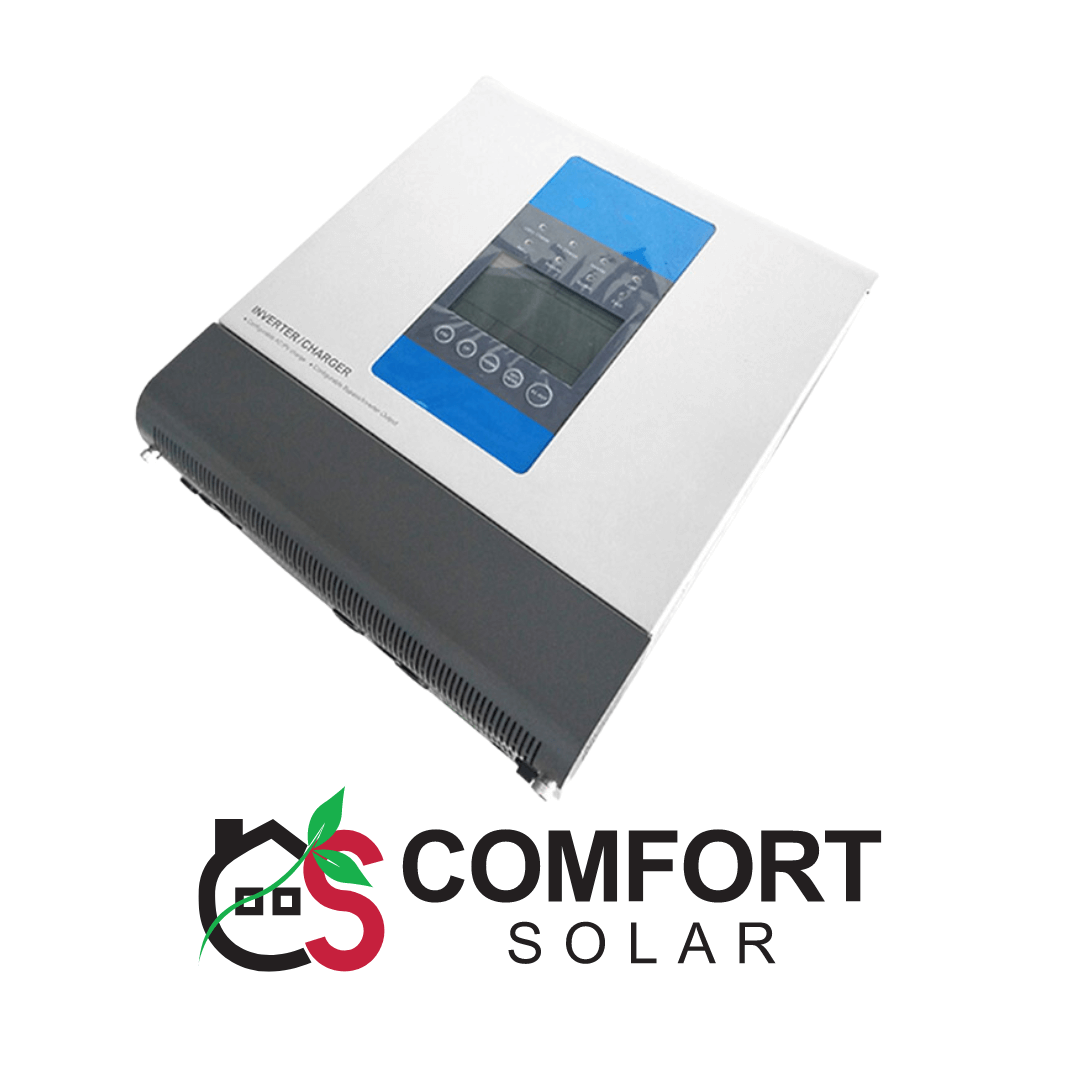

Comfort Solar: Solar inverter charger with a digital display.

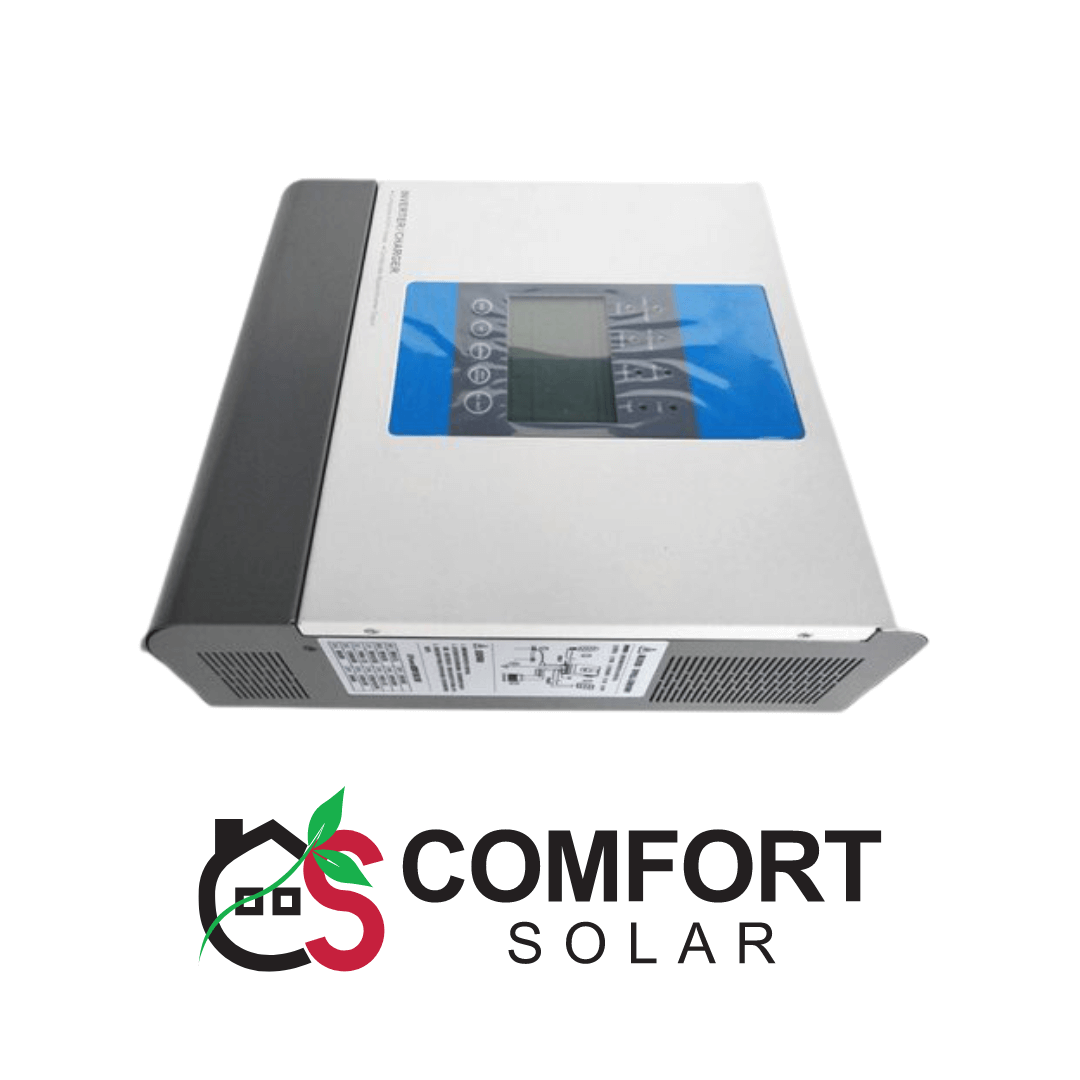

EPEVER inverter/charger unit for solar power systems. Comfort Solar logo at the bottom.
Comfort Solar inverter showing AC/DC input/output ports and on/off switch.
White and gray inverter/charger with blue display.

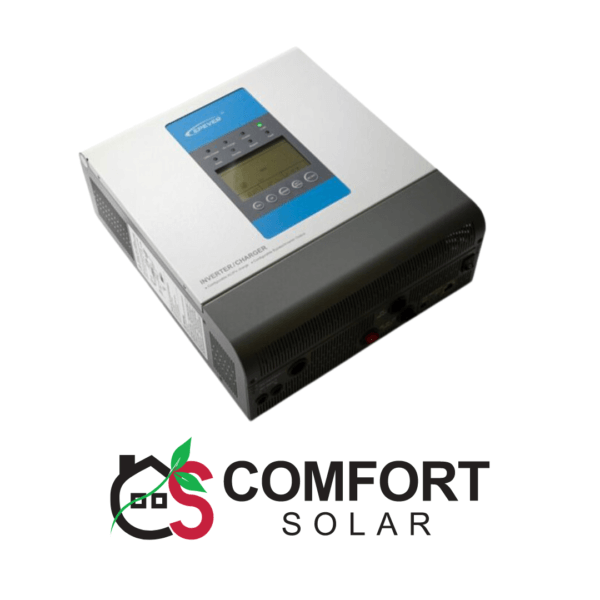

EPEVER inverter/charger for comfort solar systems, showing AC/PV input/output ports. Configurable AC/PV charge and bypass/inverter output.
Epever Upower Series UP 3000-M2142
Epever Upower Series UP 3000-M2142

Epever Upower Series UP 1500-M3222

GUARANTEED SAFE PAYMENTS
Payment options: JazzCash, Easypaisa, and Cash on Delivery (COD) truck icon.
Share it to:
Variable Pricing

Due to high market volatility, prices for our products are subject to change.

Final Prices

The actual price will be provided once the customer contacts our sales representative via WhatsApp.

Deposit Requirement

The product will be dispatched only after a partial deposit is made in our business account.

Additional information

Nominal battery voltage

12VDC, 24VDC
Battery input voltage range

10.8～16VDC, 21.6～32VDC
Continuous output power

1200W, 1600W, 2400W, 800W
Output power 15min.

1000W, 1500W, 2000W, 3000W
Output Voltage Range

220V(-6%~+5%) 230V(-10%~+5%）, 220V±5%;230V(-10%～+5%)
Output frequency

50/60±0.1Hz
Output mode

Single phase
Output wave

Pure Sine Wave
Distortion THD

≤3%(12V or 24V resistive load)
Max. Efficiency

91%, 94%, 95%
Utility input voltage range

160VAC～280VAC(Working voltage range); 170VAC～270VAC(Utility starting voltage range)
Max.utility charge current

20A, 30A
Max. PV open circuit voltage

100V（At minimum operating environment temperature）; 92V（At 25℃ environment temperature）, 150V（At minimum operating environment temperature）; 138V（At 25℃ environment temperature）, 60V（At minimum operating environment temperature）; 46V（At 25℃ environment temperature）
Max. PV input power

1500W, 390W, 780W
Max. PV charging current

30A, 60A
Equalization voltage

Sealed:14.6V,Flooded:14.8V, Sealed:29.2V,Flooded:29.6V
Boost voltage

Gel:14.2V,Sealed:14.4V,Flooded:14.6V, Gel:28.4V,Sealed:28.8V,Flooded:29.2V
Float voltage

Gel/Sealed/Flooded:13.8V, Gel/Sealed/Flooded:27.6V
Tracking efficiency

≤99.5%
Charging conversion efficiency

≤98%
Temperature compensation

-3mV/℃/2V (Default)
No load consumption

≤0.6A, ≤0.8A, ≤1.2A
Enclosure

IP30
Operating Temperature Range

`-20℃～50℃（full input and output with no derating）
Dimensions(HxWxL)

386×300×126mm, 444×300×126mm, 518×310×168mm
Net Weight

14.9kg, 7.3kg, 7.4kg, 8.5kg, 9.2kg

Description

Introducing the UPower Series, an all-in-one inverter/charger ranging from 1KVA to 5KVA, now available at Comfort Solar. This versatile unit integrates an MPPT solar charge controller, pure sine wave inverter, and AC/DC charger into a single compact package. Designed for seamless operation, the UPower Series is ideal for residential settings, schools, cottages, and areas with unstable electricity, ensuring reliable and uninterrupted power supply.

Key Features:

  • Integrated Design: Combines MPPT solar charge controller, pure sine wave inverter, and AC/DC charger in one unit.
  • Simultaneous Operation: Inverter and AC/DC charger can work concurrently, providing continuous power for critical applications.
  • Suitable for Residential Use: Perfectly suited for residential applications where stable and uninterrupted power is essential.
  • Versatile Applications: Ideal for schools, cottages, and areas prone to unstable electricity.

Why Choose UPower Series? The UPower Series from Comfort Solar offers a compact and efficient solution for managing power in residential and small commercial settings. With its integrated design and reliable performance, it ensures seamless operation and peace of mind.

Call to Action: Discover the reliability of the UPower Series at comfortsolar.pk today. For more information or to place an order, contact us via WhatsApp at 03166225526. Experience uninterrupted power with Comfort Solar!



3.5

Brand

Epever

The products offered by EPEVER, including their latest advancements in solar energy technology, are available on our website, Comfort Solar. EPEVER’s extensive global network, with over 120 partners worldwide, reflects their mission to make solar energy accessible and efficient across diverse markets. Their continued focus on quality, customer satisfaction, and sustainable energy solutions underscores their role in advancing solar technology for various applications.
epever logo, a black swoosh above the word "EPEVER".
EPEVER, founded in 2007 and headquartered in Beijing, is a leading provider of solar energy solutions. The company specializes in a range of products including solar charge controllers (both MPPT and PWM), inverters, inverter chargers, lithium batteries, and energy storage systems. These products are designed to maximize solar energy efficiency and reliability for both on-grid and off-grid systems. EPEVER’s commitment to innovation is supported by its ISO-certified manufacturing facilities and adherence to international standards, ensuring high-quality and effective solar solutions.
