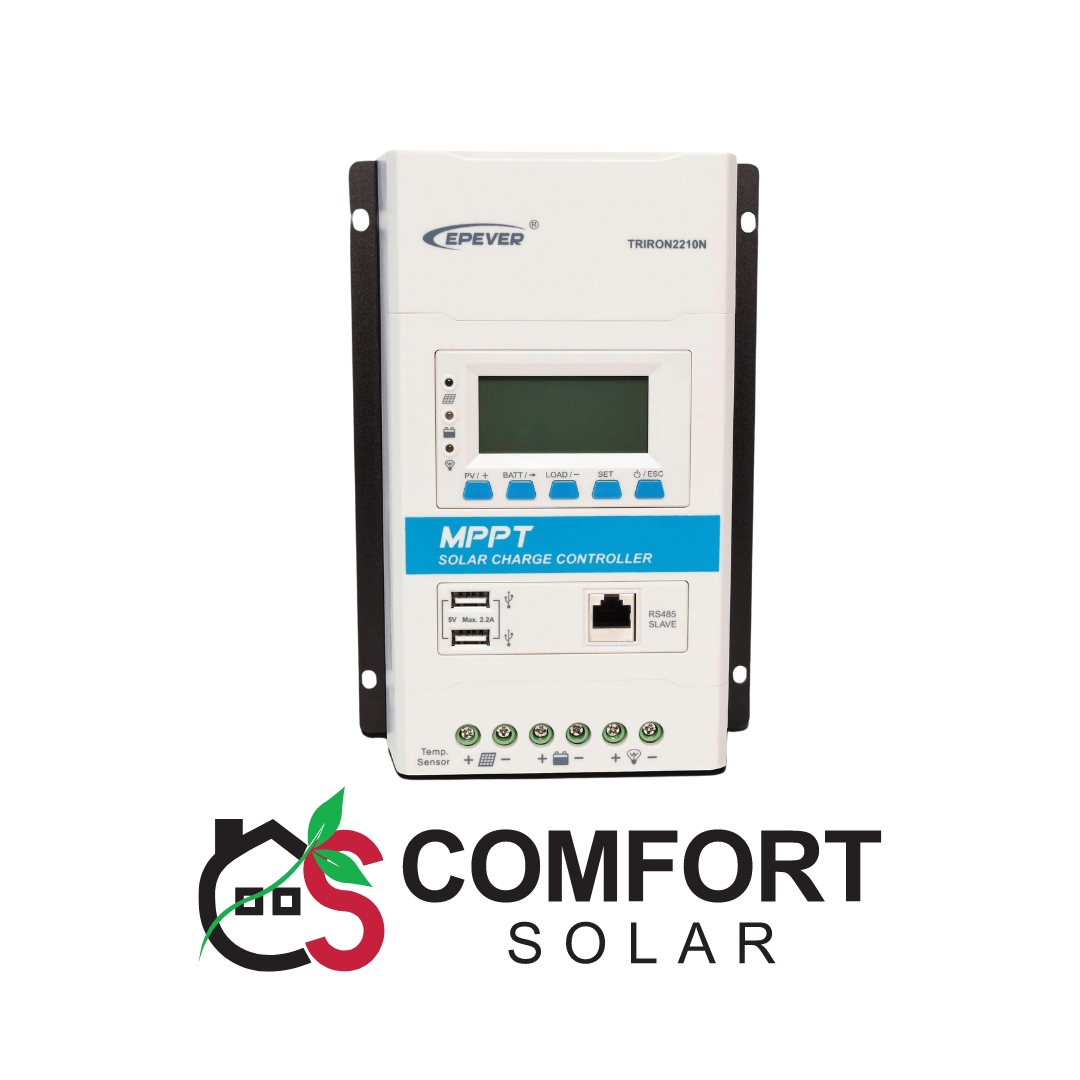

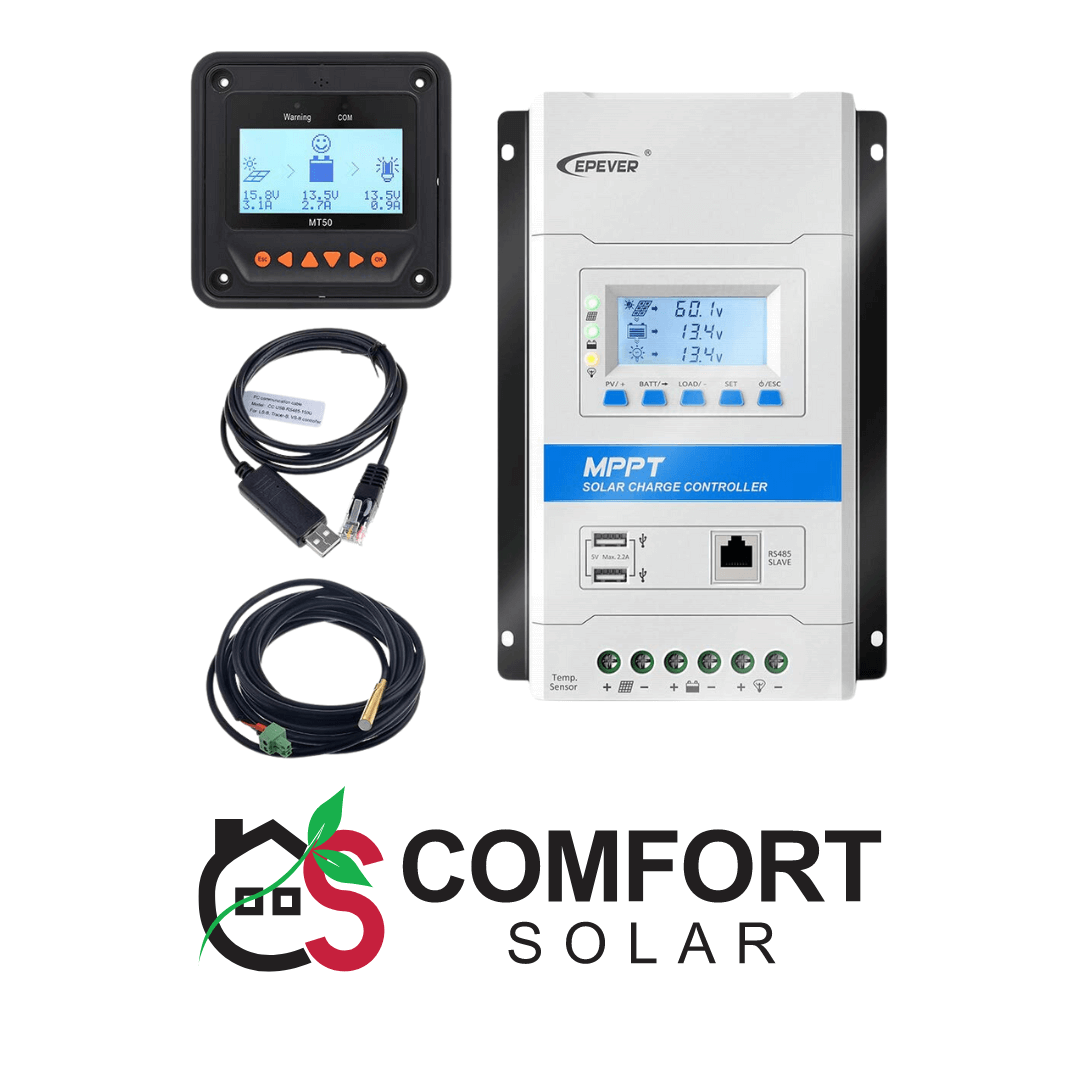

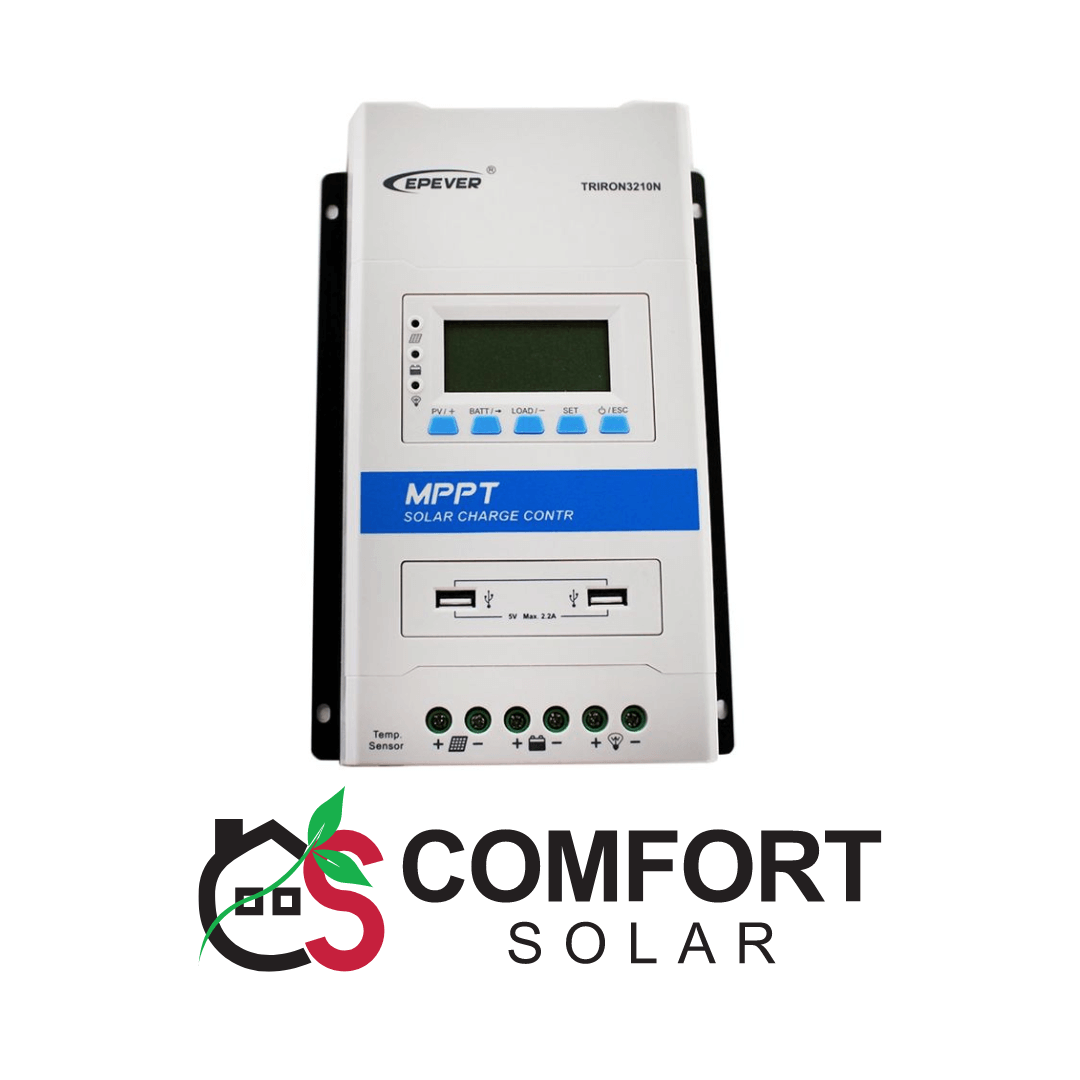

Tracer-AN Series MPPT Solar Charge Controller
Unlock the full potential of your solar system with the Tracer-AN series MPPT solar charge controller from Comfort Solar. Featuring advanced MPPT (Maximum Power Point Tracking) technology, this controller optimizes energy harvesting by efficiently tracking and capturing the maximum power point (MPP) of your solar array. Compared to PWM controllers, it can increase solar energy efficiency by up to 30%, ensuring maximum solar energy utilization.
Key Features:
Why Choose Comfort Solar?
Comfort Solar specializes in sustainable energy solutions, offering reliable and high-performance solar products like the Tracer-AN series MPPT charge controller. Visit comfortsolar.pk to discover more about our products and how they can optimize your solar energy system. For personalized assistance or to place an order, contact us via WhatsApp at 03166225526.
| Nominal system voltage | 12/24VDC/Auto |
|---|---|
| Battery Type | Lead-acid (Sealed/Gel/Flooded)/Lithium (LiFePO4/Li(NiCoMn)O2)/User |
| Battery input voltage range | 8～32V |
| Rated charge current | 10A, 20A, 30A, 40A |
| Rated discharge current | 10A, 20A, 30A, 40A |
| Rated charge power | Â Â Â 260W/12VÂ Â Â Â 520W/24V, Â Â Â 130W/12VÂ Â Â 260W/24V, Â Â 130W/12VÂ Â Â 260W/24V, Â Â 260W/12VÂ Â Â 520W/24V, Â Â 390W/12VÂ Â 780W/24V, Â Â 520W/12VÂ Â Â 1040W/24V |
| Max. conversion efficiency | ≤98.0% |
| Tracking efficiency | ≥99.5% |
| Max. PV open circuit voltage | 100V（At minimum operating environment temperature）; 92V（At 25℃ environment temperature）, 60V（At minimum operating environment temperature）; 46V（At 25℃ environment temperature） |
| MPP voltage range | (Battery voltage +2V)～36V, (Battery voltage +2V)～72V |
| Equalization voltage | Sealed:14.6V,Flooded:14.8V,User-defined:9-17V |
| Boost voltage | Gel:14.2V,Sealed:14.4V,Flooded:14.6V,User-defined:9-17V |
| Float voltage | Gel/Sealed/Flooded:13.8V,User-defined:9-17V |
| Low Voltage Reconnect Voltage | Gel/Sealed/Flooded:12.6V,User-defined:9-17V |
| Low Voltage Disconnect Voltage | Gel/Sealed/Flooded:11.1V,User-defined:9-17V |
| Self-consumption |   ≤12mA |
| Temperature compensation( for lead-acid battery) | -3mV/℃/2V (Default) |
| Relative Humidity | ≤95%, N.C. |
| Enclosure | IP30 |

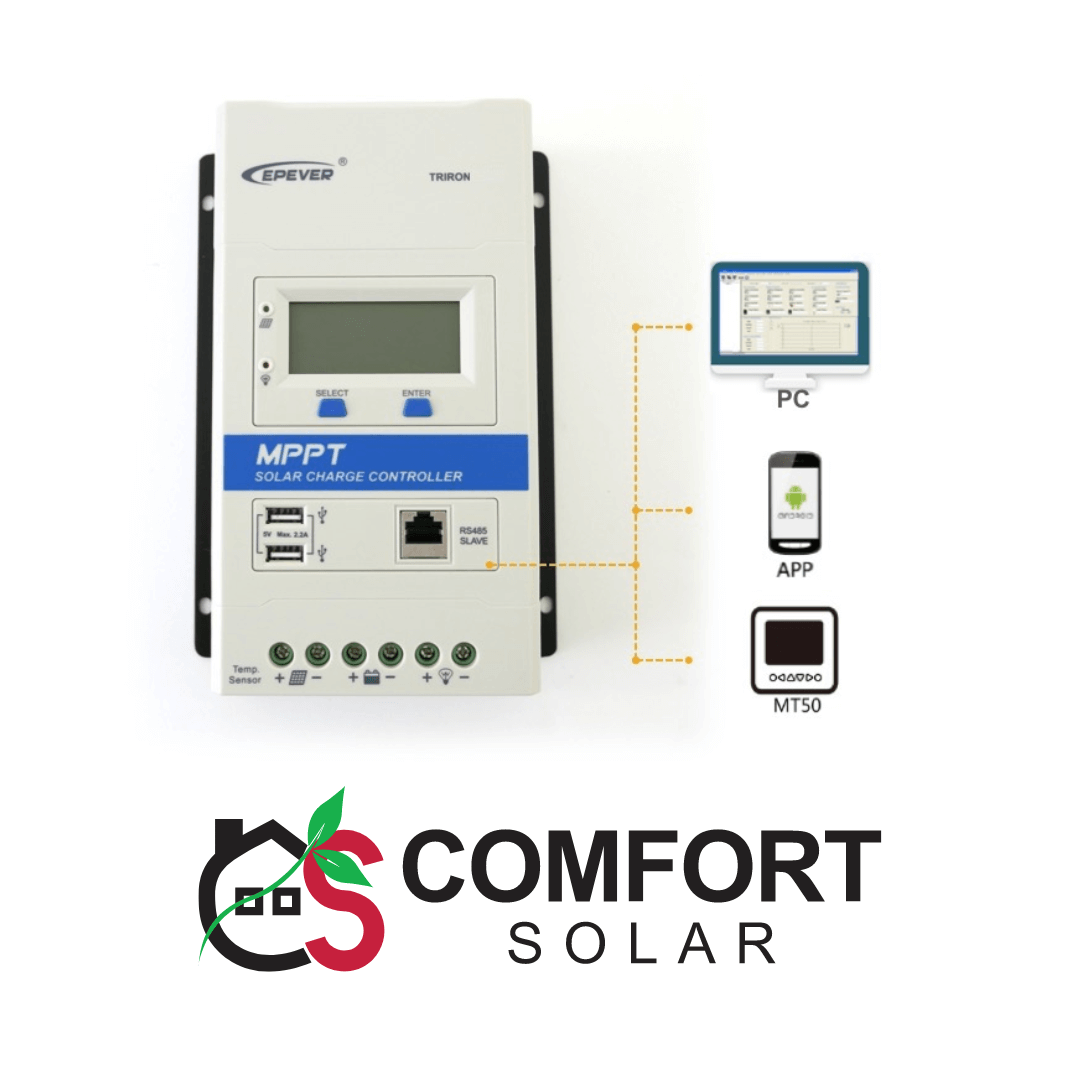

| Communication Interface | RS485(RJ45) |
| Grounding | Common Negative |
| Operating Temperature Range | -25℃～+45℃(100% input and output) |
| Dimensions(LxWxH)(mm) | 172×139×44, 220×154×52, 228×164×55, 252×180×63 |
| Net Weight | 0.57kg, 0.94kg, 1.26kg, 1.65kg |
