| CSI-8KTL1P-GI-FL | |
|---|---|
| DC Input | |
| Max. PV Power | 9.2 kW |
| Max. DC Input Voltage | 600 V DC |
| Start-up Voltage | 120 V DC |
| Number of MPPTs | 3 |
| MPPT Voltage Range | 100 – 500 V DC |
| Max. Input Current | 30 A (10 A per MPPT) |
| Max. Short Circuit Current | 46.8 A |
| Number of DC Inputs | 3 (1 per MPPT) |
| DC Disconnection Type | Load rated DC switch |
| AC Output | |
| Rated AC Output Power | 8 kW |
| Max. AC Output Power | 8.8 kW |
| Rated Voltage | 230 V AC |
| Voltage Range | 160 – 285 V AC |
| Grid Type | 1 Φ / PE |
| Rated Grid Current | 34.8 A |
| Max. Output Current | 36.6 A |
| Frequency | 50 / 60 Hz |
| Frequency Range | 47 – 52 / 57 – 62 Hz |
| Power Factor | 1 default (±0.8 adjustable) |
| Current THD | < 1.5 % |
| DC Injection Current | < 0.5 % of Rated Grid Output Current |
| AC Disconnect | Not Available |
| System | |
| Topology | Transformerless |
| Max. Efficiency | 98.1 % |
| CEC Efficiency | 97.6 % |
| Night Consumption | < 1 W |
| Environment | |
| Protection Degree | IP65 |
| Cooling | Natural Convection |
| Temperature Range | -25°C to +60°C |
| Storage Temp Range | -40°C to +70°C |
| Humidity | 0 – 100 % condensing |
| Altitude | 4000 m |
| Noise | < 30 dBA @ 1 m |
| Display & Communication | |
| Display | LCD + LED |
| Communication | RS485 (Modbus) |
| Mechanical | |
| Dimensions (W×H×D) | 333 × 573 × 249 mm |
| Weight | 18 kg |
| Installation Angle | 90° from horizontal |
| DC Inputs | MC4 compatible |
| Safety | |
| Safety Standards | IEC62109-1/-2, NB/T 32004, EN61000-6-1/-3 |
| Grid Standards | EN50438, G59/3, AS4777, VDE0126-1-1, etc. |
| Smart Grid Features | Volt/Freq Ride Through, Volt-Watt, etc. |

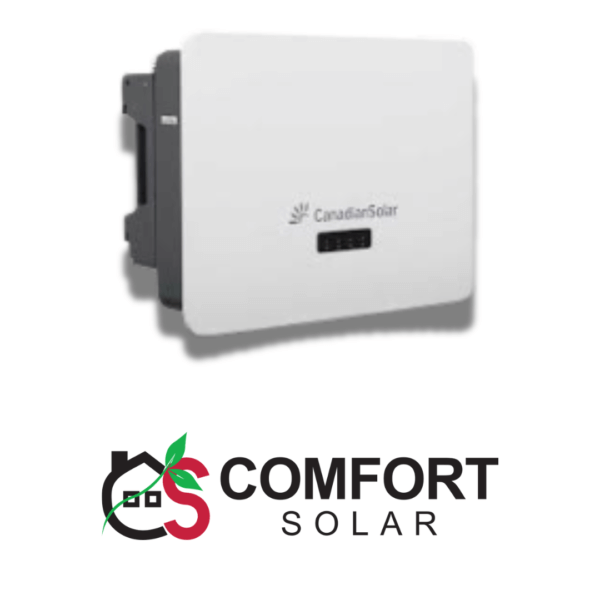

The CSI-8KTL1P-GI-FL from Canadian Solar is an 8KW single-phase inverter designed for medium-sized solar systems. With support for up to 9.2KW PV input, triple MPPTs, and natural cooling, it ensures quiet and efficient performance. Integrated with essential protections and smart-grid features, it guarantees safety and compliance for modern solar installations.
| Max. DC Voltage | 1100 V |
|---|---|
| Start-up Voltage | 120 V |
| MPPT Operating Voltage Range | 90 – 1000 V |
| Number of MPPTs | 2 |
| Strings per MPPT | 1 |
| Max. Input Current per MPPT | 16 A |
| Max. Short Circuit Current per MPPT | 24 A |
| Rated AC Output Power | 8,000 W |
| Max. AC Apparent Power | 8,000 VA |
| Nominal Output Voltage | 230 V (1Ph + N + PE) |
| Max. Output Current | 35 A |
| Output Frequency | 50/60 Hz |
| Power Factor | 0.8 leading ~ 0.8 lagging |
| THD | < 3% |
| Max. Efficiency | 97.8% |
| Euro Efficiency | 97.5% |
| DC Switch | Integrated |
| Anti-Islanding Protection | Yes |
| Reverse Polarity Protection | Yes |
| Residual Current Monitoring Unit | Integrated |
| AFCI (Optional) | Yes |
| Communication Interfaces | RS485, Wi-Fi, Optional 4G |
| Display | LED & App |
| Dimensions (W × H × D) | 375 × 355 × 160 mm |
| Weight | 12 kg |
| Degree of Protection | IP66 |
| Cooling Method | Natural Convection |
| Operating Temperature Range | -25°C to +60°C |
| Max. Operating Altitude | 4000 m (derating above 2000 m) |
| Standards | IEC/EN 62109-1/-2, IEC 61727, etc. |
