₨ 120,750
Due to high market volatility, prices for our products are subject to change.
The actual price will be provided once the customer contacts our sales representative via WhatsApp.
The product will be dispatched only after a partial deposit is made in our business account.

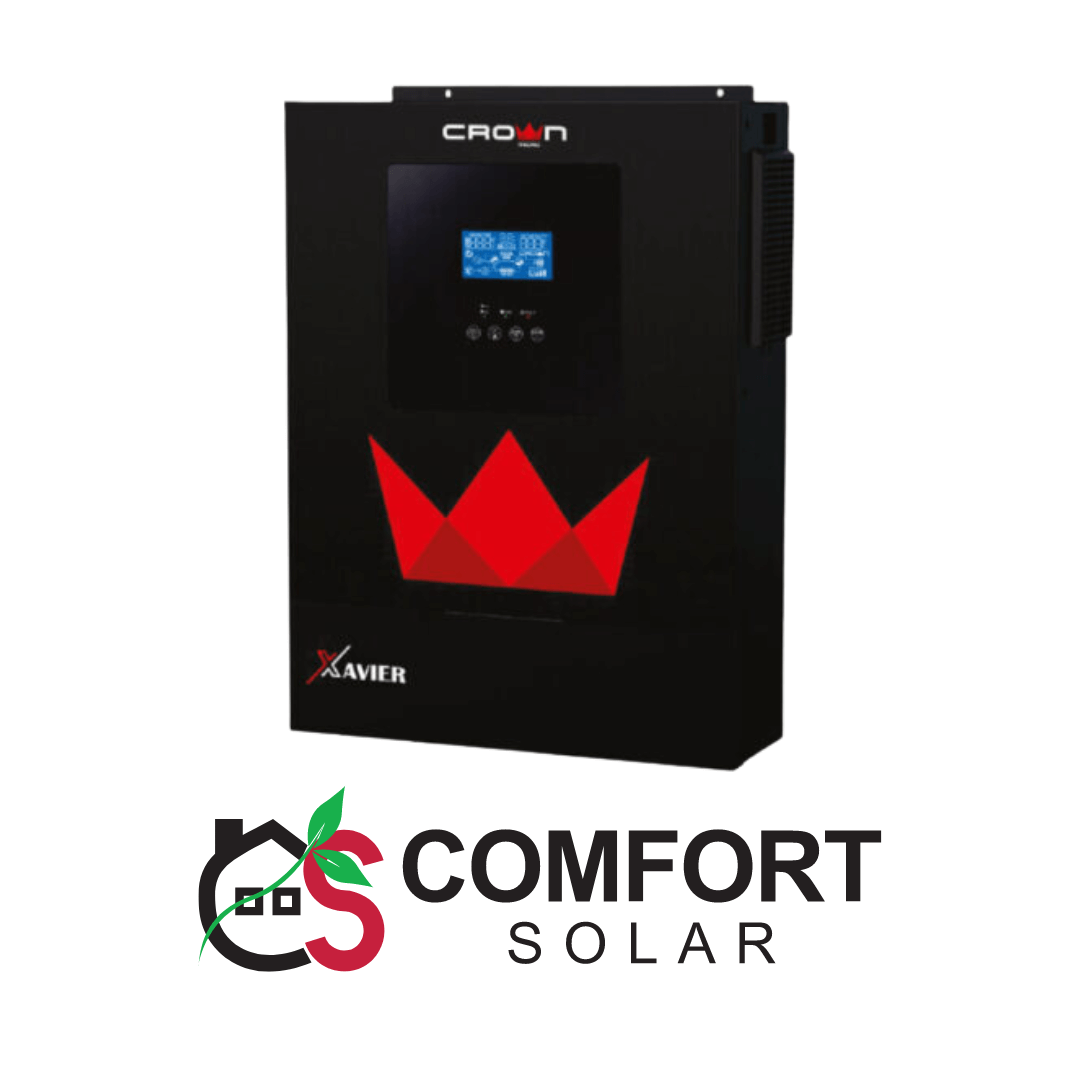

| Model Name | Xavier 3KW-PF 1.0 |
|---|---|
| Model Number | X-3KW-PF1 |
| Rated Power | 3000VA/3000W |
| Voltage | 230 VAC |
| Selectable Voltage Range | 170-280 VAC (For Personal computers)90-280 VAC (For Home Appliances) |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% |
| Surge Power | 6000VA |
| Efficiency (Peak) | 0.93 |
| Transfer Time | 10 ms (For Personal Computers)20 ms (For Home Appliances) |
| Waveform | Pure Sine Wave |
| Battery Voltage | 24 VDC |
| Floating Charge Voltage | 27 VDC |
| Overcharge Protection | 32 VDC |
| Solar Charger Type | MPPT |
| Maximum PV Array Open Circuit Voltage | 450 VDC |
| Maximum PV Array Power | 3000W |
| MPPT Range @ Operating Voltage | 60 – 400 VDC |
| Maximum Solar Charge Current | 100 A |
| Maximum AC Charge Current | 80 A |
| Maximum Charge Current | 100 A |
| Dimension, D x W x H (mm) | 107 x 322.6 x 420.3 |
| Net Weight (kgs) | 9.5 |
| Communication Interface | RS232 |
| Humidity | 5% to 95% Relative Humidity (Non-Condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
