Description

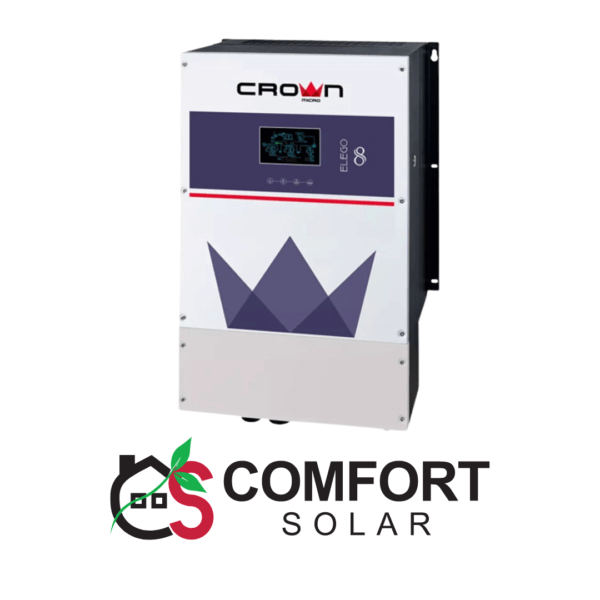

Discover the Crown Micro Global ELEGO-8KW-IP65 Pure Sine Wave Hybrid Inverter, designed for robust performance and versatility in residential and commercial solar installations. Available at Comfort Solar, this advanced inverter ensures reliable power supply and efficient energy management in diverse environmental conditions.

Key Features:

• Model Name: ELEGO-8KW-IP65
• Model Number: EOI-8KW-IP65
• Rated Inverter Power: 8000VA/8000W
• Parallel Capability: Yes, up to 6 units
• Voltage: 230 VAC
• Selectable Input Voltage Range: 170-280 VAC (For Computers), 90-280 VAC (For Home Appliances)
• Frequency Range: 50 Hz/60 Hz (Auto sensing)
• AC Voltage Regulation (Batt. Mode): 230VAC ± 5%
• Surge Power: 16000VA
• Efficiency (Peak): 90%
• Transfer Time: 10 ms (For Personal Computers), 20 ms (For Home Appliances)
• Waveform: Pure sine wave
• No Load Power Consumption: <60W
• Battery Voltage: 48 VDC
• Floating Charge Voltage: 54 VDC
• Overcharge Protection: 66 VDC
• Solar Charger Type: MPPT
• Maximum PV Array Power: 9000W (4500W x 2)
• MPPT Range @ Operating Voltage: 90 ~ 450 VDC
• Maximum PV Array Open Circuit Voltage: 500 VDC
• Maximum Solar Charge Current: 150A
• Maximum AC Charge Current: 120A
• Dimension (D x W x H): 210 x 435 x 665 mm
• Net Weight: 32 kg
• Communication Interface: USB/RS-232/Dry Contact/RS485/WiFi/BMS
• Humidity: 5% to 95% Relative Humidity (Non-condensing)
• Operating Temperature: -10℃ to 50℃
• Storage Temperature: -15℃ to 60℃
• Compliance Safety: CE

Detailed Features:

1. LCD with Touch Pad: Provides intuitive control and monitoring.
2. Built-in Dual Output: Facilitates smart load management.
3. Built-in WiFi & BMS: Enables remote monitoring and management options.
4. Parallel Operation: Scalable up to 6 units for increased power capacity.
5. IP65 Rating: Waterproof and dustproof design suitable for various environments.
6. Battery Independent Design: Ensures continuous operation regardless of battery status.
7. Configurable AC/PV Output Usage Timer: Allows customization for optimal energy usage.
8. Selectable High Power Charging Current: Provides flexibility in charging options.
9. Compatible with Utility Mains or Generator Input: Versatile integration with different power sources.

Why Choose Comfort Solar? Comfort Solar is your trusted partner in sustainable energy solutions. Our commitment to quality and innovation ensures that the Crown Micro Global ELEGO-8KW-IP65 inverter meets your highest expectations for performance, reliability, and energy efficiency.

Call to Action: Ready to upgrade your solar power system with the Crown Micro Global ELEGO-8KW-IP65 inverter? Visit comfortsolar.pk today to explore our full range of solar products and solutions. For inquiries or to place an order, contact us directly on WhatsApp at 03166225526. Experience the future of solar energy with Comfort Solar!
