₨ 363,000
Your orders are shipped seamlessly between countries
You have the right to return your orders within 30 days.
Your payments are secure with our private security network.

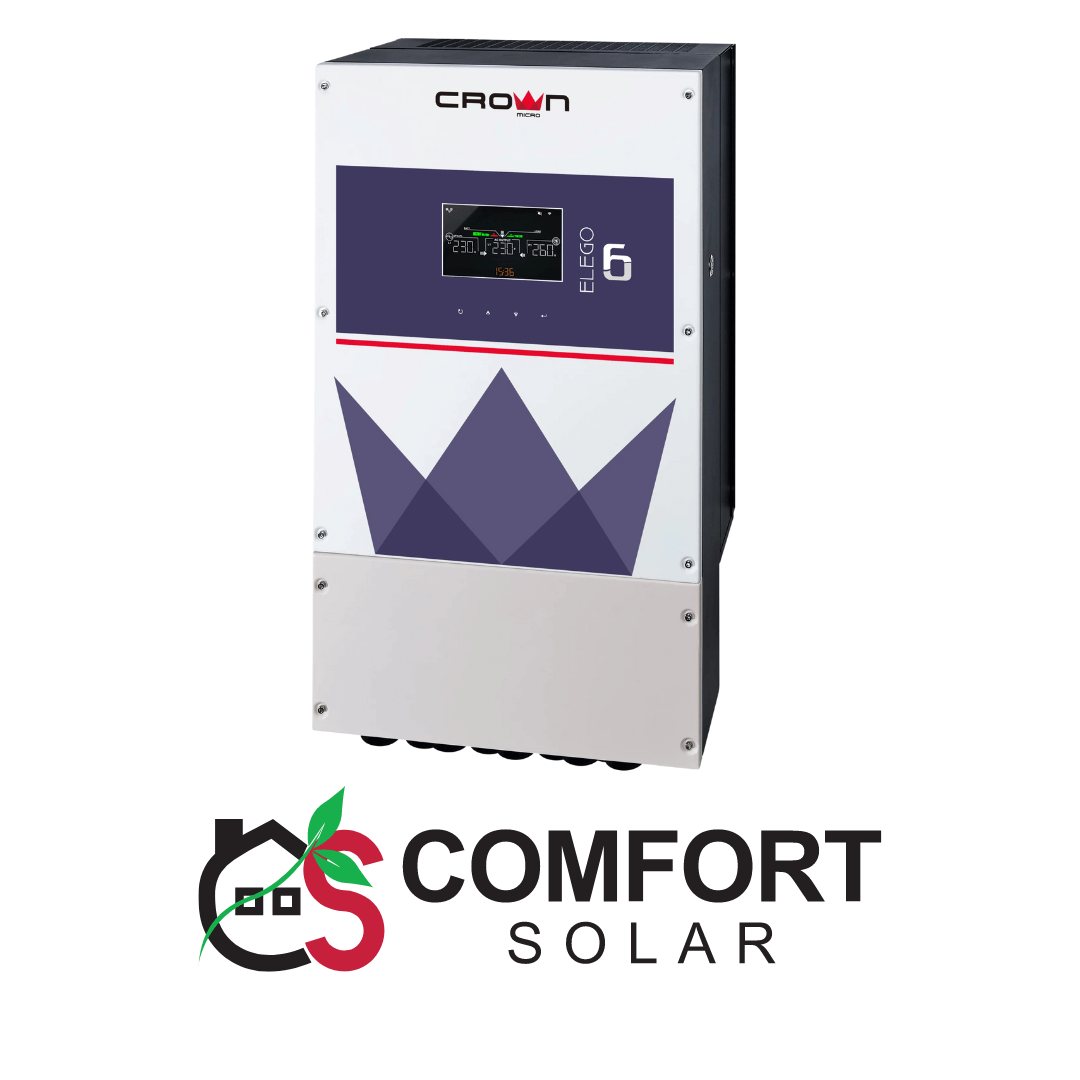

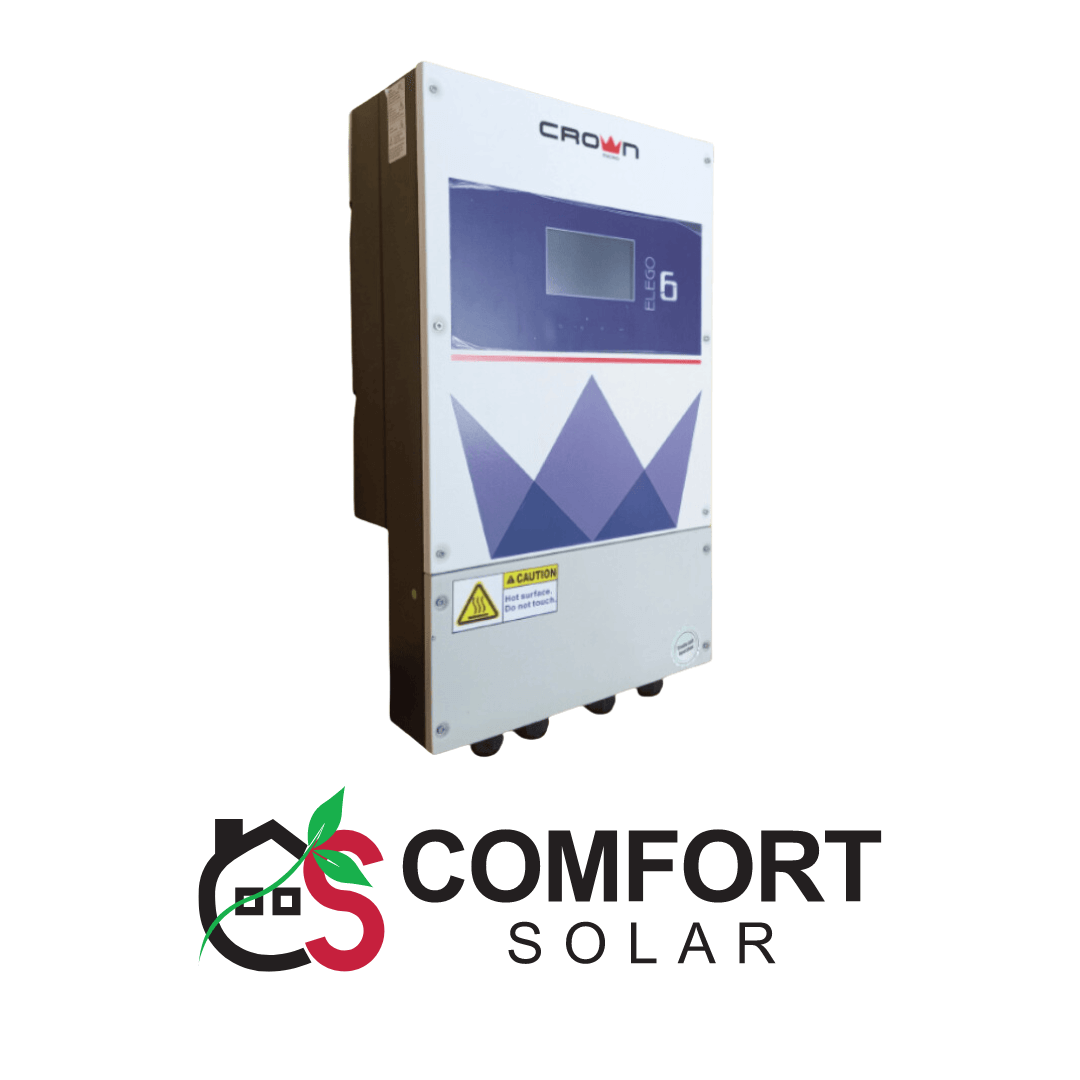

Explore the Crown ELEGO 6 IP65 PV-7000 6000VA/6000W Pure Sine Wave Solar Inverter, available at Comfort Solar for reliable and efficient energy management in residential and commercial settings. This advanced inverter is designed to maximize solar energy utilization while ensuring seamless integration and optimal performance.
Key Features:
Detailed Features:
Why Choose Comfort Solar? Comfort Solar specializes in providing top-tier solar solutions that combine advanced technology with environmental sustainability. The Crown ELEGO 6 IP65 PV-7000 inverter exemplifies our commitment to quality, reliability, and energy efficiency, ensuring long-term savings and performance.
Call to Action: Ready to enhance your energy independence with the Crown ELEGO 6 IP65 PV-7000 solar inverter? Visit comfortsolar.pk today to explore our full range of solar products and solutions. For inquiries or to place an order, contact us directly on WhatsApp at 03166225526. Choose Comfort Solar for reliable and efficient solar solutions!
| Model Name | ELEGO-6KW-IP65, MODEL NAME |
|---|---|
| Model Number | EOI-6KW-IP65, MODEL NUMBER |
| Phase | 1-phase in / 1-phase out, PHASE |
| Maximum PV Input Power | 7000W, Maximum PV Input Power |
| Rated Output Power | 6000VA/6000W, Rated Output Power |
| MAXIMUM CHARGING POWER | 6000W, Maximum Charging Power |
| Maximum DC Voltage | 500VDC, Maximum DC Voltage |
| Start-up Voltage/Initial Feeding Voltage | 120VDC / 150 VDC, Start-up Voltage / Initial Feeding Voltage |
| MPPT Voltage Range | 120 VDC ~ 450 VDC, MPPT Voltage Range |
| Number of MPPT Trackers/Maximum Input Current | 1 / 30A, Number of MPPT Trackers / Maximum Input Current |
| Nominal Output Voltage | 220/230/240 VAC, Nominal Output Voltage |
| Output Voltage Range | 184 – 264.5 VAC or 195.5 – 253 VAC (Selectable), Output Voltage Range |
| Nominal Output Current | 26A, Nominal Output Current |
| Power Factor | >0.99, Power Factor |
| Maximum Conversion Efficiency( Solar to AC) | 0.95, Maximum Conversion Efficiency (DC/AC) |
| AC Start-up Voltage/Auto Restart Voltage | 120 – 140 VAC / 180 VAC, AC Start-up Voltage / Auto Restart Voltage |
| Acceptable Input Voltage Range | Acceptable Input Voltage Range |
| Frequency Range | 50 Hz/60 Hz (Auto sensing), Frequency Range |
| Maximum AC Input Current | 40 A, Maximum AC Input Current |
| Output Waveform | Output Waveform, Pure Sine Wave |
| Efficiency (DC to AC) | 0.93, Efficiency (DC to AC) |
| Nominal DC Voltage | 48 VDC, Nominal DC Voltage |
| Maximum Solar Charging Current | 120 A, Maximum Solar Charging Current |
| Maximum AC Charging Current | 120 A, Maximum AC Charging Current |
| Maximum Charging Current | 120 A, Maximum Charging Current |
| Dimensions (D x W x H) | 192 x 360 x 665, Dimension, D x W x H (mm) |
| Net Weight | 22.5, Net Weight (kgs) |
| Communication Port | Communication Port, USB or RS-232/Dry Contact/RS485 |
| Humidity | 0 ~ 95% RH (No condensing), Humidity |
| Operating Temperature | -25°C to 50°C, Operating Temperature |
| Storage Temperature | -15°C to 60°C, Storage Temperature |
