| Built-in smart MPPT solar charger | Maximum PV Array Open Circuit Voltage, 500VDC |
|---|---|
| Parallel Operation | Parallel Capability, Yes (optional), up to 9 units |
| Operation Without Battery | Yes |
| PV Array Voltage Range MPPT | 120~450VDC |
| Inverter | Pure Sine Wave, Wave form |
| Output | 5000W, Rated Power |
| AC Input | 208/220/230/240VAC, Voltage |
| Battery | 48VDC, Nominal Battery System Voltage |
| Mechanical Specifications | 8.45, Net Weight (kg) |
| Communication Interface | Optional, USB/RS232/RS485 |
| LCD | 5.5” Colorful With touch pad |
| Machine Dimensions (H*W*D) (mm) | 470*310*120 |
| Other | 0℃~40℃, Operating Temperature |
| Storage Temperature | -15℃~60℃ |
| Certification | CE, Yes |
| EMC | EN IEC 61000-6-3:2021, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A2:2021/EN IEC 61000-6-1:2019 |
| LVD | EN 62109-1:2010, EN 62109-2:2011 |
| Solar Charger & AC Charger | 6000W, Maximum PV Input Power |
| Maximum Solar Charge Current | 80A |
| Maximum AC Charge Current | 80A |
| Maximum Charge Current | 80A |
| Second Output | Yes |
| Nominal Battery System Voltage | 48VDC, Normal Voltage |
| Floating Charge Voltage | 54.8VDC |
| Overcharge Protection | 60VDC |
| Standby Power Consumption | 2W, Standby Power Consumption |
| Humidity | 5% to 95% Related Humidity (Non-condensing) |
| Gross Weight | 9.8, Gross Weight (kg) |
| Maximum Efficiency | 98% |
| Selectable Voltage Range | 170~280Vac, For Personal Computer |
| For Home Appliances | 90~280Vac |
| Inverter Efficiency (Peak) | 94%, Inverter Efficiency (Peak) |
| Package Dimensions | 575*400*200, Package Dimensions (H*W*D) (mm) |
| Transfer Time | 10ms (typical), Transfer Time |
| AC Voltage Regulation (Batt. Mode) | (220VAC~240VAC) ±5%, AC Voltage Regulation (Batt.Mode) |
| Surge Power | 10000W, Surge Power |

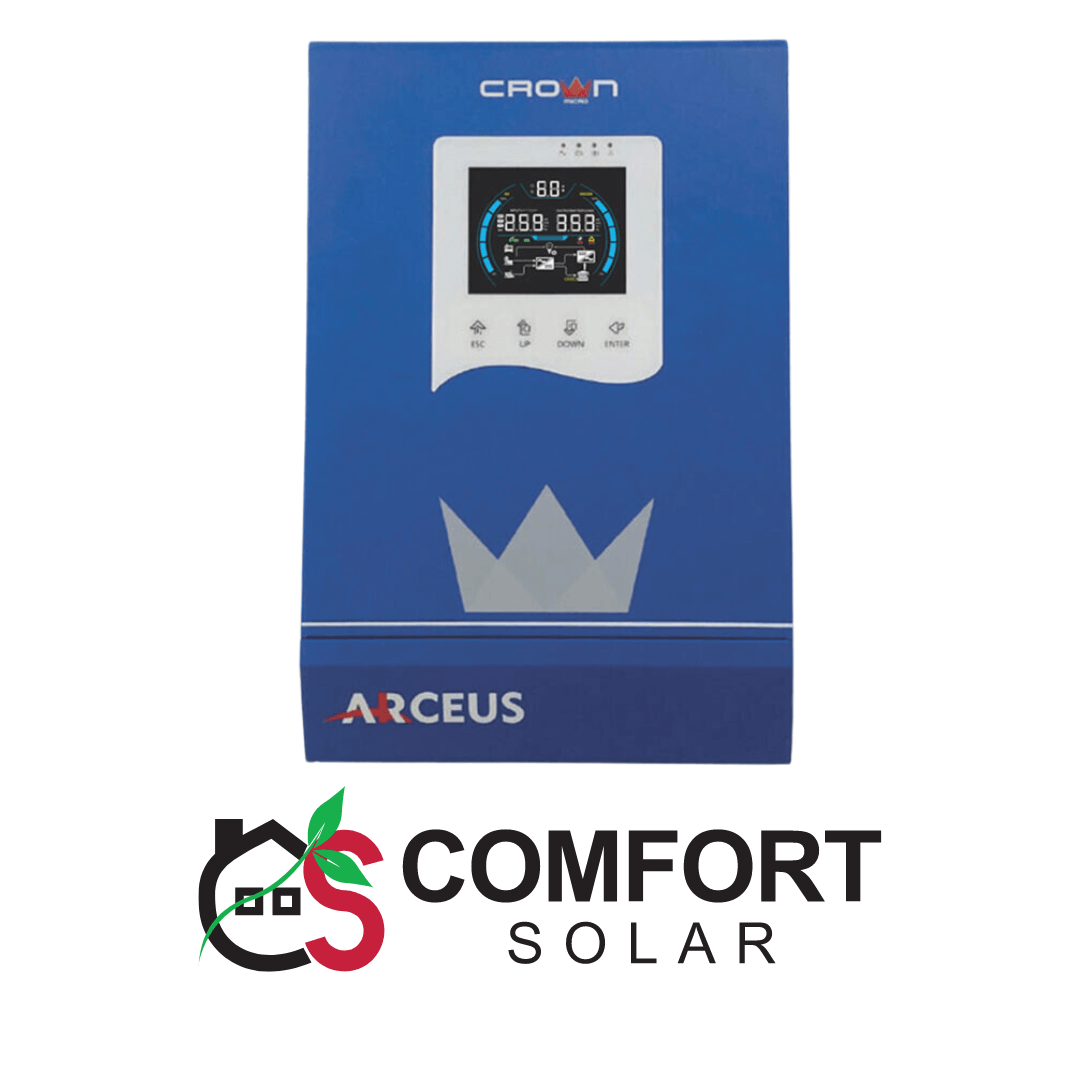

Are you searching for a high-performance solar inverter that combines efficiency with advanced features? Introducing the Arceus 5KW IP21 Pure Sine Wave Solar Inverter, available at Comfort Solar. This state-of-the-art inverter is designed to optimize energy usage for residential and commercial applications, ensuring reliable power supply and enhanced system performance.
Key Features:
Why Choose Comfort Solar? At Comfort Solar, we specialize in providing cutting-edge solar solutions designed for efficiency and sustainability. The Arceus 5KW IP21 solar inverter exemplifies our commitment to quality and performance, offering reliability and energy savings for your home or business.
Call to Action: Ready to upgrade your energy infrastructure with the Arceus 5KW IP21 solar inverter? Visit comfortsolar.pk today to explore our complete range of solar products and solutions. For inquiries or to place an order, contact us directly on WhatsApp at 03166225526. Choose Comfort Solar for a brighter, sustainable future!
