Output Power: 17 kW
Max Efficiency: 98.5%
MPPTs: 2
Max DC Input Current: 2 × 32A
AC Output Current: 25.8 A
IP66 protection with smart air cooling
AFCI Optional, DC reverse polarity protection
Compact & lightweight (19 kg)
Dimensions: 435 × 520 × 194 mm
Monitoring via App/WiFi/RS485
Due to high market volatility, prices for our products are subject to change.
The actual price will be provided once the customer contacts our sales representative via WhatsApp.
The product will be dispatched only after a partial deposit is made in our business account.

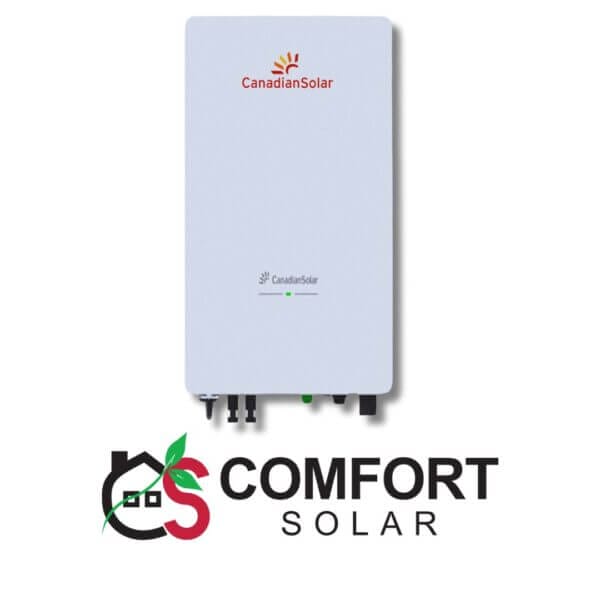

This 17kW inverter offers a perfect balance between performance and size, designed for growing commercial systems. Provides robust safety and monitoring features.
| Max. DC Voltage | 1100 VDC |
|---|---|
| Start-up DC Voltage | 180 VDC |
| Rated Input Voltage | 630 VDC |
| Max. Number of PV Strings | 4 |
| MPPTs | 2 |
| Max. Input Current/MPPT | 2×32 A |
| Rated Output Power | 17 kW |
| Rated Apparent Power | 17 kVA |
| Rated Output Voltage | 380/400 VAC |
| Rated Output Current | 25.8 A |
| Rated Output Frequency | 50/60 Hz |
| Total Harmonic Distortion (THD) | < 3% |
| Power Factor | 0.8 (Adjustable) |
| Max. Efficiency | 98.5% |
| Euro Efficiency | 98.0% |
| Protection Degree | IP66 |
| Cooling Method | Intelligent Air Cooling |
| Operating Temperature | -30°C to +60°C |
| Operating Altitude | 4000 m (derating above 2000 m) |
| DC Switch | Yes |
| Anti-Islanding Protection | Yes |
| Reverse Polarity Protection | Yes |
| Insulation Resistance Detection | Yes |
| Leakage Current Suppression | Yes |
| AC Output Over Current Protection | Yes |
| AC Short Circuit Protection | Yes |
| Display Type | LED Indicators & APP |
| Communication Interfaces | RS485 / Wi-Fi / Optional 4G |
| Dimensions | 435 x 520 x 194 mm |
| Weight | 19 kg |
| Connectors | Plug-type (Tool-free installation) |
| AFCI | Optional |
Serving customers across multiple countries with reliable solar solutions.
Committed to exceptional service and support for every client.
Quick and efficient help whenever you need it.
Products and services guaranteed to meet top quality standards.
