Description

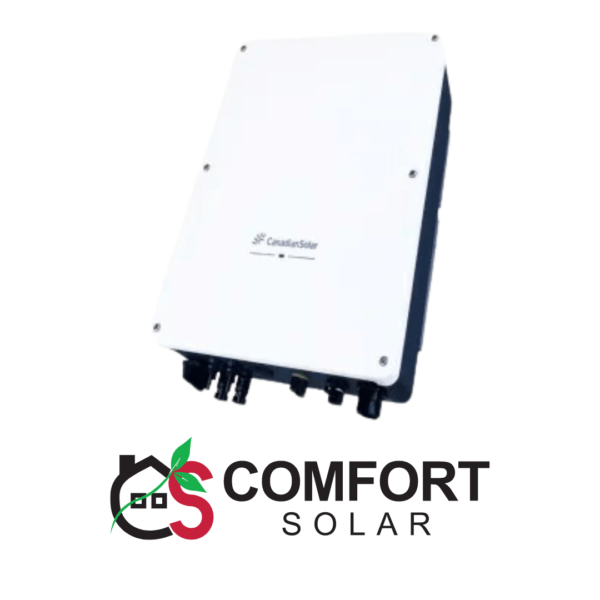

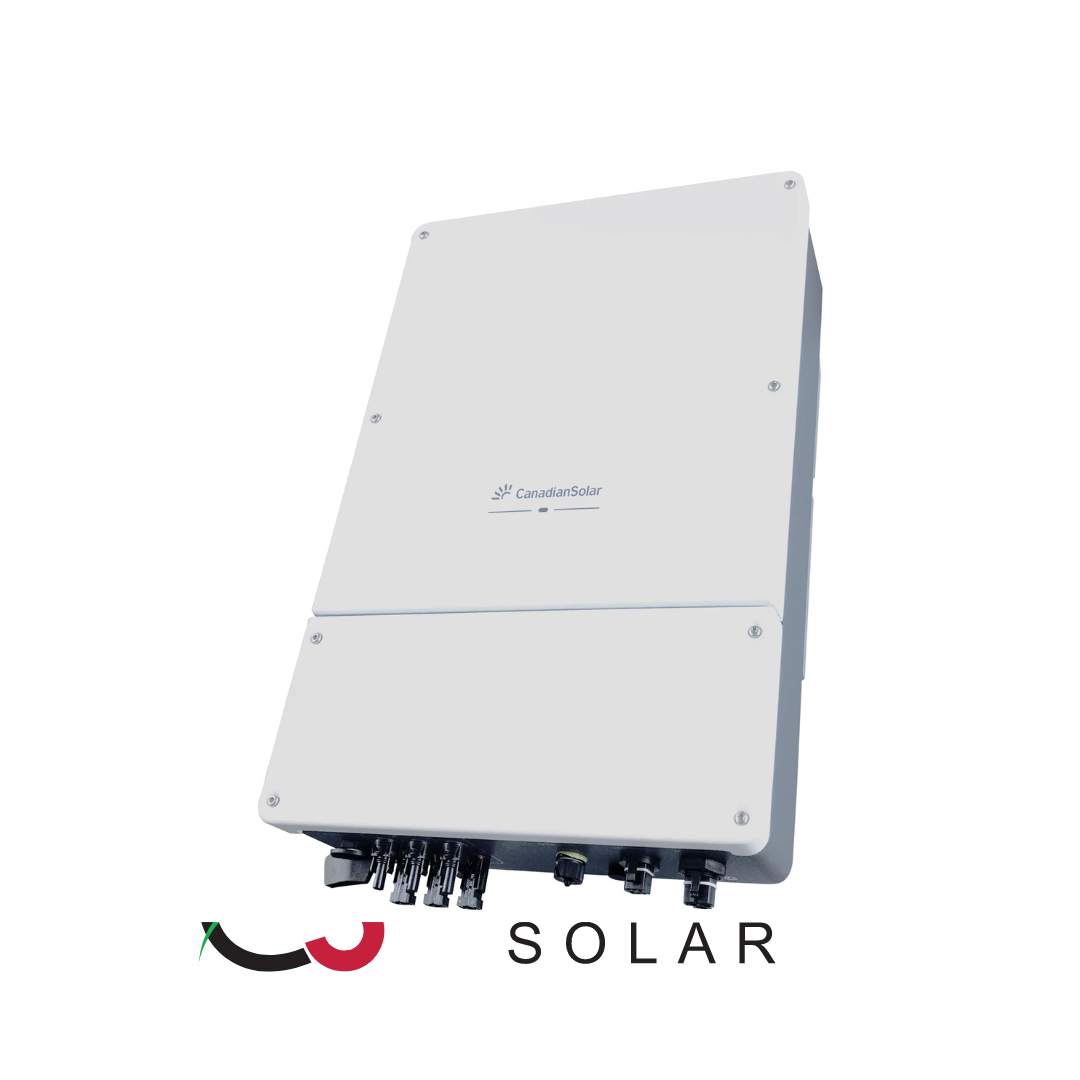

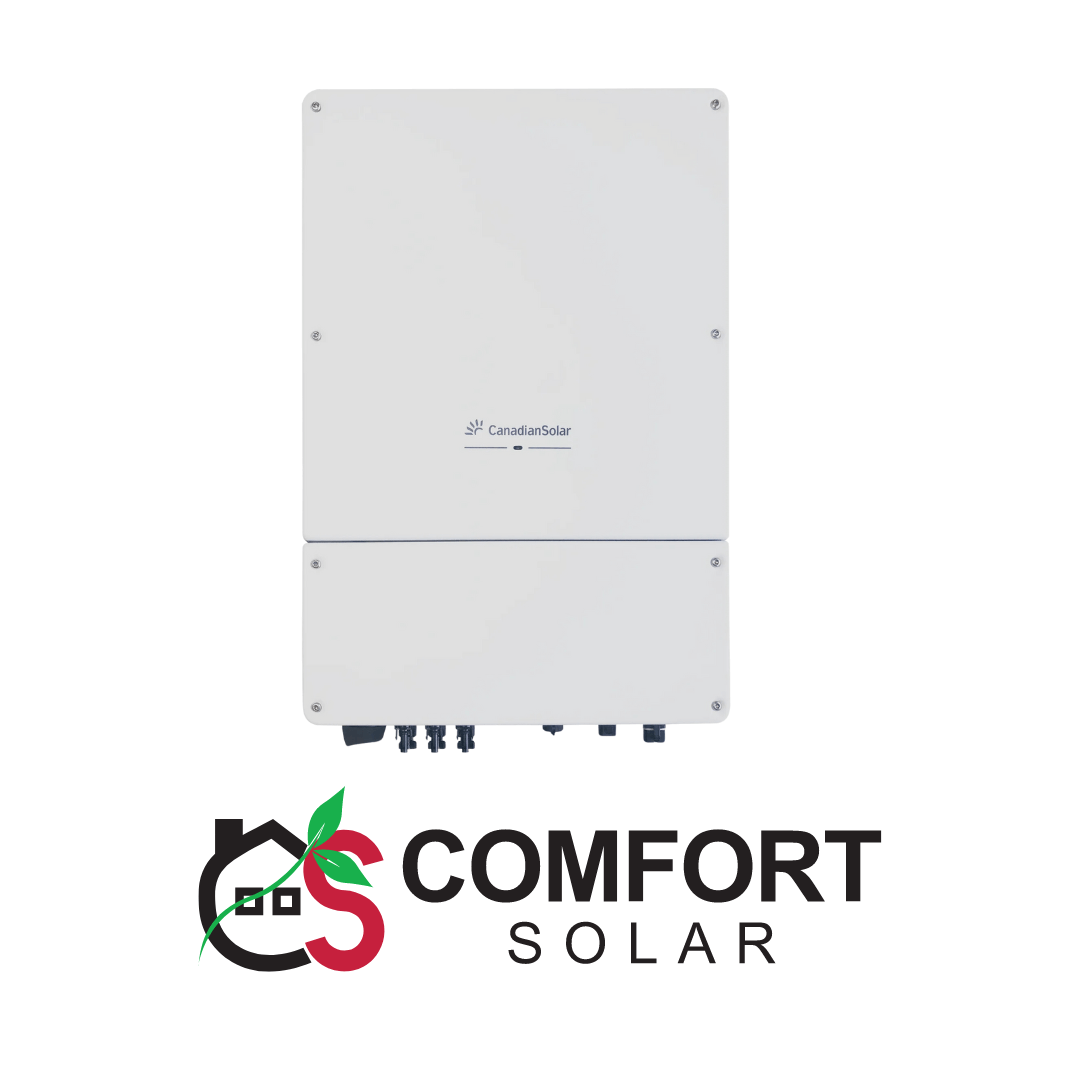

Are you looking for a reliable single-phase string inverter for your commercial rooftop or small ground-mount solar applications? Comfort Solar brings you the Canadian Solar Single Phase String Inverter series, available in 7KW, 8KW, 9KW, and 10KW capacities. These inverters are designed to deliver exceptional efficiency and adaptability, ensuring your solar power system operates at its best.

Key Features:

• Maximum Efficiency: Up to 98.1% with EU efficiency up to 97.6%.
• Multi-MPPT Technology: Equipped with 3 MPPTs to achieve higher system efficiency.
• Transformerless Design: Ensures high switching frequency and ultra-fast MPPT for maximum efficiency over a wide load range.
• Advanced Protection: Built-in over-voltage, over-current, DC reverse polarity, and AC short circuit protection.
• Thermal Design: Advanced thermal design and convection cooling for reliable operation.

Detailed Features:

1. High Efficiency: The Canadian Solar Single Phase String Inverters offer maximum efficiency up to 98.1%, ensuring that you get the most out of your solar power system. The high EU efficiency of 97.6% further underscores its superior performance.
2. Multi-MPPT Technology: With 3 Maximum Power Point Trackers (MPPTs), these inverters can achieve higher system efficiency by maximizing the energy harvest from your solar panels.
3. Protection Features: These inverters come with built-in over-voltage and over-current protection, along with DC reverse polarity and AC short circuit protection, ensuring the safety and longevity of your solar power system.
4. Advanced Thermal Design: Featuring an advanced thermal design and convection cooling, these inverters operate efficiently under varying environmental conditions. The IP65 rating makes them suitable for outdoor applications.
5. Utility Interactive Controls: These inverters support active power derating, reactive power control, and over-frequency derating, providing broad adaptability to different grid standards and conditions.
6. DC Load Rated Disconnects: Integrated DC load-rated disconnects ensure safe and reliable operation. The inverters support up to 3 DC string inputs (1 per MPPT), offering flexibility in system design.
7. Broad Adaptability: Canadian Solar’s grid-tied, transformerless string inverters accelerate the use of single-phase string architecture for commercial rooftop and small ground-mount applications. They are modular design building blocks that provide high yield and enable significant BoS cost savings.
8. Wide MPPT Range: These inverters offer a wide MPPT range of 100-500 V DC, providing flexibility in string sizing and ensuring optimal performance.

Why Choose Comfort Solar?

At Comfort Solar, we are committed to providing top-tier solar solutions tailored to your needs. Our Canadian Solar Single Phase String Inverter series is designed to offer maximum efficiency, reliability, and ease of use. By investing in our products, you are choosing sustainability and long-term energy savings.

Call to Action:

Ready to enhance your energy independence with our high-performance single-phase string inverters? Visit comfortsolar.pk today to explore more about our products. For any inquiries or to place an order, contact us directly on WhatsApp at 03166225526. Don’t wait—empower your home with the best solar technology available!

Specifications Overview:

• Model Names: CSI-7KTL1P-GI-FL, CSI-8KTL1P-GI-FL, CSI-9KTL1P-GI-FL, CSI-10KTL1P-GI-FL
• Max. PV Power: 8.0 kW to 11.5 kW
• Max. DC Input Voltage: 600 V DC
• Start-up DC Input Voltage/Power: 120 V DC
• Number of MPP Trackers: 3
• MPPT Voltage Range: 100 – 500 V DC
• Max. Input Current (Imp): 30 A (10 A per MPPT)
• Max. Short Circuit Current (Isc): 46.8 A (15.6 A per MPPT)
• Number of DC Inputs: 3 (1 per MPPT)
• DC Disconnection Type: Load rated DC switch
• Rated AC Output Power: 7 kW to 10 kW
• Max. AC Output Power: 7.7 kW to 10 kW
• Rated Output Voltage: 230 V AC
• Output Voltage Range: 160 – 285 V AC
• Grid Connection Type: 1 Φ / PE
• Rated Grid Output Current: 30.4 A to 43.5 A
• Max Output Current: 33.7 A to 45.9 A
• Rated Output Frequency: 50 / 60 Hz
• Output Frequency Range: 47 – 52 / 57 – 62 Hz
• Power Factor: 1 default (±0.8 adjustable)
• Current THD: < 1.5 %
• DC Injection Current: < 0.5 % of Rated Grid Output Current
• Topology: Transformerless
• Max. Efficiency: 98.1 %
• CEC Efficiency: 97.6 %
• Night Consumption: < 1 W
• Protection Degree: IP65
• Cooling: Natural Convection Cooling
• Operating Temperature Range: -25 °C to +60 °C
• Storage Temperature Range: -40 °C to +70 °C
• Operating Humidity: 0 – 100 % condensing
• Operating Altitude: 4000 m
• Audible Noise: <30 dBA @ 1 m
• Display: LCD + LED
• Communication: Standard: RS485 (Modbus)
• Dimensions (W / H / D): 333 x 573 x 249 mm
• Weight: 18 kg
• Installation Angle: 90 degrees from horizontal
• DC Inputs: MC4 compatible
• Safety and EMC Standard: IEC62109-1/-2, NB/T 32004, EN61000-6-1, EN61000-6-3
• Grid Standard: EN50438, G59/3, AS4777, VDE0126-1-1, IEC61727, VDE N4105, NBR-16149/NBR-16150
• Smart-Grid Features: Voltage-Ride Thru, Frequency-Ride Thru, Soft-Start, Volt-Var, Frequency-Watt, Volt-Watt
