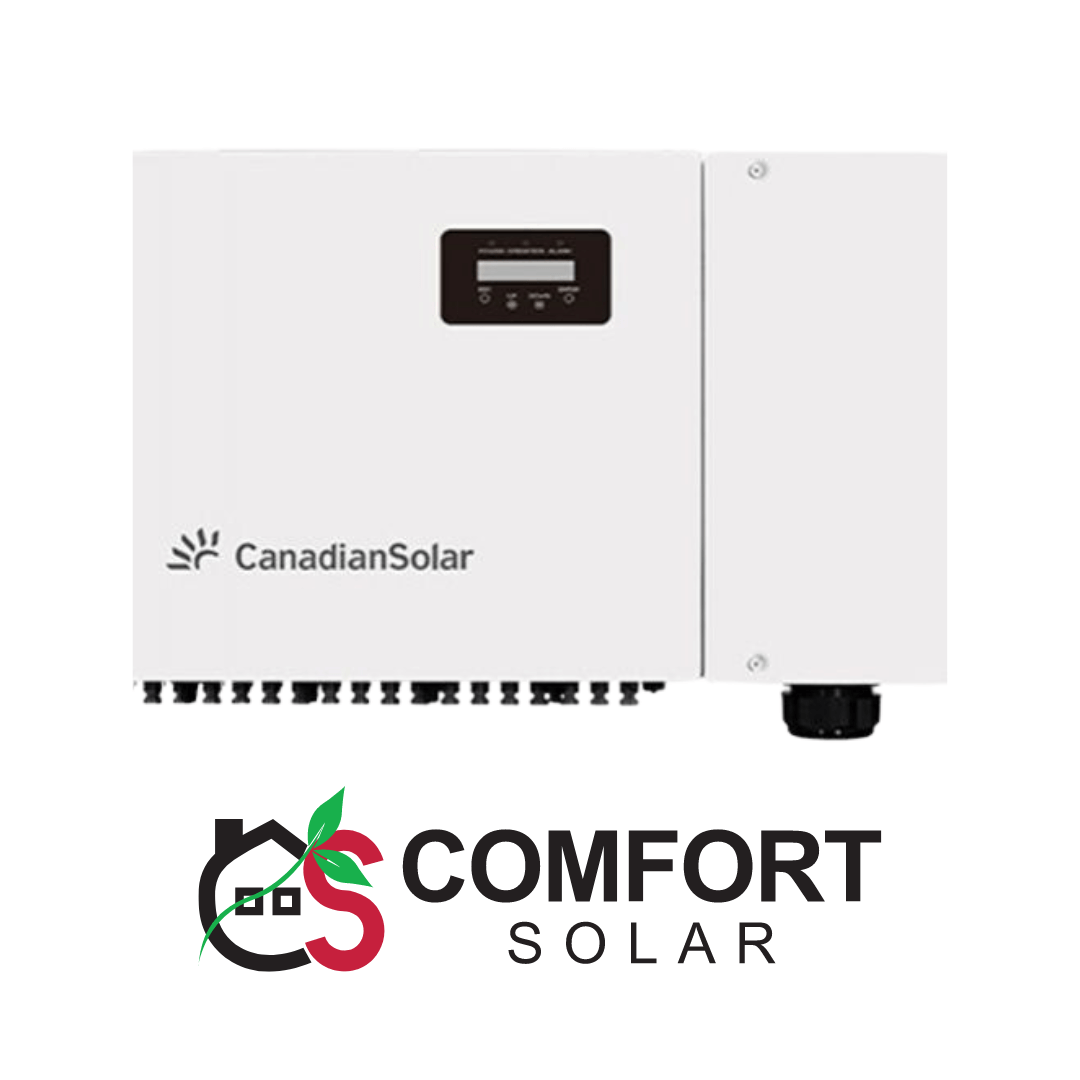

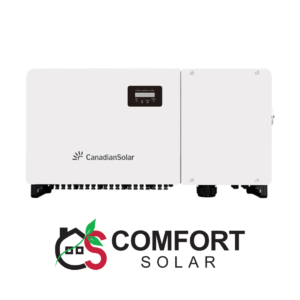

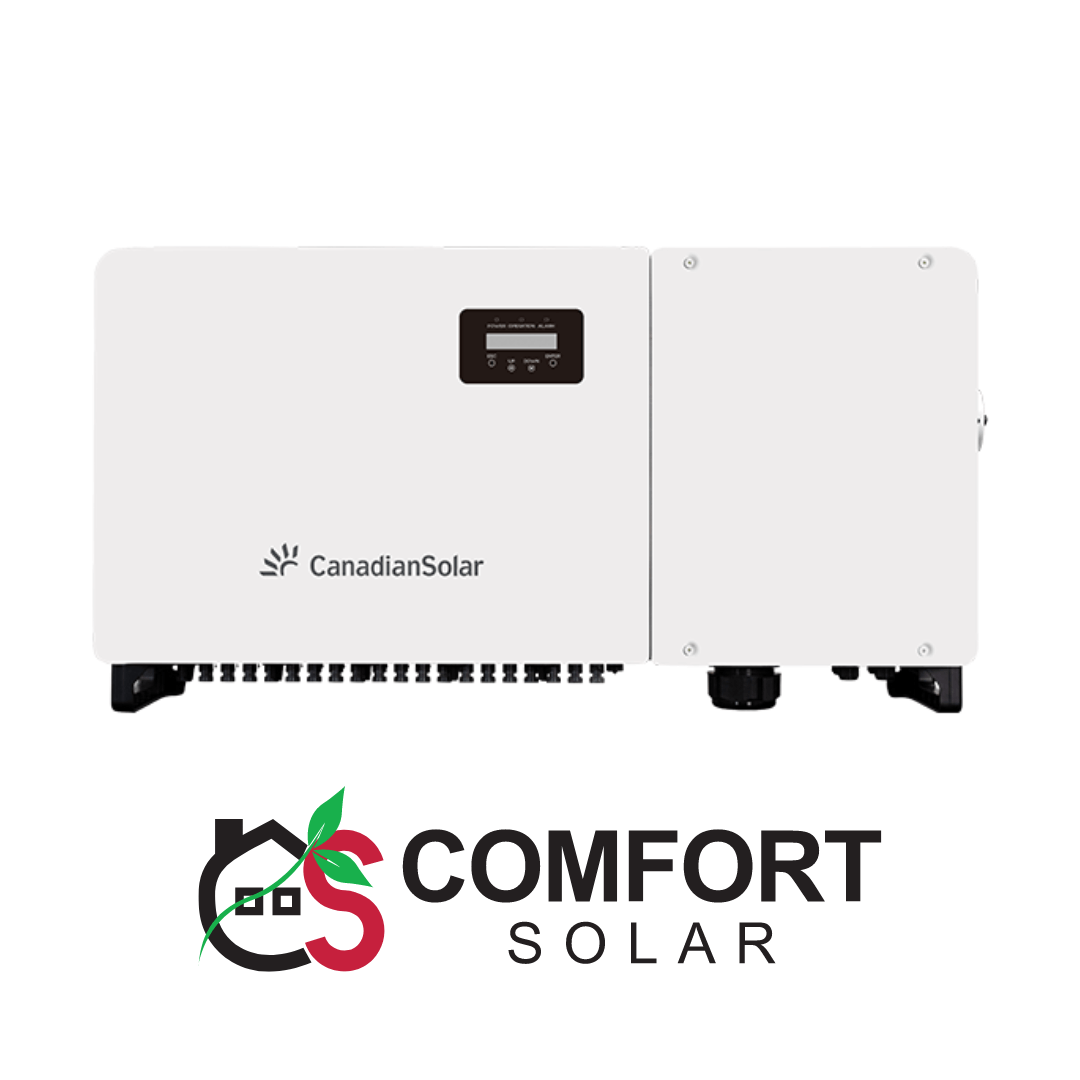

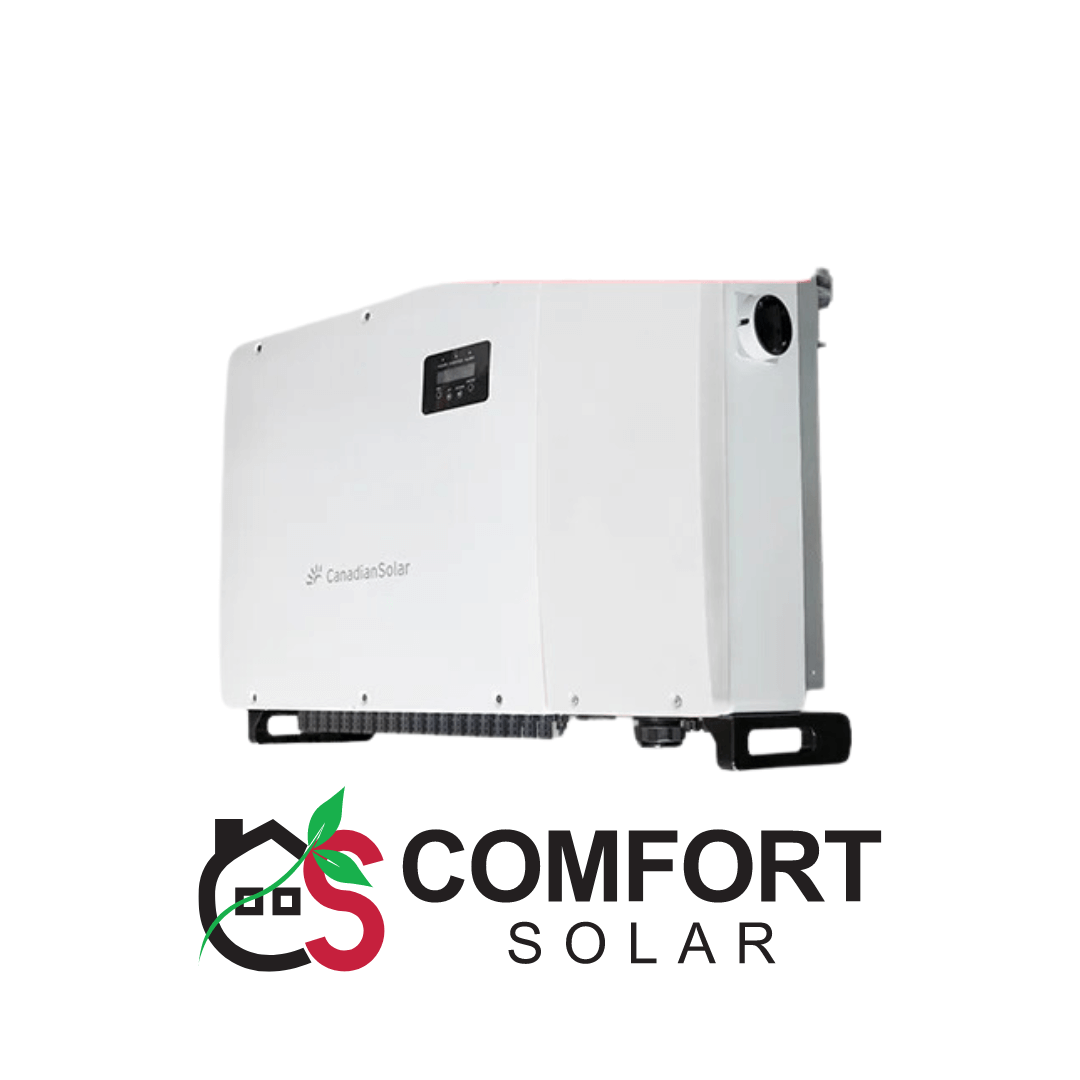

Elevate your solar power system with the THREE-PHASE STRING INVERTER 1000 V from Comfort Solar. Designed to deliver unparalleled efficiency and reliability, this inverter is ideal for large-scale commercial and industrial applications.
Key Features:
Detailed Features:
Why Choose Comfort Solar? Comfort Solar is your partner in sustainable energy solutions. Our THREE-PHASE STRING INVERTER 1000 V combines cutting-edge technology with reliability, ensuring maximum energy efficiency and long-term savings for your business.
Call to Action: Ready to integrate the THREE-PHASE STRING INVERTER 1000 V into your commercial or industrial solar project? Visit comfortsolar.pk today to learn more about our advanced solar solutions. For inquiries or to place an order, contact us directly on WhatsApp at 03166225526. Experience the power of Comfort Solar’s innovative solar technology!
| Max. Input Voltage | 1100 VDC |
|---|---|
| Start-up DC Input Voltage (V) | 195 VDC |
| Rated Input Voltage | 600 VDC |
| MPPT Voltage Range | 200-1000 VDC |
| Max. String Input No. | 12 |
| MPPT No. | 6 |
| Max. Input Current | 6×40 A |
| Rated AC Output Power | 75 kW |
| Max. AC Output Power (Apparent) | 75 kVA |
| Max. Output Current | 114 A |
| Max. DC short-circuit current | 6×50 A |
| Rated Output Frequency | 50 / 60 Hz |
| Power Factor | 0.8 leading … 0.8 lagging |
| Zero Export Solution | Supported |
| Max. Efficiency | 98.5% |
| EU Efficiency | 98.1% |
| Protection Degree | IP66 |
| Cooling | Intelligent Fan Cooling |
| Operating Temperature Range | -30°C to +60°C |
| Operating Altitude | 4000 m (> 3000 m derating) |
| DC switch | Yes |
| Anti-lslanding Protection | Yes |
| DC Reverse Polarity Protection | Yes |
| DC Insulation Resistance Detection | Yes |
| Residual Current Monitoring Unit | Yes |
| String Monitoring | Yes |
| AC Output Over Current Protection | Yes |
| Grid Monitoring | Yes |
| Anti-PID Module | Optional |
| Overvoltage Class | 11 (DC), 111 (AC) |
| DC/AC SPD | DC SPD Type 11 / AC SPD Type 11 (Type 1 Optional) |
| Display | LED & APP |
| Communication | RS485 / WiFi (Optional) |
| Dimensions (W / H / D) | 1050 x 687 x 355 mm |
| Weight | 90 kg |
| AC Short Circuit Protection | Yes |
| DC Inputs Type | MC4 |
| AC Outputs Type | OT Terminals (Support the AC cables Max. 240mm2) |
| Safety / EMC | IEC62109-1/2, IEC 61000-6-2/3 |
| Operating Humidity | 0 – 100% Non-condensing |
| Grid Code | IEC61727 & IEC62116 |
