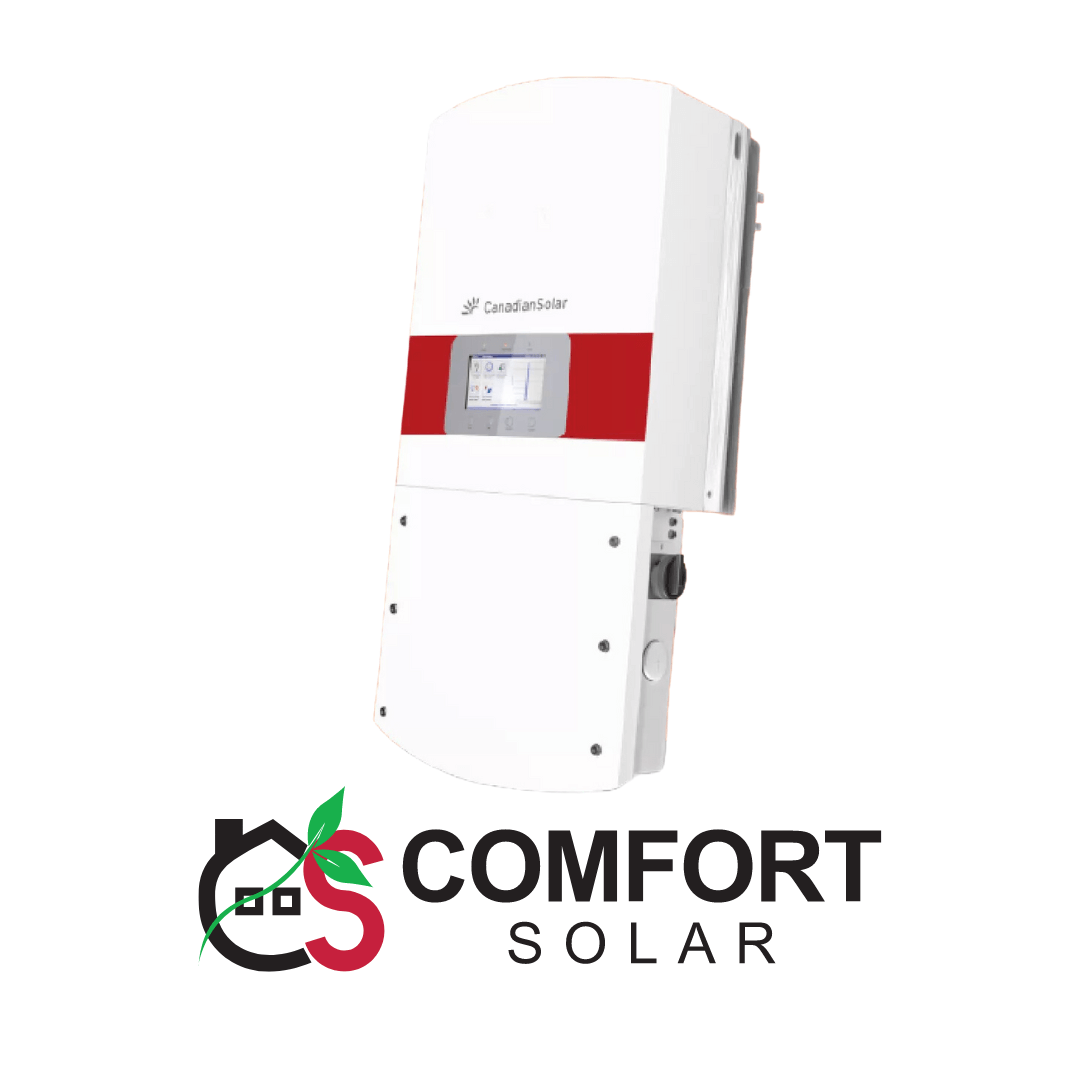

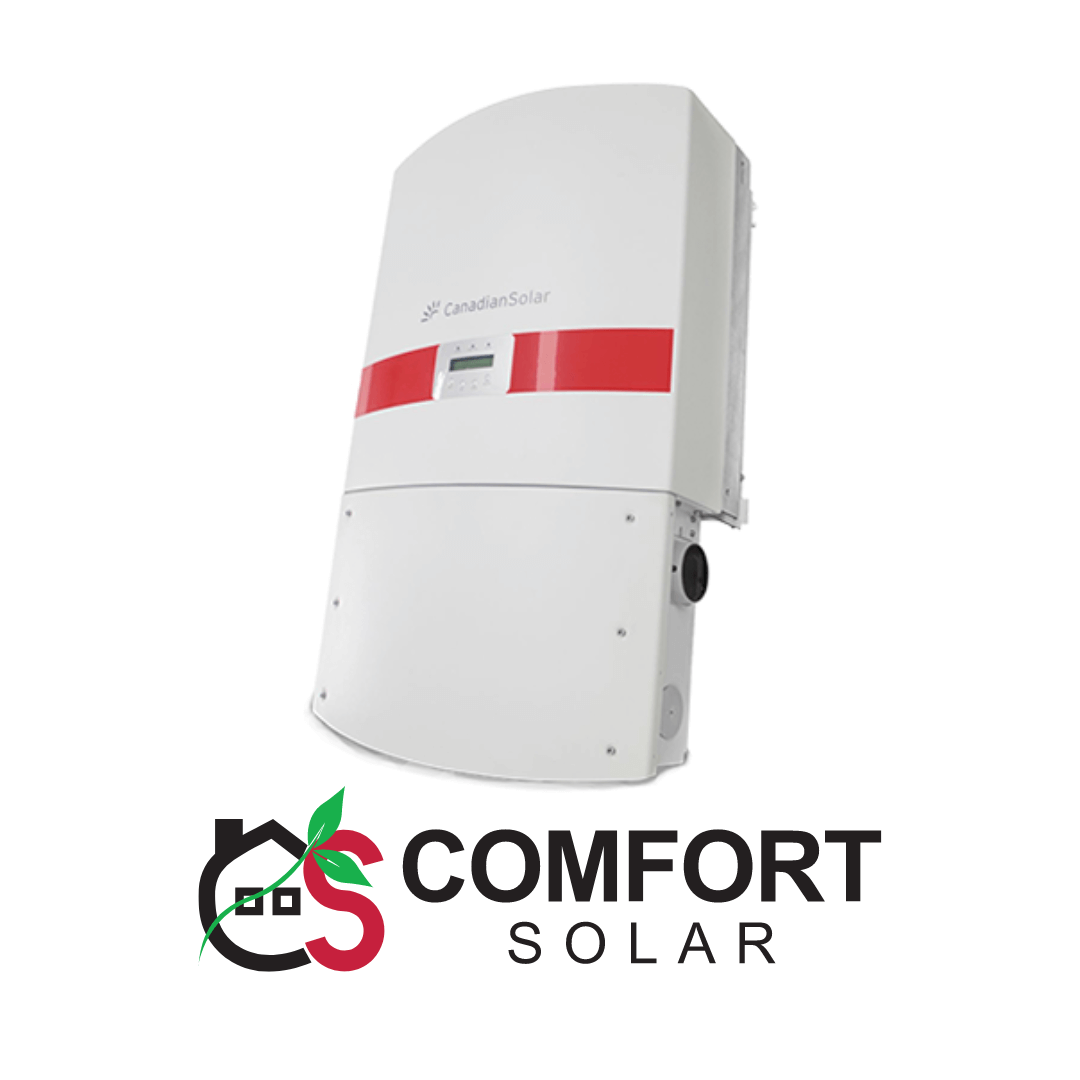

Canadian CSI 60KW three phase string inverter

GUARANTEED SAFE PAYMENTS
Share it to:
International Shipment

Your orders are shipped seamlessly between countries

30 Days Warranty

You have the right to return your orders within 30 days.

Secure Payment

Your payments are secure with our private security network.

Description

Discover the pinnacle of efficiency and reliability with the THREE-PHASE STRING INVERTER 1000 V from Comfort Solar. Tailored for versatile application scenarios, this inverter series sets new standards in performance for medium to large-scale solar installations.

Key Features:

  • Maximum Efficiency: Achieve up to 98.7% efficiency, optimizing energy conversion from solar panels to the grid.
  • Multiplex MPPT Design: Features advanced multiplex MPPTs to handle complex application scenarios, ensuring maximum power generation under varying conditions.
  • High Input Capacity: Supports 16A input for multiple high-power modules, enhancing system flexibility and scalability.
  • Integrated Features: Includes integrated DC switches and smart string monitoring for simplified installation and enhanced operational efficiency.
  • Optional Anti-PID Function: Integrated anti-PID function (optional) prevents potential-induced degradation, extending the lifespan of your solar system.
  • Compatibility: Supports aluminum cables for robust and efficient power transmission.

Detailed Features:

  1. Efficiency and Performance: The THREE-PHASE STRING INVERTER 1000 V delivers exceptional efficiency and performance across its range, ensuring reliable power output even in demanding environments.
  2. Technical Specifications: With its multiplex MPPT design and support for high-power modules, this inverter series adapts seamlessly to various installation configurations, maximizing energy yield.
  3. Integrated Safety and Monitoring: Equipped with integrated DC switches, smart string monitoring, and optional anti-PID function, the inverter guarantees safe and efficient operation while minimizing maintenance requirements.

Why Choose Comfort Solar? Comfort Solar is committed to delivering cutting-edge solar solutions that redefine efficiency and sustainability. Our THREE-PHASE STRING INVERTER 1000 V series combines advanced technology with unmatched reliability, ensuring superior performance and long-term value for your solar investment.

Call to Action: Ready to elevate your solar project with the THREE-PHASE STRING INVERTER 1000 V / 40-60 KW? Visit comfortsolar.pk today to explore our comprehensive range of solar products. For inquiries or to place an order, contact us directly on WhatsApp at 03166225526. Experience the innovation and reliability of Comfort Solar’s advanced solar solutions!

Additional information

Max. DC Input Voltage

1100 V

Start-up DC Input Voltage/Power

200 V

Nominal AC Output Current @480 Vac

60.2/57.7 A

Operating DC Input Voltage Range

200-1000 V

Max. PV Power

60 kW (16 kW/MPPT)

Model Name

CSI-50KTL-G1-HFL

Number of MPP trackers

4

MPPT Full Power Voltage Range

568-850 VDC

Operating Current (Imp)

88 A (22 A per MPPT)

Max. Input Current (Isc)

137.2 A (34.3 A per MPPT)

Number of DC Inputs

8 (2 per MPPT)

DC Disconnection Type

Load rated DC switch

Rated AC Output Power

50 kW

Max. AC Output Power

55 kW

Rated Output Voltage

480/500 V

Output Voltage Range

384-576 V

Grid Connection Type

3 Q/PE

Rated Output Frequency

50/60 Hz

Output Frequency Range*

47-52/57-62 Hz

Power Factor

I default (±0.8 adjustable)

Topology

Transformerless

Max. Efficiency

99%

CEC Efficiency

98.5%

Protection Degree

IP65

Cooling

Natural Convection Cooling

Operating Temperature Range

-25°C to +60°C

Storage temperature range

-40°C to +70°C

Operating Humidity

0-100%

Operating Altitude

4000 m

Audible Noise

dBA @ 1 m

Display

LCD + LED

Communication

Standard: RS485 (Modbus)

Dimensions (W / H / D)

630 x 700 x 357 mm

Weight

61 kg

Installation Angle

90 degrees from horizontal

DC Inputs

MC4

Safety and EMC Standard

IEC62109-1/-2

Grid Standard

AS4777, NRS097

Smart-Grid Features

Voltage-Ride Thru, Frequency-Ride Thru, Soft-Start, Volt-Var, Frequency-watt, Volt-Watt

Brand

Canadian Solar

Canadian Solar’s products and solutions are available on our website, Comfort Solar. The company has an extensive global presence, with subsidiaries in 23 countries and over 26 manufacturing facilities across Asia and the Americas. In addition to its core operations, Canadian Solar is involved in project development through its Recurrent Energy platform and offers comprehensive battery energy storage solutions via its e-STORAGE brand. For more information on their offerings, visit Comfort Solar's website.
Canadian Solar Inc., founded in 2001, is a leading global solar technology and renewable energy company based in Canada. The company specializes in manufacturing solar photovoltaic modules, providing solar energy solutions, and offering battery energy storage solutions. Canadian Solar operates across multiple segments, including solar module production, utility-scale solar projects, and battery energy storage systems. By December 2024, it is expected to have a production capacity of 61GW for solar modules and 20GWh for battery storage. The company has successfully delivered over 125 GW of solar modules and developed more than 10 GWp of solar projects worldwide.
