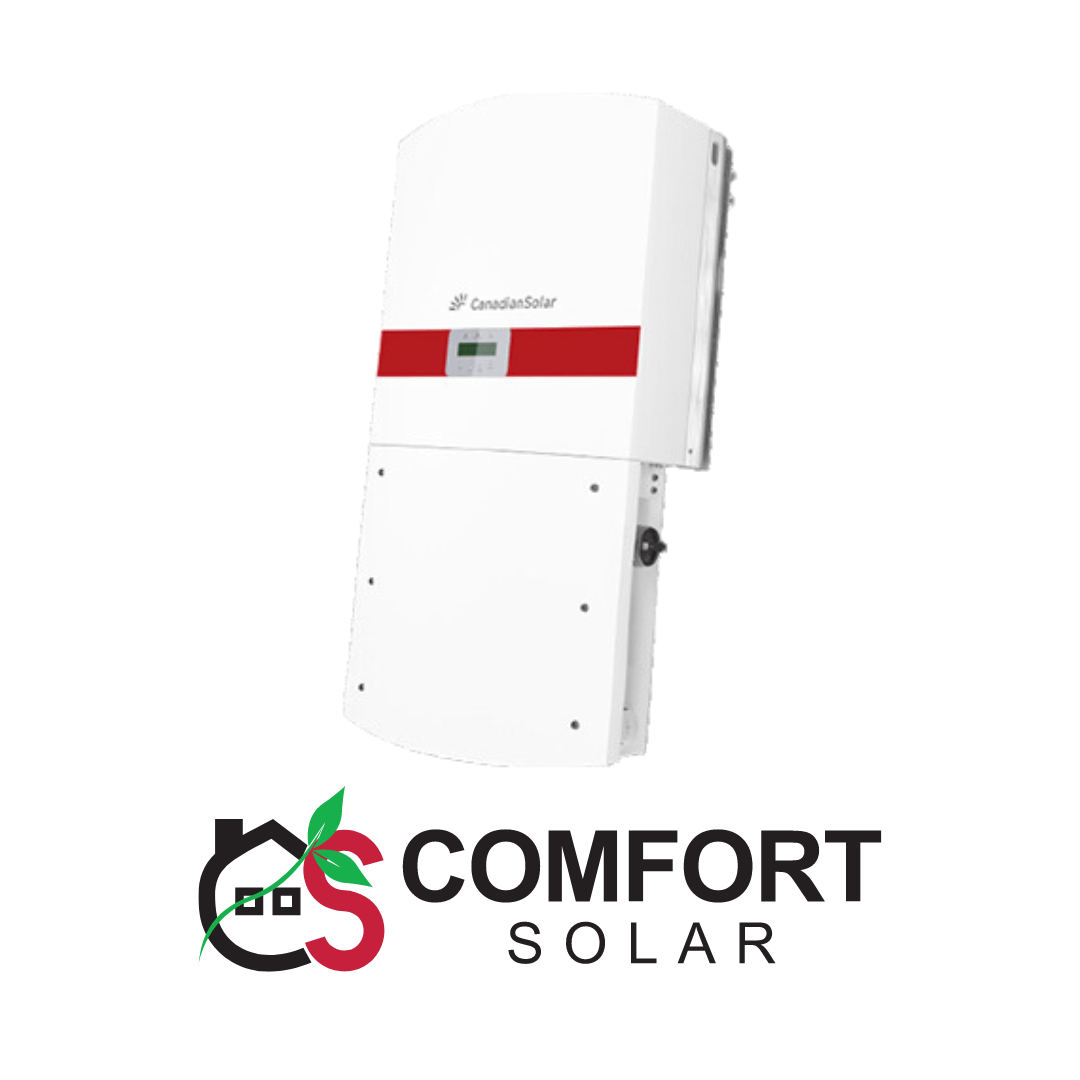

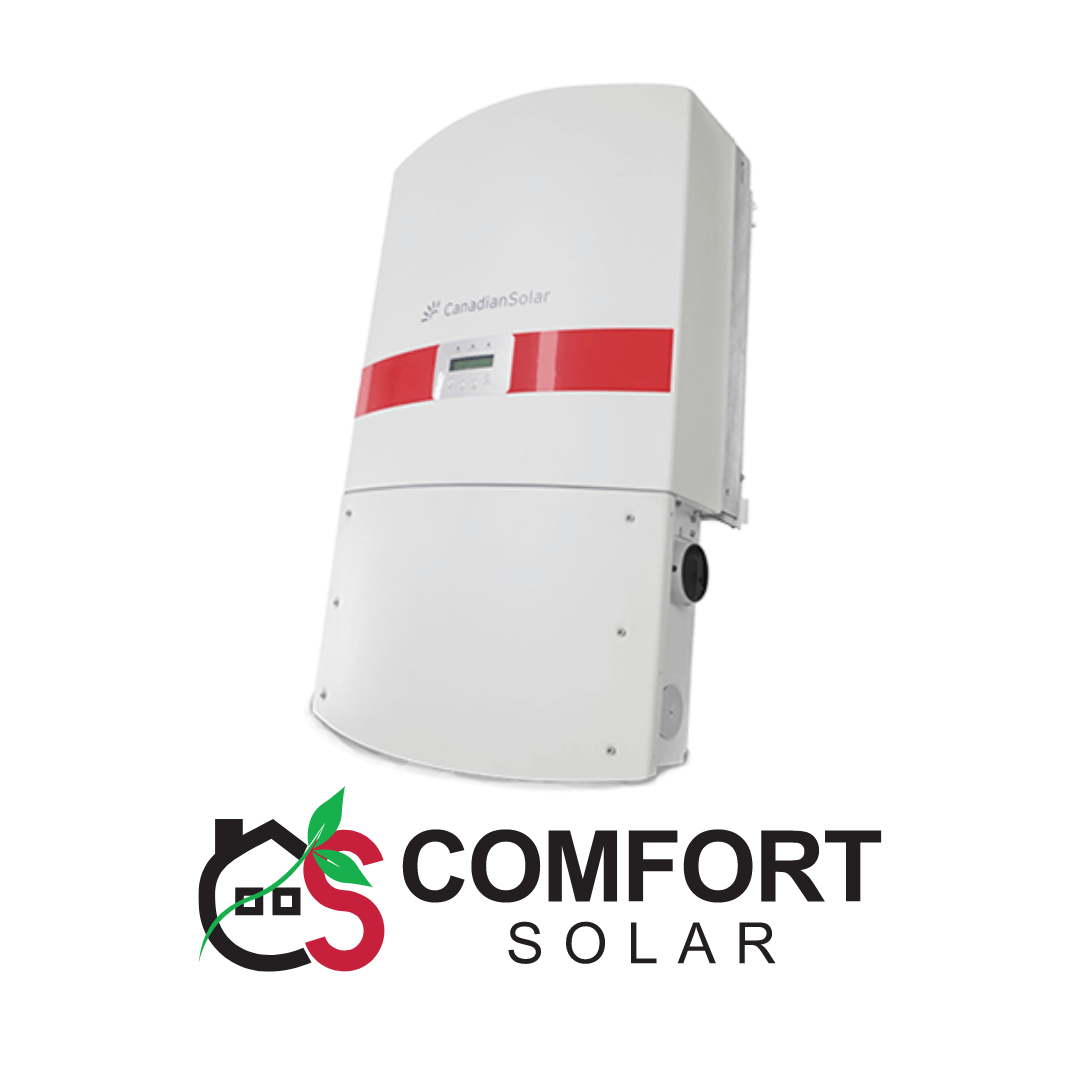

      Canadian CSI 50KW three phase string inverter
      Canadian CSI 60KW three phase string inverter
      Canadian Solar inverter for Comfort Solar systems.
      Canadian CSI 50KW three phase string inverter

      Canadian CSI 50KW three phase string inverter

      GUARANTEED SAFE PAYMENTS
      Payment options: JazzCash, Easypaisa, and Cash on Delivery (COD) truck icon.
      Share it to:
      Variable Pricing

      Due to high market volatility, prices for our products are subject to change.

      Final Prices

      The actual price will be provided once the customer contacts our sales representative via WhatsApp.

      Deposit Requirement

      The product will be dispatched only after a partial deposit is made in our business account.

      Additional information

      Max. DC Input Voltage

      1100 V
      Start-up DC Input Voltage/Power

      200 V
      Nominal AC Output Current @480 Vac

      76/72.2 A
      Operating DC Input Voltage Range

      200-1000 V
      Smart-Grid Features

      Voltage-Ride Thru, Frequency-Ride Thru, Soft-Start, Volt-Var, Frequency-watt, Volt-Watt
      Number of MPP trackers

      4
      MPPT Full Power Voltage Range

      439-850 VDC
      Operating Current (Imp)

      114 A (28.5 A per MPPT)
      Max. Input Current (Isc)

      178 A (44.5 A per MPPT)
      Number of DC Inputs

      12 (3 per MPPT)
      DC Disconnection Type

      Load rated DC switch
      Topology

      Transformerless
      Max. AC Output Power

      55 kW
      Rated Output Voltage

      380/400 V
      Output Voltage Range

      304-460 V
      Grid Connection Type

      3 Q/PE
      Rated Output Frequency

      50/60 Hz
      Output Frequency Range*

      47-52/57-62 Hz
      Power Factor

      1 default (±0.8 adjustable)
      Protection Degree

      IP65
      Model Name

      CSI-40KTL-G1-FL
      Max. PV Power

      58 kW (22.5 kW/MPPT)
      Max. Efficiency

      98.8%
      CEC Efficiency

      98.4%
      Operating Altitude

      4000 m
      Rated AC Output Power

      50 kW
      Cooling

      Natural Convection Cooling
      Operating Temperature Range

      -25°C to +60°C
      Storage temperature range

      -40°C to +70°C
      Operating Humidity

      0-100%
      Audible Noise

      dBA@1 m
      Display

      LCD + LED
      Communication

      Standard: RS485 (Modbus)
      Dimensions (W / H / D)

      630 x 700 x 357 mm
      Weight

      61 kg
      Installation Angle

      90 degrees from horizontal
      DC Inputs

      MC4
      Safety and EMC Standard

      IEC62109-1/-2, AS3100, EN61000-6-1, EN61000-6-3
      Grid Standard

      AS4777, NRS097, G59/3, VDE0126-1-1, IEC61727

      Description

      Elevate your solar power system with the THREE PHASE STRING INVERTER 40-50 KW from Comfort Solar. Designed for commercial rooftop and small ground-mount applications, this inverter series combines efficiency, reliability, and flexibility to optimize energy harvest.

      Key Features:

      • High Efficiency: Achieve up to 98.8% maximum efficiency, ensuring maximum energy conversion from solar panels to the grid.
      • Multiple MPPTs: Features 4 MPPTs for higher system efficiency and flexibility in energy management.
      • Transformerless Design: Optimized for reduced size, weight, and installation costs without compromising performance.
      • Fast MPPT Response: Ultra-fast MPPT (<5 sec.) and high switching frequency maximize efficiency over a wide load range.
      • Advanced Thermal Design: Includes convection cooling and built-in protections such as over-voltage, over-current, DC reverse polarity, and AC short circuit protection for enhanced reliability.
      • High Reliability: IP65 rated for outdoor applications with utility interactive controls for active power derating, reactive power control, and over frequency derating.
      • Broad Adaptability: Supports up to 12 DC string inputs (3 per MPPT) and wide MPPT range (200-1000 VDC), facilitating flexible string sizing and significant balance of system (BoS) cost savings.

      Efficiency Curve:

      • View the efficiency curve for the CSI-50KTL-GI@380 Vac model here, demonstrating high efficiency across various load ranges.

      Why Choose Comfort Solar? Comfort Solar is dedicated to delivering cutting-edge solar solutions that enhance efficiency and sustainability. Our THREE PHASE STRING INVERTER 40-50 KW series from Comfort Solar leverages advanced technology and robust design to ensure long-term performance and value for your solar investment.

      Call to Action: Ready to integrate the THREE PHASE STRING INVERTER 40-50 KW into your commercial solar project? Visit comfortsolar.pk today to explore our comprehensive range of solar products. For inquiries or to place an order, contact us directly on WhatsApp at 03166225526. Experience the innovation and reliability of Comfort Solar’s advanced solar solutions!

      Brand

      Canadian Solar

      Canadian Solar’s products and solutions are available on our website, Comfort Solar. The company has an extensive global presence, with subsidiaries in 23 countries and over 26 manufacturing facilities across Asia and the Americas. In addition to its core operations, Canadian Solar is involved in project development through its Recurrent Energy platform and offers comprehensive battery energy storage solutions via its e-STORAGE brand. For more information on their offerings, visit Comfort Solar's website.
      The CanadianSolar logo featuring a stylized sun and the company name.
      Canadian Solar Inc., founded in 2001, is a leading global solar technology and renewable energy company based in Canada. The company specializes in manufacturing solar photovoltaic modules, providing solar energy solutions, and offering battery energy storage solutions. Canadian Solar operates across multiple segments, including solar module production, utility-scale solar projects, and battery energy storage systems. By December 2024, it is expected to have a production capacity of 61GW for solar modules and 20GWh for battery storage. The company has successfully delivered over 125 GW of solar modules and developed more than 10 GWp of solar projects worldwide.
