Additional information

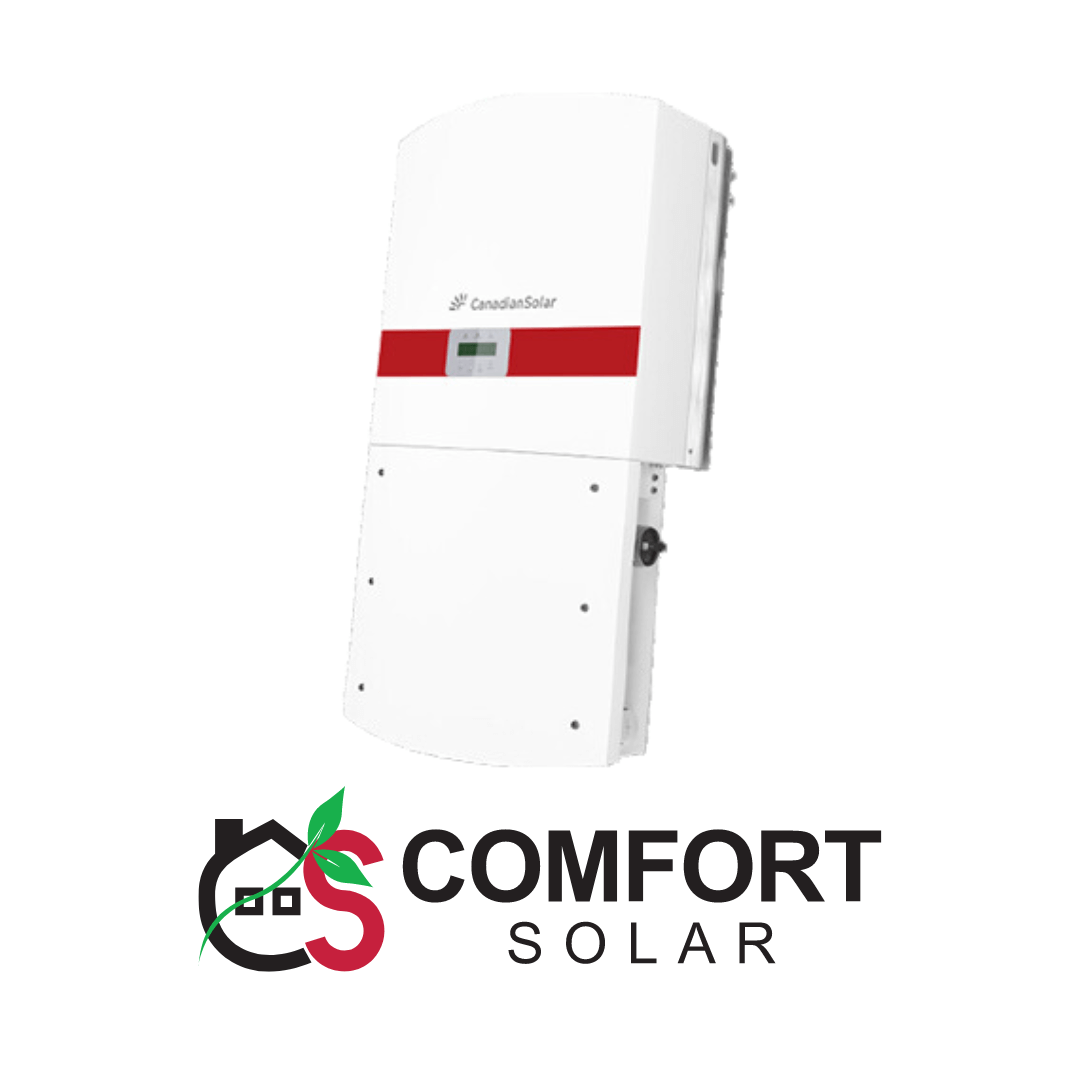

Model Name | CSI-40K-T4001A-E, CSI-50K-T4001A-E, CSI-60K-T4001A-E |
---|---|
Max. Input Voltage | 1100 VDC |
Start-up DC Input Voltage (V) | 195 VDC |
Rated Input Voltage | 600 VDC |
MPPT Voltage Range | 200 – 1000 VDC |
MPPT No. | 3, 4, 5 |
Max. String Input No. | 10, 6, 8 |
Max. Input Current | 3×30 A, 4 X 30 A, 5x30A |
Max. DC short-circuit current | 3×40 A, 4 x 40 A, 5 x 40 A |
Rated AC Output Power | 40 kW, 50 kW, 60 kW |
Max. AC Output Power (Apparent) | 40 kVA, 50 kVA, 60 kVA |
Rated Output Voltage | 380 / 400 VAC |
Grid Connection Type | 3 L/ N/ PE |
Max. Output Current | 60.8 A, 76 A, 91.2 A |
Rated Output Frequency | 50/60 Hz |
THDi | <3% |
Power Factor | 0.8 leading 0.8 lagging |
Zero Export Solution | Supported |
Max. Efficiency | 98.7 % |
EU Efficiency | 98.3 % |
Protection Degree | IP66 |
Cooling | Intelligent Air Cooling |
Operating Temperature Range | -30°C to +60°C |
Operating Humidity | 0 – 100 % Non-condensing |
Operating Altitude | 4000 m (> 3000 m derating) |
DC switch | Yes |
Anti-lslanding Protection | Yes |
DC Reverse Polarity Protection | Yes |
DC Insulation Resistance Detection | Yes |
Residual Current Monitoring Unit | Yes |
String Monitoring | Yes |
AC Output Over Current Protection | Yes |
AC Short Circuit Protection | Yes |
Grid Monitoring | Yes |
Anti-PID Module | Optional |
Overvoltage Class | 11 (DC), 111 (AC) |
DC/AC SPD | DC SPD Type 11 / AC SPD Type 11 |
Display | LED Indicators & APP |
Communication | RS485 / WiFi (Optional) |
Dimensions (W / H / D) | 720 x 555 x 288 mm |
Weight | 48 kg, 50 kg, 51 kg |
DC Connection Type | MC4 |
AC Connection Type | OT Terminals |
Safety / EMC | IEC62109, IEC 61000-6-1/2/3/4 |
Grid Code | IEC61727 & IEC62116, EN50549-1 |
